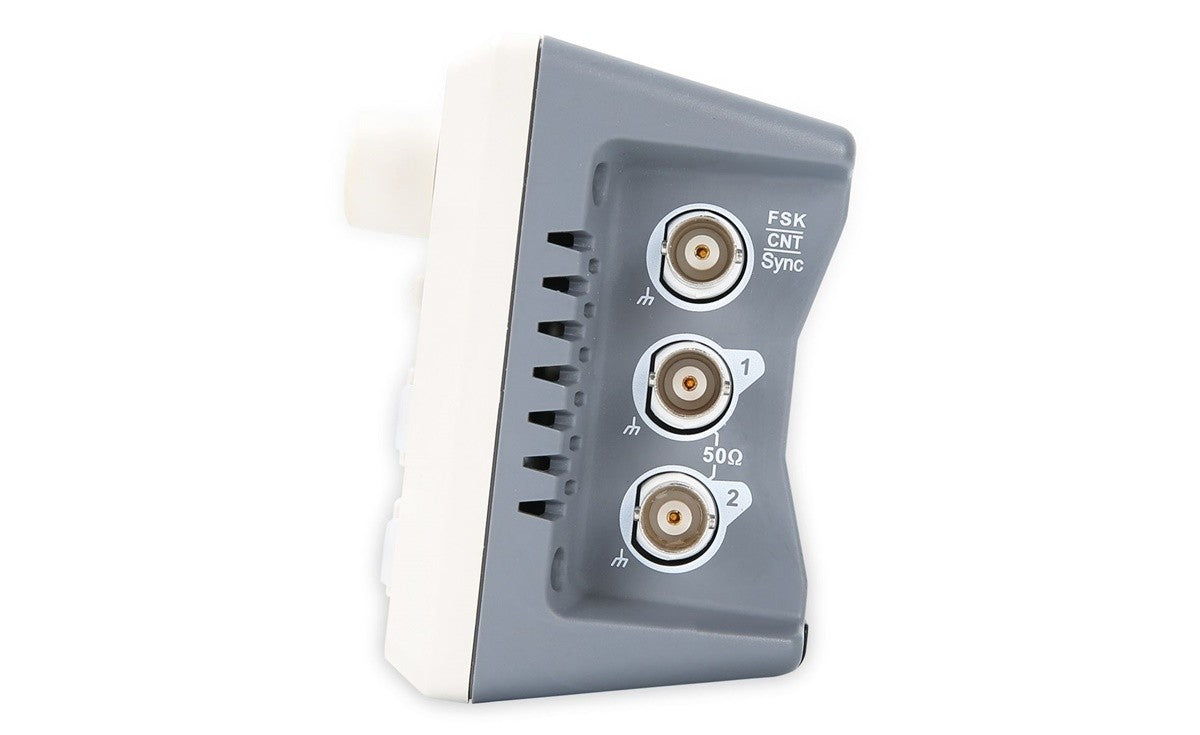

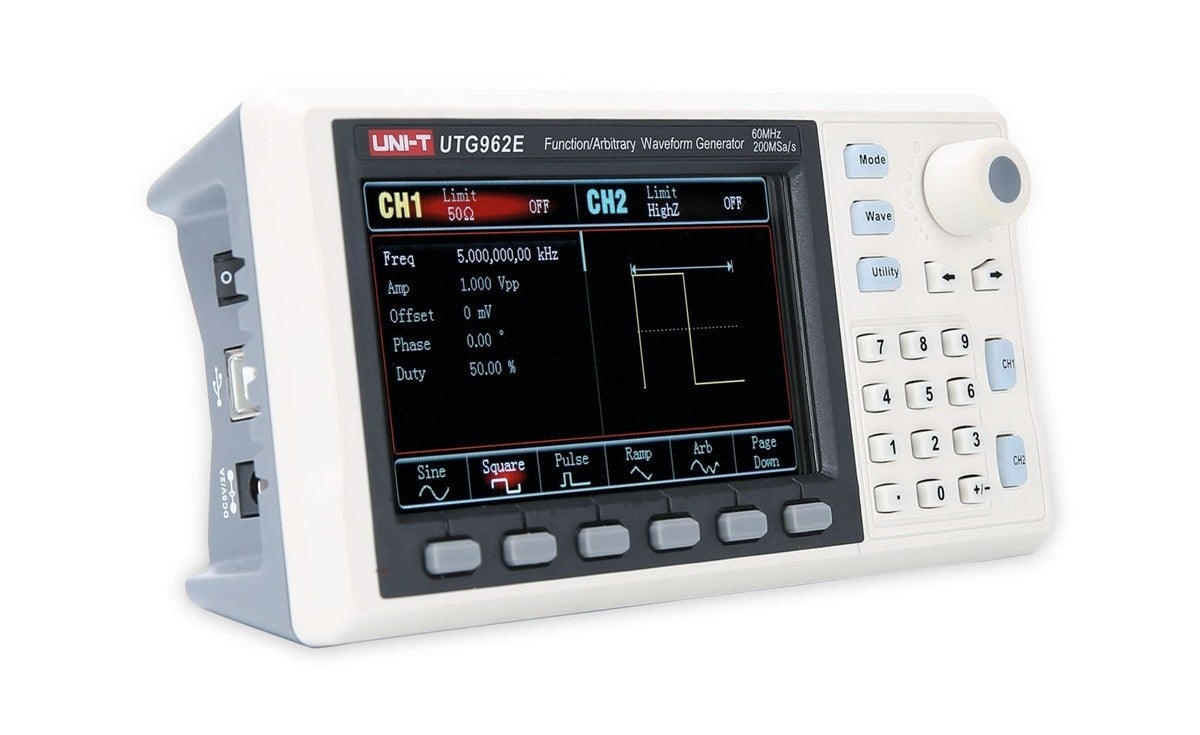

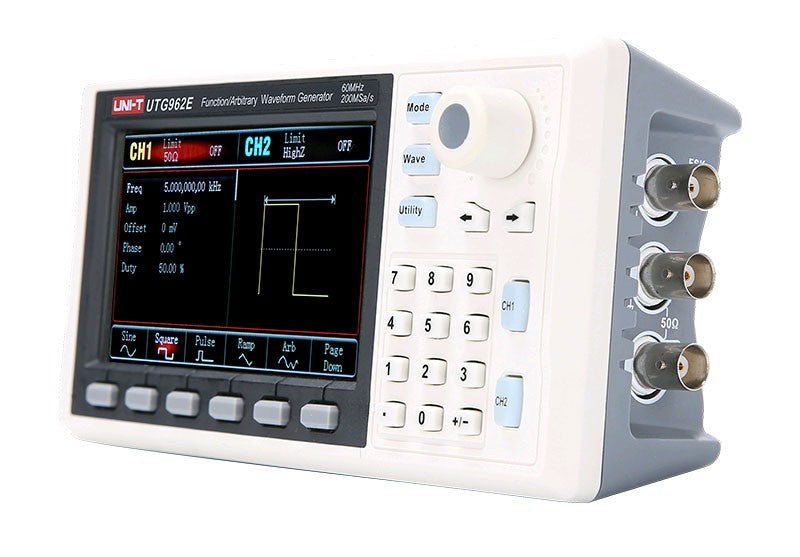

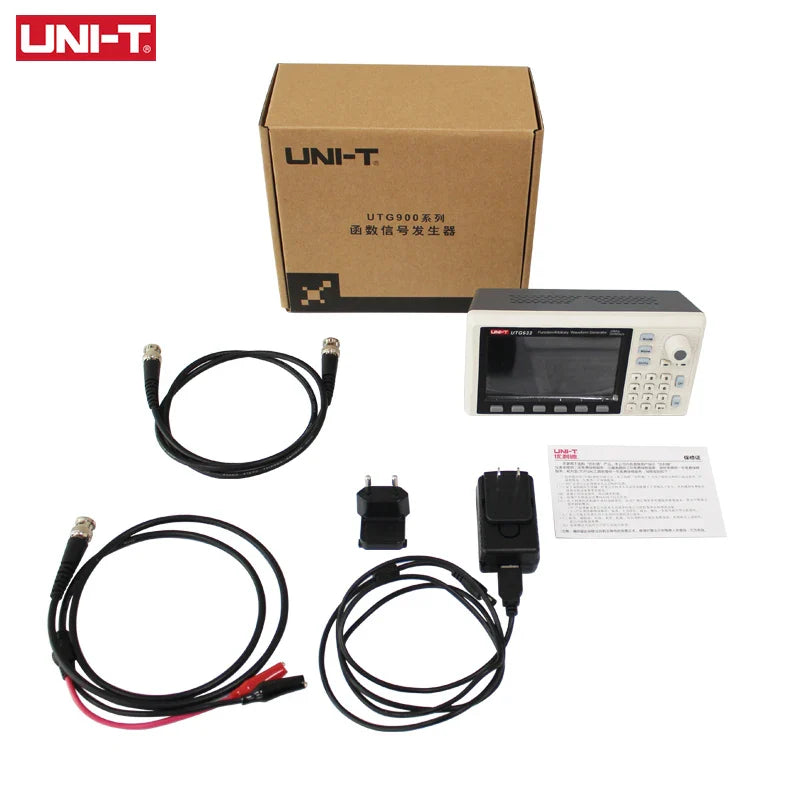

UNI-T UTG962E function generator
Description
Create accurate and stable waveforms with the UTG962E function generator. This versatile instrument is perfect for various applications, offering a wide range of features and functions.
Key Features:
- 14-bit resolution for precise waveform generation
- 60MHz bandwidth for high-frequency applications
- 24 built-in waveforms
- PC software for custom waveform creation
- User-friendly interface and graphical display
- Compact and portable design
Specifications:
- Vertical resolution: 14 bit
- Frequency range: 1 µHz - 60 MHz
- Frequency resolution: 1 µHz
- Number of channels: 2
- Sample rate: 200 MSa/s
- Maximum waveform length: 4k points
- Amplitude range: ≤10 MHz: 1 mVpp - 10 Vpp, ≤60 MHz: 1 mVpp - 5 Vpp
- Output precision: ± (3% + 2 mVpp)
- Display: 4.3" (480 x 272) color LCD
- Output impedance: 50 Ω
- Output signals: Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary
- Modulation functions: AM, FM, PM, FSK
- Connectivity: USB
Applications:
- Electronics design and development
- Education and training
- Research and development
- Testing and measurement
