UNI-T UTG9604T 600 MHz 4-Channel Arbitrary Waveform Generator / Function Generator – Main 2.5 GSa/s; AUX 625 MSa/s
Pickup available at Digilog Electronics
Usually ready in 2 hours

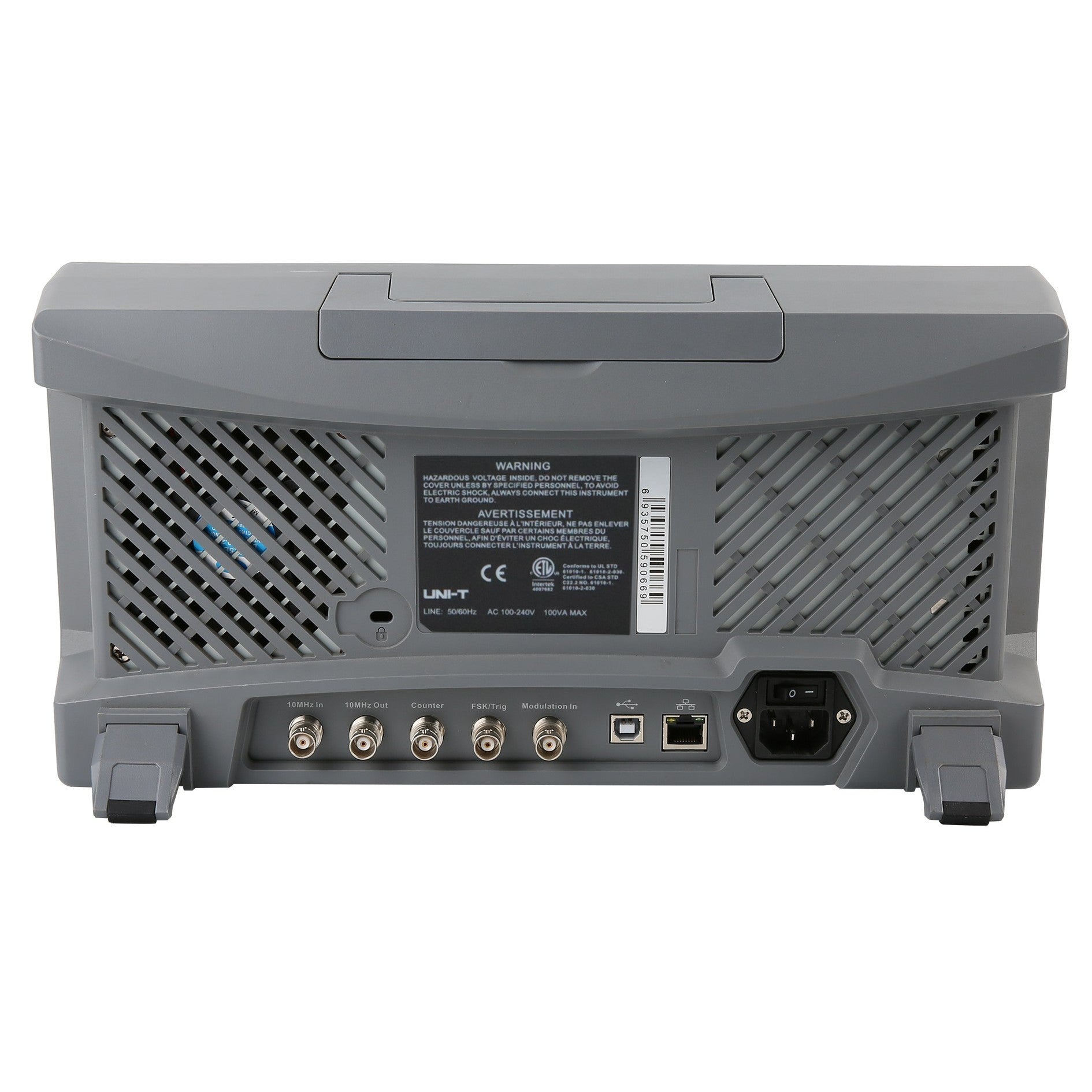

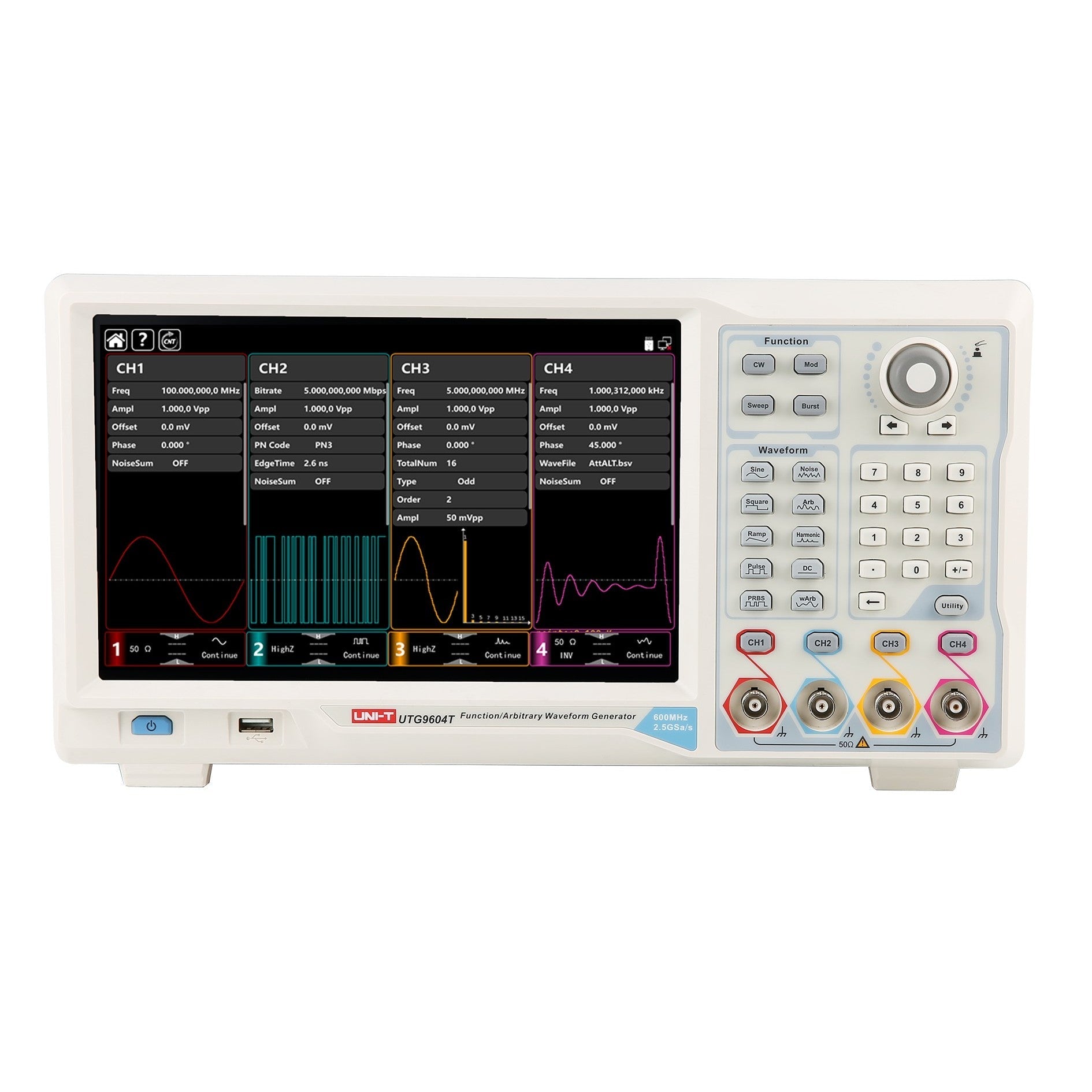

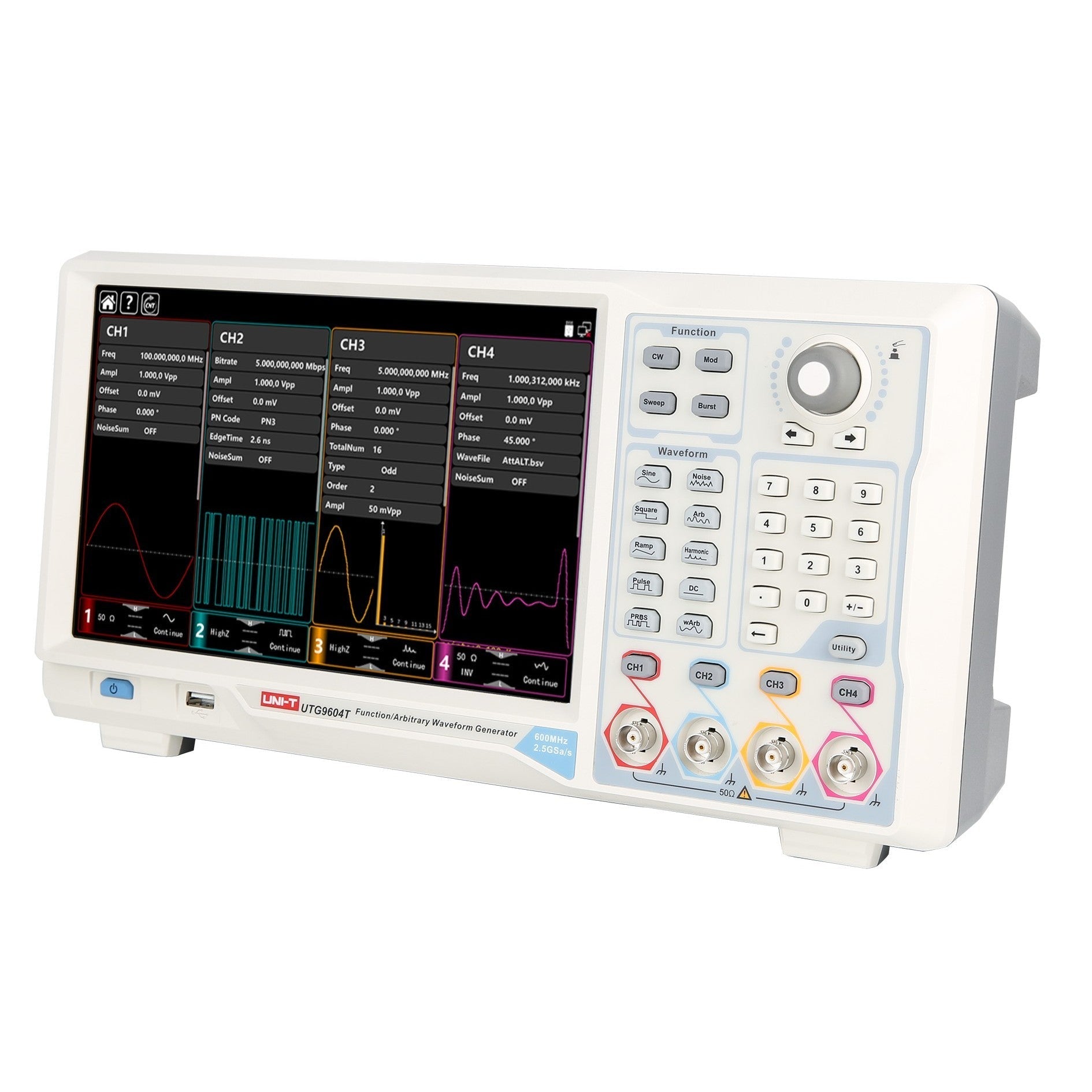

UNI-T UTG9604T — The UNI-T UTG9604T is a four-channel arbitrary waveform generator built on a 2 Main + 2 AUX channel architecture. The two Main channels (CH1, CH2) output to 600 MHz sine at a 2.5 GSa/s sample rate with a 16-bit vertical-resolution DAC; the two AUX channels (CH3, CH4) provide additional independent outputs to 200 MHz at 625 MSa/s and 16-bit resolution. An 8 pts to 64 Mpts per-Main-channel arbitrary memory and 16 GB of internal file storage support long-form custom stimulus. A 10.1-inch capacitive touch display replaces menu-driven navigation with direct parameter manipulation. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 600 MHz Main sine / 200 MHz Main square & pulse — 2 Main + 2 AUX channels, 1 µHz frequency resolution.
- 16-bit Main-channel DAC — CH1/CH2 at 2.5 GSa/s; CH3/CH4 AUX at 16-bit / 625 MSa/s.
- 8 pts to 64 Mpts arbitrary memory — per Main channel, 200+ non-volatile built-ins, 16 GB internal file storage.
- THD 0.075% — low distortion with high SNR and a one-click SNR overlay for signal-to-noise testing.
- 15 modulation types — AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, PWM.
- Advanced functions — Multi-Pulse, Multi-Tone, Sequence, Pattern, I/Q, and Expression-based generation built in.
- PRBS PN3 to PN33 — with adjustable bit rate and edge time for serial-link and jitter-tolerance test.
Technical Specifications
| Main-channel max sine (CH1/CH2) | 600 MHz |
|---|---|
| AUX-channel max sine (CH3/CH4) | 200 MHz |
| Main-channel max square / pulse | 200 MHz |
| AUX-channel max square / pulse | 60 MHz |
| Main-channel vertical resolution | 16-bit |
| AUX-channel vertical resolution | 16-bit |
| Frequency resolution | 1 µHz (full band) |
| Channels | 4 total — 2 Main (CH1/CH2) + 2 AUX (CH3/CH4) |
| Sample rate | Main 2.5 GSa/s; AUX 625 MSa/s |
| Arbitrary waveform length | Main 8 pts to 64 Mpts/CH; AUX 8 kpts (fixed) |
| Built-in arbitrary waveforms | Over 200, non-volatile |
| Arbitrary file storage | 16 GB internal for arbitrary-waveform files (.bsv/.csv) |
| Standard waveforms | Sine, Square, Ramp, Pulse, Harmonic, Noise, PRBS, DC, Arbitrary |
What's in the Box

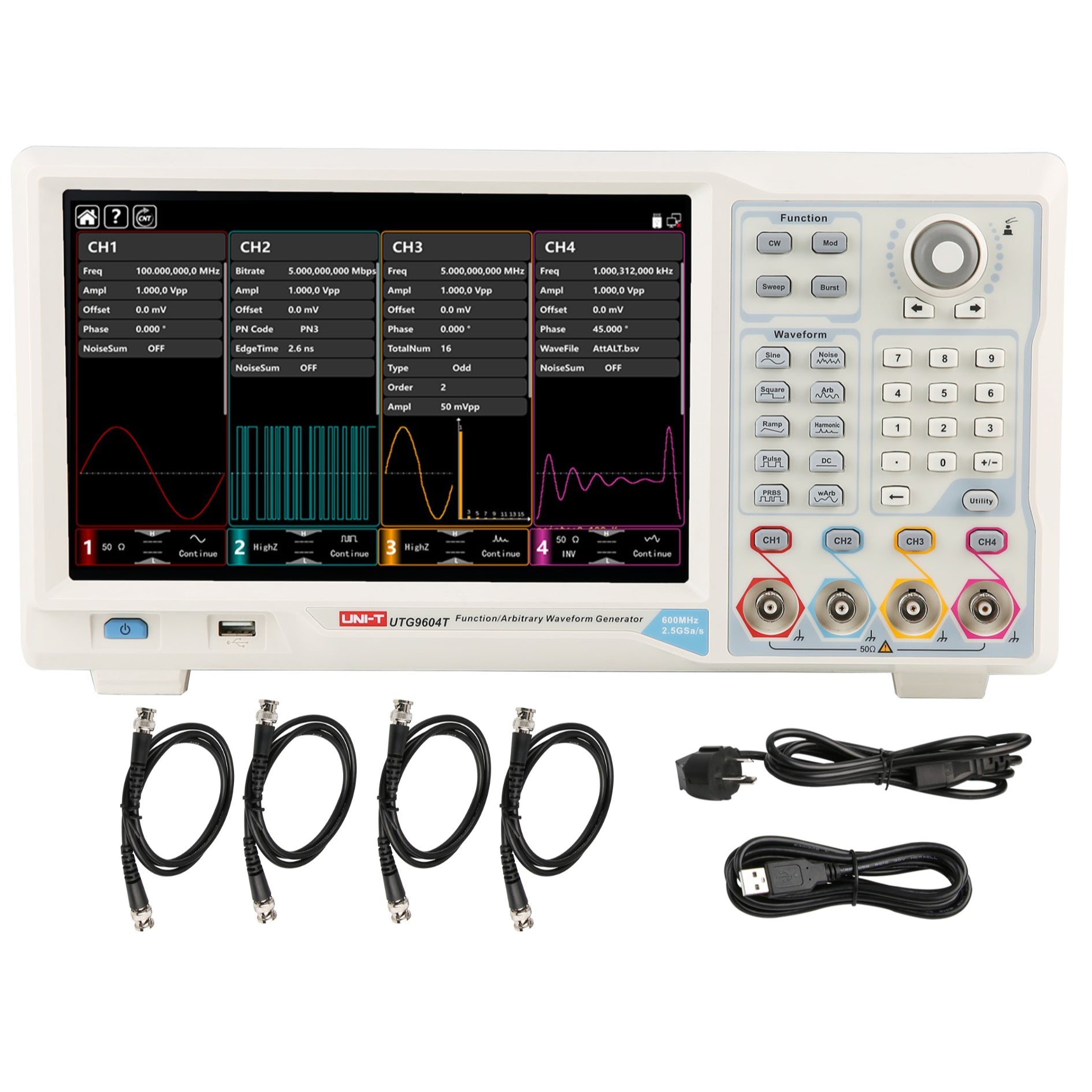

- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
