UNI-T UTG932E 30 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTG932E 30 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s

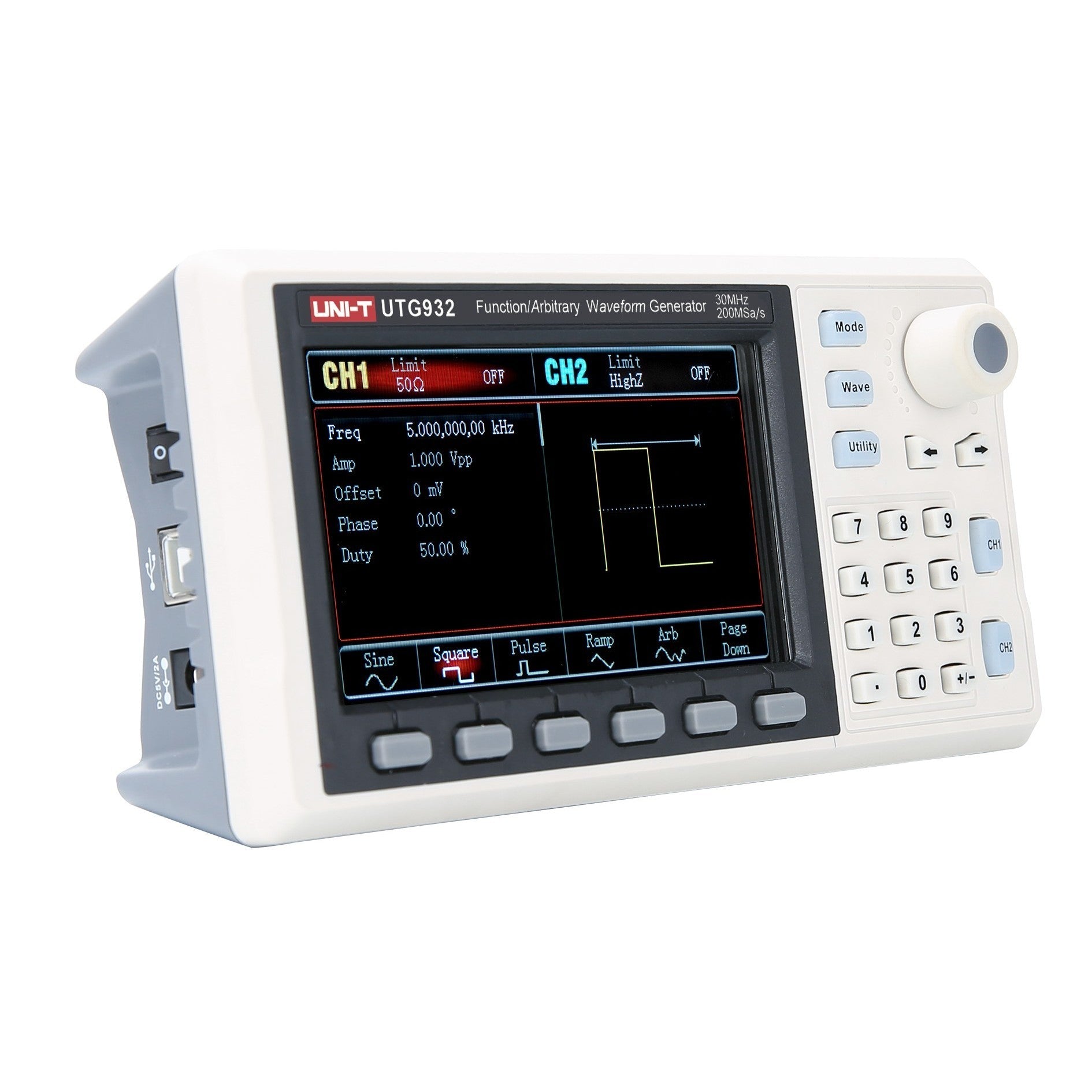

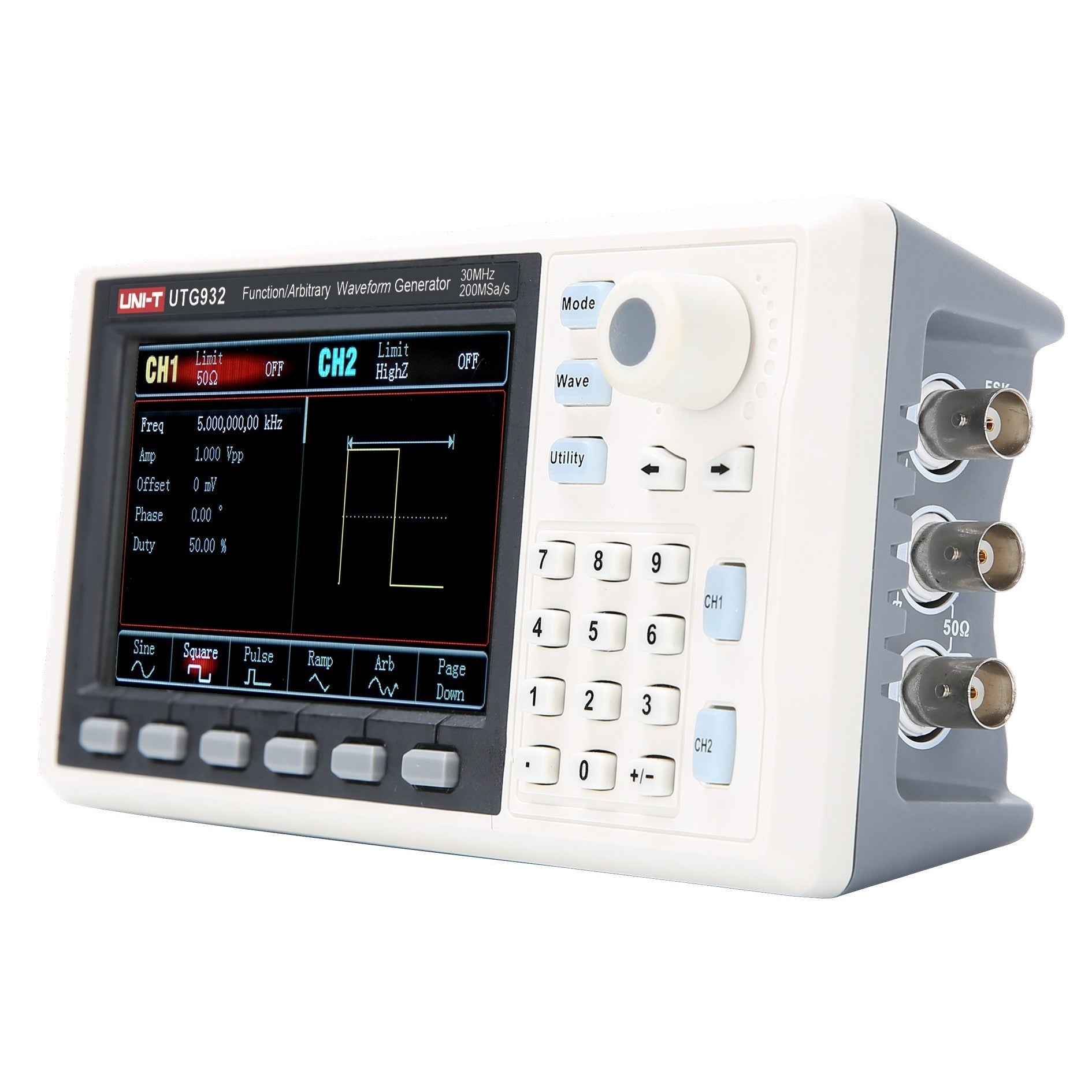

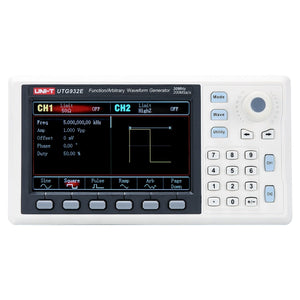

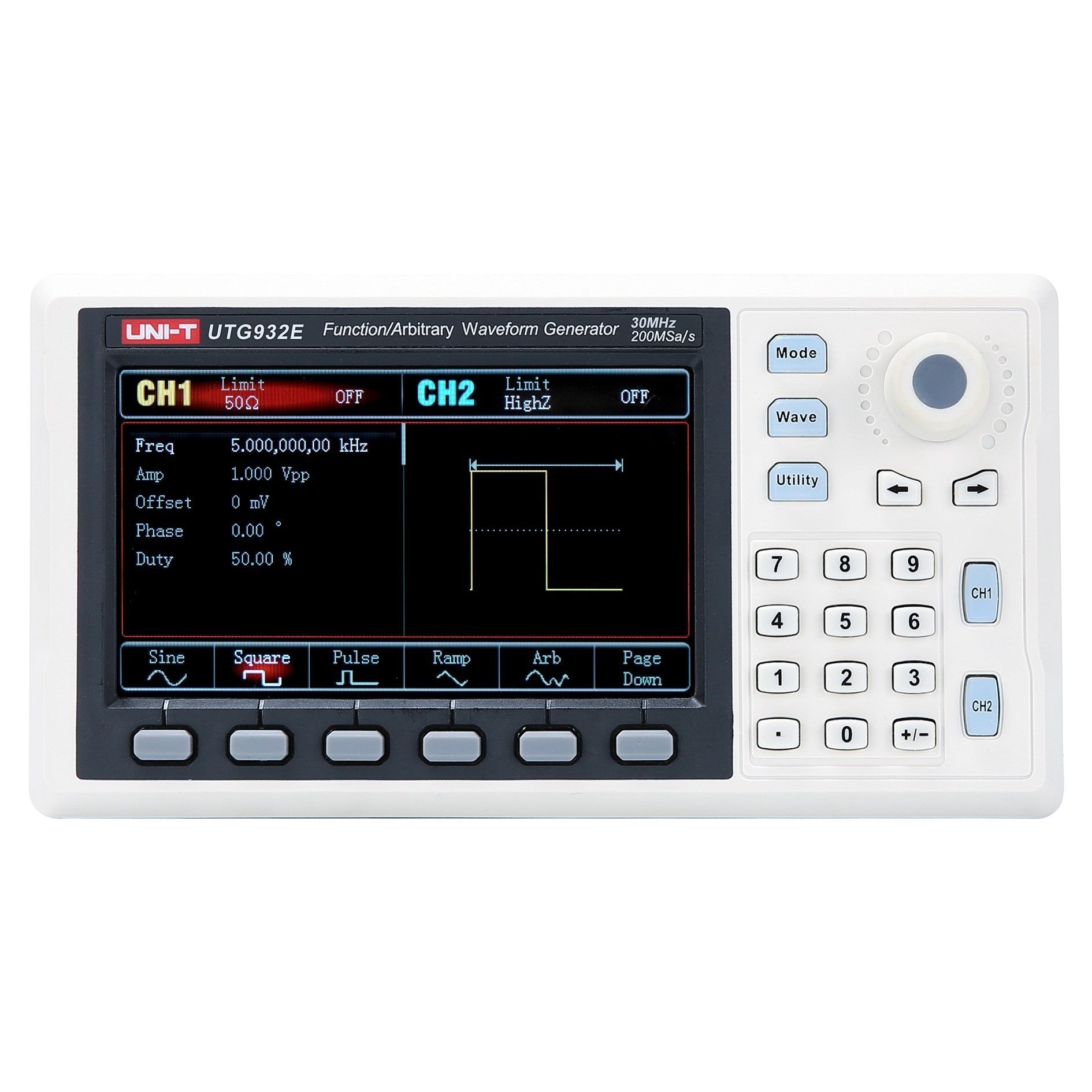

UNI-T UTG932E — The UNI-T UTG932E is a palm-sized two-channel arbitrary waveform generator producing 30 MHz sine output, 15 MHz square and pulse, with 200 MSa/s sampling and 14-bit vertical resolution. The Classic-Series sits at the entry of UNI-T's waveform-generator lineup, built around portability: 172 × 90 × 68 mm and 0.33 kg, USB-powered from a 5 V / 2 A adapter, with no separate AC cord to carry. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 30 MHz sine / 15 MHz square & pulse — dual-channel output with 1 µHz frequency resolution across the full range.
- 200 MSa/s sampling, 14-bit vertical resolution — 16,384 amplitude levels for clean output at common test frequencies.
- Palm-sized 172 × 90 × 68 mm, 0.33 kg — the most compact dual-channel AWG in the UNI-T lineup. Travels easily between bench, field, and classroom.
- 4 modulation types — AM, FM, PM, FSK — with internal source, covering the basics for analog and digital signal simulation.
- Linear and logarithmic frequency sweep — 1 ms to 500 s sweep time for component characterization and frequency-response work.
- 24 built-in arbitrary waveforms — non-volatile storage of standard and engineering shapes; custom waveforms uploadable via USB.
- Built-in 7-digit frequency counter — 100 mHz to 100 MHz input range (TTL compatible).
Technical Specifications
| Max sine frequency | 30 MHz |
|---|---|
| Max square / pulse frequency | 15 MHz |
| Max ramp frequency | 400 kHz |
| Max arbitrary wave frequency | 10 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 200 MSa/s |
| Vertical resolution | 14 bits (16,384 amplitude levels) |
| Arbitrary waveform length | 4 kpts |
| Built-in arbitrary waveforms | 24, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation | AM, FM, PM, FSK (internal source) |
| Sweep modes | Linear, Logarithmic |

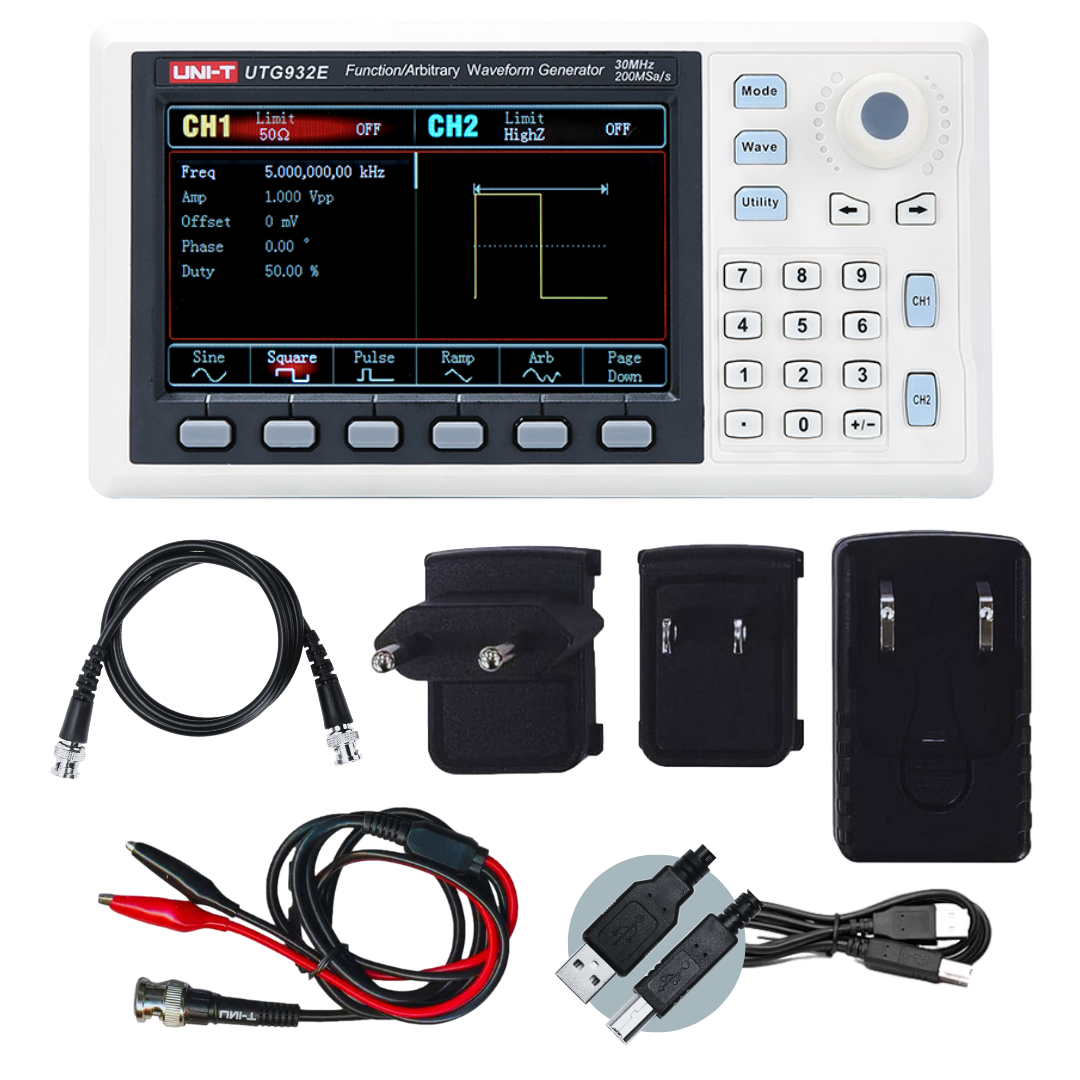

What's in the Box
- BNC straight-through cable
- BNC to alligator clip cable
- English download guide
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
