UNI-T UTG4162A 160 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 500 MSa/s

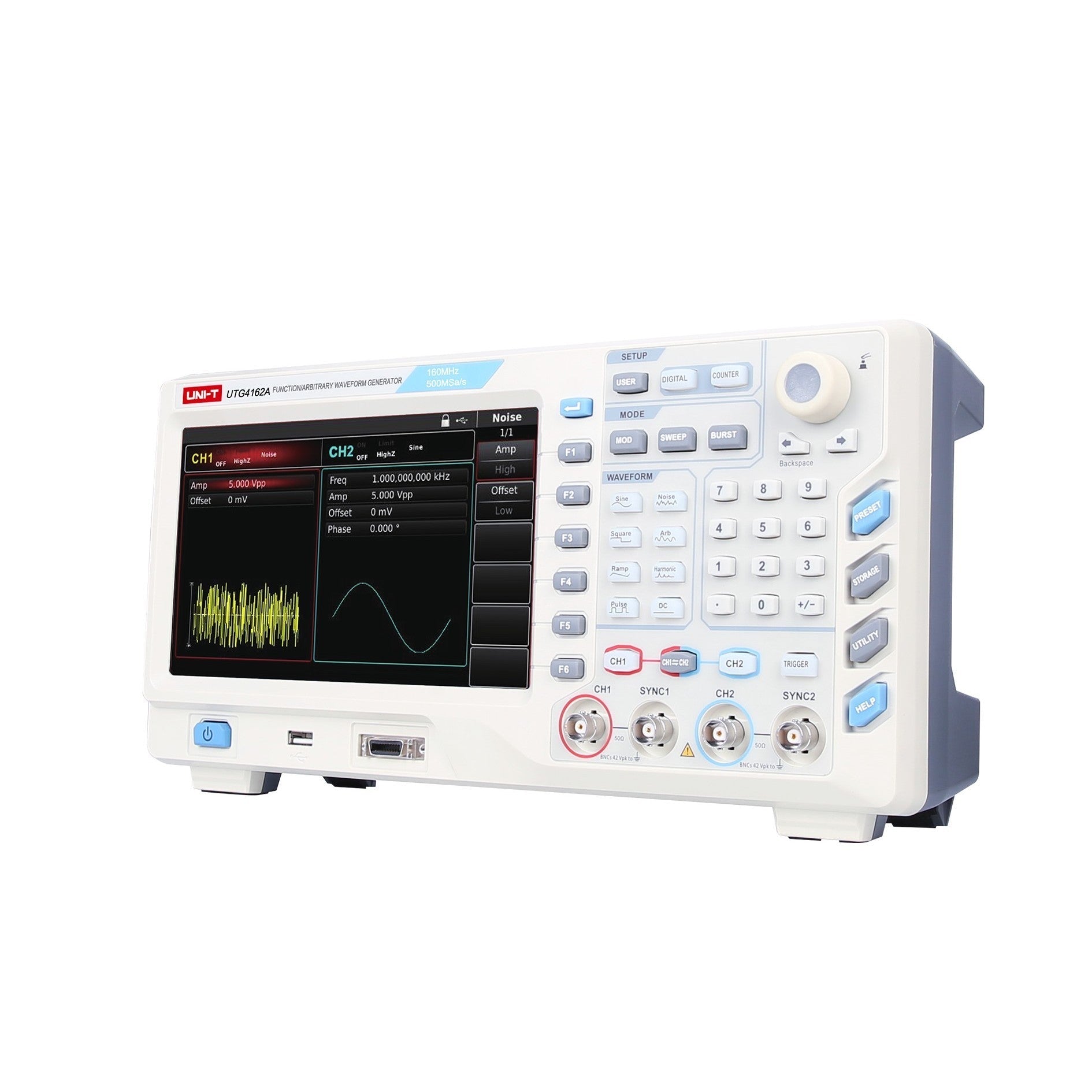

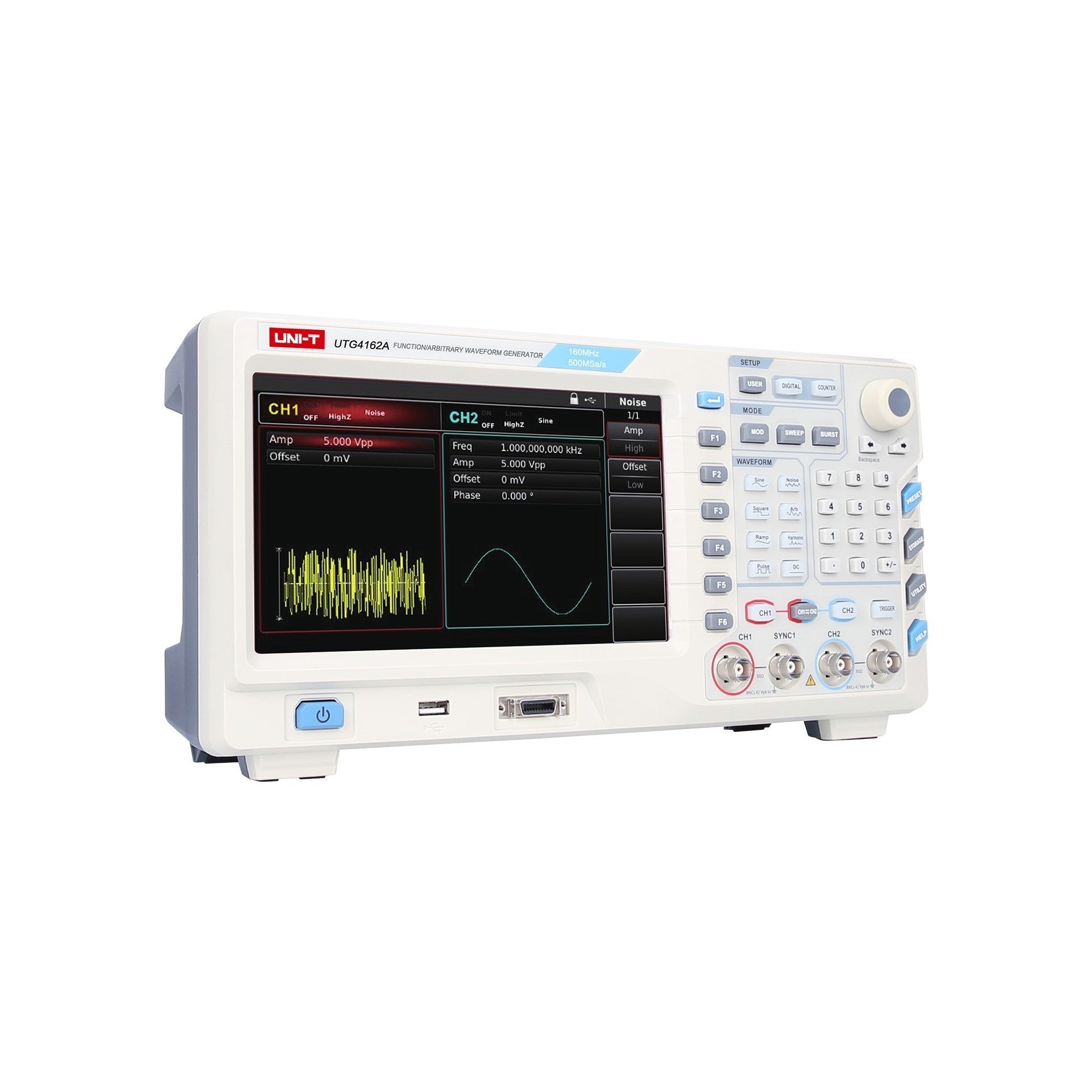

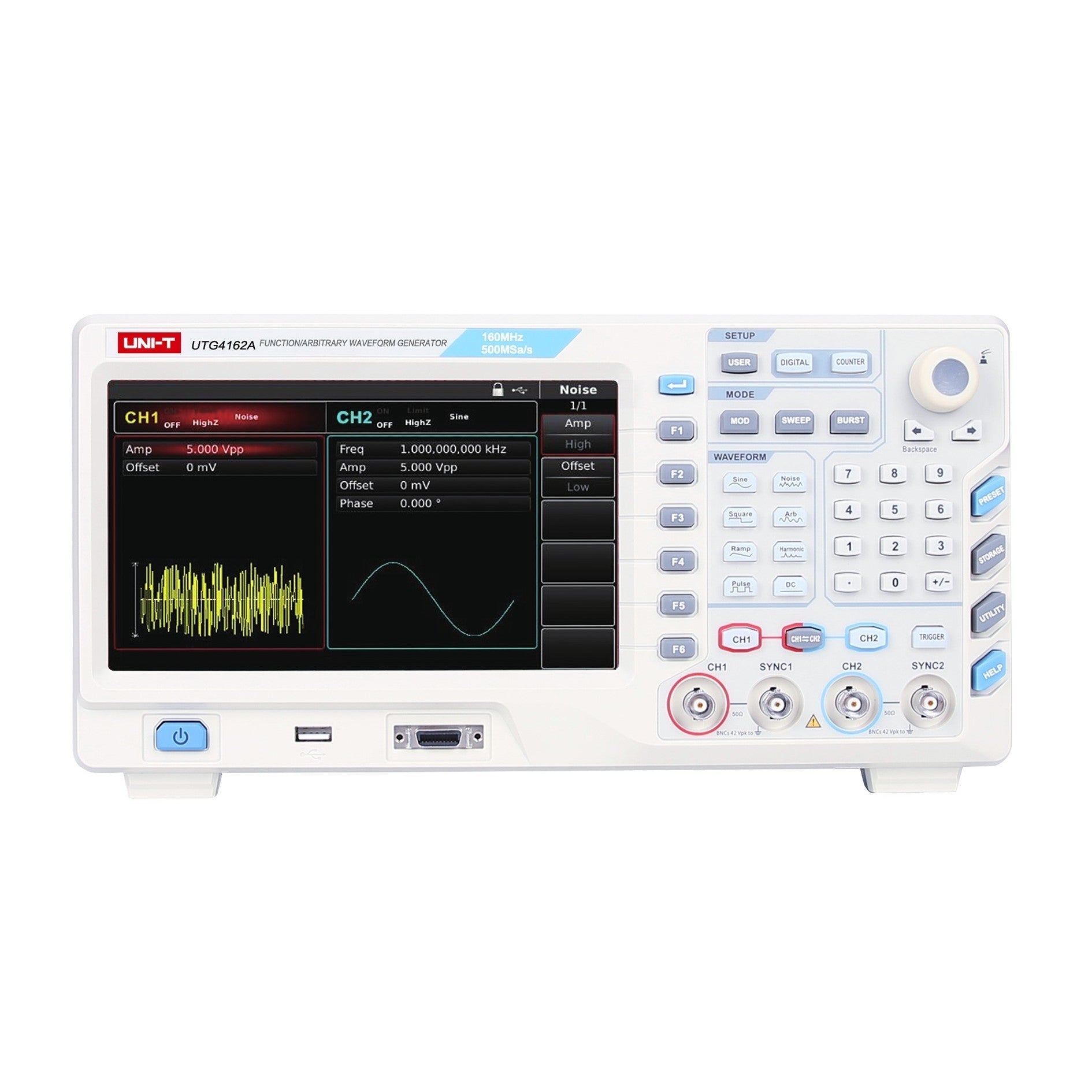

UNI-T UTG4162A — The UNI-T UTG4162A is a 2-channel arbitrary waveform generator with a maximum sine output of 160 MHz, built on Direct Digital Synthesis with a 500 MSa/s sample rate and 16-bit vertical resolution. An 8 pts to 32 Mpts arbitrary-waveform memory with 7 GB of non-volatile storage supports long-form custom stimulus, and an 8-inch TFT display with a structured key-and-knob interface keeps parameter entry direct. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 160 MHz sine / 50 MHz square & pulse — 2-channel output with 1 µHz frequency resolution.
- Standard dual channels — independent or channel-coupling mode for phase-locked, dual-tone, and tracking signal pairs.
- 500 MSa/s sample rate, 16-bit DDS — stable, precise, low-distortion signal generation across all standard waveforms.
- 32 Mpts arbitrary memory, 7 GB storage — deep custom-waveform depth with a large non-volatile on-instrument library.
- 12 modulation types — AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM — analog and digital in one instrument.
- Linear and logarithmic sweep — with internal, external, and manual trigger sources.
- Three burst modes — N-cycle, gated, infinite, with configurable cycle count and start phase.
Technical Specifications
| Max sine frequency | 160 MHz |
|---|---|
| Max square / pulse frequency | 50 MHz |
| Max ramp frequency | 4 MHz |
| Max harmonic frequency | 80 MHz |
| Arbitrary frequency range | 1 µHz to 40 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent with channel-coupling output mode |
| Sample rate | 500 MSa/s |
| Vertical resolution | 16 bits |
| Arbitrary memory depth | 8 pts to 32 Mpts |
| Arbitrary storage | 7 GB non-volatile arbitrary-waveform storage |
| Built-in arbitrary waveforms | 160 built-in arbitrary waveforms |
| Standard waveforms | Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary |

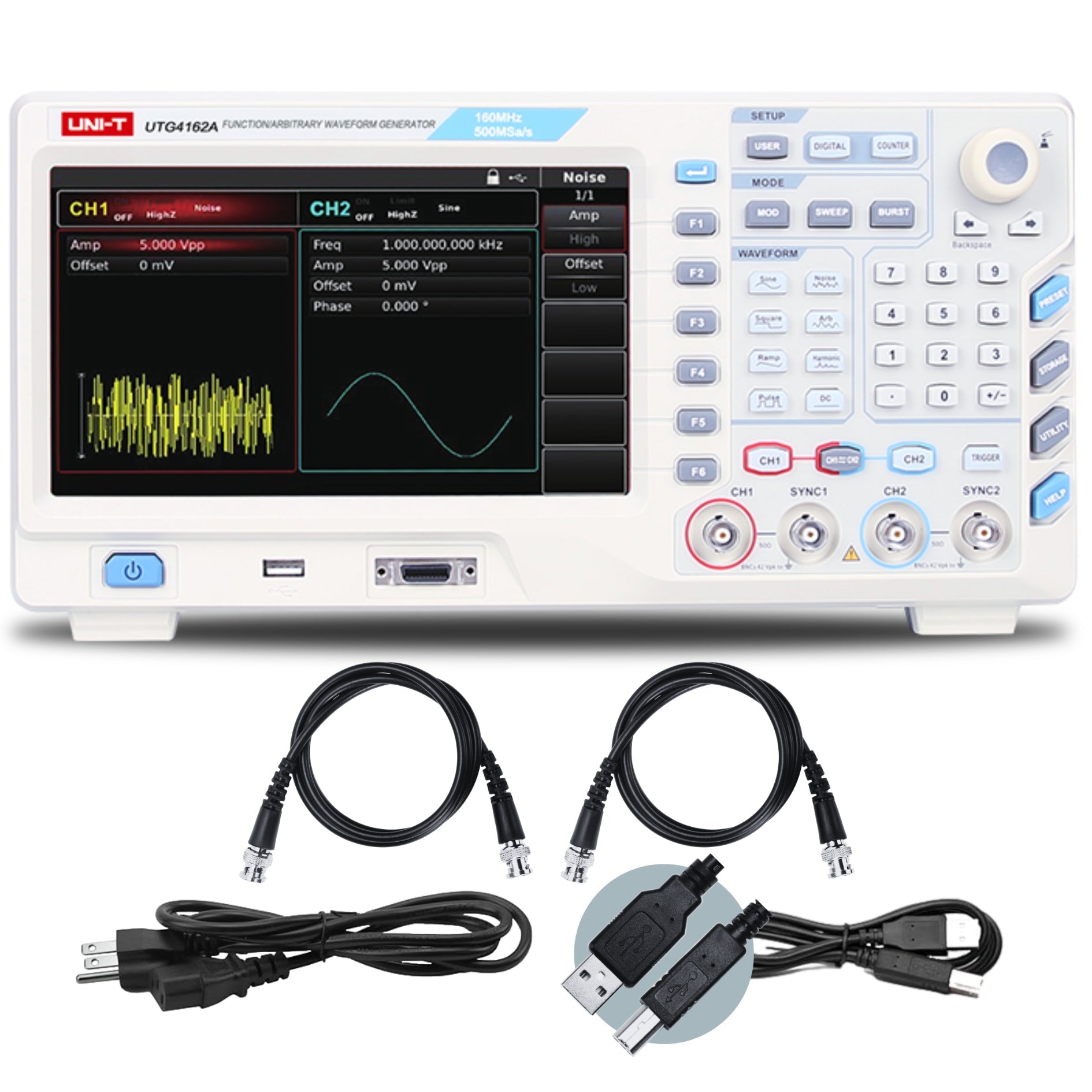

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
