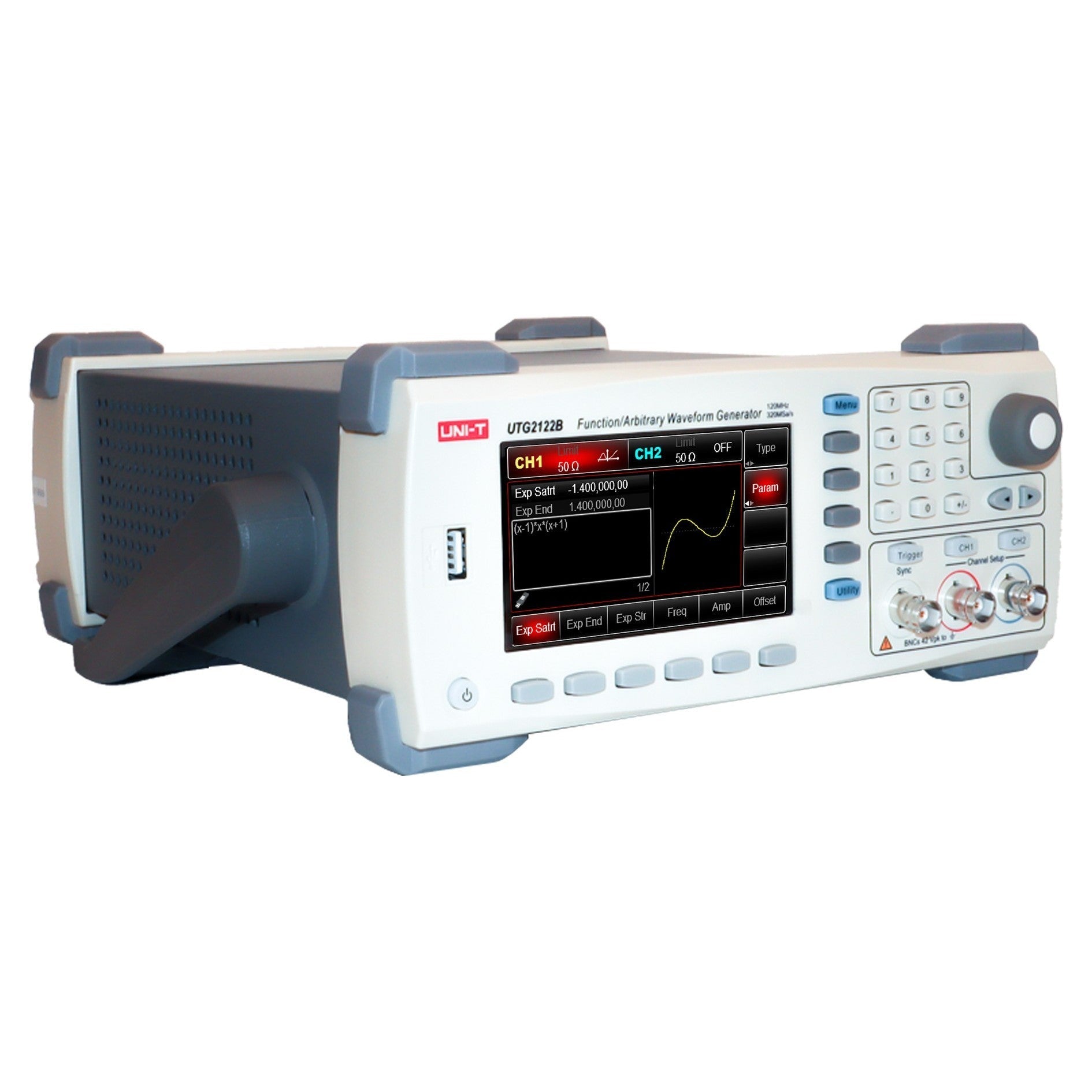

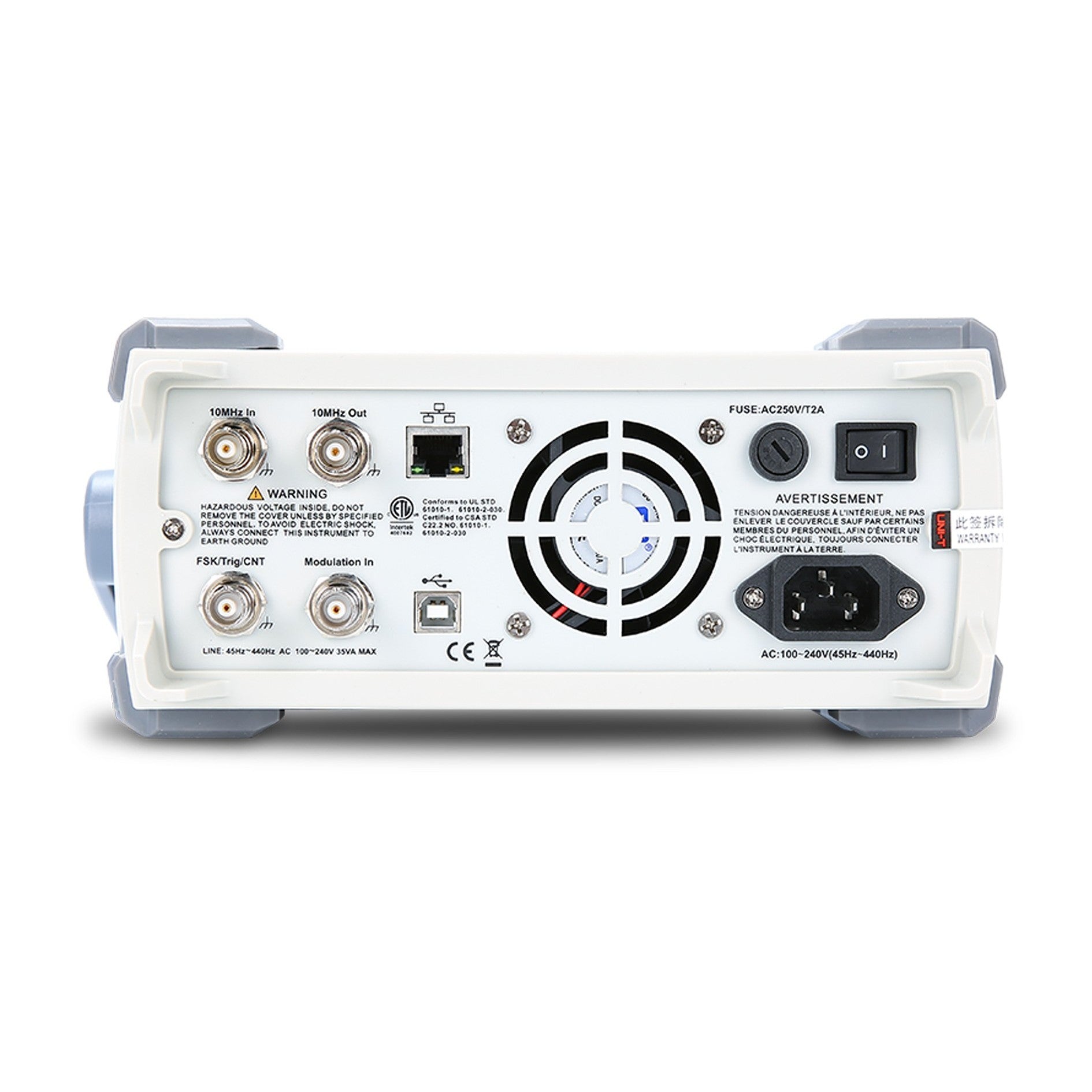

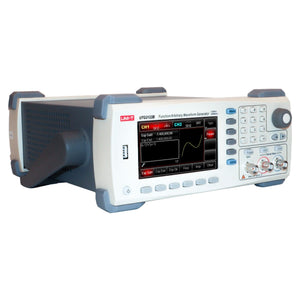

UNI-T UTG2122 — The UNI-T UTG2122B is a 120 MHz dual-channel arbitrary waveform generator built around a 16-bit DAC, 320 MSa/s sample rate, and a 16 Mpts arbitrary-waveform memory depth. The Advanced-Series chassis adds LAN connectivity, a 10 MHz external reference clock input and output, and a wider modulation envelope — 13 analog and digital modulation types including QAM and the full BPSK / QPSK / OSK / DSB-AM set — on top of the Classic-Series feature set. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

• 120 MHz sine / 30 MHz square & pulse — dual-channel output with 1 µHz frequency resolution.
• 16-bit vertical resolution, 320 MSa/s sample rate — 65,536 amplitude levels; supports clean waveform reconstruction across the full output range.
• 16 Mpts arbitrary waveform memory — 4,000× the depth of typical 4 kpts entry-tier generators. Supports long-form arbitrary playback for protocol-stream emulation and complex stimulus.
• 13 modulation types — AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSB-AM, QAM, PWM with internal and external source.
• 160 built-in arbitrary waveforms — common shapes across measurement, communications, and physiological signal families. Custom waveforms editable in upper-computer software.
• Expression output — mathematical expressions across 18 function types (trigonometric, exponential, logarithmic, polynomial, etc.) describe the output waveform directly without a precomputed sample buffer.
• Channel coupling and channel combination — frequency, amplitude, or phase changes on one channel auto-adjust the other; output of both channels can be summed for dual-tone and multi-frequency stimulus.

Technical Specifications

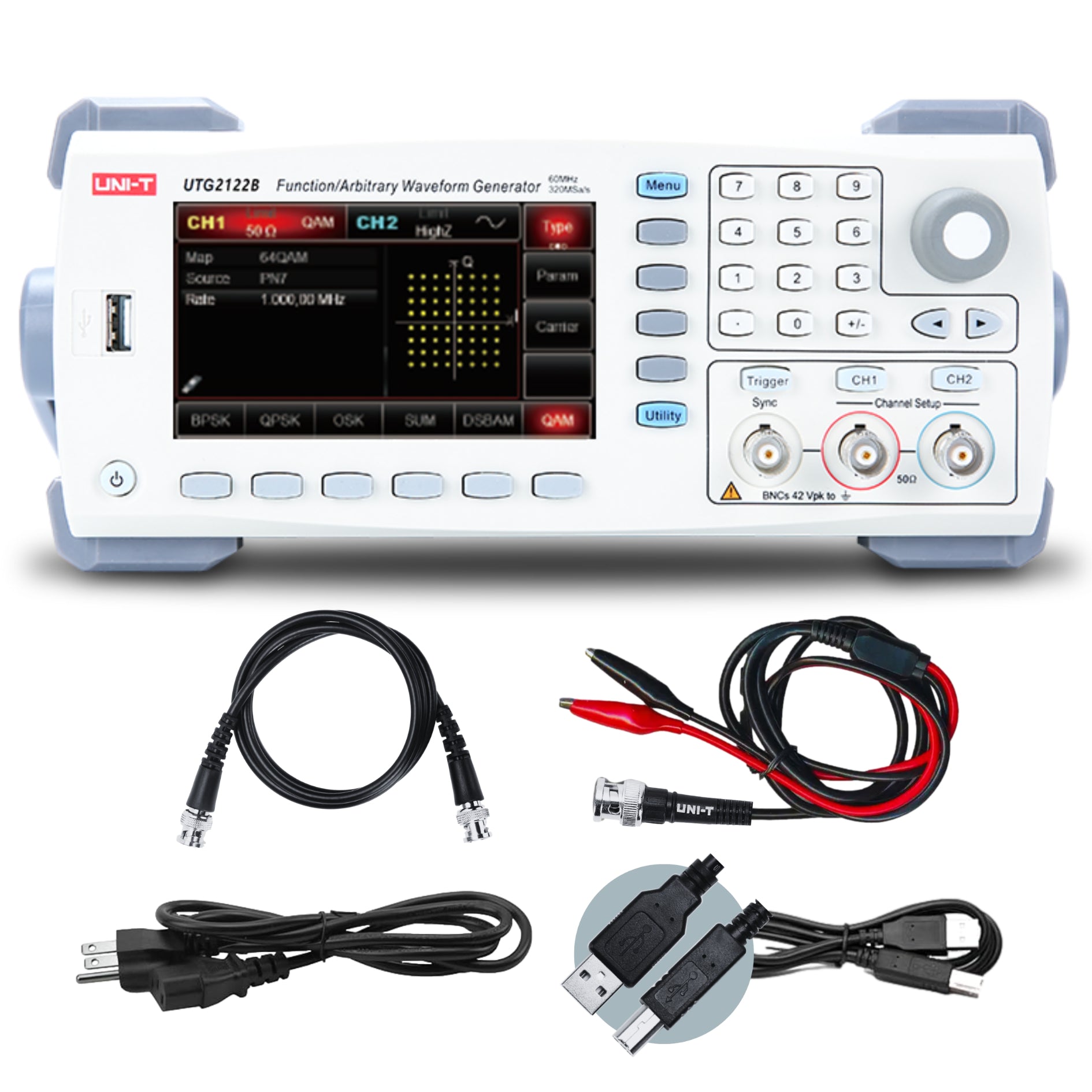

What's in the Box

• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Downloads

• UNI-T UTG2122 Product Page, Datasheet & Manual

Certifications: CE, RoHS | HS Code: 8543.2000
