UNI-T UTG2062B 60 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 320 MSa/s

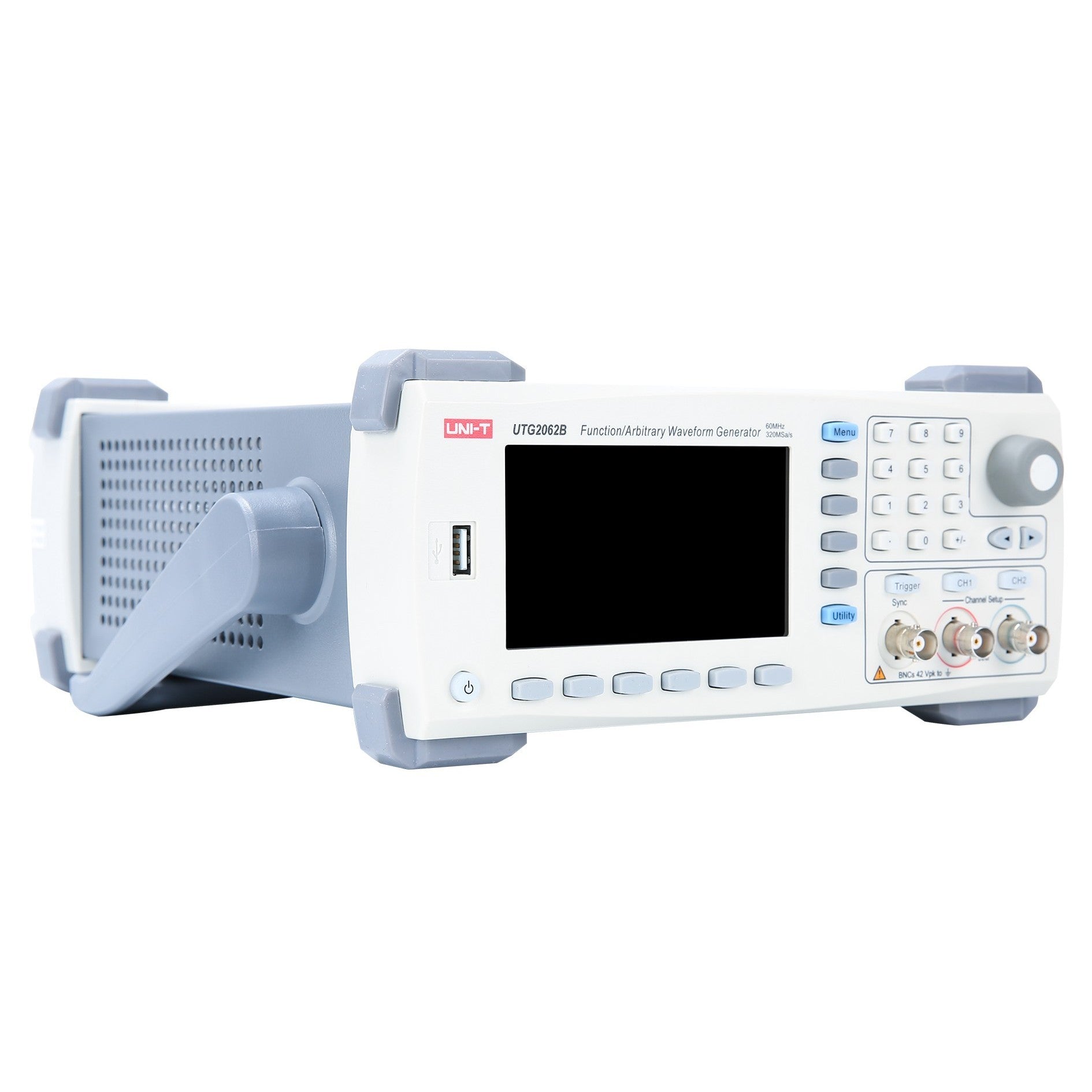

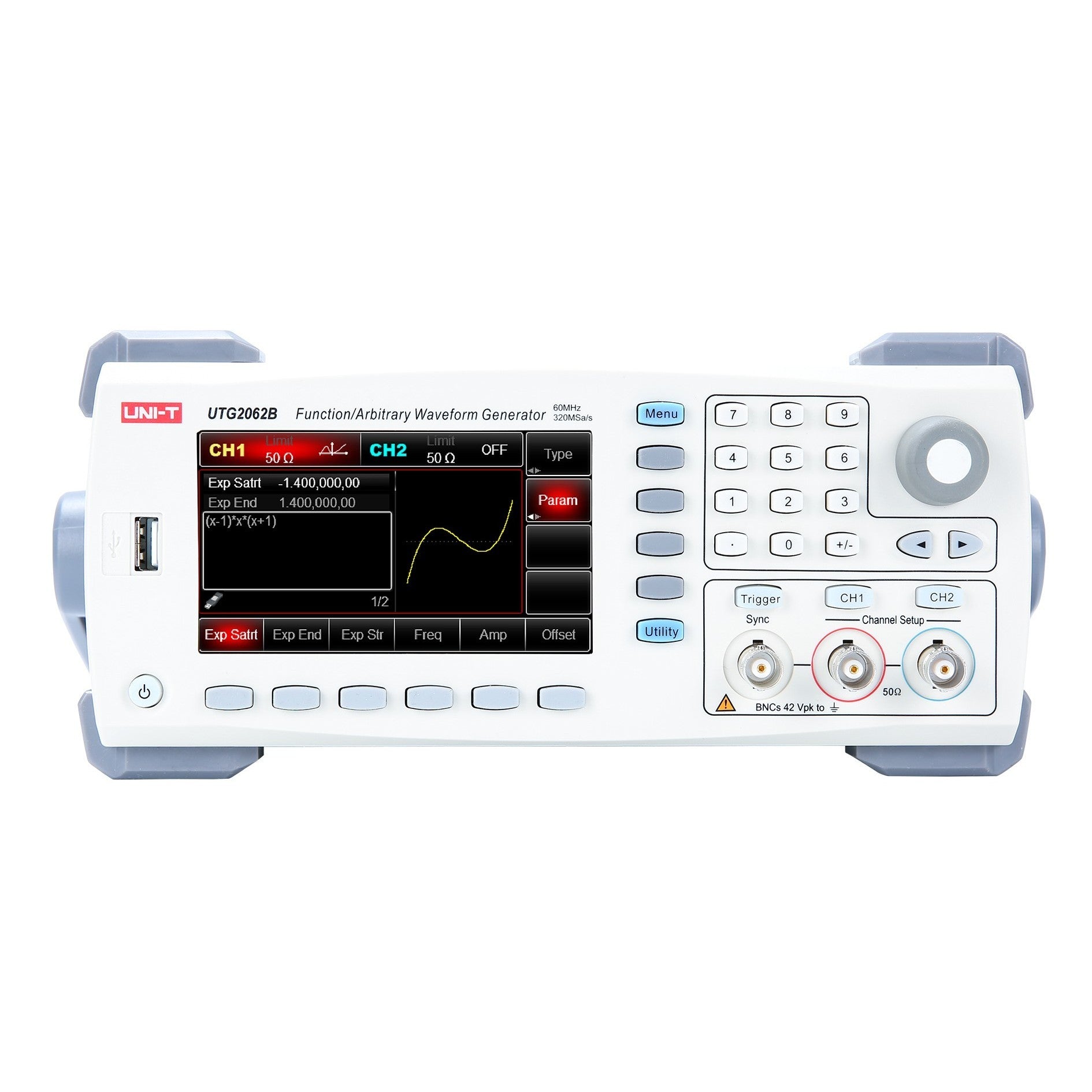

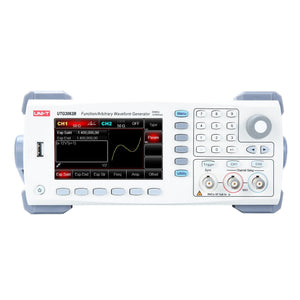

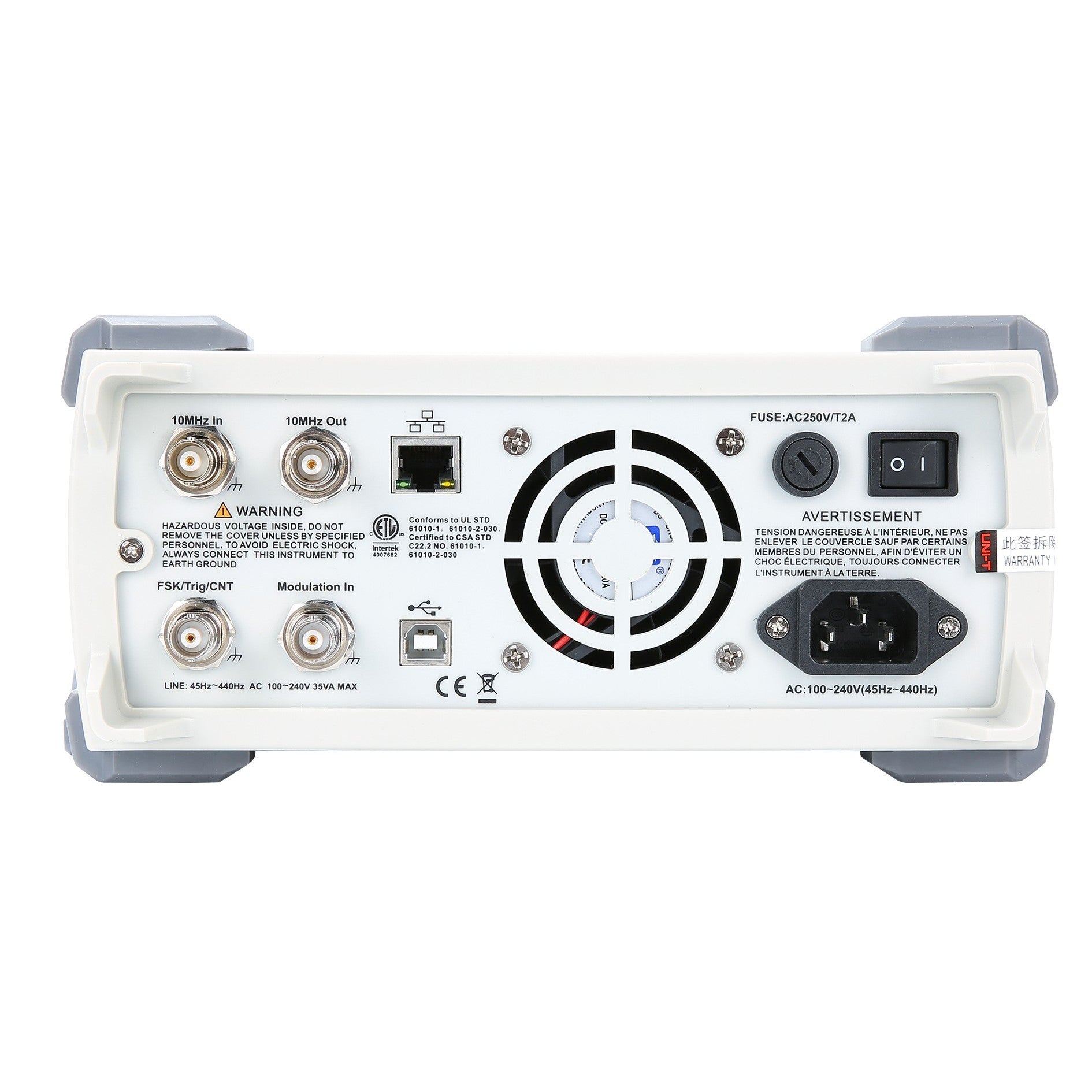

UNI-T UTG2062B — The UNI-T UTG2062B is a 60 MHz dual-channel arbitrary waveform generator built around a 16-bit DAC, 320 MSa/s sample rate, and a 16 Mpts arbitrary-waveform memory depth. The Advanced-Series chassis adds LAN connectivity, a 10 MHz external reference clock input and output, and a wider modulation envelope — 13 analog and digital modulation types including QAM and the full BPSK / QPSK / OSK / DSB-AM set — on top of the Classic-Series feature set. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 60 MHz sine / 25 MHz square & pulse — dual-channel output with 1 µHz frequency resolution.
- 16-bit vertical resolution, 320 MSa/s sample rate — 65,536 amplitude levels; supports clean waveform reconstruction across the full output range.
- 16 Mpts arbitrary waveform memory — 4,000× the depth of typical 4 kpts entry-tier generators. Supports long-form arbitrary playback for protocol-stream emulation and complex stimulus.
- 13 modulation types — AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSB-AM, QAM, PWM with internal and external source.
- 160 built-in arbitrary waveforms — common shapes across measurement, communications, and physiological signal families. Custom waveforms editable in upper-computer software.
- Expression output — mathematical expressions across 18 function types (trigonometric, exponential, logarithmic, polynomial, etc.) describe the output waveform directly without a precomputed sample buffer.
- Channel coupling and channel combination — frequency, amplitude, or phase changes on one channel auto-adjust the other; output of both channels can be summed for dual-tone and multi-frequency stimulus.
Technical Specifications
| Max sine frequency | 60 MHz |
|---|---|
| Max square / pulse frequency | 25 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 320 MSa/s |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 16 Mpts |
| Built-in arbitrary waveforms | 160, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Harmonic, Noise, DC, Expression, Arbitrary |
| Modulation | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSB-AM, QAM, PWM (internal & external source) |
| Sweep modes | Linear, Logarithmic |
| Burst modes | N-cycle, Gated, Infinite |
| Channel coupling | Frequency, amplitude, phase |

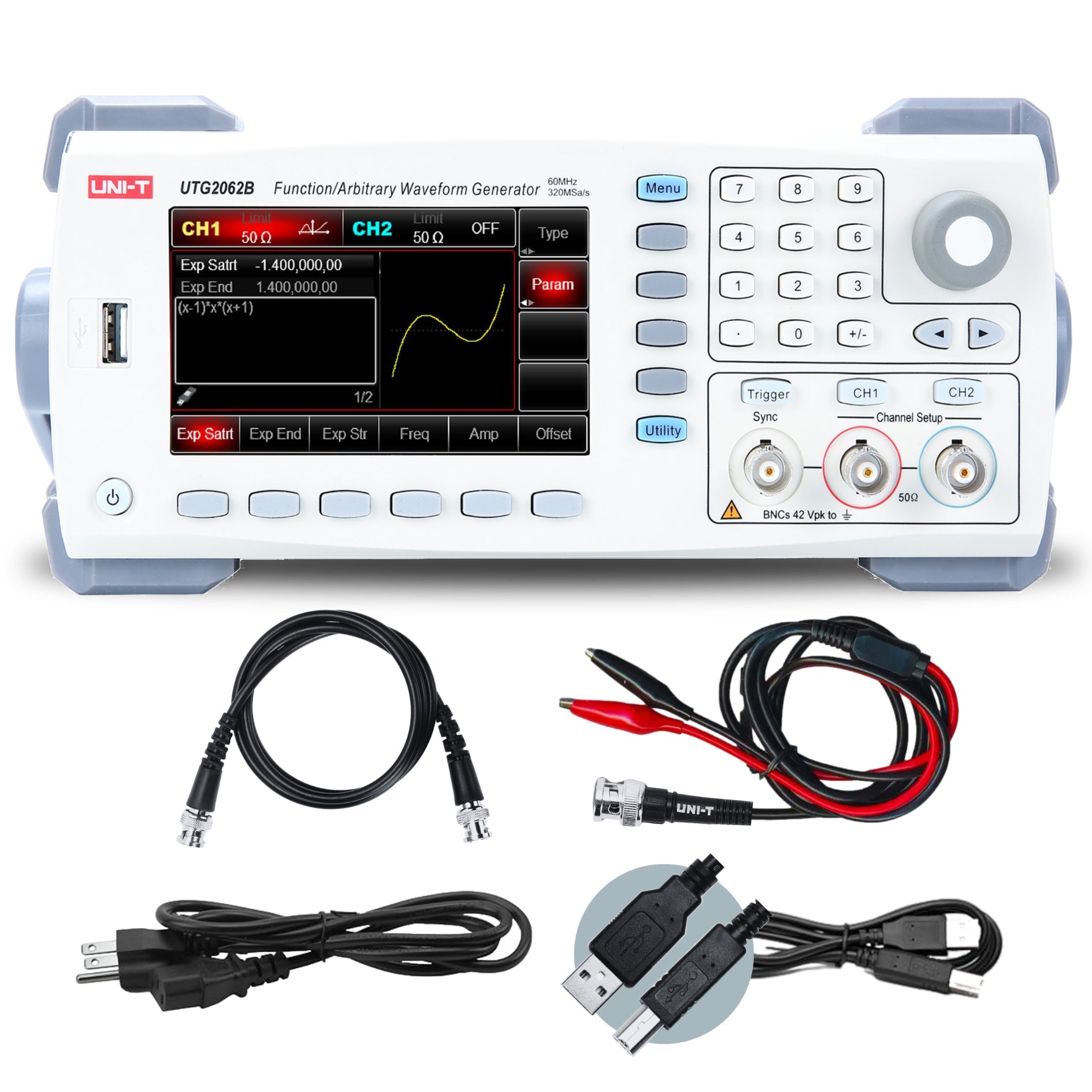

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
