UNI-T UTG1042X 40 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s

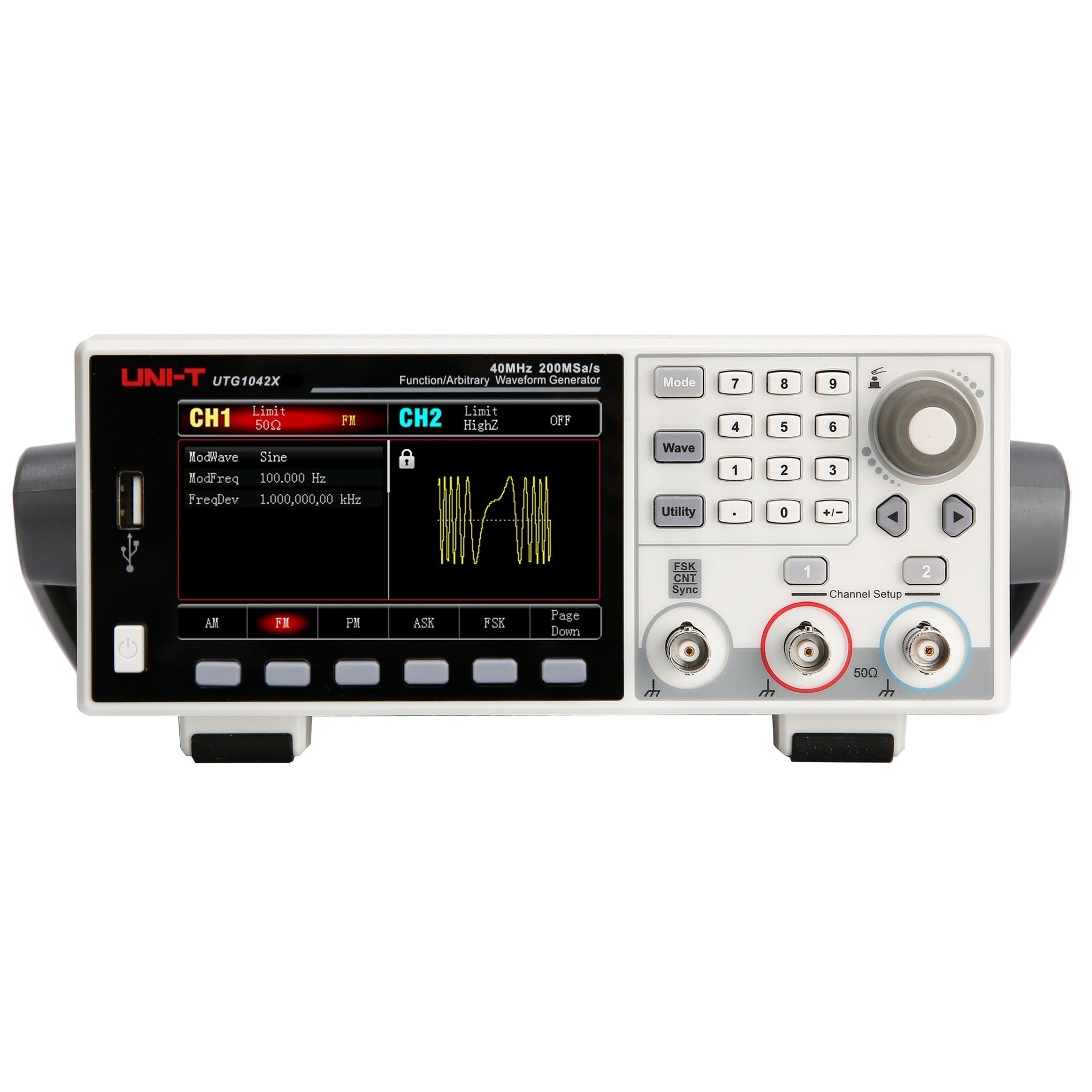

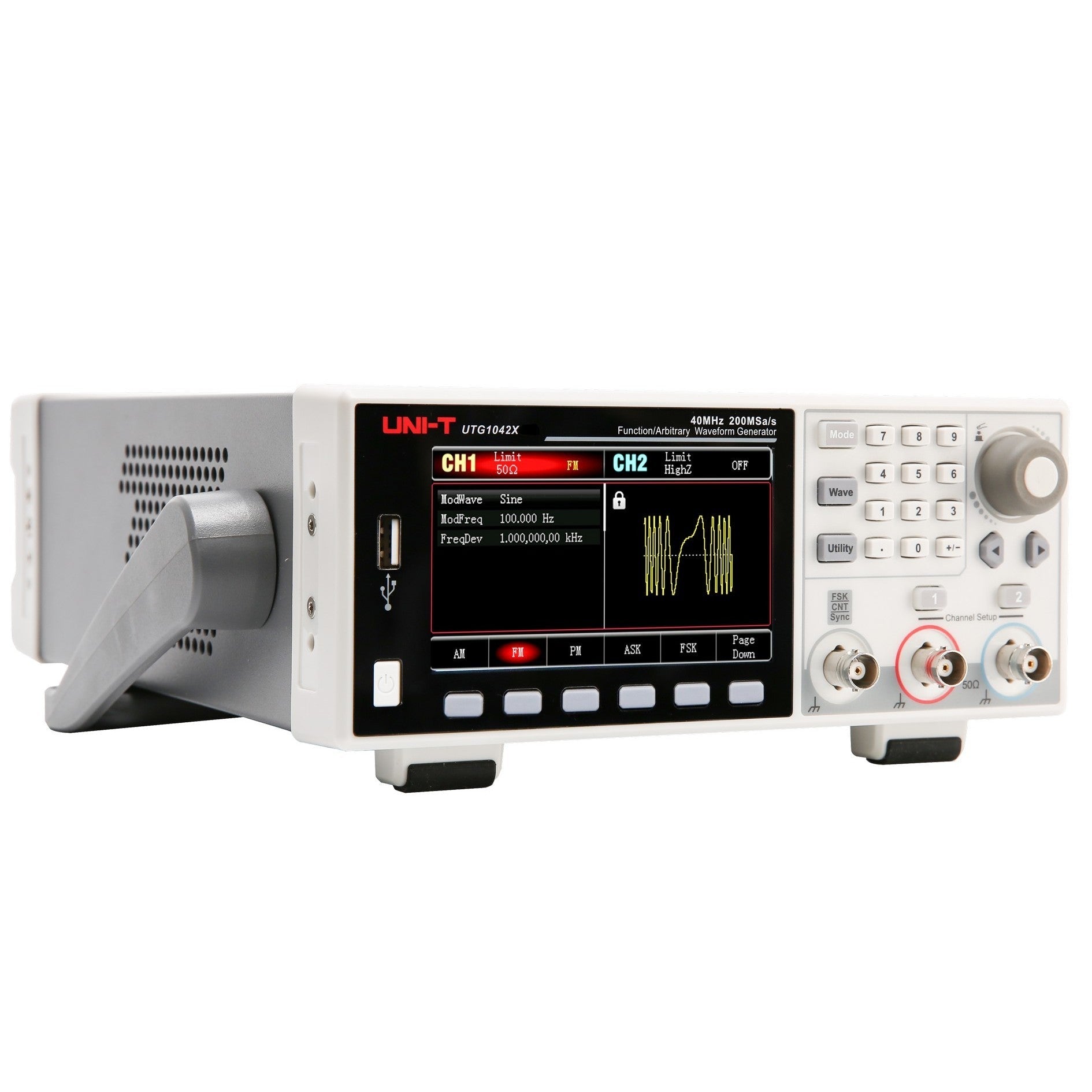

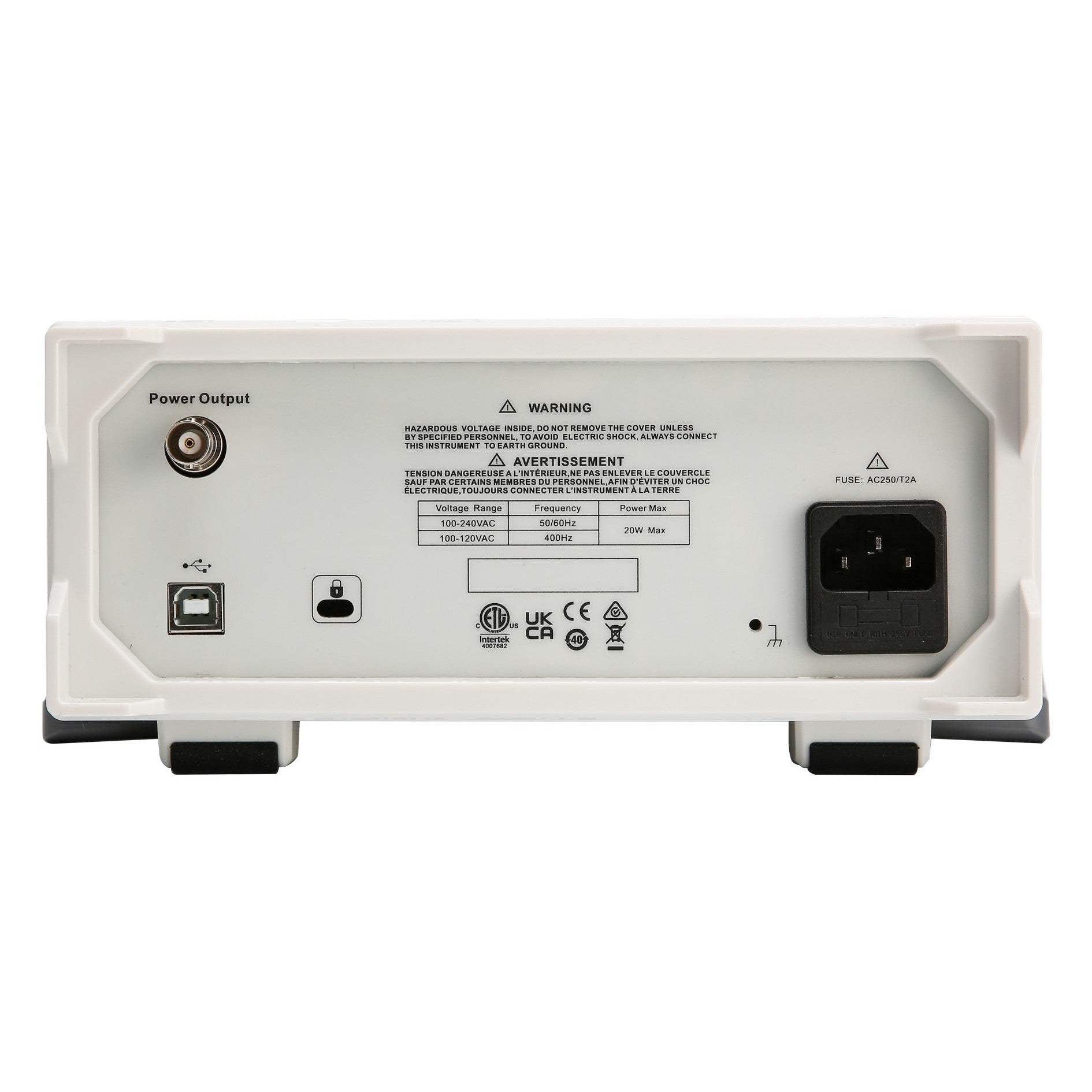

UNI-T UTG1042X — The UNI-T UTG1042X is a 40 MHz dual-channel arbitrary waveform generator built around a 16-bit DAC and 200 MSa/s sample rate. It is the bandwidth-extended member of the UTG1000X Essential-Series — identical chassis, sample rate, modulation set, burst modes, and DAC resolution as the UTG1022X, with double the top-end sine output frequency. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 40 MHz sine / 20 MHz square & pulse — dual-channel output with 1 µHz frequency resolution. Double the bandwidth of the UTG1022X in the same chassis.
- 16-bit vertical resolution — 65,536 amplitude levels. 4× the resolution of typical 14-bit Essential-tier generators.
- 200 MSa/s sample rate — supports accurate waveform reconstruction across the 40 MHz output range.
- 200 built-in arbitrary waveforms — 4 kpts arbitrary waveform length for custom shapes; max arb output frequency 10 MHz.
- 7 modulation types — AM, FM, PM, ASK, FSK, PSK, PWM — internal and external source. FM frequency deviation extends to 20 MHz (vs 10 MHz on UTG1022X).
- Pulse burst function — three modes (N-cycle, gated, infinite) with internal or external trigger.
- Built-in 7-bit frequency counter — 100 mHz to 200 MHz input range.
Technical Specifications
| Max sine frequency | 40 MHz |
|---|---|
| Max square / pulse frequency | 20 MHz |
| Max ramp frequency | 1 MHz |
| Max arbitrary wave frequency | 10 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 200 MSa/s |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 4 kpts |
| Built-in arbitrary waveforms | 200, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation | AM, FM (DC to 20 MHz deviation), PM, ASK, FSK, PSK, PWM (internal & external source) |
| Sweep modes | Linear, Logarithmic |

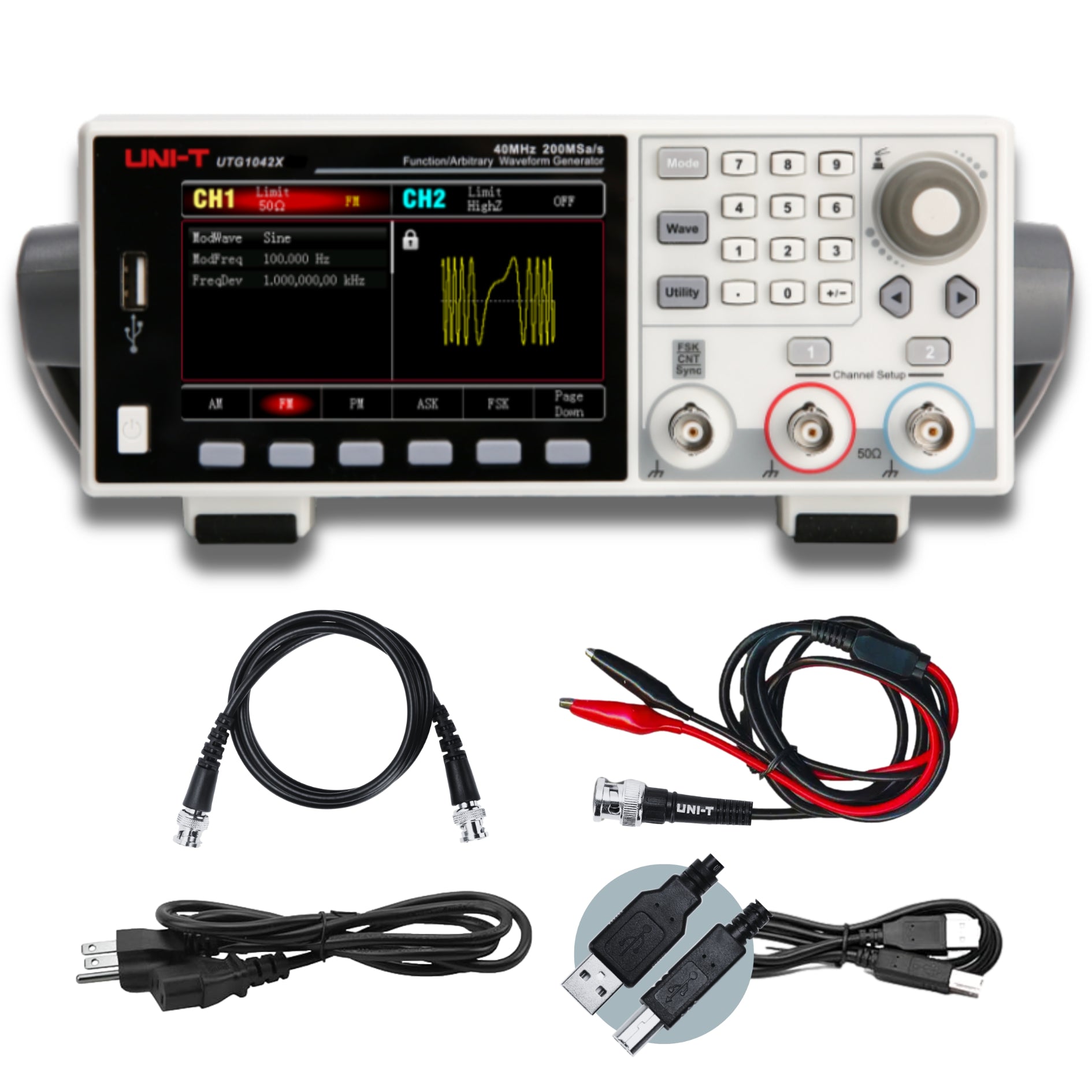

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
