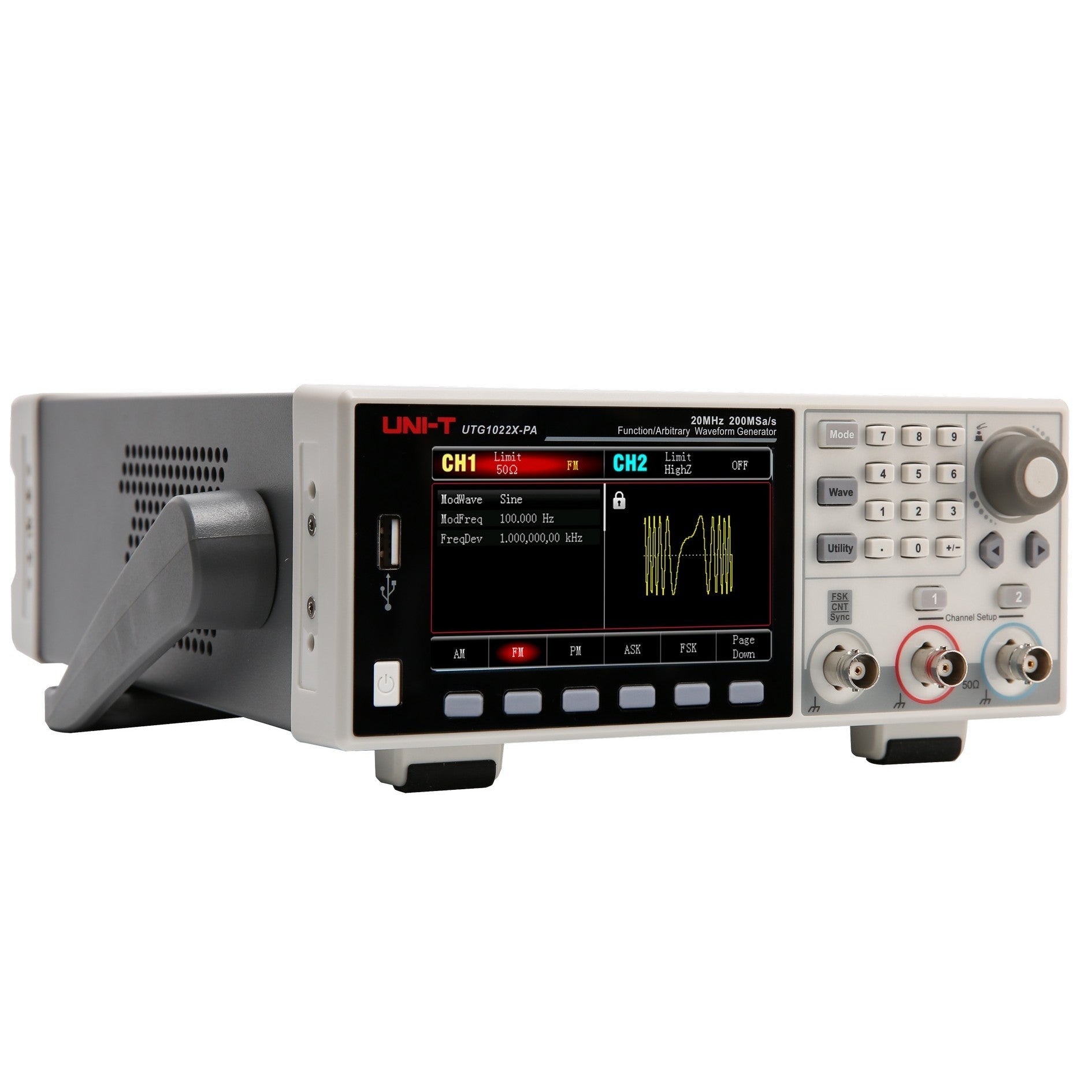

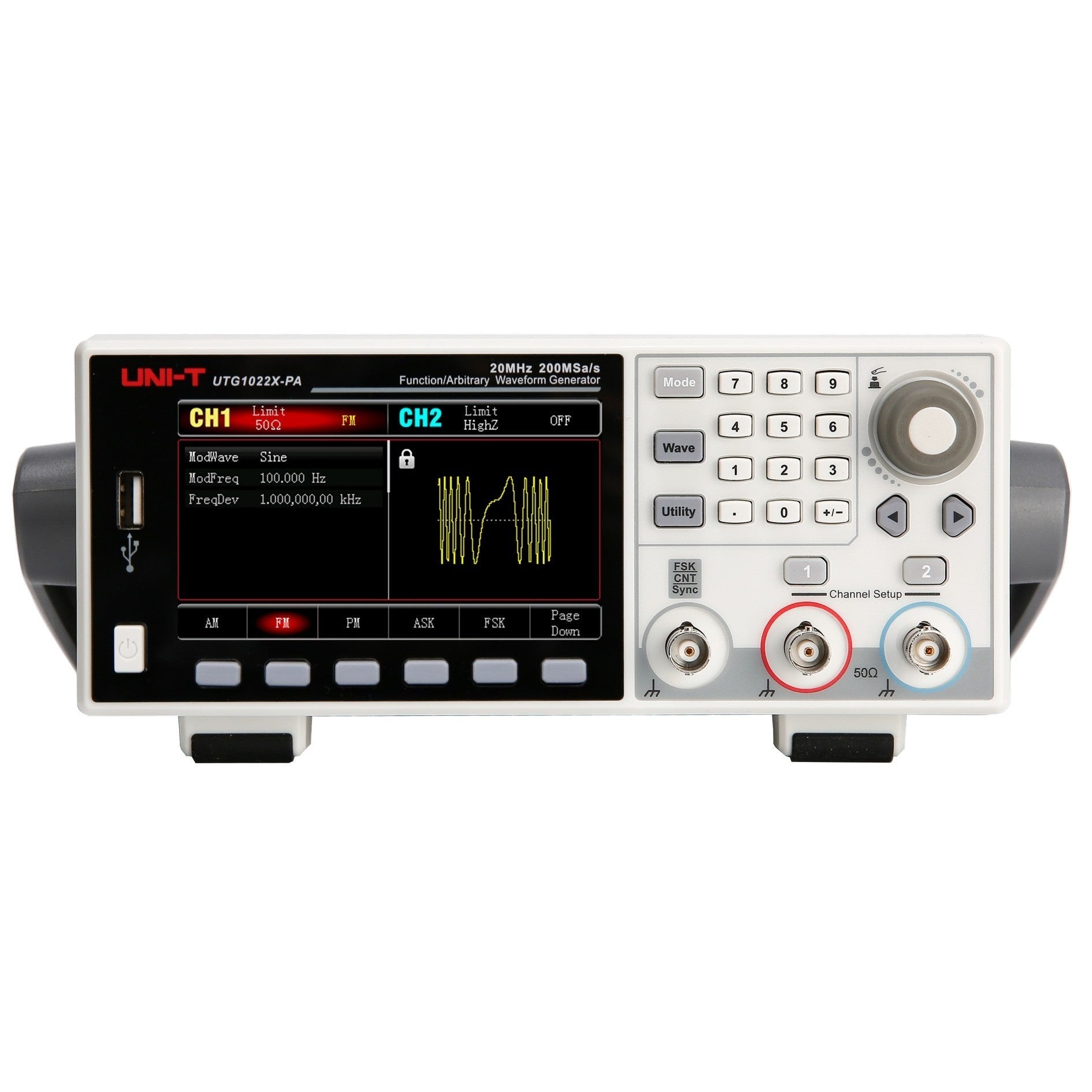

UNI-T UTG1022X-PA 20 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTG1022X-PA 20 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s
UNI-T UTG1022X-PA — The UNI-T UTG1022X-PA is a 20 MHz dual-channel arbitrary waveform generator built around a 16-bit DAC and 200 MSa/s sample rate, with a built-in 4 W power amplifier integrated into the chassis. The power amplifier output is a dedicated front-panel BNC that drives transducers, coils, audio loads, and other inputs directly — without the workspace impact, signal-chain complexity, or cost of a separate external power amplifier. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features

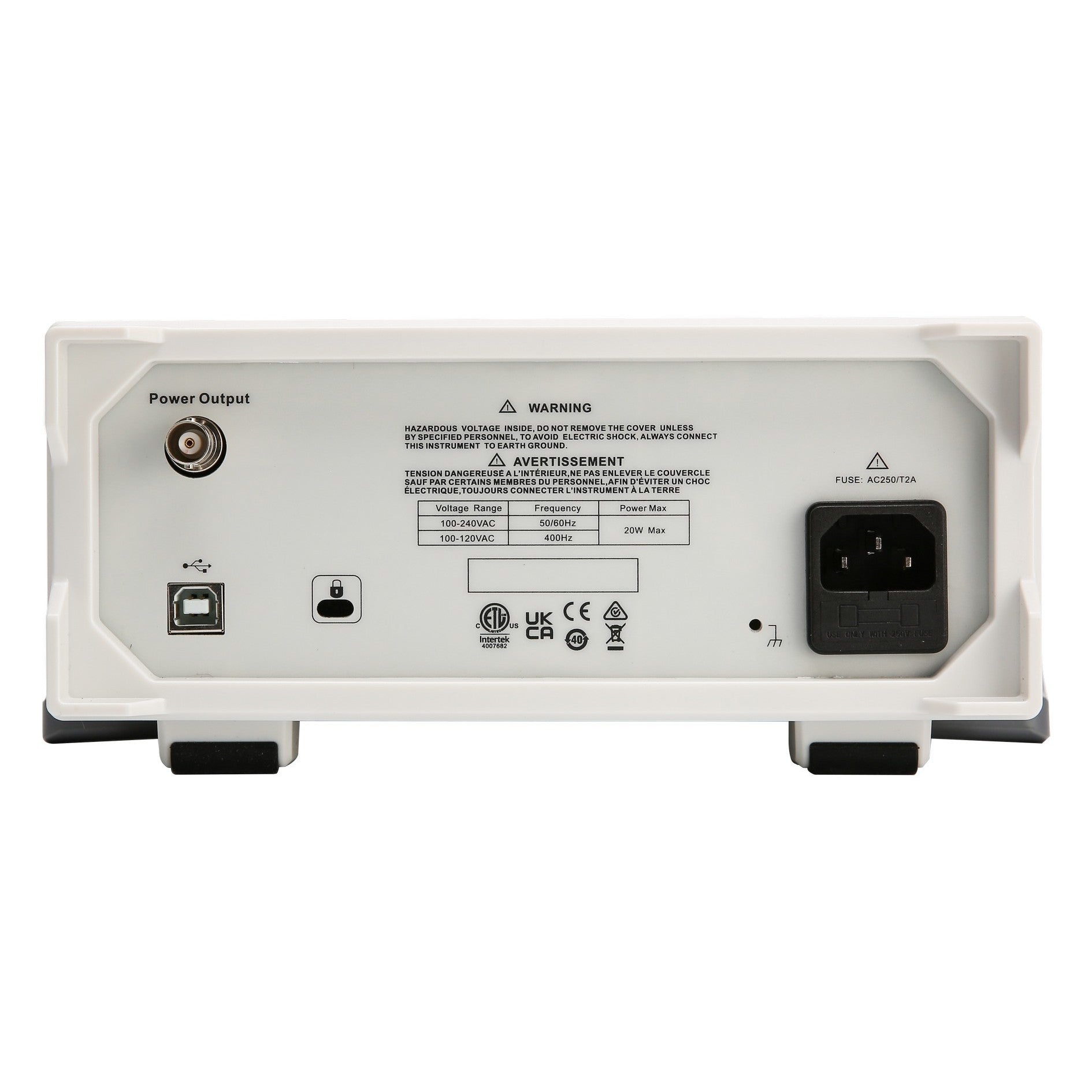

- Built-in 4 W power amplifier — integrated into the chassis with dedicated front-panel BNC output. 1 µHz to 100 kHz frequency range, > 18 V/µs slew rate (typical). Drives transducers, coils, and audio loads directly without an external amp.
- 20 MHz sine / 10 MHz square & pulse — dual-channel generator output with 1 µHz frequency resolution, 20 Vpp maximum amplitude (high-Z).
- 16-bit vertical resolution — 65,536 amplitude levels. 4× the resolution of typical 14-bit Essential-tier generators.
- 200 MSa/s sample rate — 10 sample points per cycle at maximum sine frequency.
- 200 built-in arbitrary waveforms — comprehensive library; 4 kpts arbitrary waveform length for custom shapes.
- 7 modulation types — AM, FM, PM, ASK, FSK, PSK, PWM — internal and external source.
- Pulse burst function — three modes (N-cycle, gated, infinite) with internal or external trigger.
Technical Specifications
| Power amplifier output | 4 W (built-in), 1 µHz to 100 kHz, > 18 V/µs slew rate (typical) |
|---|---|
| Max sine frequency | 20 MHz (standard generator output) |
| Max square / pulse frequency | 10 MHz |
| Max ramp frequency | 400 kHz |
| Max arbitrary wave frequency | 5 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2 standard + 1 PA output |
| Sample rate | 200 MSa/s |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 4 kpts |
| Built-in arbitrary waveforms | 200, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM (internal & external source) |

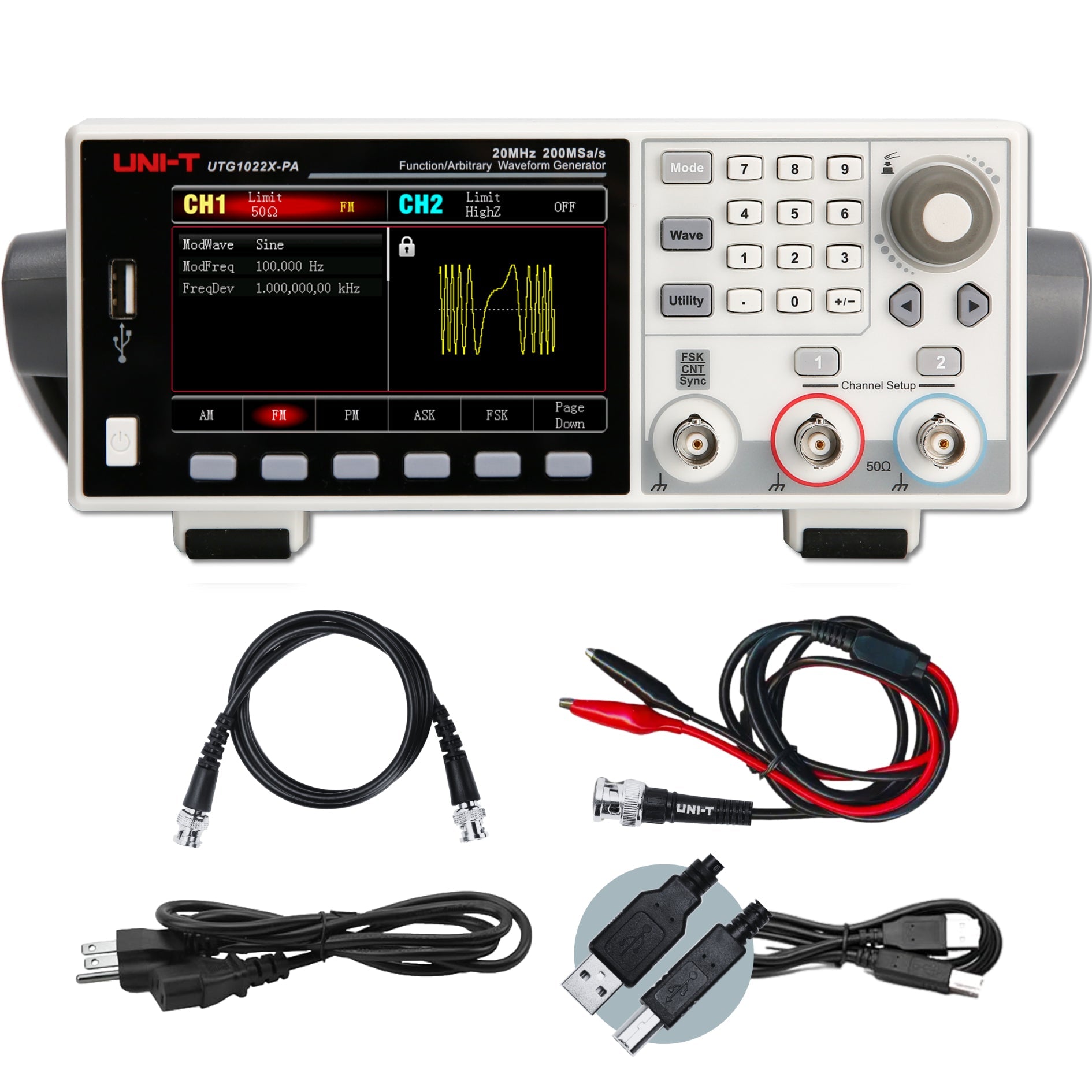

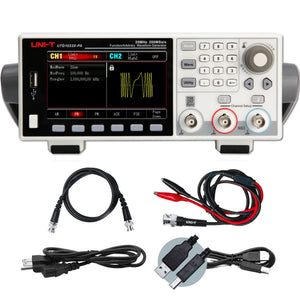

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
