UNI-T UTG1022X 20 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s

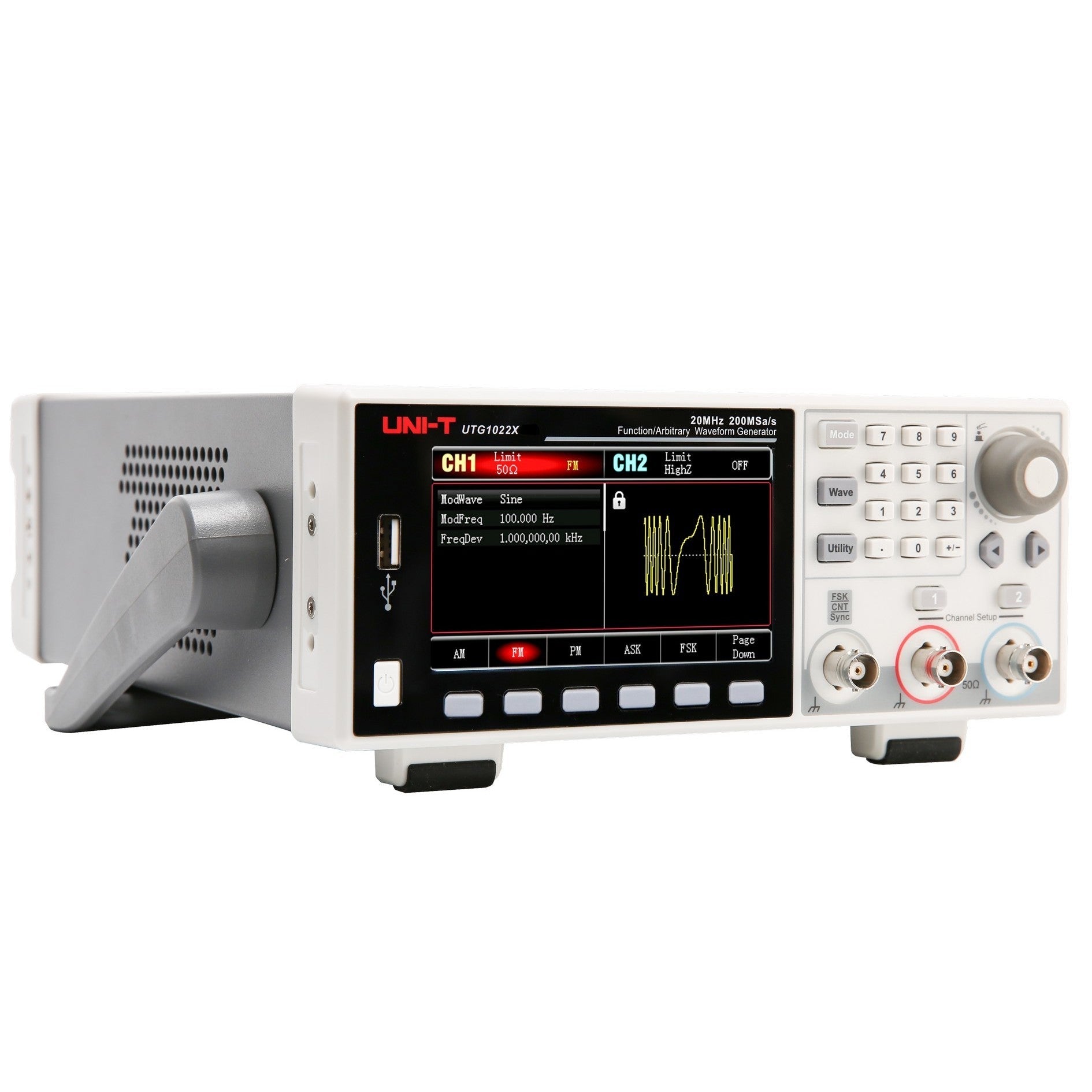

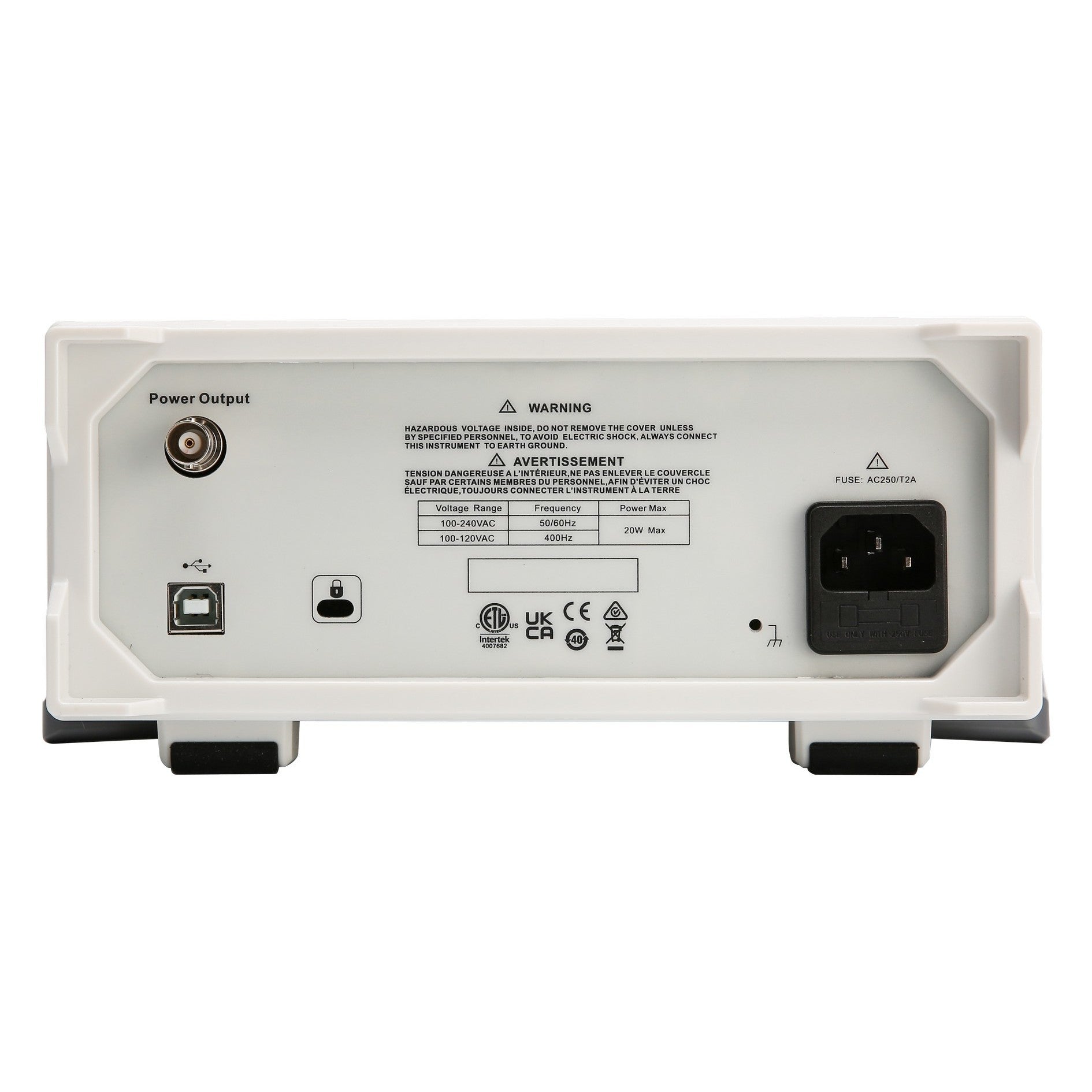

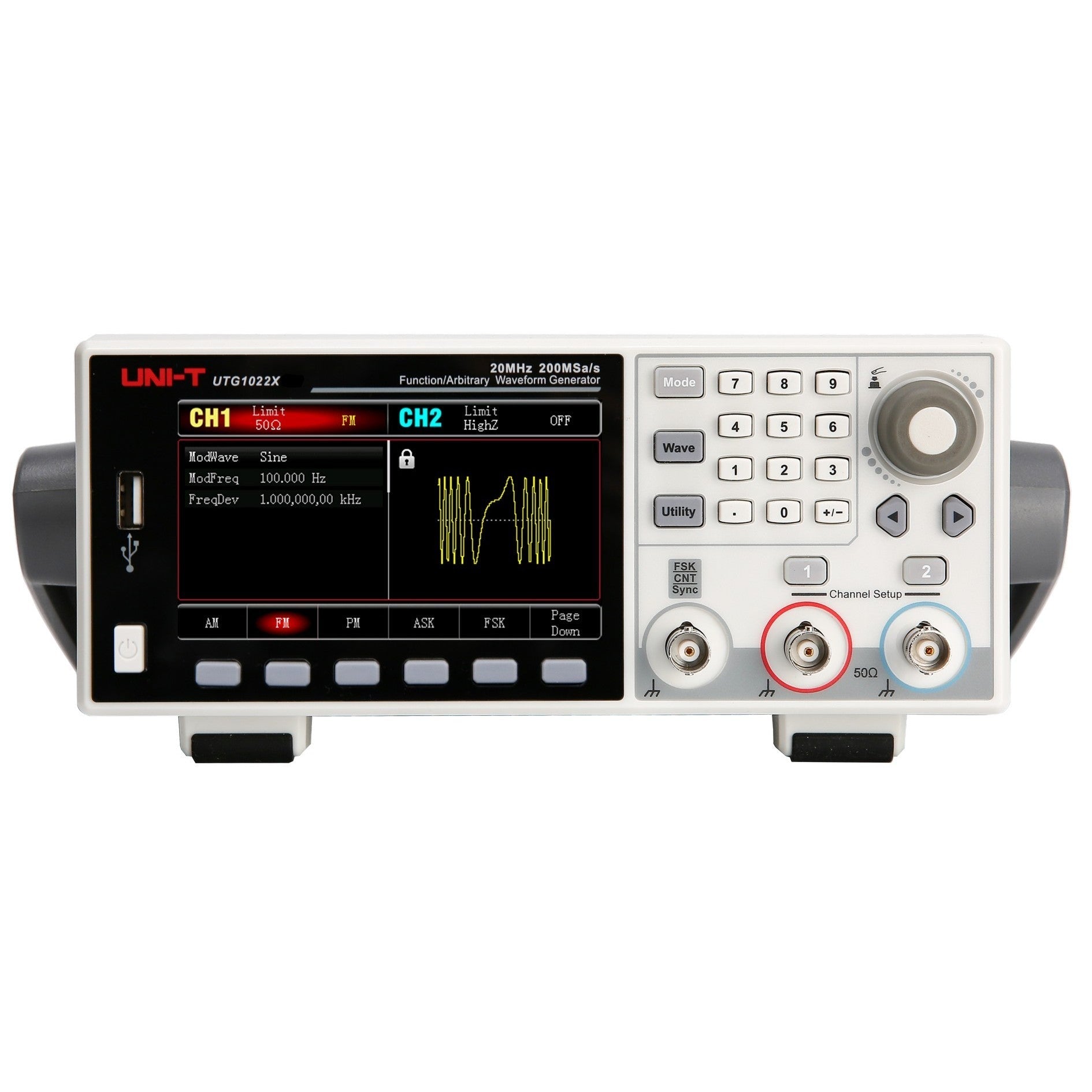

UNI-T UTG1022X — The UNI-T UTG1022X is a 20 MHz dual-channel arbitrary waveform generator built around a 16-bit DAC and 200 MSa/s sample rate. The Essential-Series brings 16-bit signal fidelity to the entry-bench price tier — 65,536 amplitude levels deliver cleaner low-amplitude output and lower quantization noise than the 14-bit DACs typical at this price point. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 20 MHz sine / 10 MHz square & pulse — dual-channel output with 1 µHz frequency resolution, 20 Vpp maximum amplitude (high-Z), full amplitude maintained at maximum frequency.
- 16-bit vertical resolution — 65,536 amplitude levels. 4× the resolution of the 14-bit DACs typical at this price point, reducing quantization noise and improving signal purity.
- 200 MSa/s sample rate — 10 sample points per cycle at maximum sine frequency, supporting accurate waveform reconstruction without staircasing.
- 200 built-in arbitrary waveforms — comprehensive library of standard, mathematical, medical, and engineering waveform shapes. 4 kpts arbitrary waveform length for custom shapes.
- 7 modulation types — AM, FM, PM, ASK, FSK, PSK, PWM — internal and external source. Adds digital-modulation capability beyond what the UTG900E Classic-Series provides.
- Pulse burst function — three modes (N-cycle, gated, infinite) with internal or external trigger, rising or falling edge.
- Built-in 7-bit frequency counter — 100 mHz to 200 MHz input range.
Technical Specifications
| Max sine frequency | 20 MHz |
|---|---|
| Max square / pulse frequency | 10 MHz |
| Max ramp frequency | 400 kHz |
| Max arbitrary wave frequency | 5 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 200 MSa/s |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 4 kpts |
| Built-in arbitrary waveforms | 200, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM (internal & external source) |
| Sweep modes | Linear, Logarithmic |

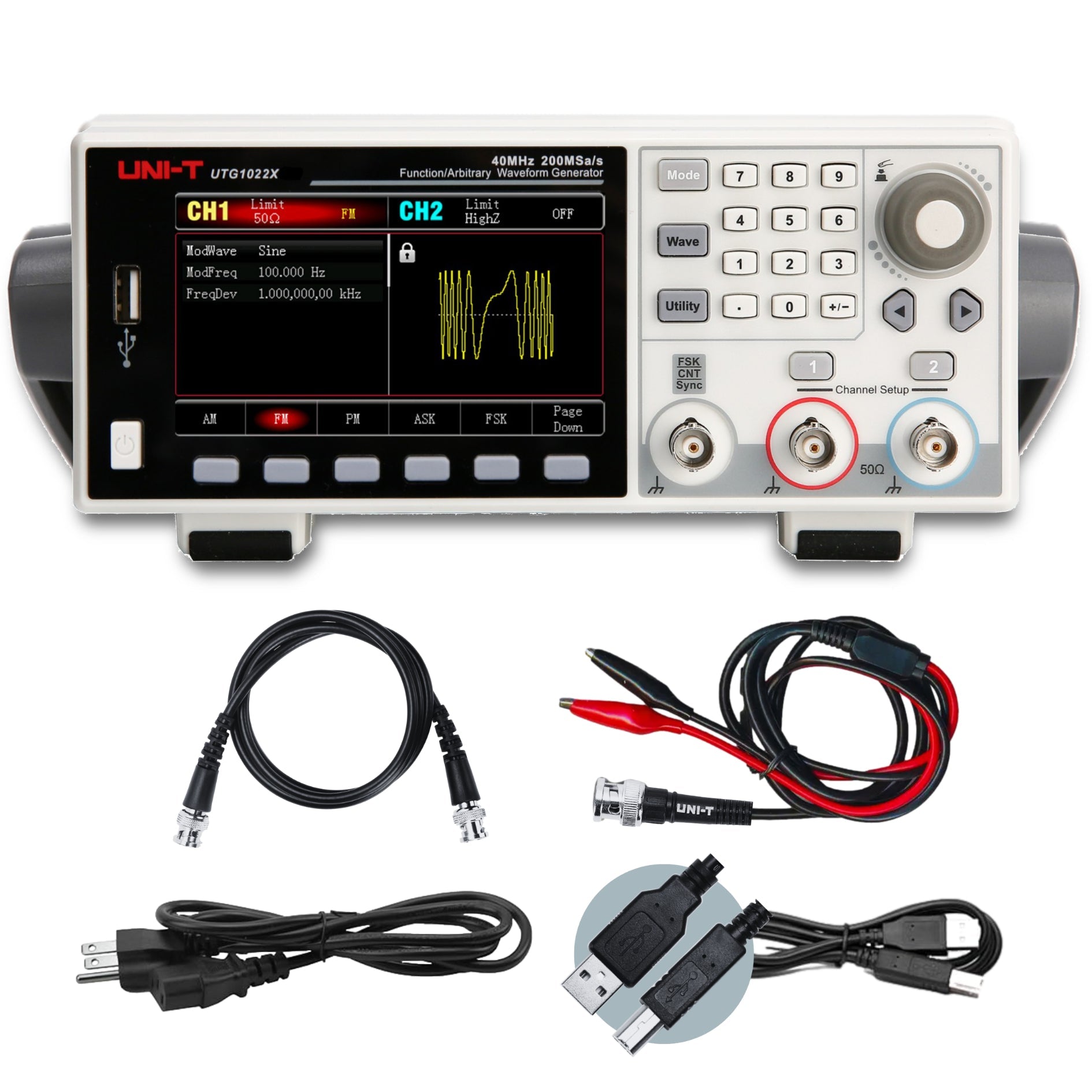

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
