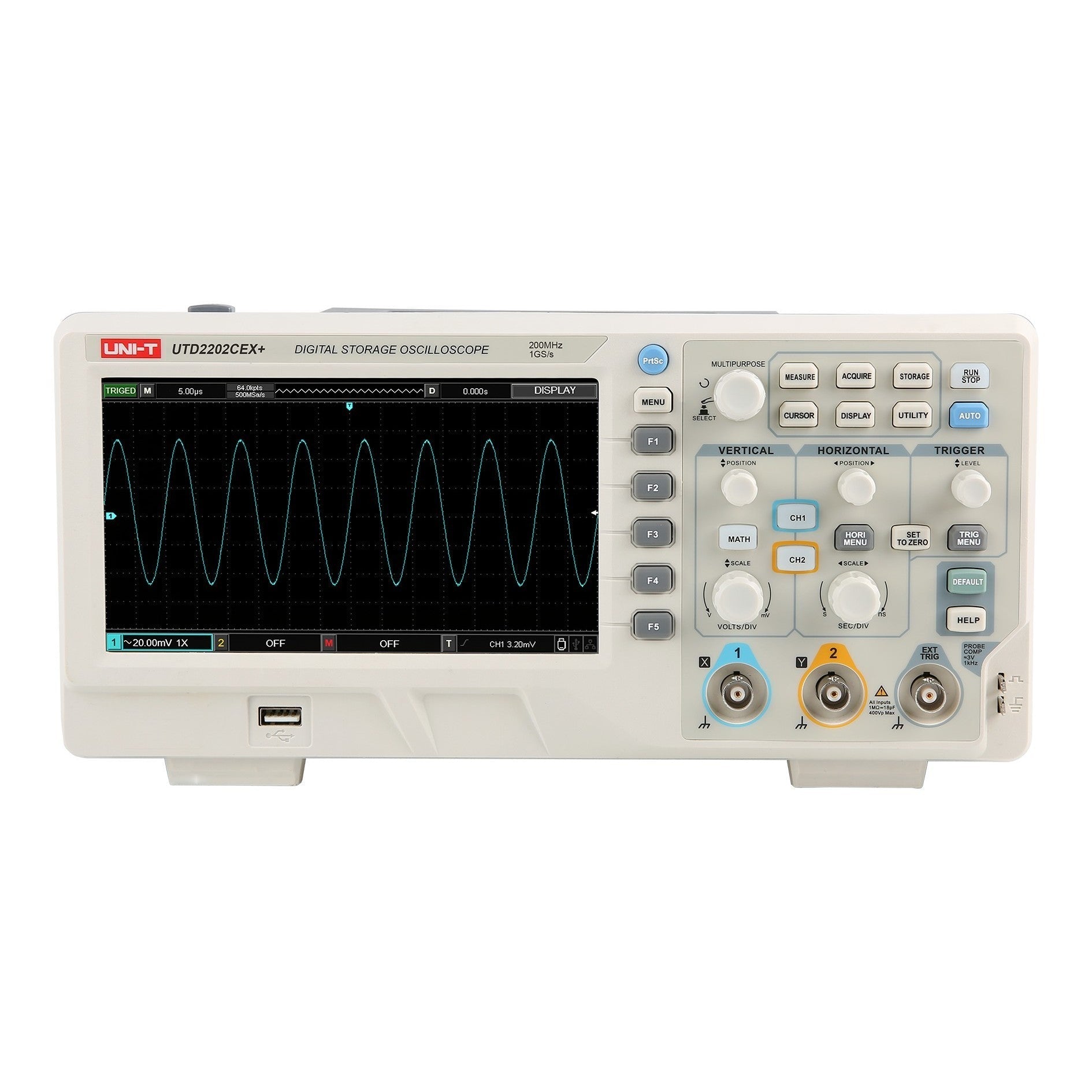

UNI-T UTD2202CEX+ — The UTD2202CEX+ is a 200 MHz 2-channel digital storage oscilloscope with 1.0 GSa/s sample rate, 64 kpts memory depth, and a 7-inch display. It is a compact, affordable bench oscilloscope for basic electronics testing, education, and field service — providing reliable waveform capture and measurement without the feature complexity or cost of higher-end instruments. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

• 200 MHz Bandwidth, 2 Channels — Two-channel capture at up to 200 MHz.
• 1.0 GSa/s Sample Rate — Full-speed sampling for accurate waveform capture.
• 64 kpts Memory Depth — Extended capture depth for the instrument class.
• 7-Inch Display — Clear waveform display with measurement readouts.
• Automated Measurements — Frequency, period, rise time, fall time, amplitude, duty cycle, and more.
• Math Functions — Addition, subtraction, and FFT for basic waveform analysis.
• Multiple Trigger Types — Edge, pulse width, and video triggering.

Technical Specifications

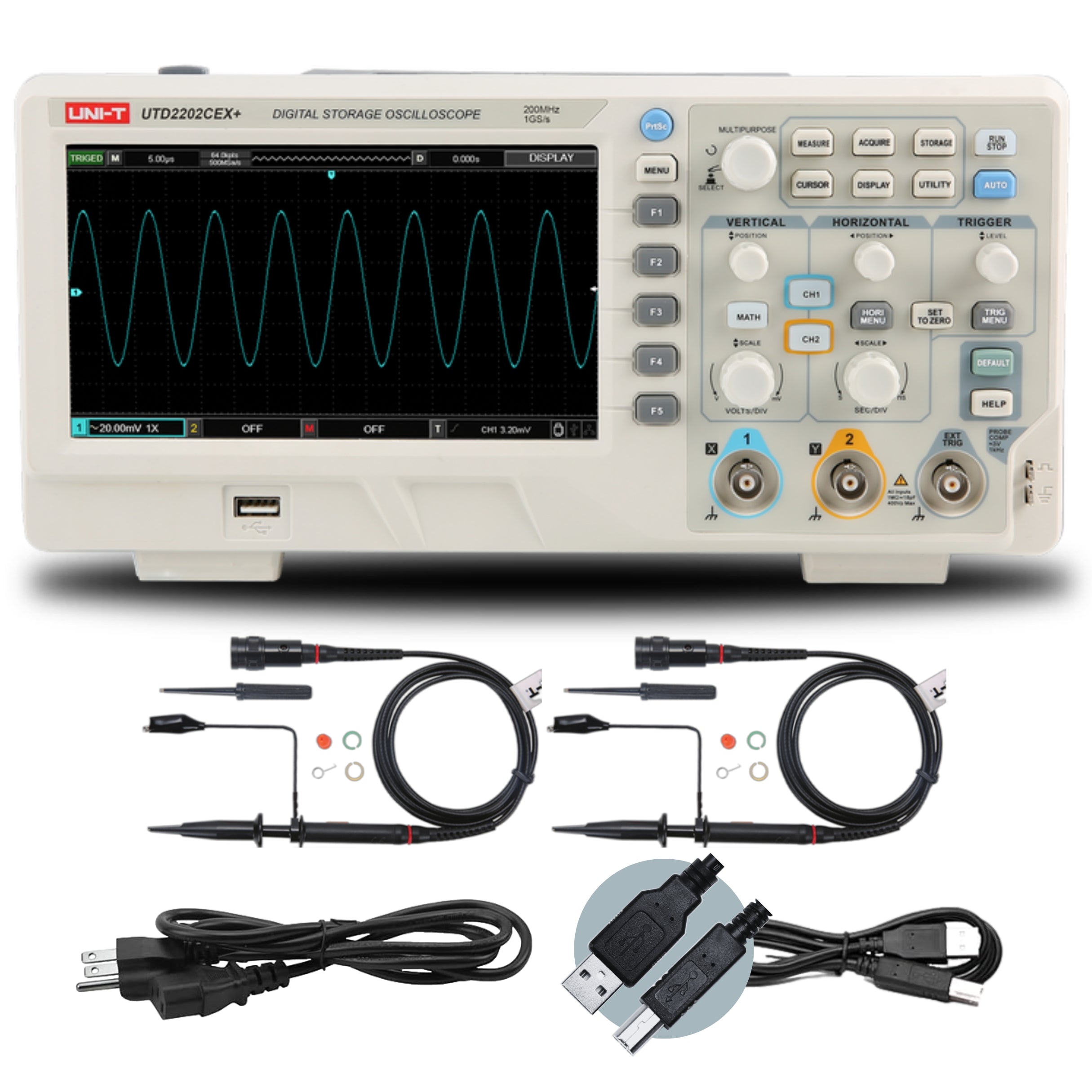

What's in the Box

• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Downloads

• UNI-T UTD2202CEX+ Product Page, Datasheet & Manual

Certifications: CE, RoHS | HS Code: 9030.20
