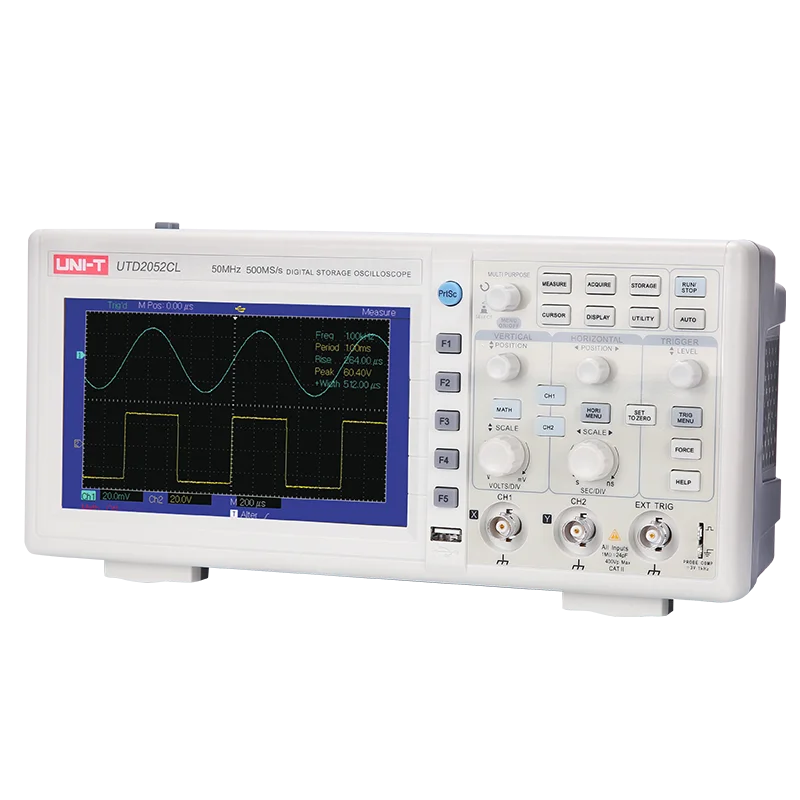

UNI-T UTD2052CL+ Professional 50MHz Dual-Channel Digital Storage Oscilloscope
Pakistan ke engineering students, electronics engineers, aur lab professionals ke liye — UNI-T UTD2052CL+ ek reliable, feature-rich bench oscilloscope hai jo basic se intermediate measurements ke liye ideal hai. Affordable price mein professional-grade performance milti hai.
Technical Specifications
| Model | UNI-T UTD2052CL+ |
| Bandwidth | 50 MHz |
| Channels | 2 (Dual Channel) |
| Real-Time Sampling Rate | 500 MS/s |
| Waveform Capture Rate | >5,000 wfms/s |
| Memory Depth | 64 kpts |
| Vertical Range (Sensitivity) | 1 mV/div – 20 V/div |
| Time Base Range | 2 ns/div – 50 s/div |
| Input Impedance | 1 MΩ ± 2% // 18 pF ± 3 pF |
| Auto Measurements | 34 waveform parameters (including Math and FFT) |

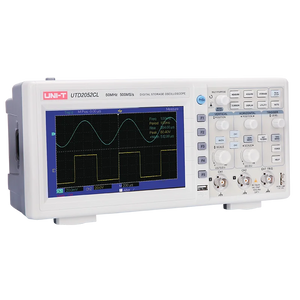

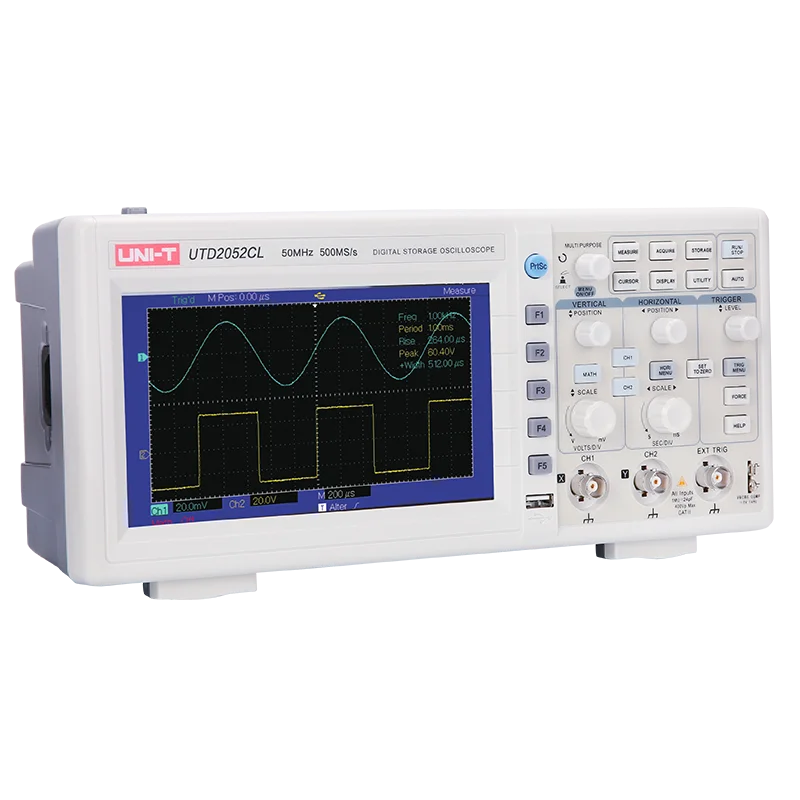

| Display | 7-inch TFT LCD (800×480 resolution) |
| Connectivity | USB Host & USB Device (PC Software Supported) |
| Dimensions | 306 mm x 138 mm x 124 mm |
| Weight | 2.5 kg (Net) / 3 kg (Gross) |
Applications & Use Cases
- University Labs & FYP Projects: Signal analysis, waveform debugging, and circuit verification — BSEE/BSCS final year projects ke liye perfect tool.
- Electronics Repair & Servicing: Power supplies, solar inverters, UPS, aur consumer electronics ki fault finding ke liye.
- Embedded Systems Development: Arduino, ESP32, and STM32 ke UART/SPI/I2C signals ko visualize karo aur timing issues debug karo.
- Industrial & R&D Use: Motor drivers, sensor outputs, aur control signals ki monitoring ke liye professional bench setup.
- Teaching & Training: Engineering colleges aur vocational institutes mein practical electronics training ke liye ideal.
Key Features
- 50 MHz Bandwidth: Capture standard embedded logic, audio, and power electronics signals.
- 500 MS/s Sampling: Captures fast transients to ensure you don't miss anomalies.
- Detailed Visibility: Wide vertical range from 1 mV/div to 20 V/div displayed on a bright 7-inch TFT LCD.
- Advanced Math & FFT: Supports waveform math (Add, Subtract, Multiply, Divide) and Fast Fourier Transform (FFT) for frequency domain analysis.
- Future-Proof: Easy system firmware upgrades via USB flash drive.
Frequently Asked Questions
Can this oscilloscope capture signals from Arduino and ESP32?
Yes, the UTD2052CL+ easily captures UART, SPI, I2C, and PWM signals from Arduino, ESP32, and STM32 development boards. Its 1 mV/div sensitivity is highly effective for low-voltage logic signals.
Is 50 MHz bandwidth sufficient for university projects?
For most embedded systems, audio electronics, power supply design, and general lab work, a 50 MHz bandwidth is optimal and highly recommended for BSEE and BSCS final year projects.
Does it support PC connectivity?

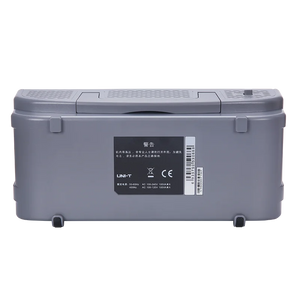

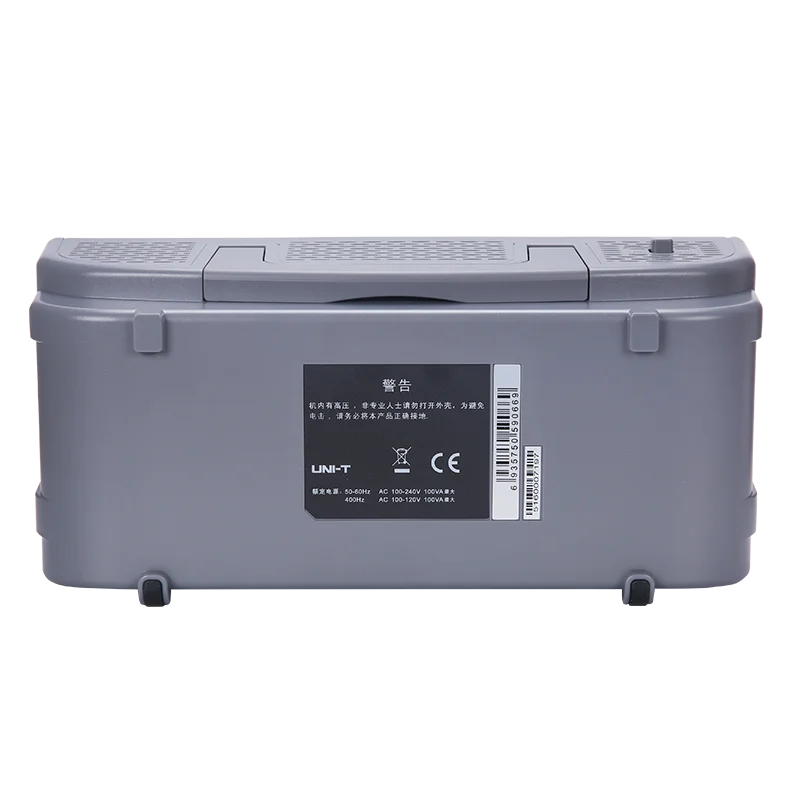

Yes, it features both a USB Host port (for saving screenshots and data directly to a USB drive) and a USB Device port (for connecting to a PC for remote control and data transfer via PC software).
Which probes are included in the box?
The standard package includes two UT-P03 passive probes (1x, 10x switchable, up to 60MHz rating), a power cord, and a USB data cable.
Order now from Digilog.pk — fast nationwide delivery and Cash on Delivery available across Pakistan. Buy genuine UNI-T testing instruments from Pakistan's most trusted electronics store.
