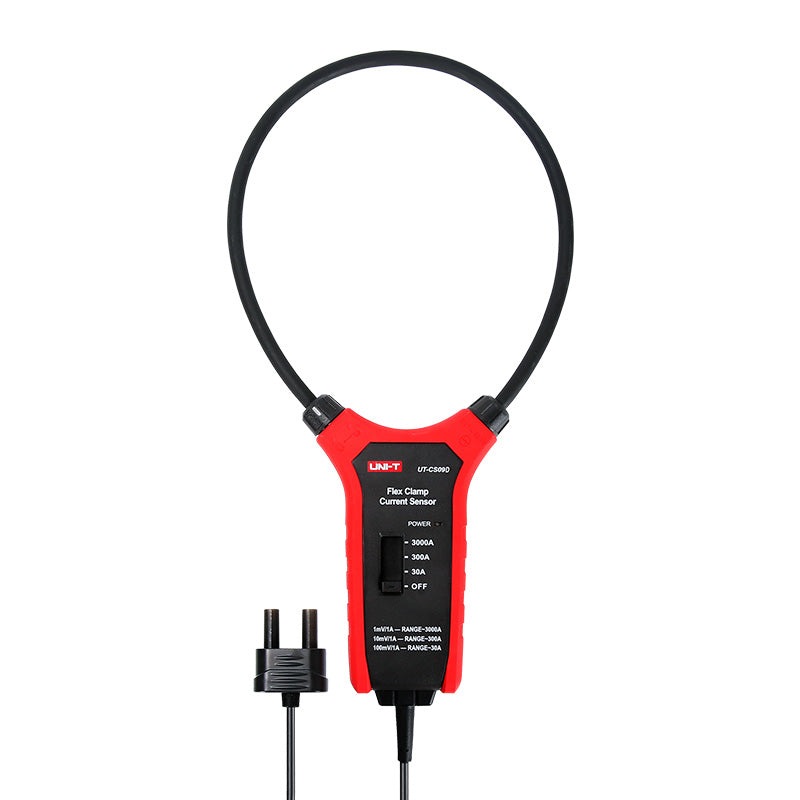

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - a black circular coil, a red handle with a power switch, and a black two-pin connector on a cable.

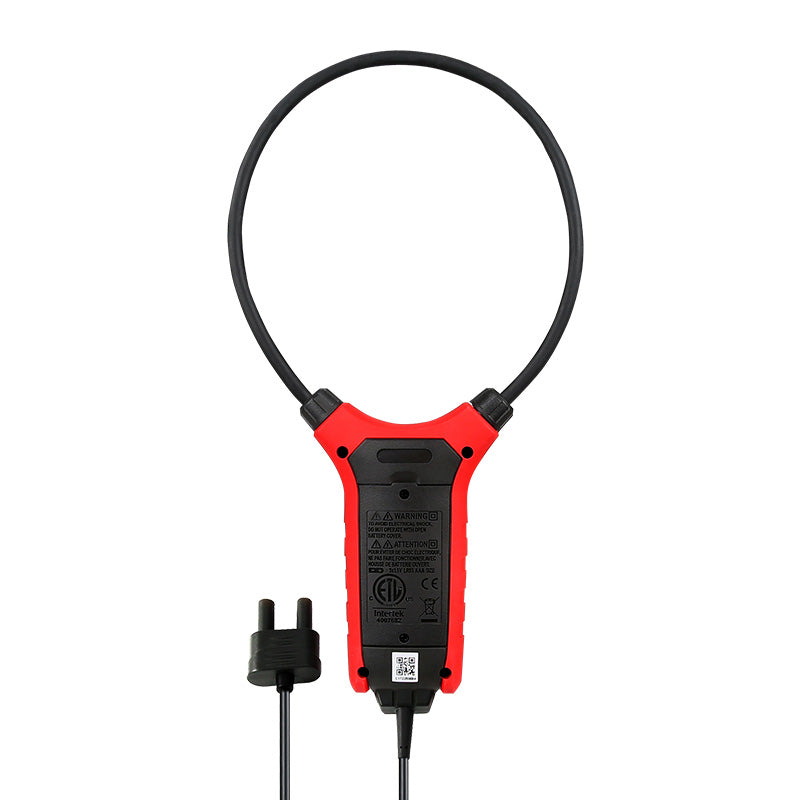

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - the red handle, black flexible coil, and a BNC connector on a cable against a white background.

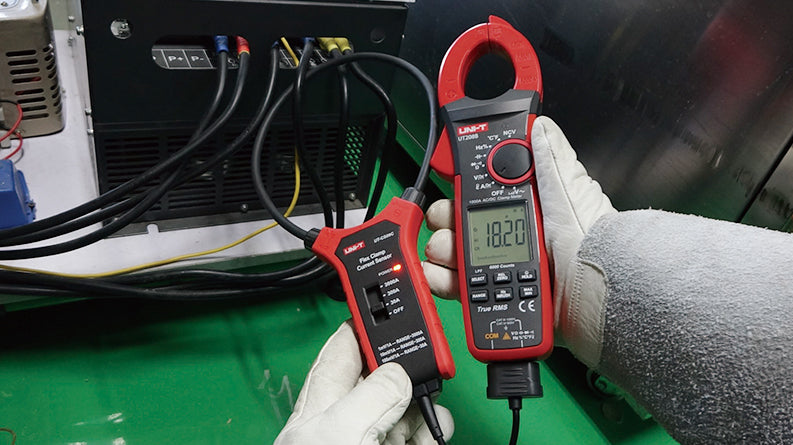

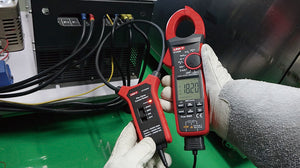

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - with a UNI-T UT208B clamp meter showing a 18.20 reading on its digital display.
UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - a black circular coil, a red handle with a power switch, and a black two-pin connector on a cable.
UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - the red handle, black flexible coil, and a BNC connector on a cable against a white background.
UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - with a UNI-T UT208B clamp meter showing a 18.20 reading on its digital display.

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V

Sale price Rs 20,650
SKU: UTCS09D
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - a black circular coil, a red handle with a power switch, and a black two-pin connector on a cable.

UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V - a black circular coil, a red handle with a power switch, and a black two-pin connector on a cable.
UNI-T UT-CS09D Flexible Rogowski Current Clamp Sensor – 1.5A to 3000A AC, 45.7cm (18") Flex Coil, BNC Output, 1m Drop-Proof, CAT IV 600V
Sale priceRs 20,650

UNI-T UT-CS09D — Flexible Rogowski-coil current clamp sensor that measures high AC currents up to 3000A in tight or crowded conductor spaces where a rigid jaw won't fit. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • Flexible Rogowski coil — 1.5A to 3000A AC across 30A / 300A / 3000A ranges
  • 45.7 cm (18") flexible coil fits busbars & bundled cables
  • BNC output — connects to compatible UNI-T meters (e.g. UT206B/UT208B) for direct readout
  • 45Hz ~ 500Hz frequency response
  • 1-metre drop-proof, robust terminal connection
  • CAT IV 600V safety

Technical Specifications

Type Flexible Rogowski-coil AC current sensor
Current Range 1.5 A ~ 3000 A (30A / 300A / 3000A)
Coil Length 45.7 cm (18")
Frequency Response 45 Hz ~ 500 Hz
Output BNC adapter
Drop Test 1 m
Dimensions 267 × 119.4 × 34 mm
Weight 260 g
Safety CAT IV 600V

What's in the Box

  • UT-CS09D flexible current sensor
  • BNC adapter
  • 3 × 1.5V R03 batteries
  • English user manual

Downloads

Certifications: CAT IV 600V, CE, UKCA, cETLus  |  HS Code: 9033.0000
