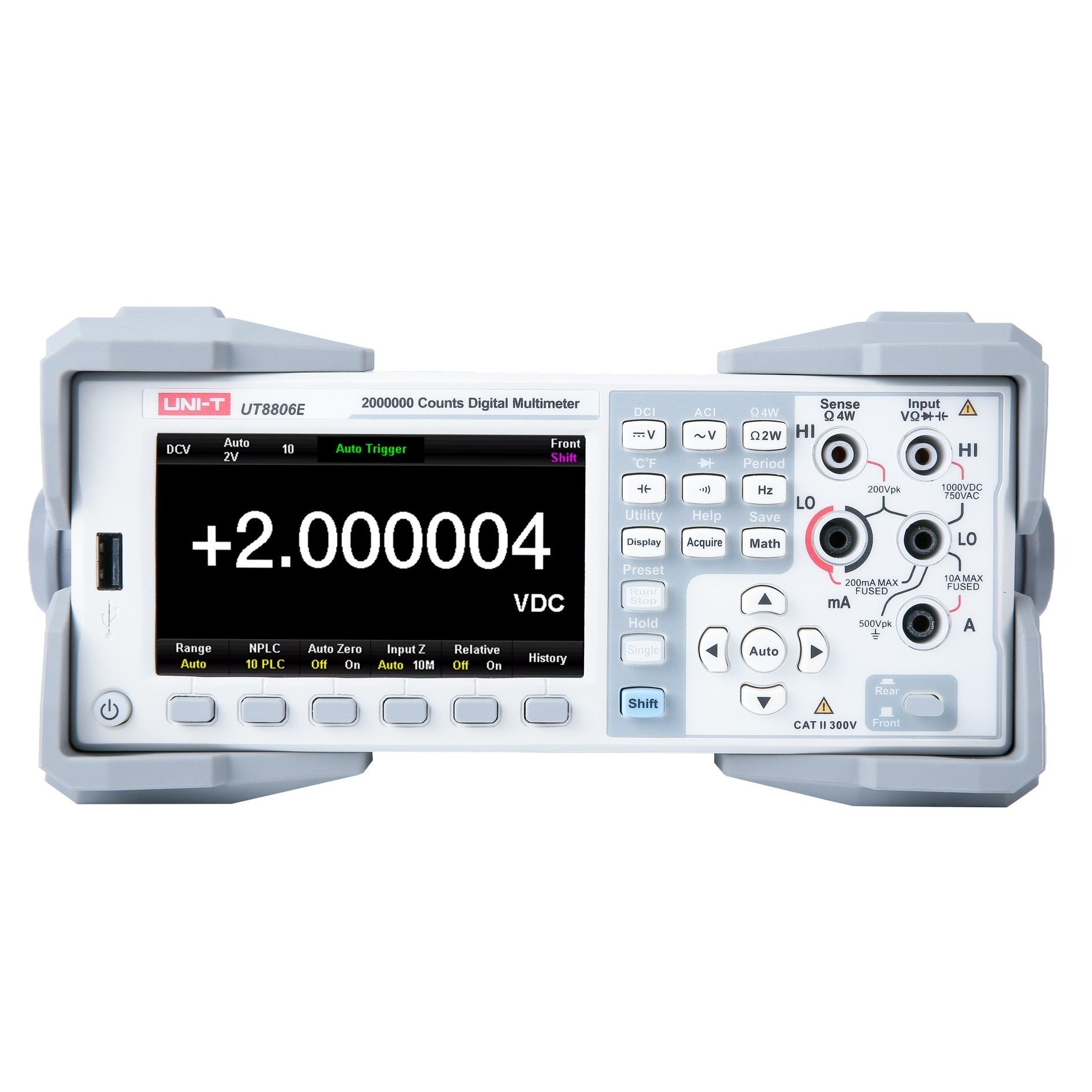

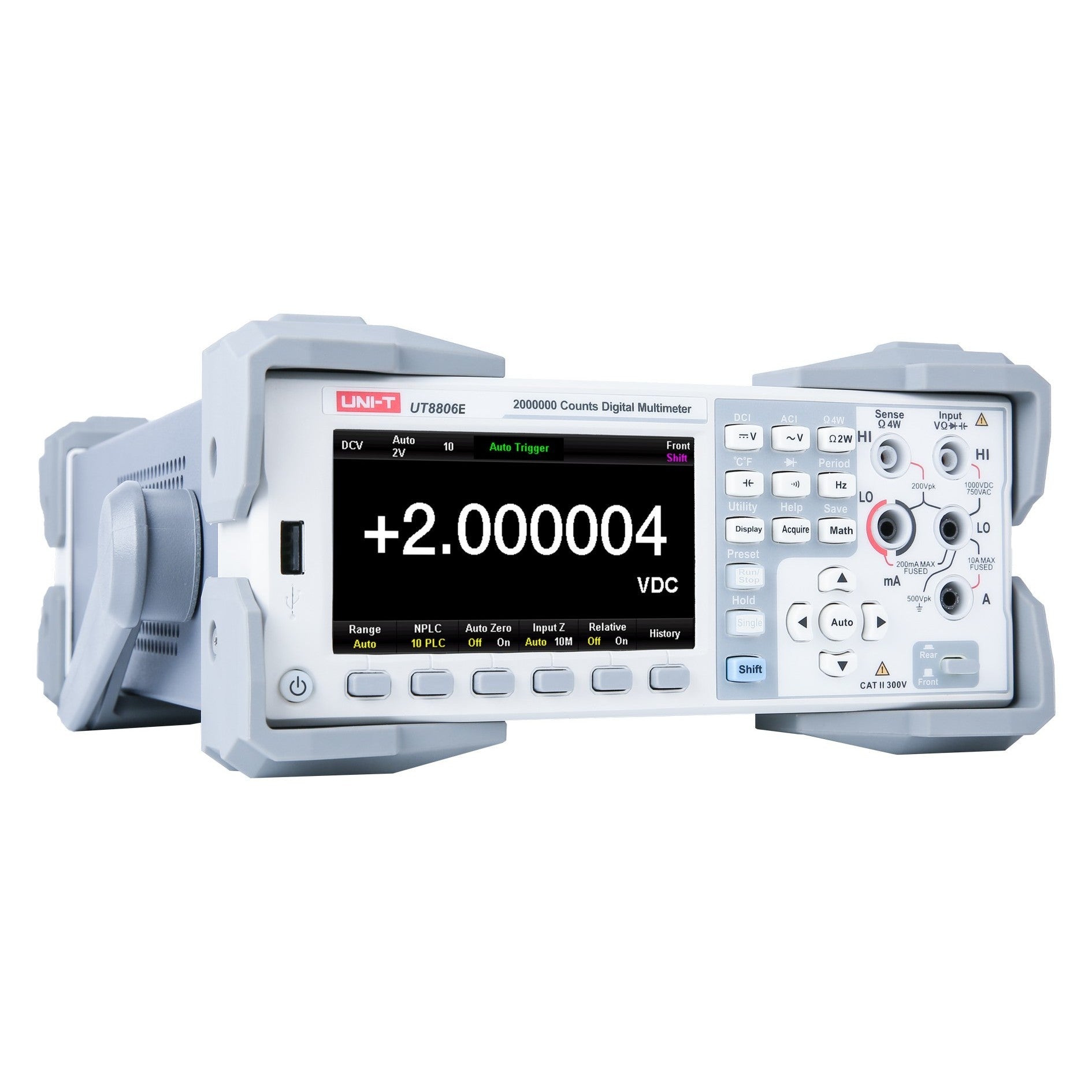

UNI-T UT8806E 6.5-Digit Performance-Series Bench Digital Multimeter – Dual Display
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT8806E 6.5-Digit Performance-Series Bench Digital Multimeter – Dual Display
UNI-T UT8806E — The UNI-T UT8806EG is the GPIB variant of the UT8806E 6½-digit bench digital multimeter, with IEEE-488.2 GPIB substituting for the UT8806E's RS-232 port. All other specifications match the UT8806E: 0.0035% basic DC voltage accuracy, 10,000 rdgs/s maximum reading rate, 1,999,999-count display, True-RMS, four-wire resistance to 1 GΩ, dual display, and 32 Gb NAND Flash measurement storage. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Interfaces — USB / LAN / RS-232 standard; GPIB is available on the UT8806EG variant.
- 6½-digit, 1,999,999-count display — 0.0035% basic DC voltage accuracy at the tier price point.
- True-RMS AC measurement — accurate readings on non-sinusoidal waveforms (switching supplies, motor drives, PWM, dimmed loads).
- Auto-ranging — across voltage, current, resistance, and capacitance functions, reducing operator workflow friction.
- 10,000 rdgs/s maximum reading rate — fast acquisition for high-throughput automated test and noise-reduction averaging.
- Thermocouple and RTD temperature measurement — range -270°C to 1820°C, with built-in cold-end compensation.
- Four-wire (Kelvin) resistance measurement — eliminates lead and contact resistance from low-resistance readings.
Technical Specifications
| Display Digits | 6½ (6.5) |
|---|---|
| Resolution Count | 1,999,999 |
| Basic DC Voltage Accuracy | 0.0035% |
| DC Voltage Resolution | 0.1μV |
| DC Current Resolution | 1pA |
| Resistance Measurement Resolution | 10μΩ |
| Maximum Reading Rate | 10,000 rdgs/s |
| True-RMS | Yes |
| Auto-Ranging | Yes |
| Capacitance Range (max) | 100 mF |
| Frequency Counter Range | 3 Hz – 1 MHz |
| AC Frequency Response | 300 kHz |
| Temperature Range | -270°C to 1820°C |

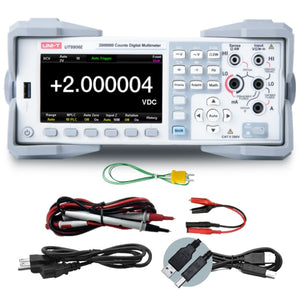

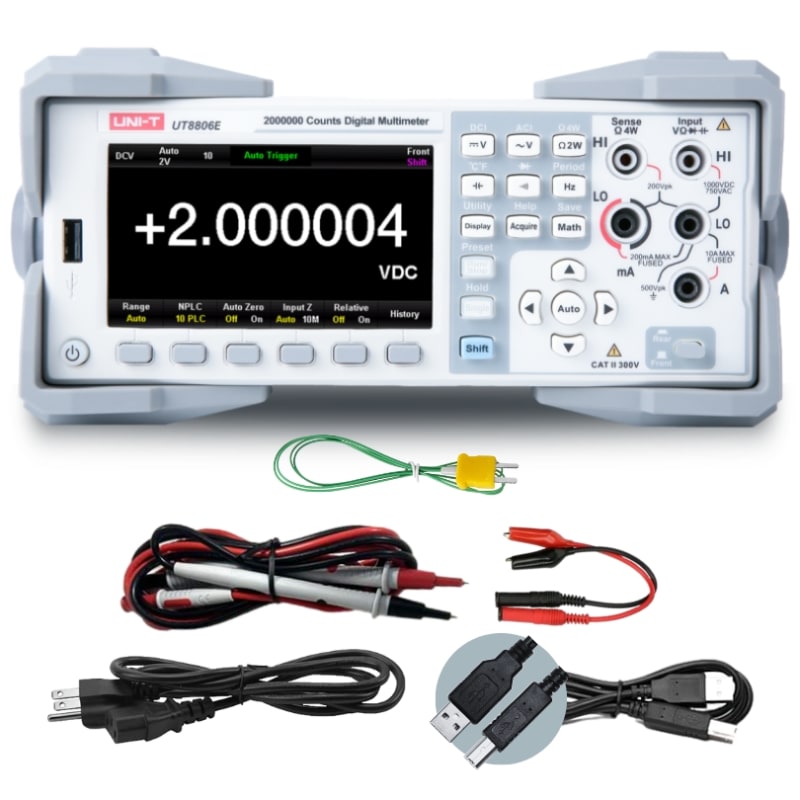

What's in the Box
- Power cord
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.31
