UNI-T UT8805E 5.5-Digit Bench Digital Multimeter – Precision, Dual Display
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT8805E 5.5-Digit Bench Digital Multimeter – Precision, Dual Display

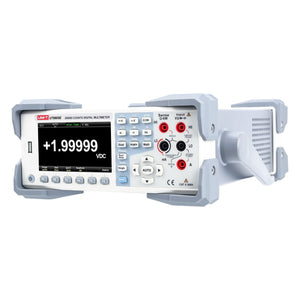

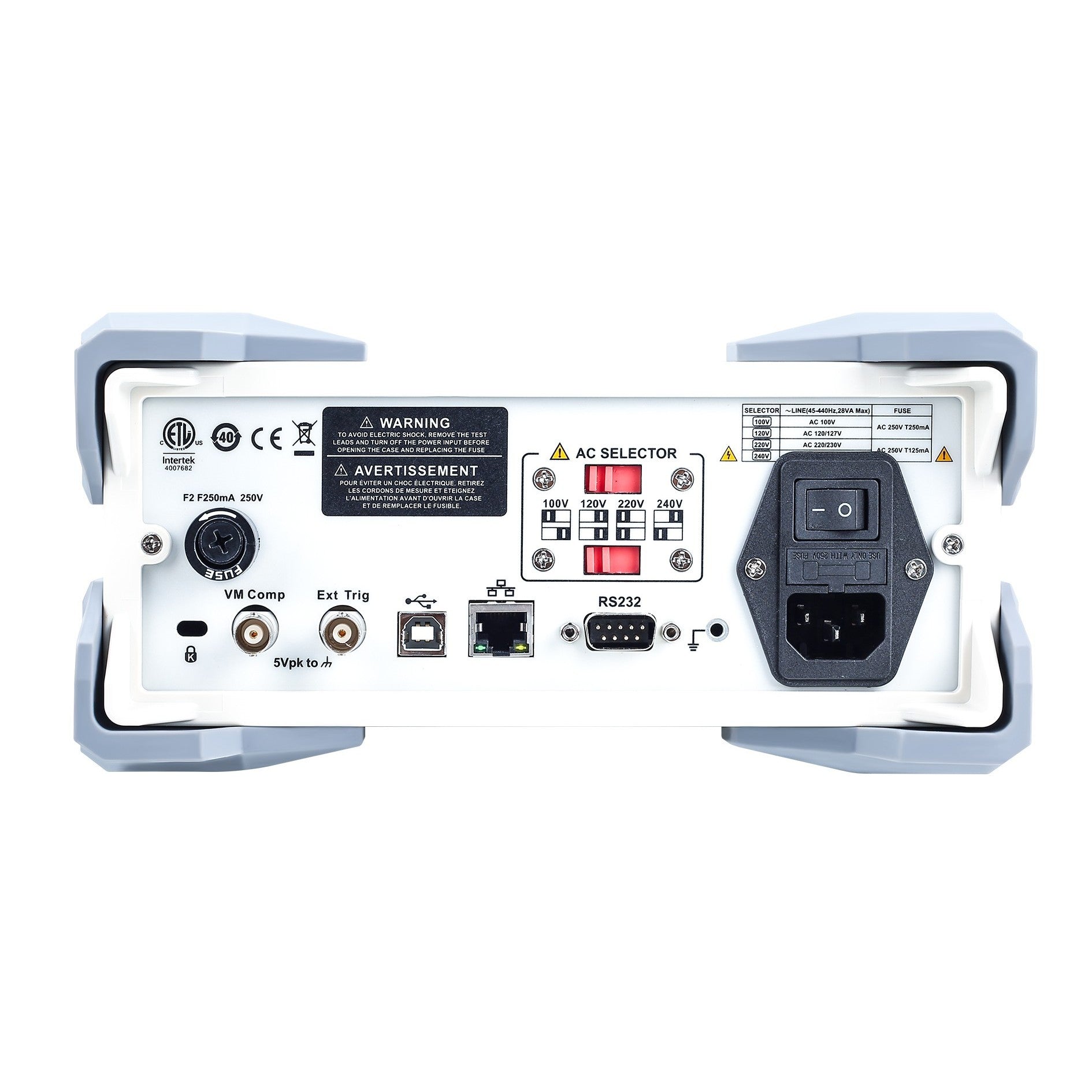

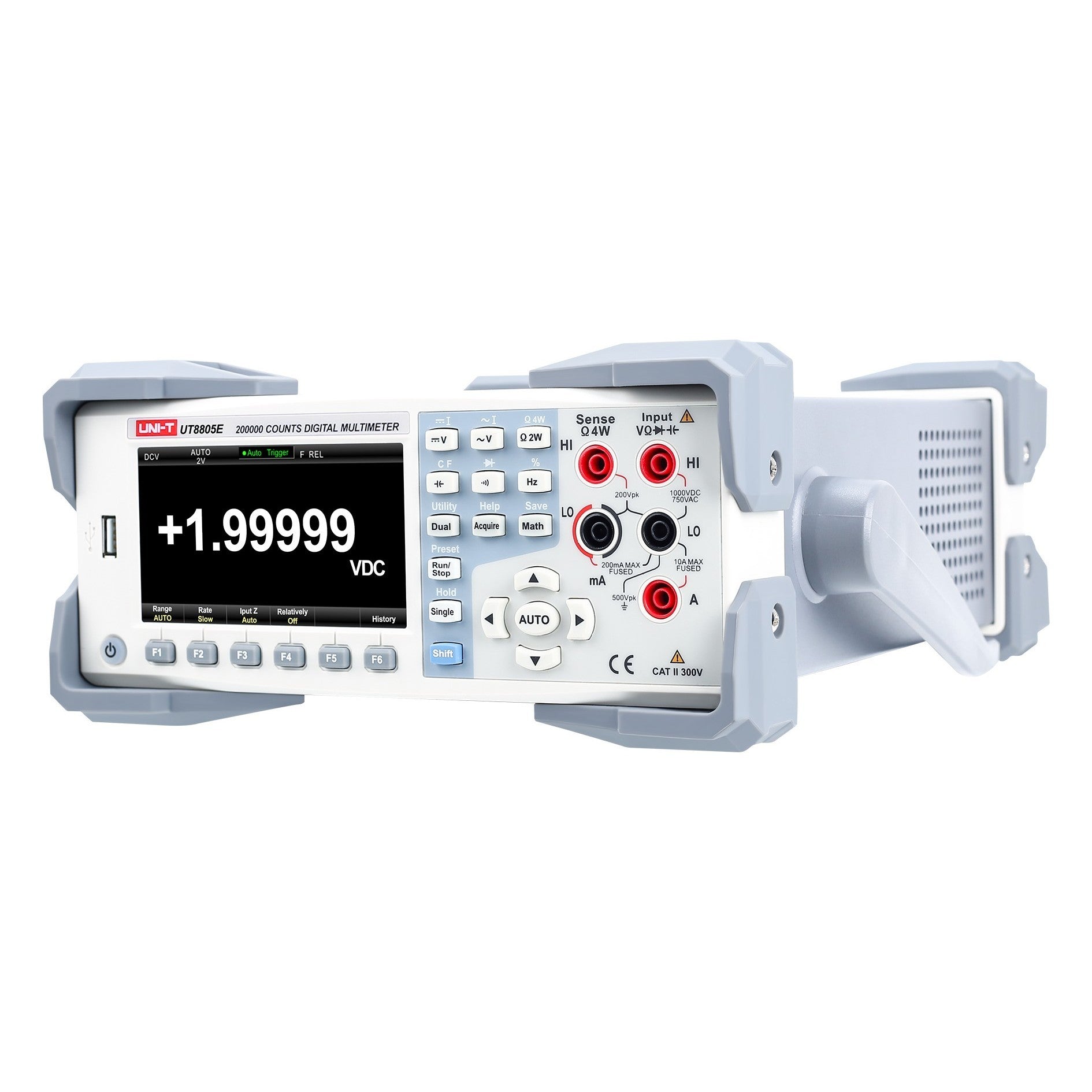

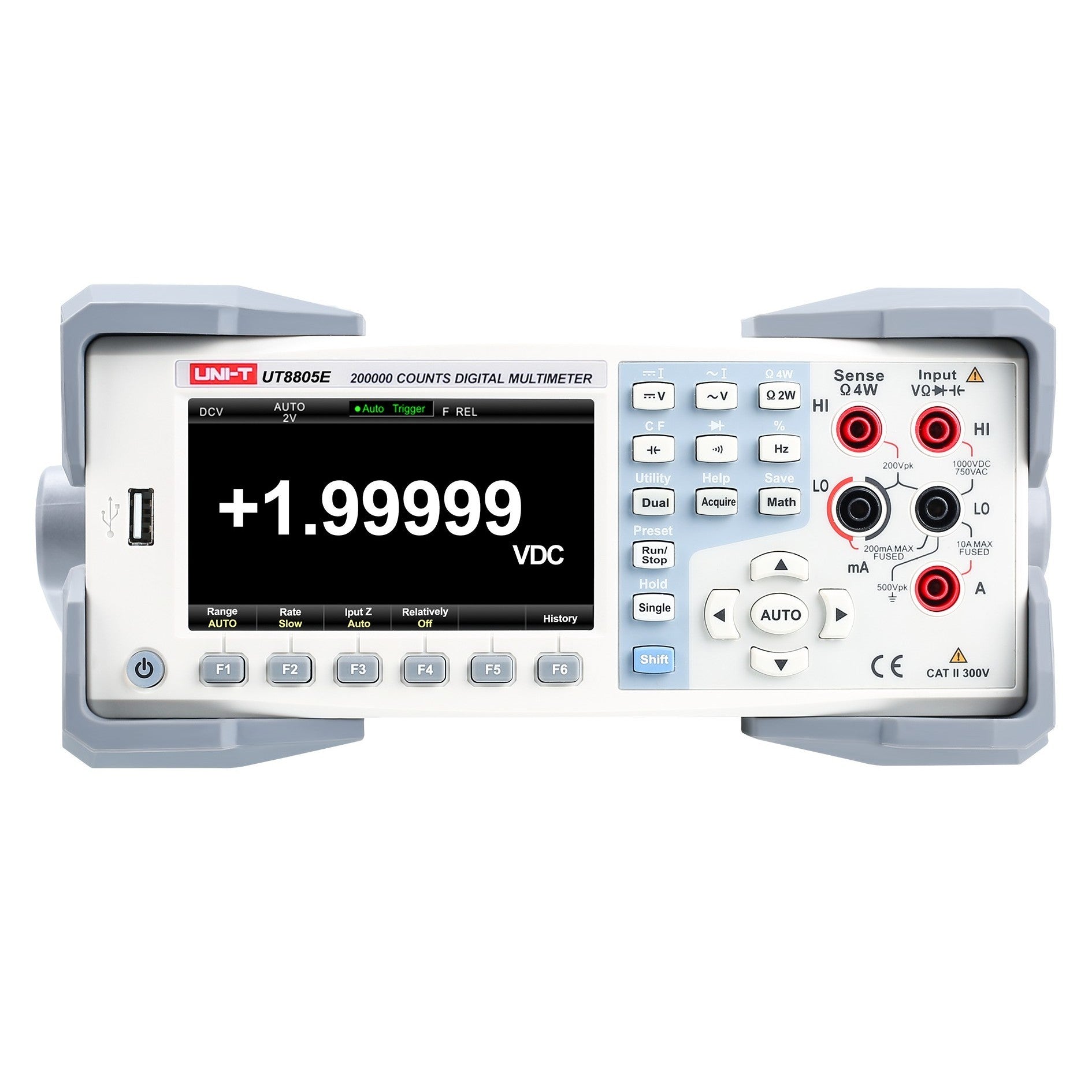

UNI-T UT8805E — The UNI-T UT8805E Performance-Series Bench Digital Multimeter is a 5½-digit auto-ranging True-RMS meter with 0.015% basic DC voltage accuracy, a 5,000 rdgs/s maximum reading rate, and a 199,999-count display on a 4.3in 480×272 TFT-LCD. SCPI over LAN, RS-232, and USB makes the UT8805E a clean drop-in for automated test setups. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 5½-digit, 199,999-count display — 0.015% basic DC voltage accuracy at the tier price point.
- True-RMS AC measurement — accurate readings on non-sinusoidal waveforms (switching supplies, motor drives, PWM, dimmed loads).
- Auto-ranging — across voltage, current, resistance, and capacitance functions, reducing operator workflow friction.
- 5,000 rdgs/s maximum reading rate — fast acquisition for high-throughput automated test and noise-reduction averaging.
- Thermocouple and RTD temperature measurement — range -270°C to 1820°C, with built-in cold-end compensation.
- Four-wire (Kelvin) resistance measurement — eliminates lead and contact resistance from low-resistance readings.
- Dual display — simultaneous viewing of two parameters (e.g., voltage + frequency) without menu toggling.
Technical Specifications
| Display Digits | 5½ (5.5) |
|---|---|
| Resolution Count | 199,999 |
| Basic DC Voltage Accuracy | 0.015% |
| DC Voltage Resolution | 1μV |
| DC Current Resolution | 1nA |
| Resistance Measurement Resolution | 0.1mΩ |
| Maximum Reading Rate | 5,000 rdgs/s |
| True-RMS | Yes |
| Auto-Ranging | Yes |
| Capacitance Range (max) | 2 mF |
| Frequency Counter Range | 20 Hz – 1 MHz |
| AC Frequency Response | 100 kHz |
| Temperature Range | -270°C to 1820°C |

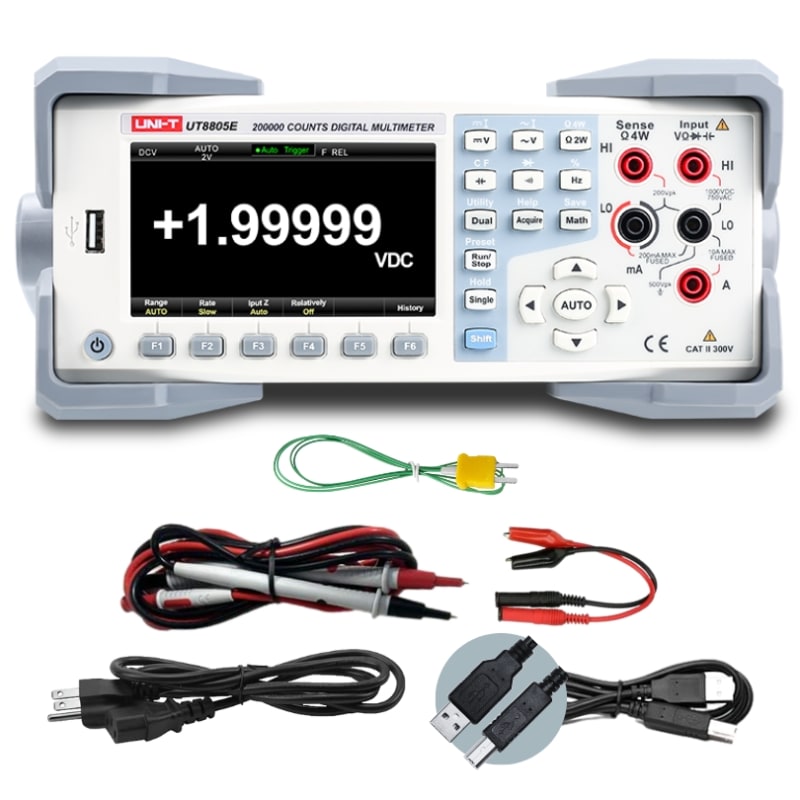

What's in the Box
- Power cord
- English download guide
- multi-language safety manual
- calibration report (COC)
- UT8800 series safety instructions attachment
Downloads
Certifications: CE, RoHS | HS Code: 9030.31
