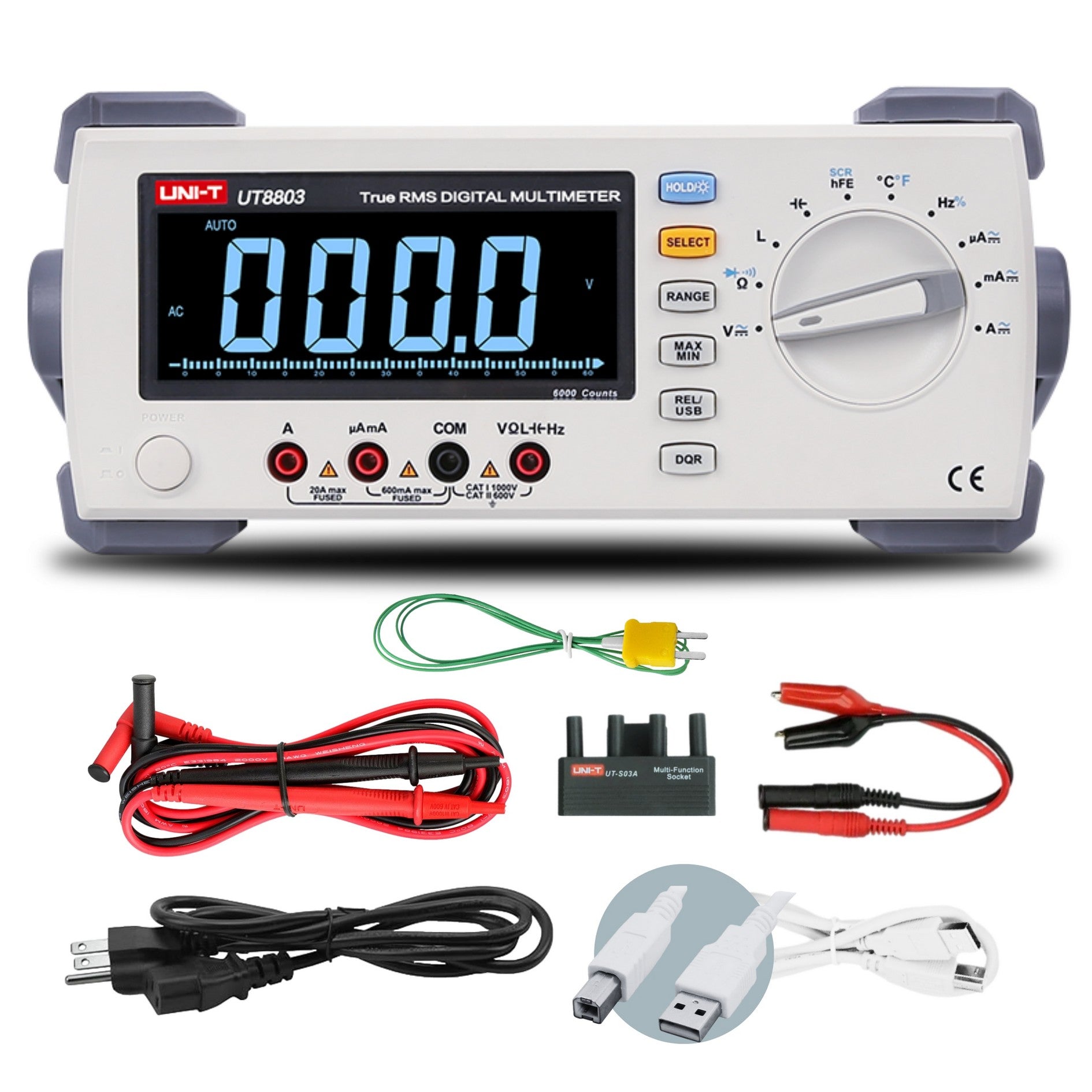

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - its grey housing, display reading 000.0, rotary dial, ports, and included test leads, cables, and accessories.

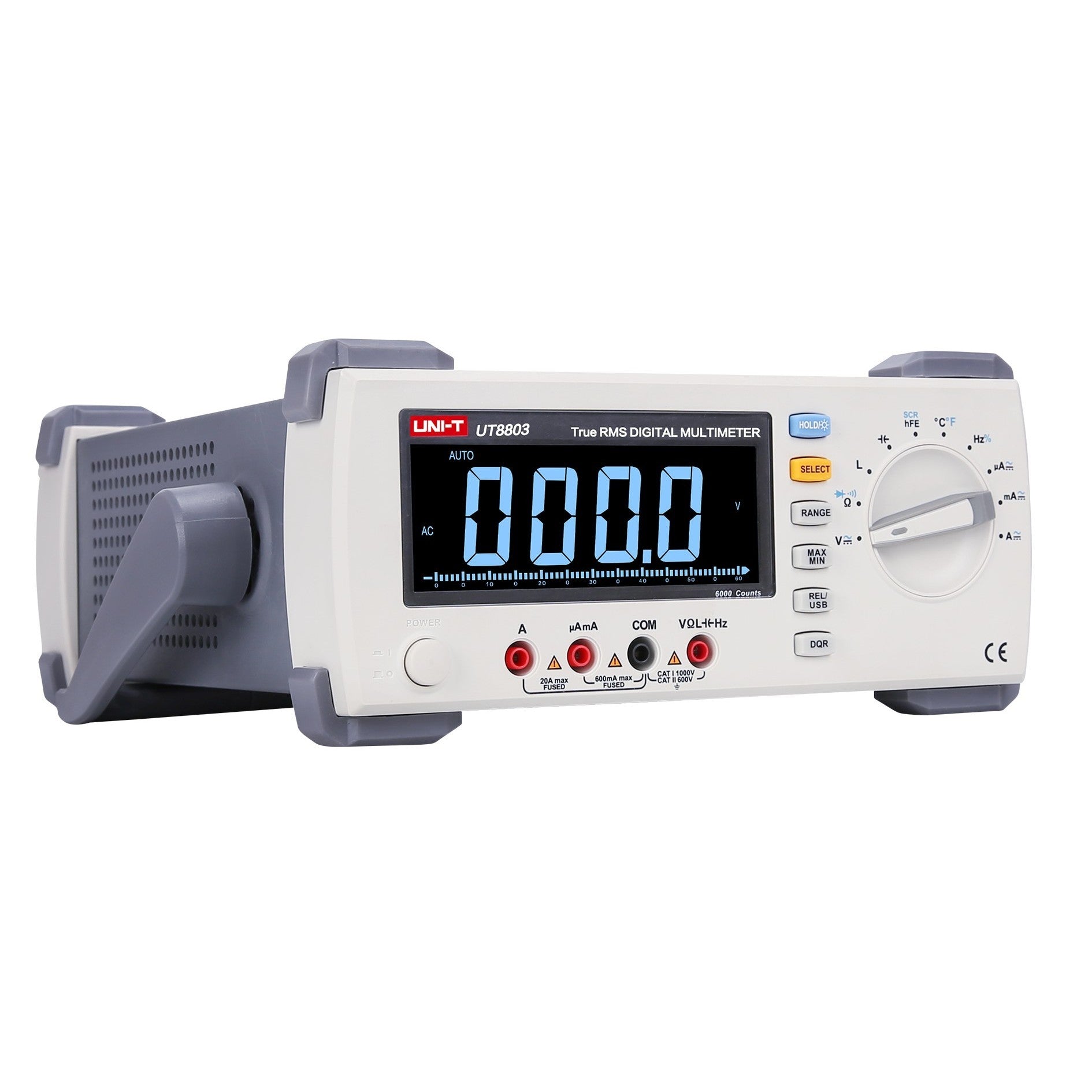

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - with a large display showing 000.0, a rotary function dial, buttons, and input ports on the front panel.

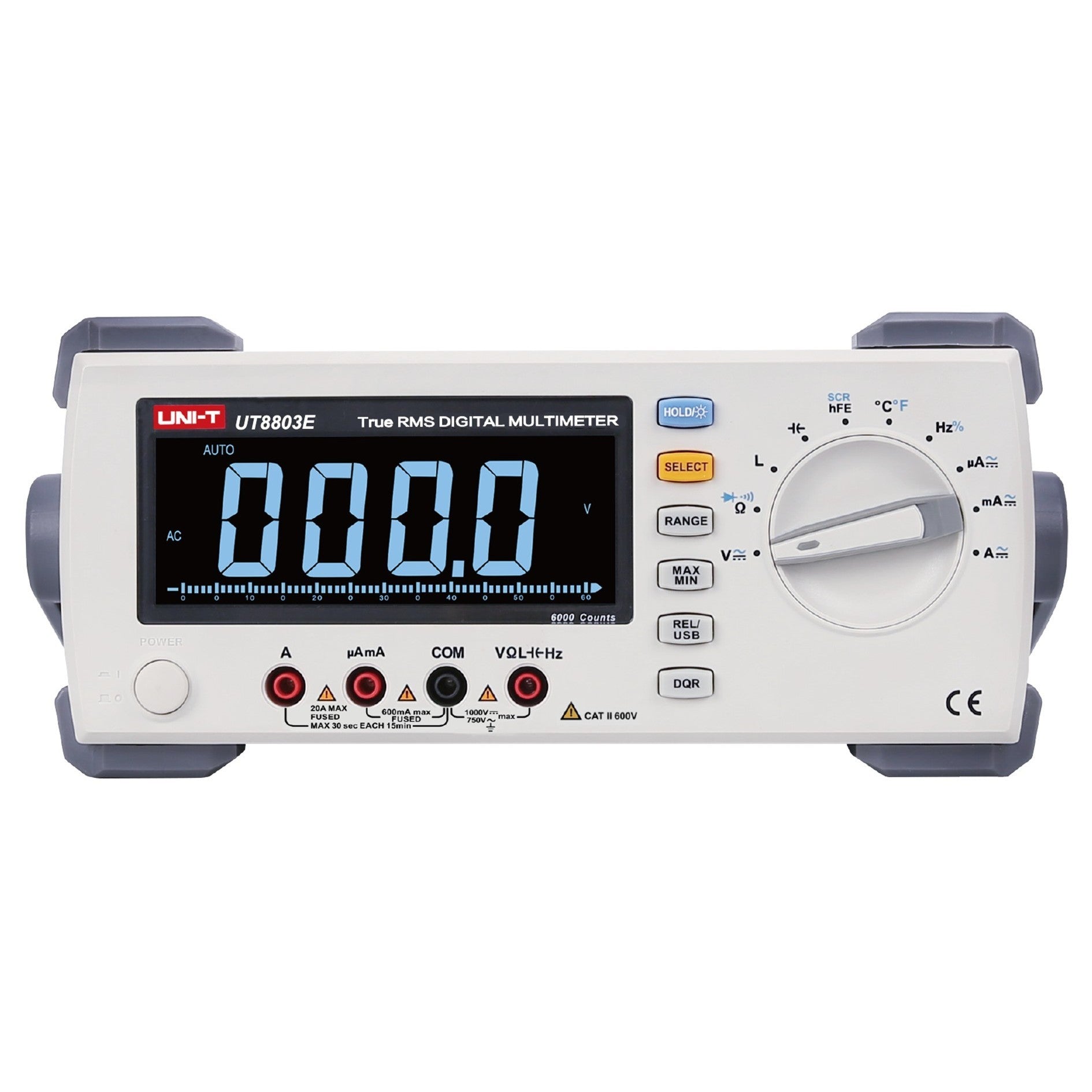

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - in a grey and white housing, showing a digital display reading 000.0, a rotary dial, and front-panel input ports.

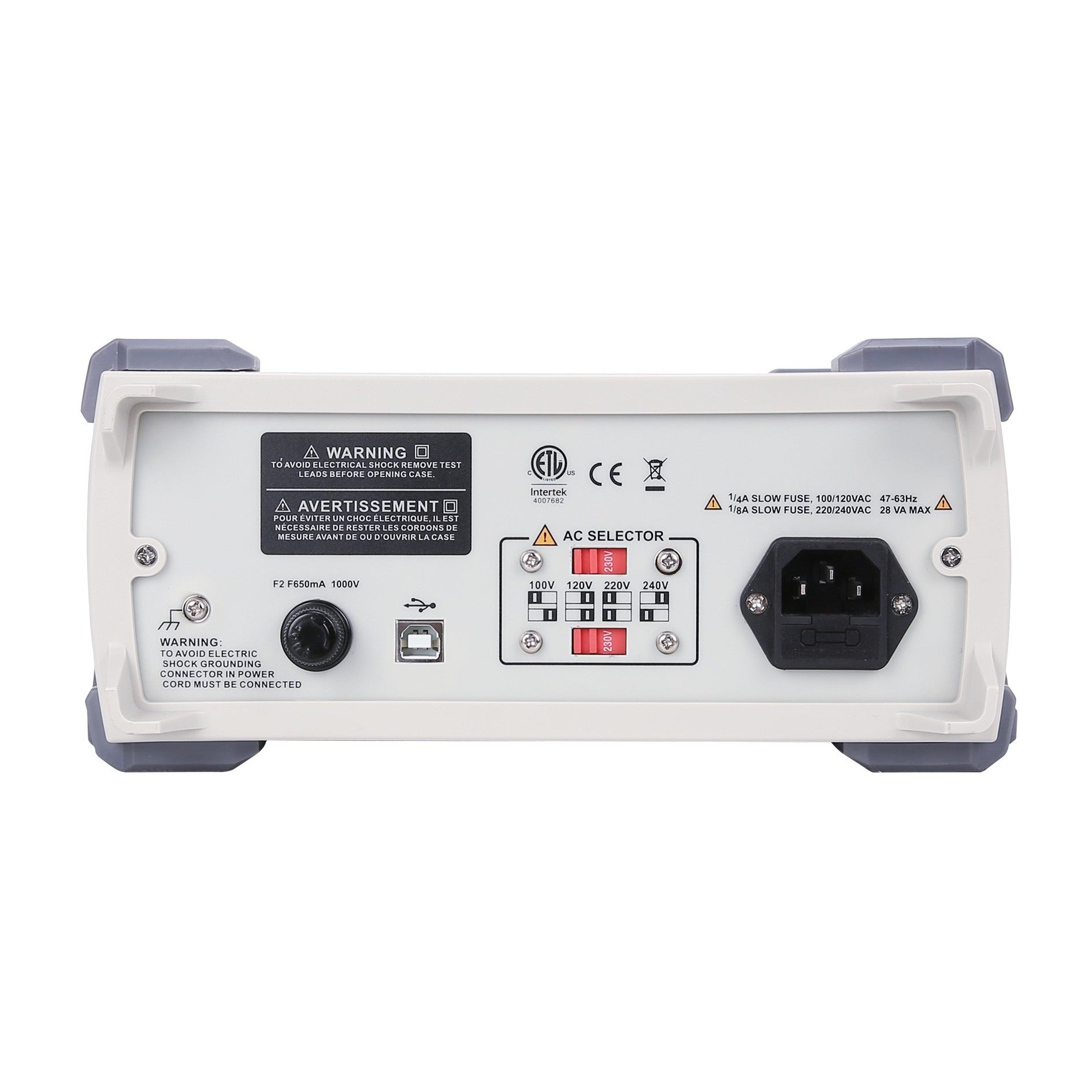

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - rear panel view showing the AC voltage selector, power input, USB port, fuse holder, and safety warning labels.
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - its grey housing, display reading 000.0, rotary dial, ports, and included test leads, cables, and accessories.
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - with a large display showing 000.0, a rotary function dial, buttons, and input ports on the front panel.
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - in a grey and white housing, showing a digital display reading 000.0, a rotary dial, and front-panel input ports.
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - rear panel view showing the AC voltage selector, power input, USB port, fuse holder, and safety warning labels.

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB

Sale price Rs 60,000
SKU: UT8803E
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - its grey housing, display reading 000.0, rotary dial, ports, and included test leads, cables, and accessories.

UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB - its grey housing, display reading 000.0, rotary dial, ports, and included test leads, cables, and accessories.
UNI-T UT8803E 4.5-Digit Bench Digital Multimeter – Dual Display, True RMS, USB
Sale priceRs 60,000

UNI-T UT8803E — The UNI-T UT8803E Classic-Series Bench Digital Multimeter is a 3⅚-digit auto-ranging meter with True-RMS AC measurement, a 5,999-count display, and an extended measurement function set that includes inductance to 100 H and capacitor D/Q parameters in addition to the standard voltage, current, resistance, capacitance, diode, continuity, frequency, and temperature functions. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • 3⅚-digit, 5,999-count display — 0.3% basic DC voltage accuracy at the tier price point.
  • True-RMS AC measurement — accurate readings on non-sinusoidal waveforms (switching supplies, motor drives, PWM, dimmed loads).
  • Auto-ranging — across voltage, current, resistance, and capacitance functions, reducing operator workflow friction.
  • Inductance measurement to 100 H — with D and Q quality-factor readout on capacitors and inductors.
  • Thermocouple temperature measurement — range -40°C to 1000°C.
  • USB-Device PC connection — included software for historical-data viewing and trend monitoring.

Technical Specifications

Display Digits 3⅚ (3.8)
Resolution Count 5,999
Basic DC Voltage Accuracy 0.3%
DC Voltage Resolution 0.01 mV
DC Current Resolution 0.1μA
Resistance Measurement Resolution 0.1Ω
Maximum Reading Rate 3 rdgs/s
True-RMS Yes
Auto-Ranging Yes
Capacitance Range (max) 60 mF
Inductance Range to 100 H
Frequency Counter Range 600 Hz – 20 MHz
AC Frequency Response 100 kHz

What's in the Box

  • Power cord
  • English download guide
  • multi-language safety manual
  • calibration report (COC)
  • UT8800 series safety instructions attachment

Downloads

Certifications: CE, RoHS | HS Code: 9030.31
