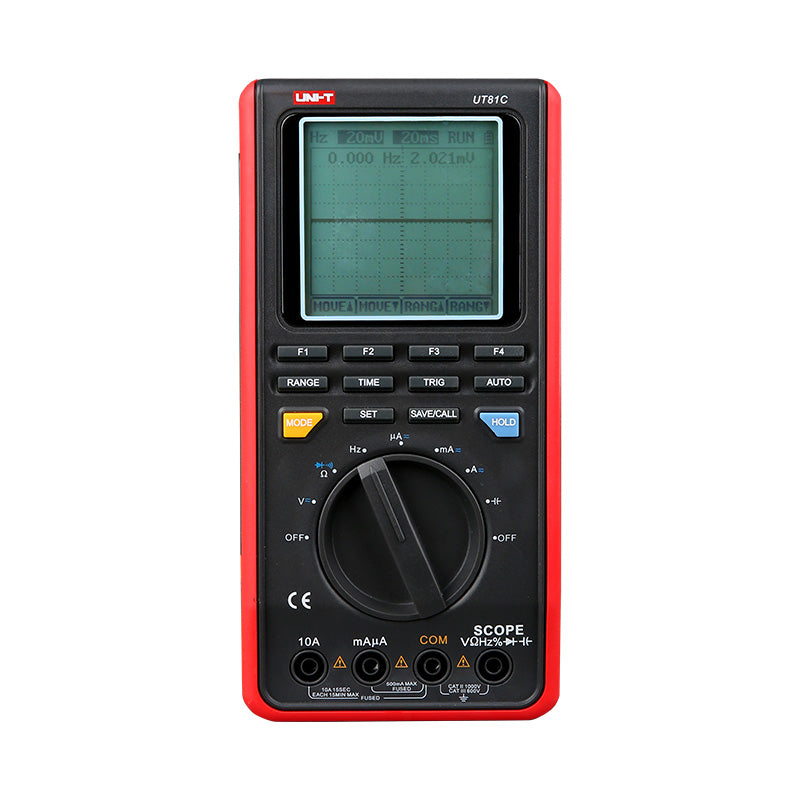

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - the LCD screen, control buttons, rotary dial, and input ports on a white background.

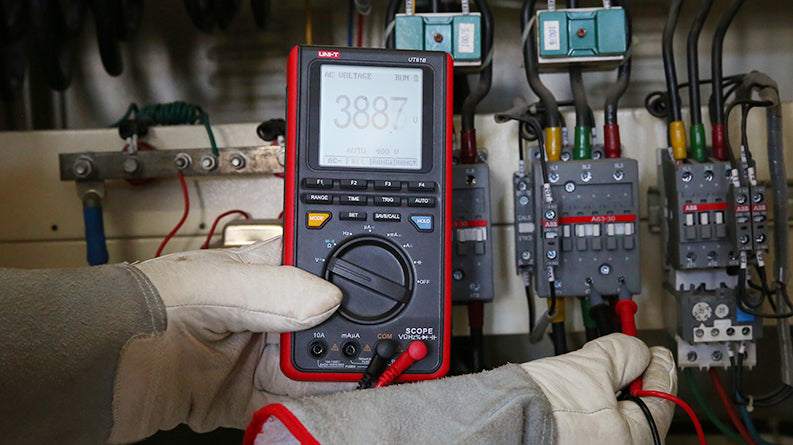

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - UNI-T UT81B handheld scopemeter in a red and black case, held by a gloved hand, showing a digital display reading 388.7 V with connected test leads.

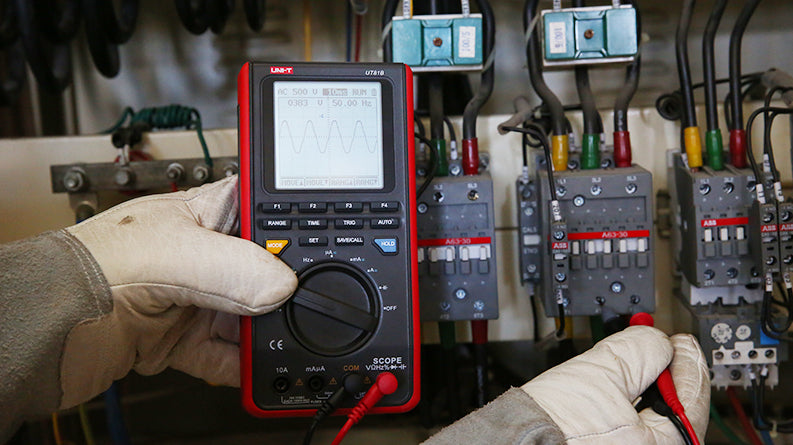

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - UNI-T UT81B handheld scopemeter held by gloved hands, showing a sine wave on the LCD screen, control buttons, a rotary dial, and connected test leads.
UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - the LCD screen, control buttons, rotary dial, and input ports on a white background.
UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - UNI-T UT81B handheld scopemeter in a red and black case, held by a gloved hand, showing a digital display reading 388.7 V with connected test leads.
UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - UNI-T UT81B handheld scopemeter held by gloved hands, showing a sine wave on the LCD screen, control buttons, a rotary dial, and connected test leads.

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool

Sale price Rs 50,000
SKU: UT81C
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - the LCD screen, control buttons, rotary dial, and input ports on a white background.

UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool - the LCD screen, control buttons, rotary dial, and input ports on a white background.
UNI-T UT81C Handheld Scopemeter – 16MHz Oscilloscope + 4000 Count Digital Multimeter, 80MS/S, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool
Sale priceRs 50,000

UNI-T UT81C — 2-in-1 handheld scopemeter combining a 16MHz digital oscilloscope with a 4000-count digital multimeter — double the bandwidth of the UT81B. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 16 MHz oscilloscope, 80 MS/s real-time sampling
  • Full 4000-count digital multimeter (AC/DC V & A, resistance, capacitance, frequency)
  • 160 × 160 monochrome LCD with backlight, waveform storage (10 screens)
  • Selectable trigger modes, auto range, duty cycle, diode & continuity
  • USB interface + PC software for data transfer
  • Compact handheld design for field diagnostics

Technical Specifications

Type Handheld scopemeter (oscilloscope + multimeter)
Oscilloscope Bandwidth 16 MHz
Sampling Rate 80 MS/s
Time-base 50 ns/div ~ 5 s/div
DMM Count 4000
DC Voltage 1000 V ±(0.8%+8)
AC Voltage 750 V ±(1%+15)
Current 10 A (AC/DC)
Resistance 40 MΩ
Capacitance 100 µF
Interface USB + PC software

What's in the Box

  • UT81C scopemeter
  • Test leads & alligator clips
  • USB cable + PC software
  • Batteries
  • English user manual

Downloads

Certifications: CAT II 1000V / CAT III 600V, CE  |  HS Code: 9030.2000
