UNI-T UT81B Handheld Scopemeter 8MHz Oscilloscope Multimeter – Price in Pakistan

Name: UNI-T UT81B Handheld Scopemeter – 8MHz Oscilloscope + 4000 Count Digital Multimeter, 40MS/s, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool
Brand: UNI-T
SKU: UT81B
Price: 43750.0 PKR
Availability: InStock
Rating: 0.00 data-number-of-reviews=0 data-number-of-questions=0> No reviews (0 data-number-of-questions=0> No reviews reviews)

Home

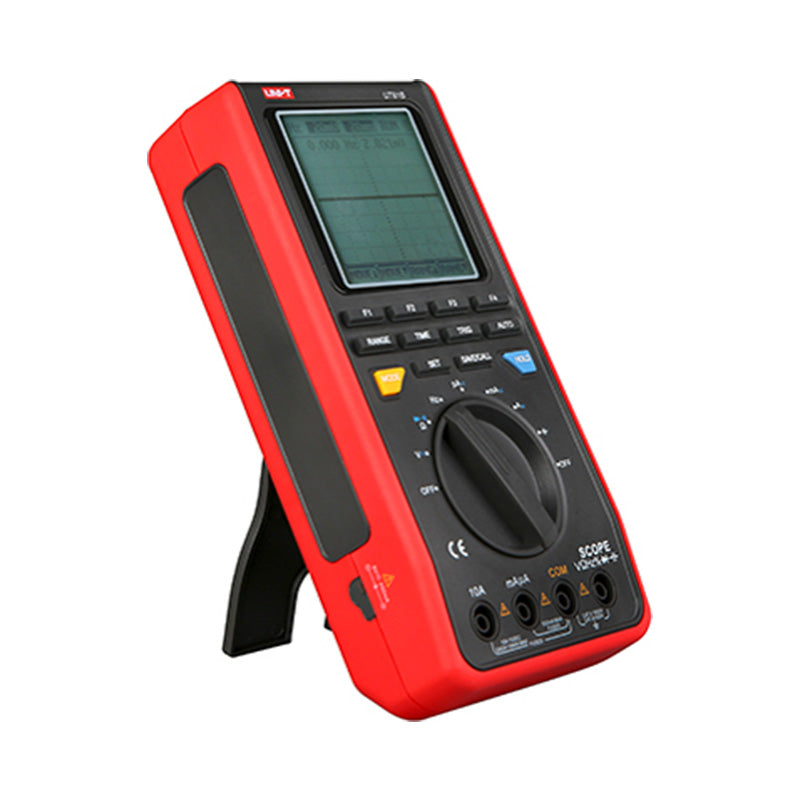

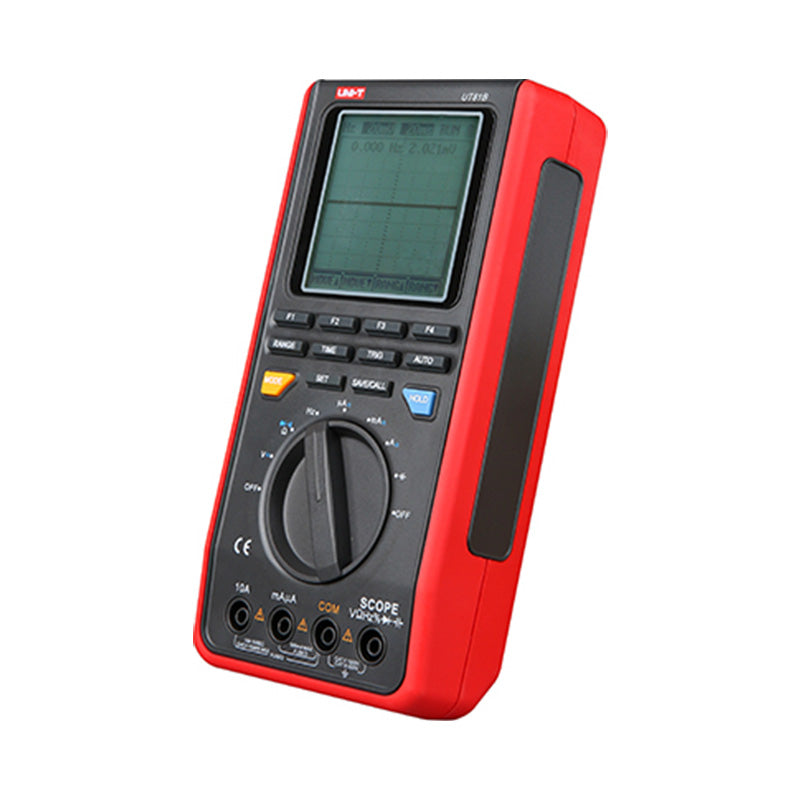

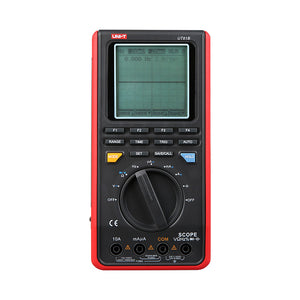

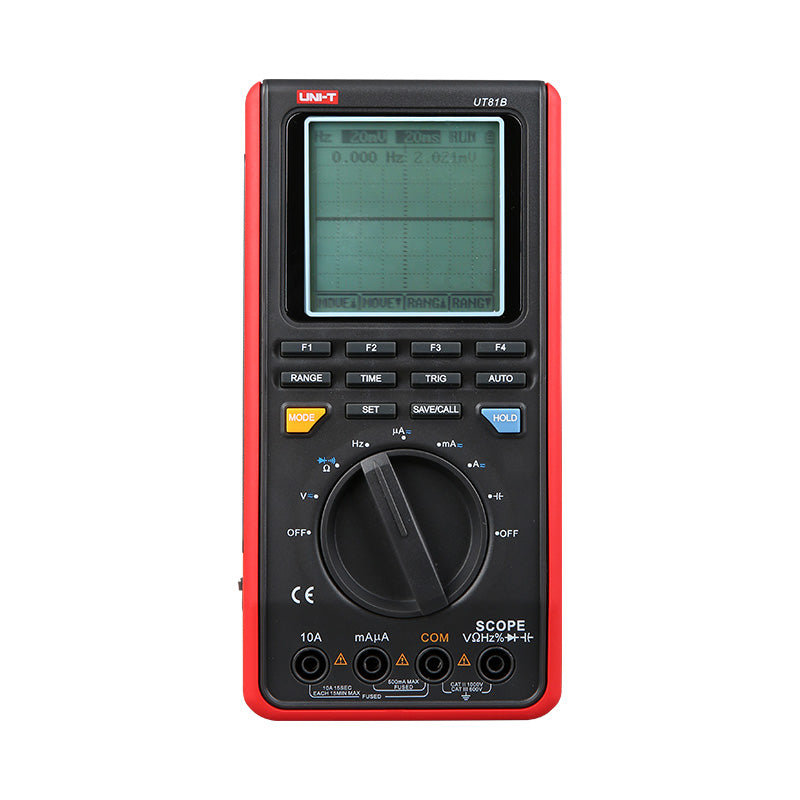

UNI-T UT81B handheld scopemeter oscilloscope multimeter front

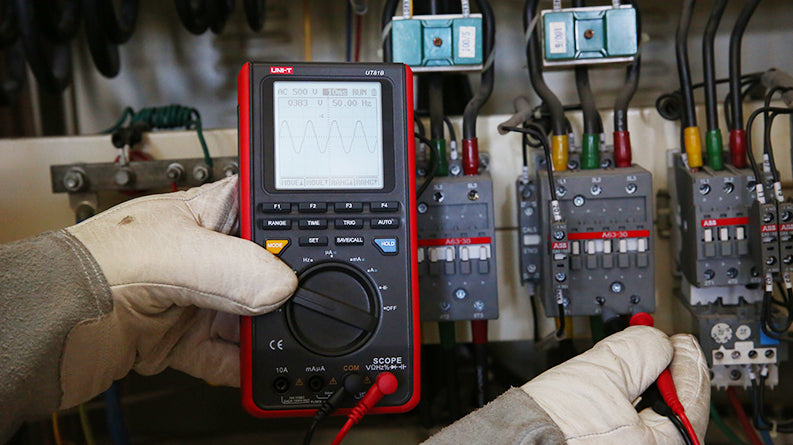

UNI-T UT81B scopemeter showing voltage waveform display

New

UNI-T UT81B Handheld Scopemeter – 8MHz Oscilloscope + 4000 Count Digital Multimeter, 40MS/s, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool

Rs 43,750 PKR

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT81B Handheld Scopemeter – 8MHz Oscilloscope + 4000 Count Digital Multimeter, 40MS/s, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool

Rs 43,750 PKR

Availability: Add to cart

SKU: UT81B

UNI-T UT81B Handheld Scopemeter – 8MHz Oscilloscope + 4000 Count Digital Multimeter, 40MS/s, AC/DC 1000V, Waveform Storage, USB, 2-in-1 Test Tool

UNI-T UT81B — 2-in-1 handheld scopemeter combining an 8MHz digital oscilloscope with a 4000-count digital multimeter — see waveforms and take measurements in one tool. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

8 MHz oscilloscope, 40 MS/s real-time sampling
Full 4000-count digital multimeter (AC/DC V & A, resistance, capacitance, frequency)
160 × 160 monochrome LCD with backlight, waveform storage (10 screens)
Selectable trigger modes, auto range, duty cycle, diode & continuity
USB interface + PC software for data transfer
Compact handheld design for field diagnostics

Technical Specifications

Type	Handheld scopemeter (oscilloscope + multimeter)
Oscilloscope Bandwidth	8 MHz
Sampling Rate	40 MS/s
Time-base	100 ns/div ~ 5 s/div
DMM Count	4000
DC Voltage	1000 V ±(0.8%+8)
AC Voltage	750 V ±(1%+15)
Current	10 A (AC/DC)
Resistance	40 MΩ
Capacitance	100 µF
Interface	USB + PC software
