UNI-T UT715 Multifunction Loop Process Calibrator – 24mA / 24V DC, Frequency, Pulse, 24V Loop Power, 20000 Count
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT715 Multifunction Loop Process Calibrator – 24mA / 24V DC, Frequency, Pulse, 24V Loop Power, 20000 Count

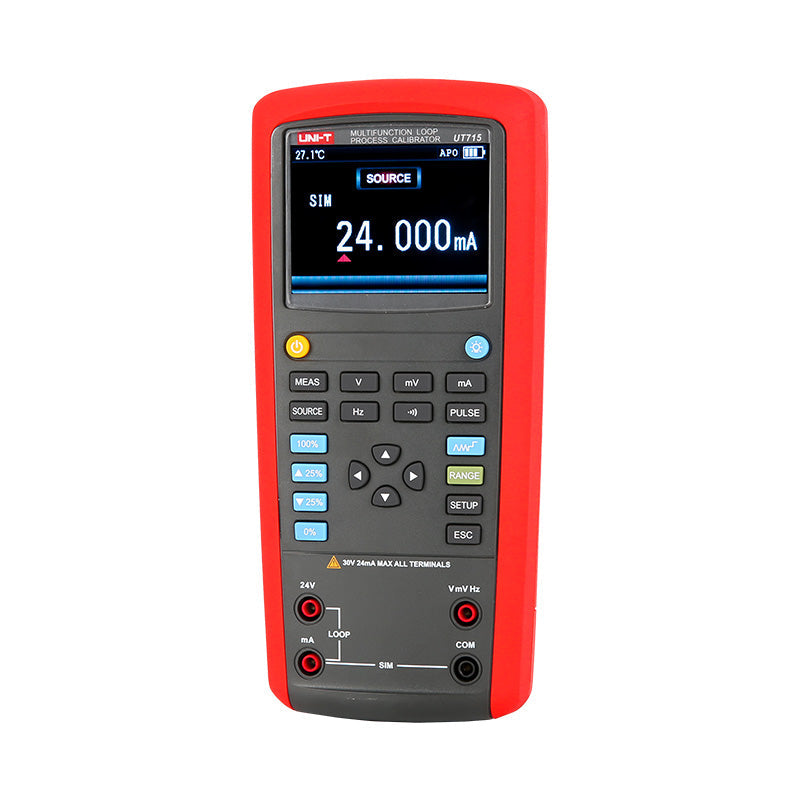

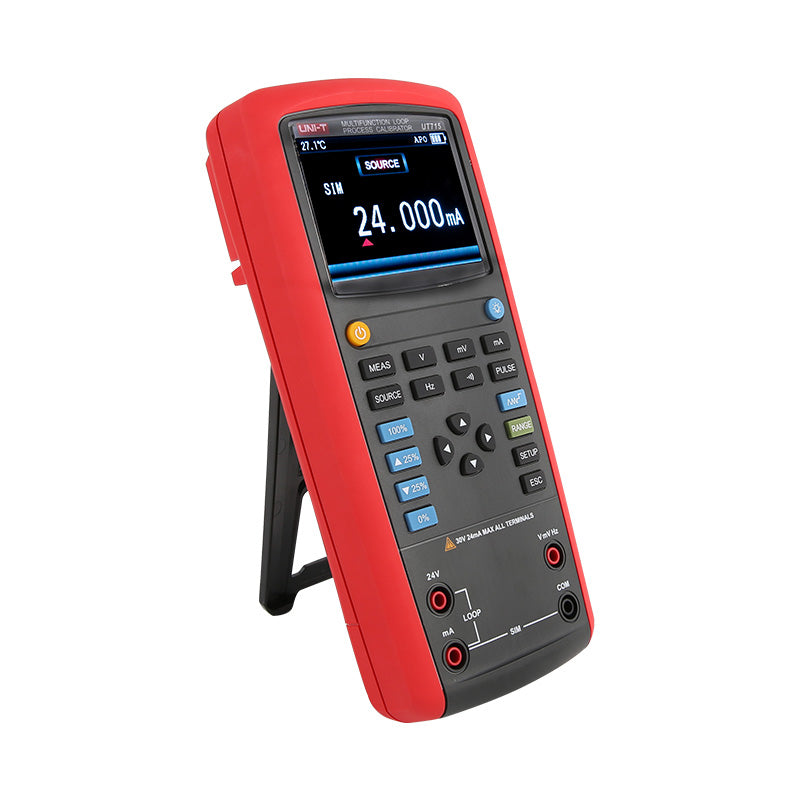

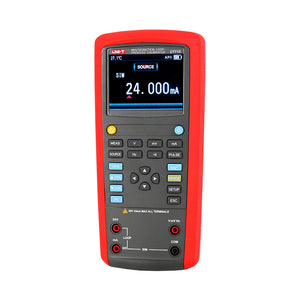

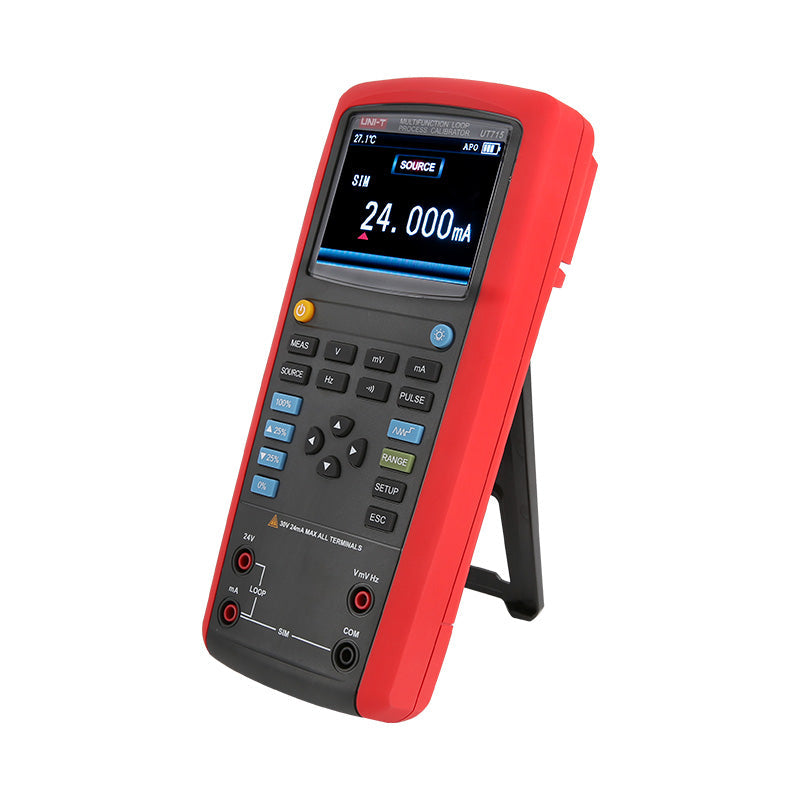

UNI-T UT715 — a loop process calibrator that sources and measures DC voltage, DC/loop current (24 mA), frequency and pulses, supplies 24 V loop power to transmitters, with 20000-count display and 0.02% accuracy. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Loop current source & measure — 0–24 mA with simultaneous 24 V loop power
- DC voltage source/measure to 30 V; frequency 100 Hz–100 kHz + pulse output
- 24 V loop power for powering 2-wire transmitters during mA measurement
- 20000-count display, up to 0.02% accuracy
- Step/ramp output, setup memory, USB communication, rechargeable battery
Technical Specifications
| DC voltage (V) (source) | 200mV/30V |
|---|---|
| DC current (mA) (source) | 24mA |
| Loop current (mA) | 24mA |
| Frequency (Hz) (source) | 100Hz/1kHz/10kHz/100kHz |
| Continuity test | √ |

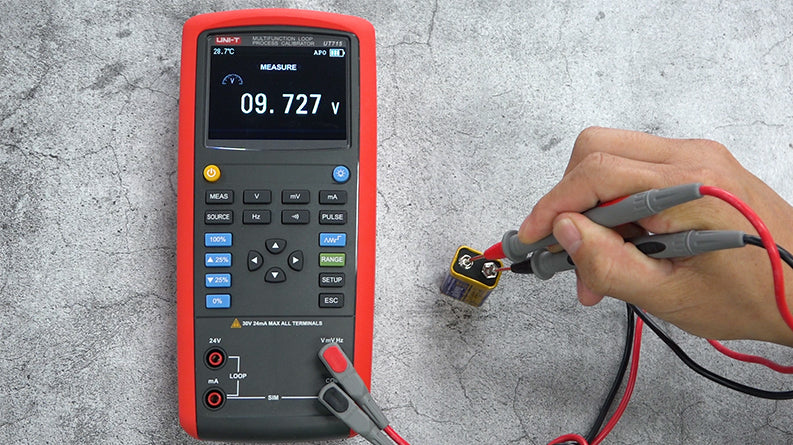

| DC voltage (V) (measure) | 100mV/1000mV/10V |
| DC current (mA) (measure) | 24mA/20mA (SIM) |

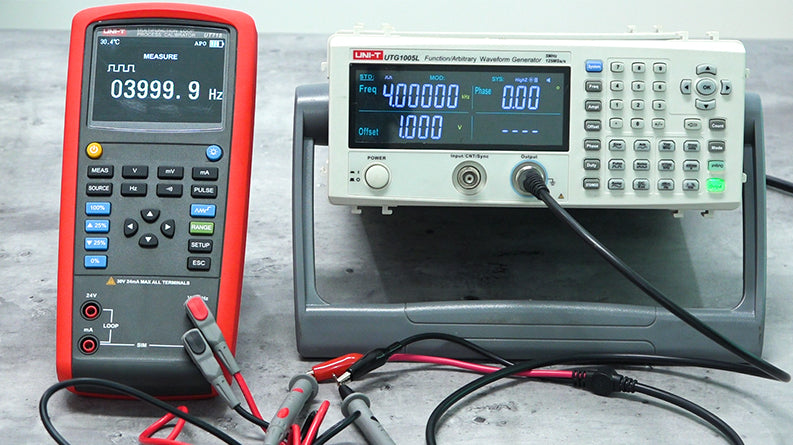

| Frequency (Hz) (measure) | 200Hz/2000Hz/20kHz |
| Pulses (Hz) | 100Hz/1kHz/10kHz |
| Loop power output | 24V |
| Display count | 20000 |
| Operation temperature | -10°C~55°C |
| Power | 1.2V x 6 AA rechargeable battery |
| Product net weight | 650g |
| Product size | 195mm x 95mm x 58mm |
| Standard accessory | Test lead, USB cable, power adapter, English manual |
What's in the Box
- Process calibrator main unit
- Test leads
- USB cable
- Power adapter
- Temperature probe (UT714/UT725)
- English user manual
- Calibration certificate
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
