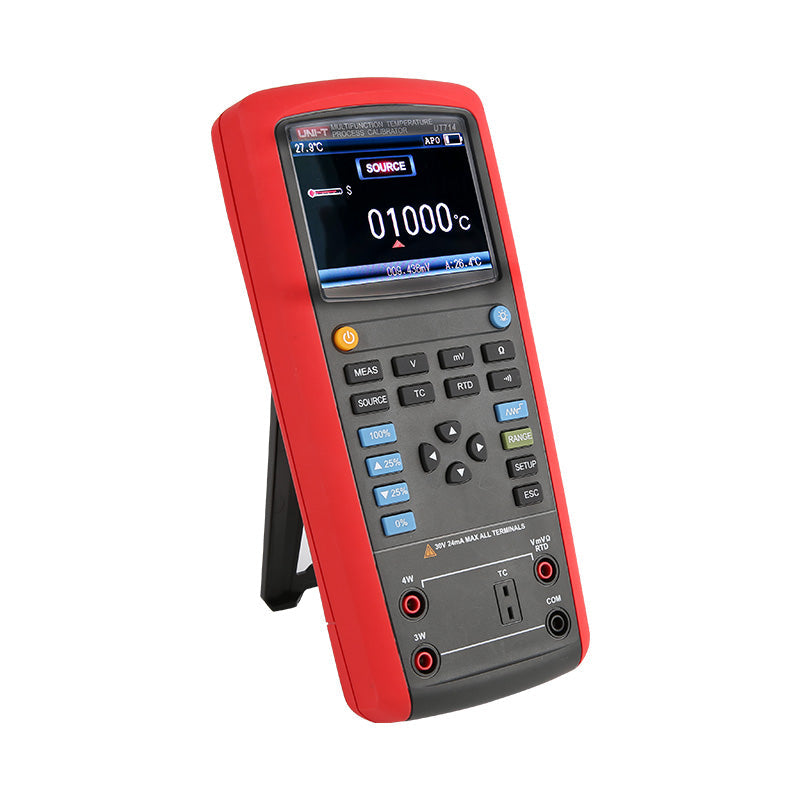

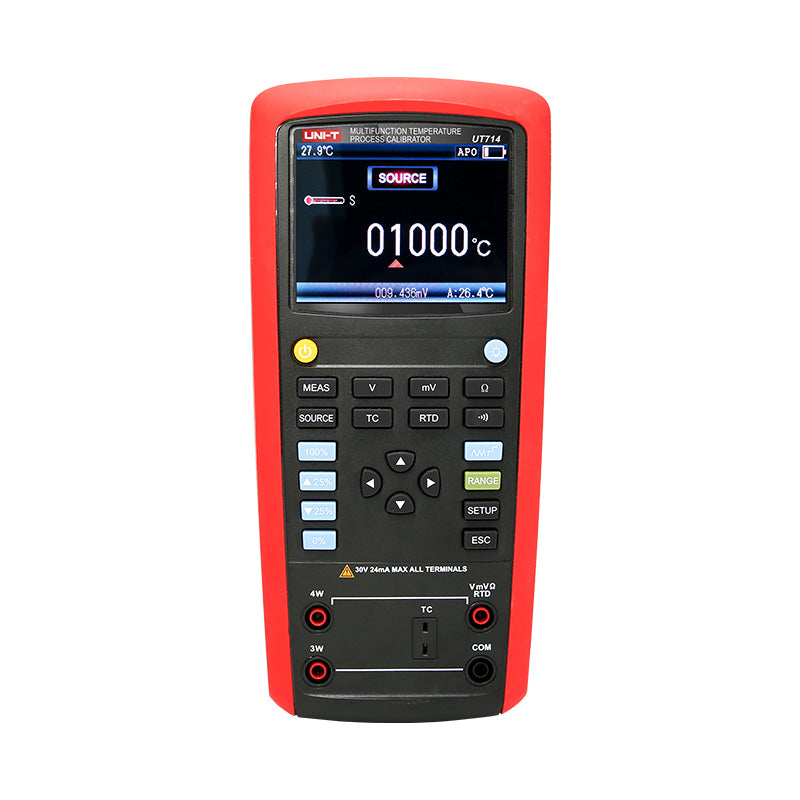

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red and black handheld device with a digital display showing 01000°C, buttons, and input ports.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red handheld device with a screen showing 01000°C, keypad buttons, and bottom input ports.

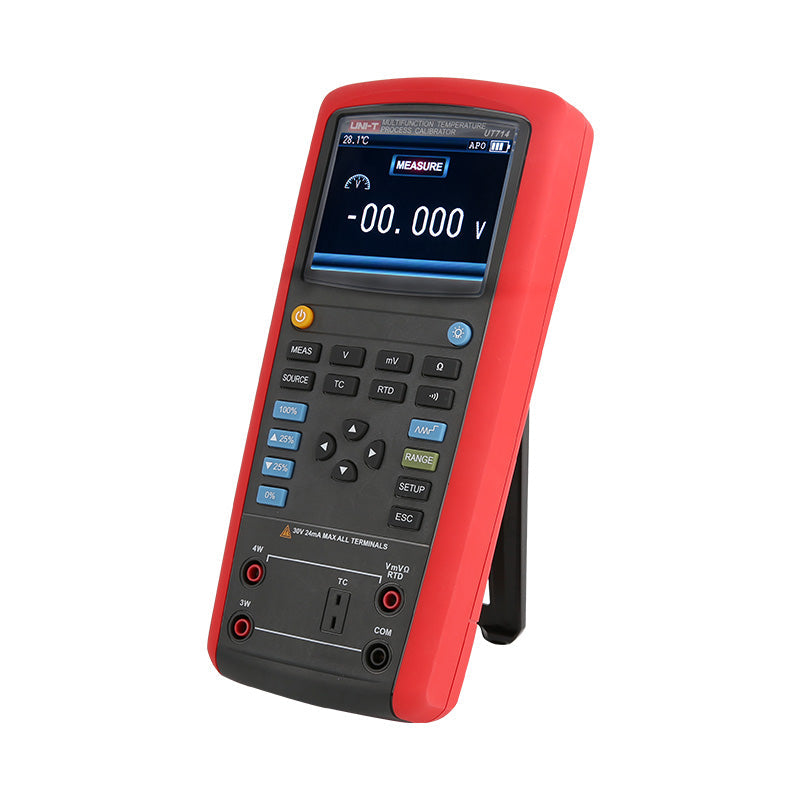

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - with a digital display showing -00.000 V, function buttons, and input terminals.

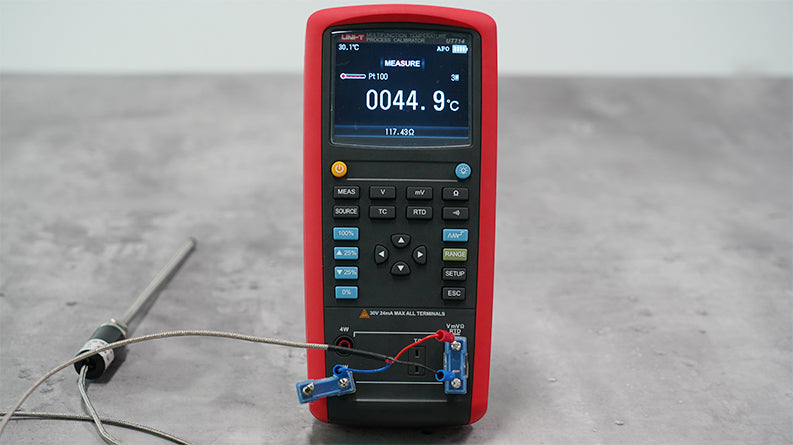

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - with a red and black handheld body, displaying 44.9°C and 117.43Ω, connected to a sensor probe.

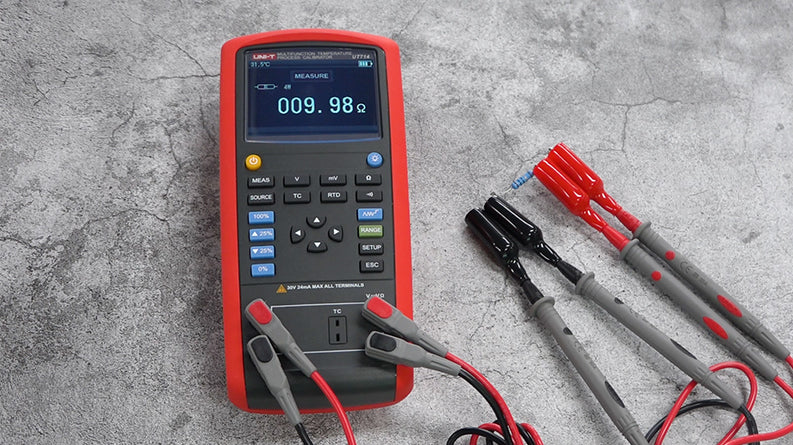

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red handheld device measuring 009.98 ohms with four connected test leads and a resistor.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red and black handheld device with a digital display showing 01000°C, buttons, and input ports.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red handheld device with a screen showing 01000°C, keypad buttons, and bottom input ports.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - with a digital display showing -00.000 V, function buttons, and input terminals.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - with a red and black handheld body, displaying 44.9°C and 117.43Ω, connected to a sensor probe.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red handheld device measuring 009.98 ohms with four connected test leads and a resistor.

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count

Sale price Rs 190,000
SKU: UT714
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red and black handheld device with a digital display showing 01000°C, buttons, and input ports.

UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count - a red and black handheld device with a digital display showing 01000°C, buttons, and input ports.
UNI-T UT714 Multifunction Temperature Process Calibrator – Thermocouple, RTD, mV, Resistance Source & Measure, 20000 Count
Sale priceRs 190,000

UNI-T UT714 — a temperature process calibrator that sources and measures thermocouples (R,S,K,E,J,T,N,B,L,U), RTDs (Pt100–Pt1000, Cu), DC voltage and resistance, with 0.02% accuracy, 20000-count display and continuity test. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • Source & measure thermocouples — R, S, K, E, J, T, N, B, L, U types
  • RTD source & measure — Pt100/Pt200/Pt500/Pt1000, Cu10/Cu50/Cu100
  • DC voltage & resistance source and measurement + continuity test
  • 20000-count display, up to 0.02% source/measure accuracy
  • Step/ramp output, setup memory, USB communication, rechargeable battery

Technical Specifications

DC voltage (V) (source) 50mV/500mV/30V
Resistance (Ω) (source) 500Ω/5000Ω
Thermocouples (source) R,S,K,E,J,T,N,B,L,U
RTDs (source) Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test √
DC voltage (V) (measure) 100mV/1000mV/10V
Resistance (Ω) (measure) 400Ω/4000Ω
Thermocouples (measure) R,S,K,E,J,T,N,B,L,U
RTDs (measure) Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operating temperature -10°C~55°C
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual

What's in the Box

  • Process calibrator main unit
  • Test leads
  • USB cable
  • Power adapter
  • Temperature probe (UT714/UT725)
  • English user manual
  • Calibration certificate

Downloads

Certifications: CE, RoHS | HS Code: 9030.89
