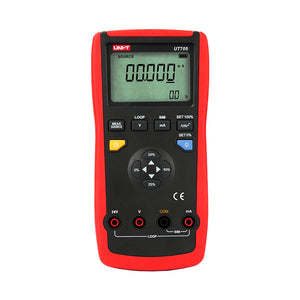

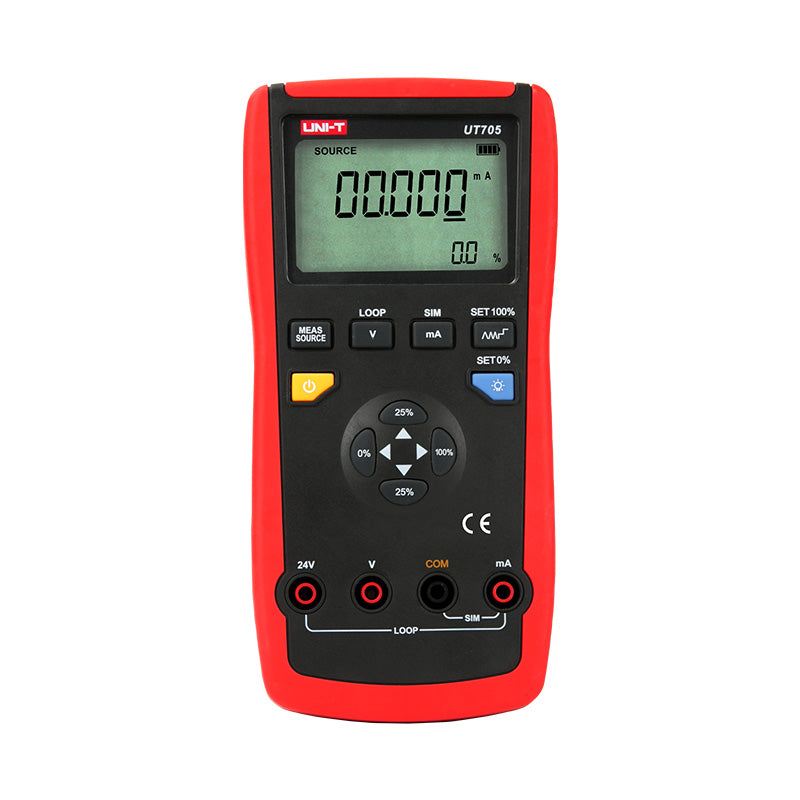

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red and black handheld device with a digital display showing 00.000 mA, control buttons, and four input ports at the base.

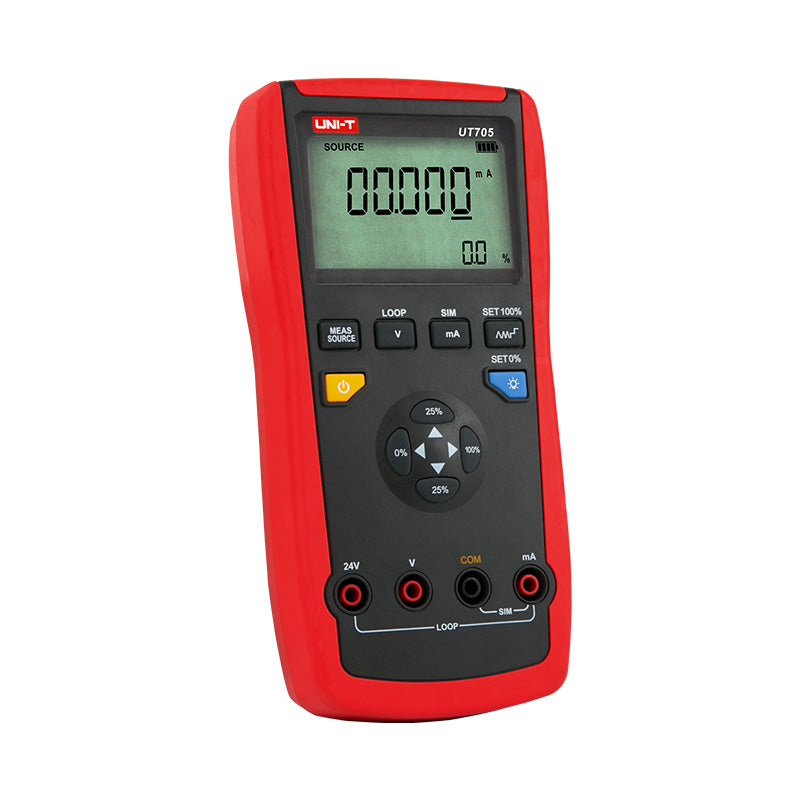

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - red and black handheld case with a digital display showing 00.000 mA, control buttons, and four input ports at the base.

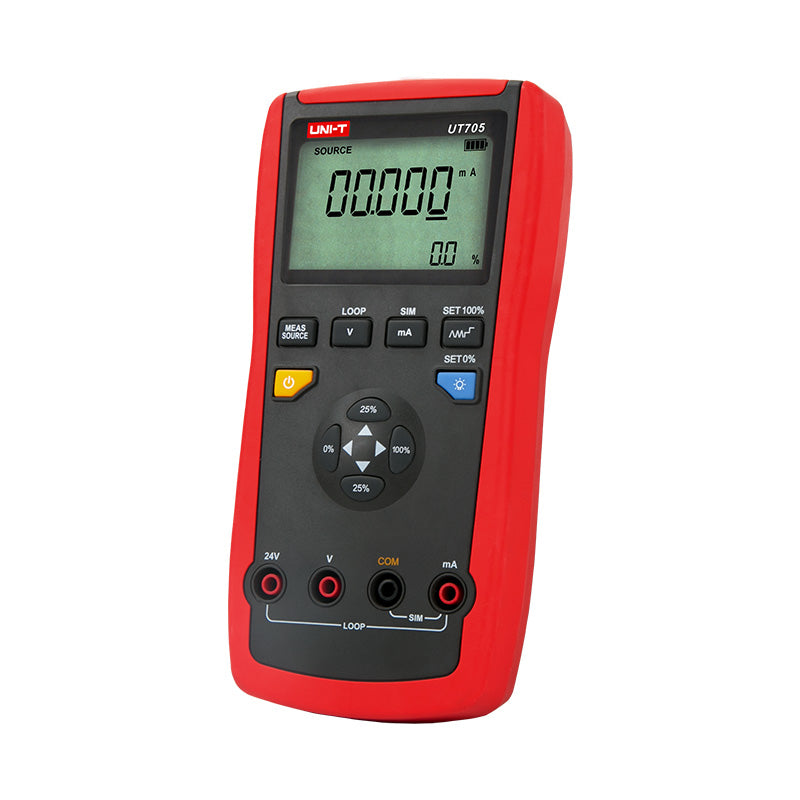

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - red and black handheld case with a digital display reading 00.000 mA, control buttons, and four input ports at the base.

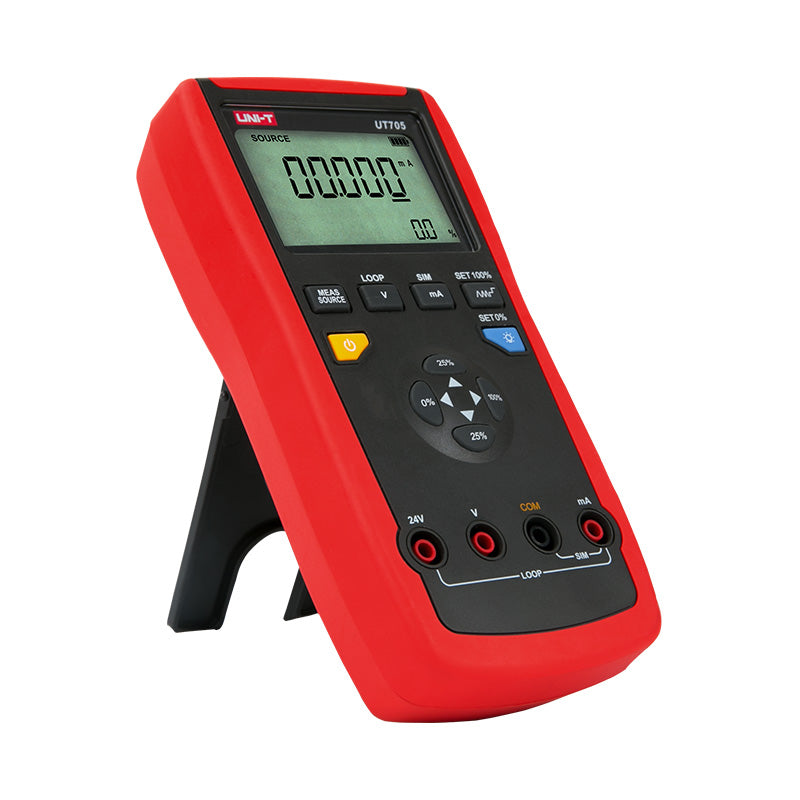

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red handheld device with a digital display showing 00.000 mA, function buttons, and four input ports at the base.

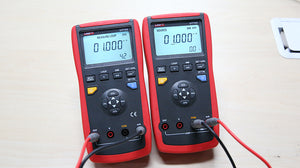

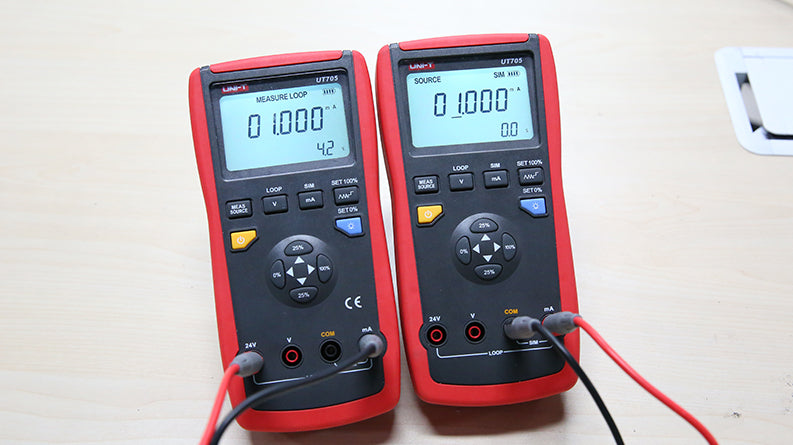

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - two red and black handheld devices with digital displays showing 1.000 mA, function buttons, and connected test leads.

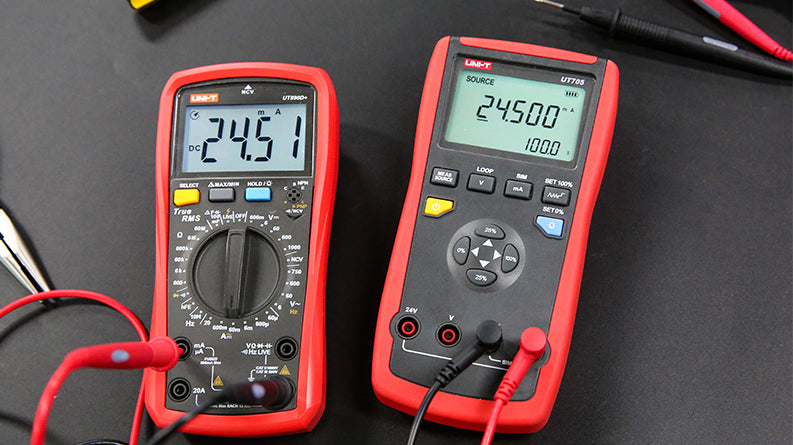

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - next to a UNI-T UT890D+ multimeter, both red handheld devices with screens displaying 24.500 and 24.51 respectively.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red and black handheld device with a digital display showing 00.000 mA, control buttons, and four input ports at the base.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - red and black handheld case with a digital display showing 00.000 mA, control buttons, and four input ports at the base.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - red and black handheld case with a digital display reading 00.000 mA, control buttons, and four input ports at the base.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red handheld device with a digital display showing 00.000 mA, function buttons, and four input ports at the base.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - two red and black handheld devices with digital displays showing 1.000 mA, function buttons, and connected test leads.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - next to a UNI-T UT890D+ multimeter, both red handheld devices with screens displaying 24.500 and 24.51 respectively.

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step

Sale price Rs 77,500
SKU: UT705
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red and black handheld device with a digital display showing 00.000 mA, control buttons, and four input ports at the base.

UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step - a red and black handheld device with a digital display showing 00.000 mA, control buttons, and four input ports at the base.
UNI-T UT705 Single-Function Loop Calibrator – 24 mA Source/Simulate, DC V/mA Measure, 24 V Loop Power, Ramp & Step
Sale priceRs 77,500

UNI-T UT705 — a single-function loop (4–20 mA) calibrator for commissioning and servicing current-loop instrumentation. It sources and simulates up to 24 mA, measures DC voltage (30 V) and current (24 mA), and provides a built-in 24 V loop power supply, with slow/fast/step ramp and 25%/100% step functions. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • Source & simulate DC current up to 24 mA
  • Measure DC voltage 30 V and DC / loop current 24 mA
  • Built-in 24 V loop power supply
  • Ramp (slow / fast / 25% step) and step (25% / 100%) functions
  • 9 V battery powered; compact handheld

Technical Specifications

DC Voltage Measure 30.000 V, ±(0.02+2)
DC Current Measure 24.000 mA, ±(0.02+2)
Current Source / Simulate 24.000 mA, ±(0.02+2)
Loop Power 24 V, accuracy 10%
Ramp / Step Slow/fast/25% ramp; 25%/100% step
Power 9 V battery (6F22)
Net Weight 410 g
Dimensions 96 × 193 × 47 mm

What's in the Box

  • UT705 loop calibrator
  • Test leads
  • 9 V battery
  • Cloth bag
  • English user manual

Downloads

Certifications: CE, RoHS | HS Code: 9030.89
