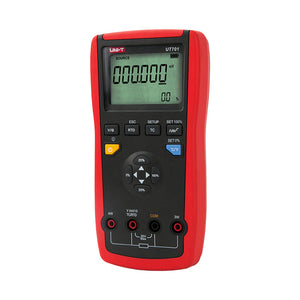

UNI-T UT701 Single-Function Temperature Calibrator – Thermocouple (J/K/T/E/R/S/B/N/W) & RTD Source, mV / Resistance, Ramp & Step
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT701 Single-Function Temperature Calibrator – Thermocouple (J/K/T/E/R/S/B/N/W) & RTD Source, mV / Resistance, Ramp & Step

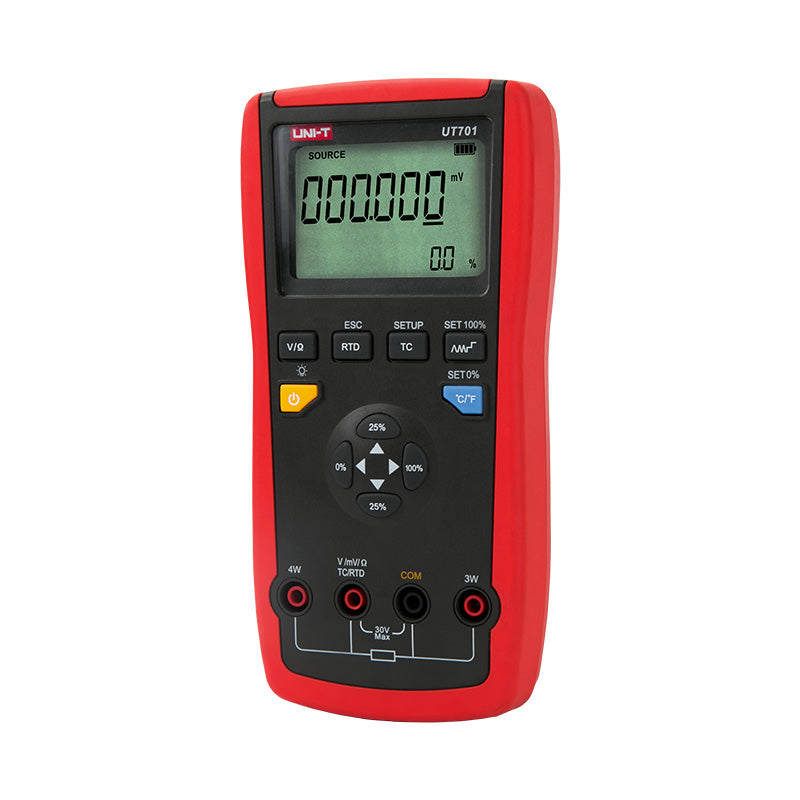

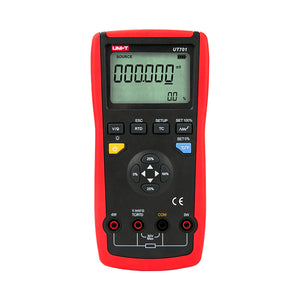

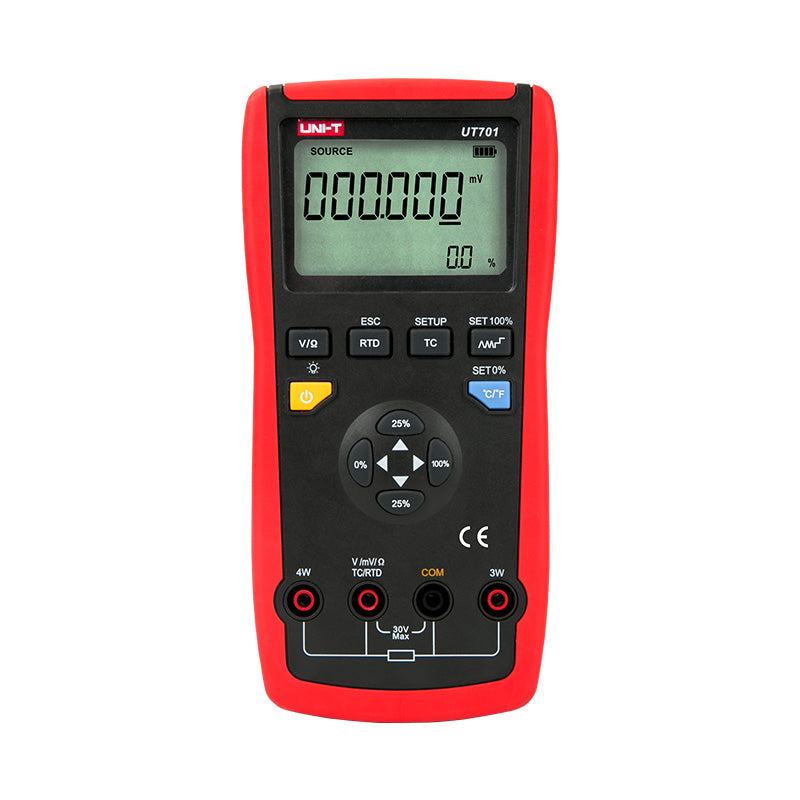

UNI-T UT701 — a single-function temperature calibrator that sources DC millivolts, resistance and temperature to check and calibrate thermocouple and RTD instrumentation. It supports thermocouple types J, K, T, E, R, S, B, N, Wre325 and Wre526 and RTDs Pt10, Pt100, Cu50, Cu100, with slow/fast/step ramp and 25%/100% step functions. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Source functions: DC mV, resistance, temperature
- Thermocouples J, K, T, E, R, S, B, N, Wre325, Wre526
- RTDs Pt10, Pt100, Cu50, Cu100
- Ramp (slow / fast / 25% step) and step (25% / 100%) functions
- DC mV to 1000 mV; resistance to 5000 Ω; 9 V battery
Technical Specifications
| Source Functions | DC mV, resistance, temperature |
|---|---|
| DC mV Range | 100 mV / 1000 mV, ±(0.05%+3) |
| Resistance Range | 500 Ω / 5000 Ω, ±(0.05%+2) |
| Thermocouples | J, K, T, E, R, S, B, N, Wre325, Wre526 |
| RTDs | Pt10, Pt100, Cu50, Cu100 |
| Power | 9 V battery (6F22) |
| Net Weight | 410 g |
| Dimensions | 96 × 193 × 47 mm |
What's in the Box
- UT701 temperature calibrator
- Test leads
- 9 V battery
- Cloth bag
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
