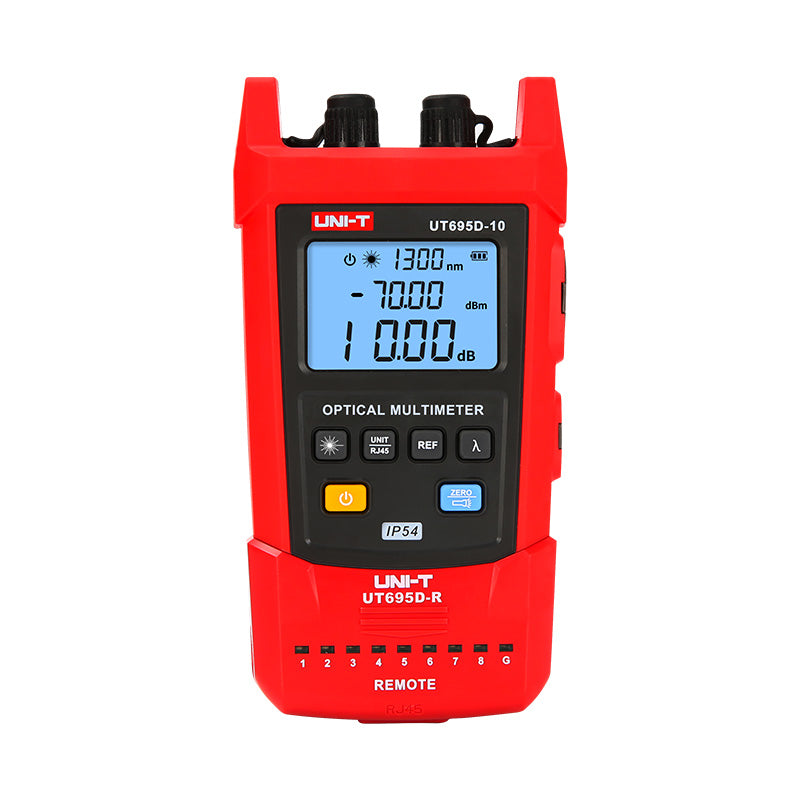

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable
UNI-T UT695D-10 is a multifunction optical multimeter combining a fibre optical power meter (-70~3 dBm, 800–1700 nm), a 10 mW visual fault locator, a LAN-cable sequence test and a flashlight in one rechargeable handheld. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Optical power meter: -70~3 dBm, 800–1700 nm, InGaAs detector, ±5% uncertainty
- Calibrated at 850/980/1300/1310/1490/1550/1625/1650 nm
- Built-in 10 mW VFL (650 nm) — traces fibre ~8–10 km
- LAN cable line-sequence test (LED1–8, LED_G); LED flashlight

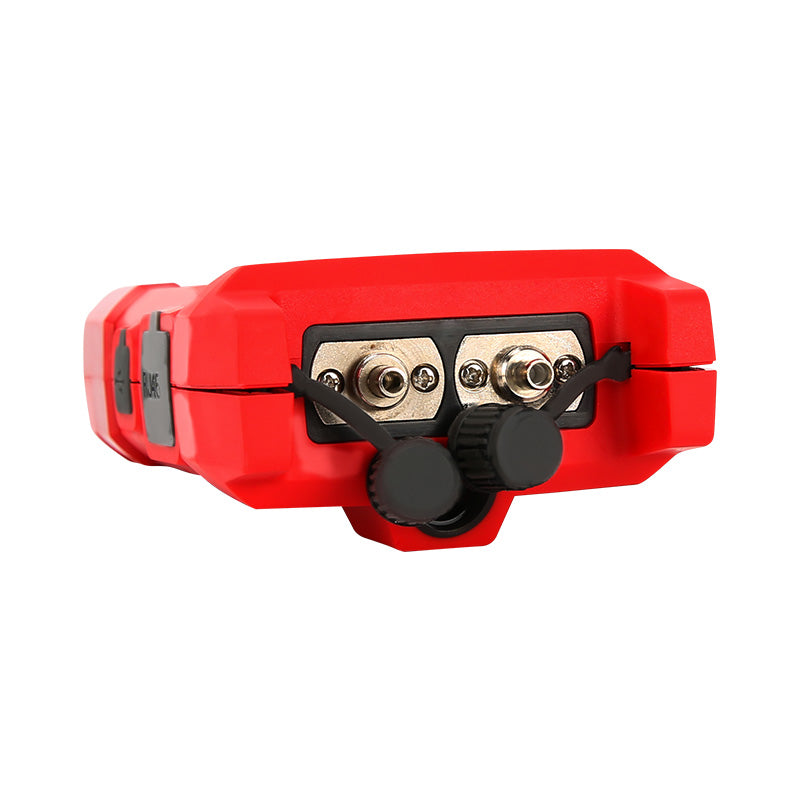

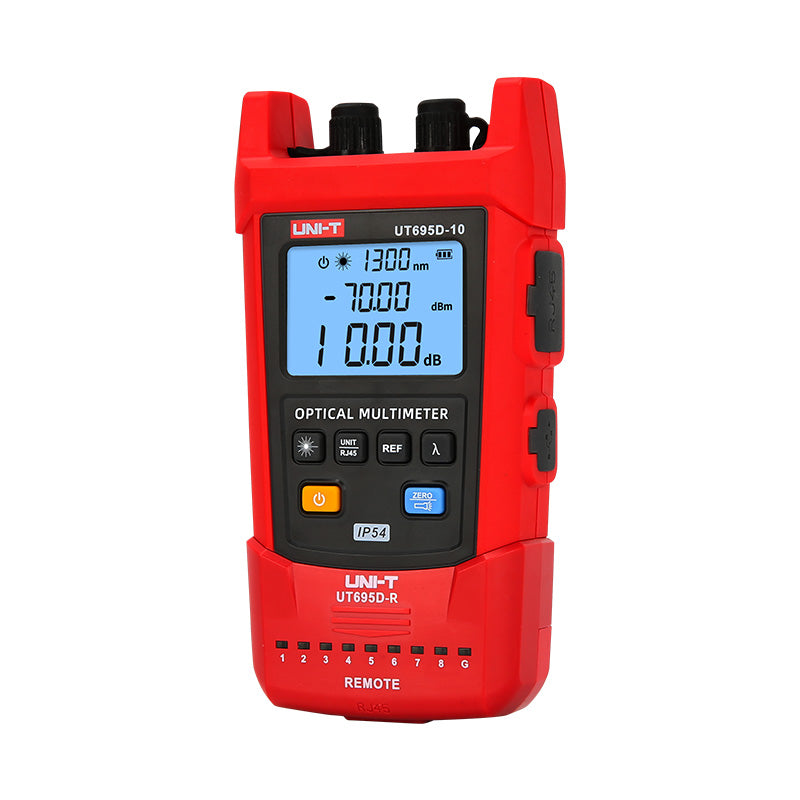

- FC / SC / ST connectors; 1050 mAh rechargeable battery, USB
- Compact 168 g handheld
Technical Specifications
| Power Meter Range | -70~3 dBm |
|---|---|
| Wavelength | 800–1700 nm |
| Detector | InGaAs |
| Uncertainty | ±5% |
| VFL | 650 nm, 10 mW |
| Connector | FC / SC / ST |
| Extras | LAN sequence test, flashlight |
| Power | 1050mAh Li-ion (USB) |
| Weight | 168 g |
What's in the Box
- UT695D-10 optical multimeter
- FC/SC/ST connectors
- USB cable
- English user manual
- Gift box
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
