UNI-T UT693D Optical Multimeter – Fiber Power Meter (-70~10dBm, 800–1700nm) + 10mW VFL, FC/SC/ST, InGaAs, IP65, Optical Power Meter & Fault Locator
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT693D Optical Multimeter – Fiber Power Meter (-70~10dBm, 800–1700nm) + 10mW VFL, FC/SC/ST, InGaAs, IP65, Optical Power Meter & Fault Locator

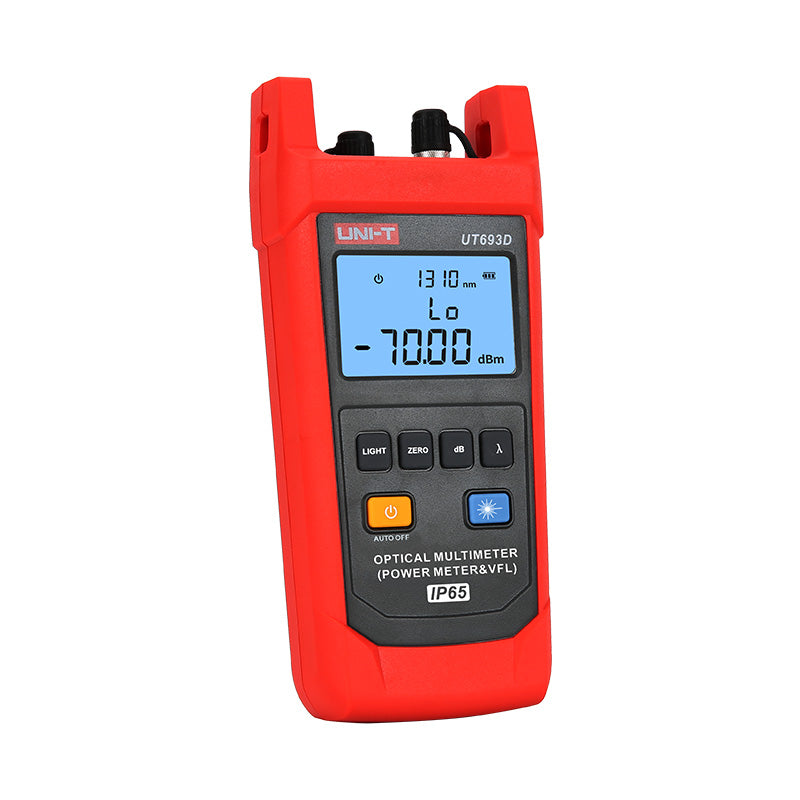

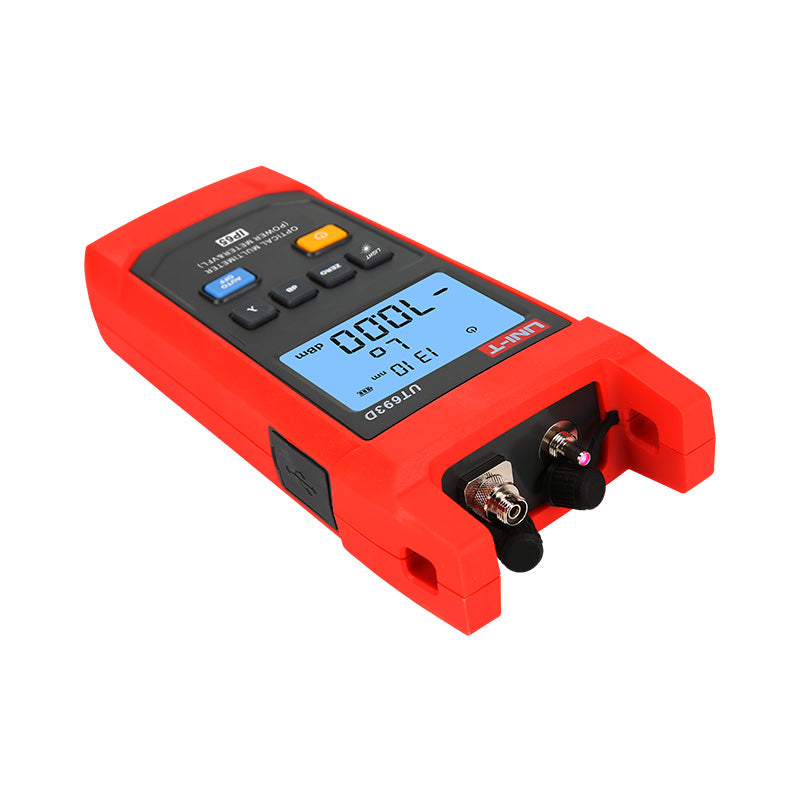

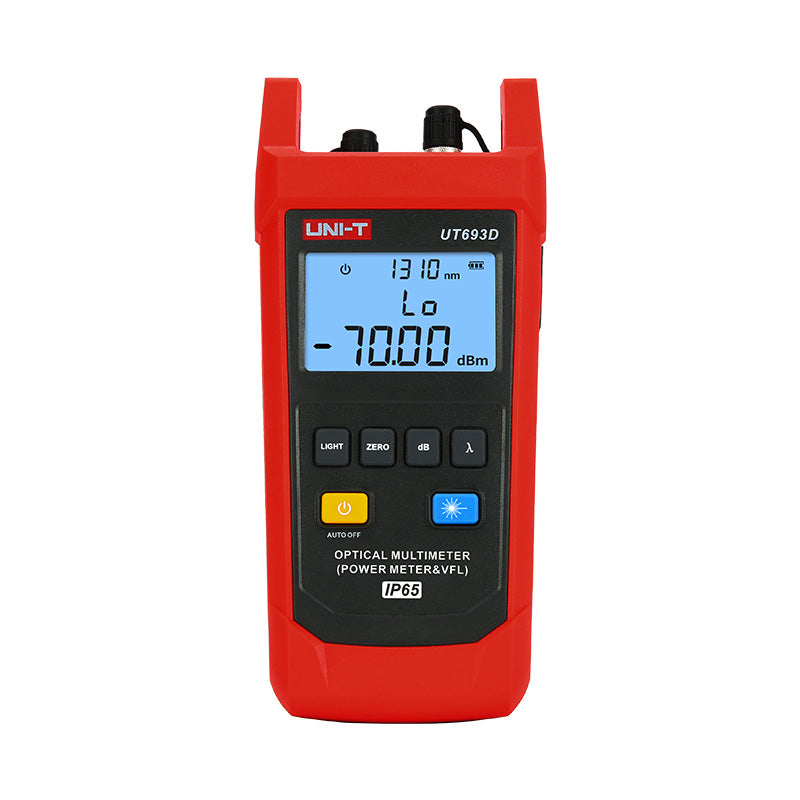

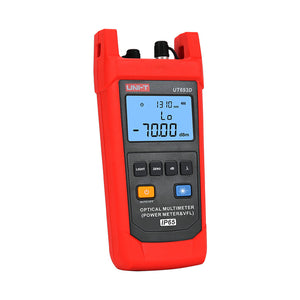

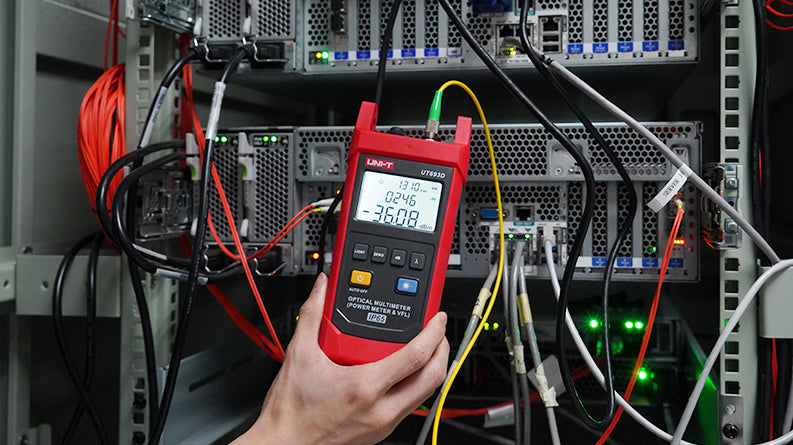

UNI-T UT693D is an optical multimeter combining a fibre optical power meter (-70~10 dBm, 800–1700 nm) with a 10 mW visual fault locator in one IP65 handheld — for measuring optical power/loss and tracing fibre faults. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Optical power meter: -70~10 dBm, 800–1700 nm, InGaAs detector, ±5% uncertainty
- Calibrated at 850/980/1300/1310/1490/1550/1625/1650 nm

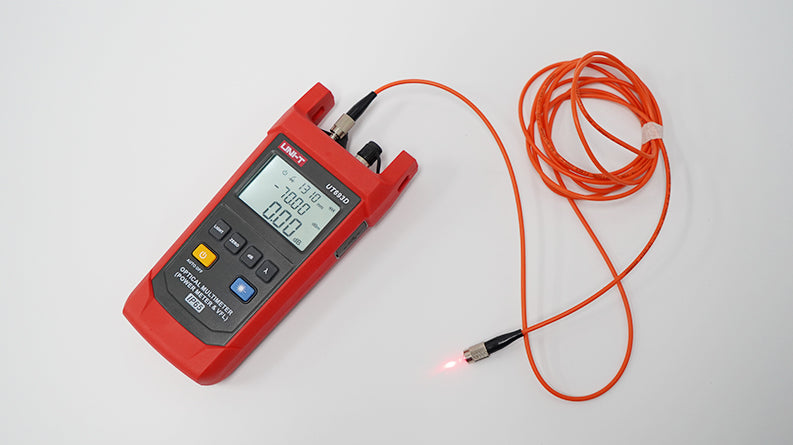

- Built-in 10 mW VFL (650 nm) — traces fibre ~8–10 km

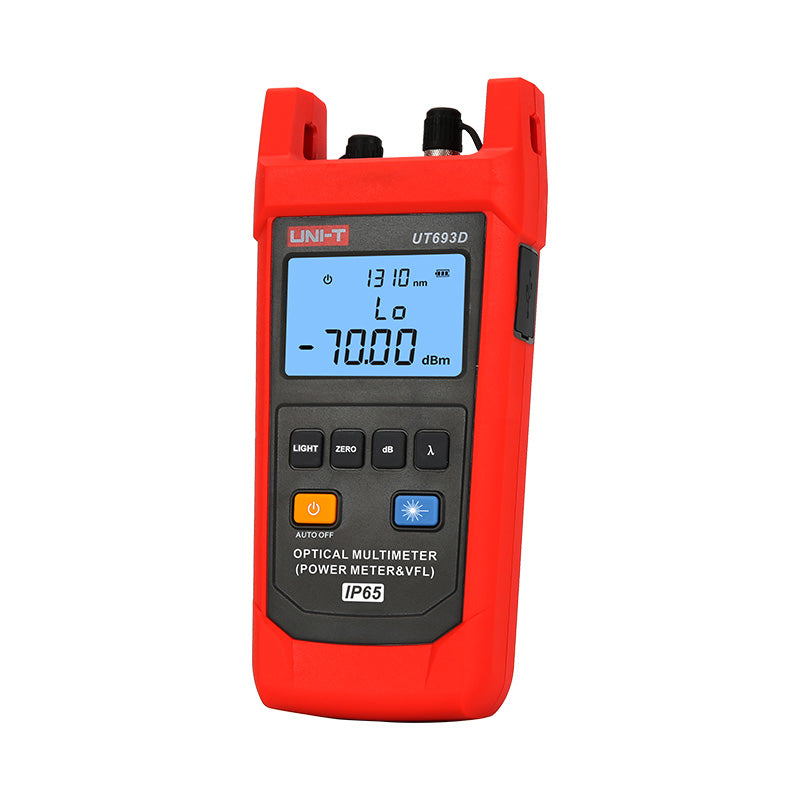

- FC / SC / ST interchangeable connectors
- IP65 rated; 2 m drop-proof; auto power-off & low-battery indication
- Powered by 3 × AA (LR6) batteries
Technical Specifications
| Power Meter Range | -70~10 dBm |
|---|---|
| Wavelength | 800–1700 nm |
| Detector | InGaAs |
| Uncertainty | ±5% |
| VFL | 650 nm, 10 mW |
| Connector | FC / SC / ST |
| IP Rating | IP65 |
| Power | 3 × AA (LR6) |
| Weight | 300 g |
What's in the Box
- UT693D optical multimeter
- FC/SC/ST connectors
- Batteries
- Carrying bag
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
