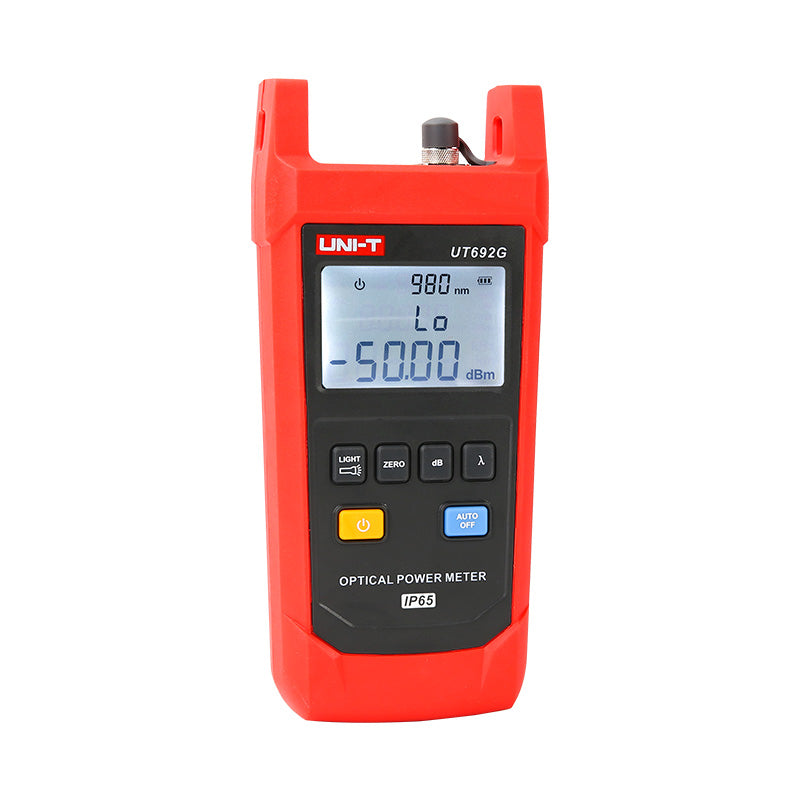

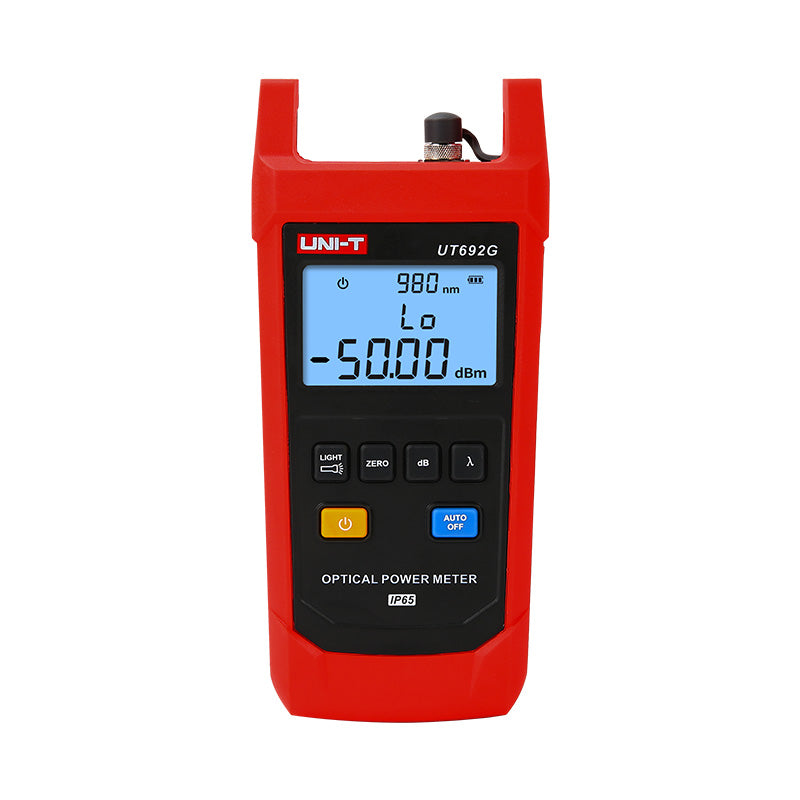

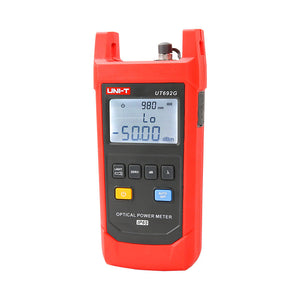

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - red protective casing, featuring a backlit display showing 980nm and -50.00 dBm, with front control buttons.

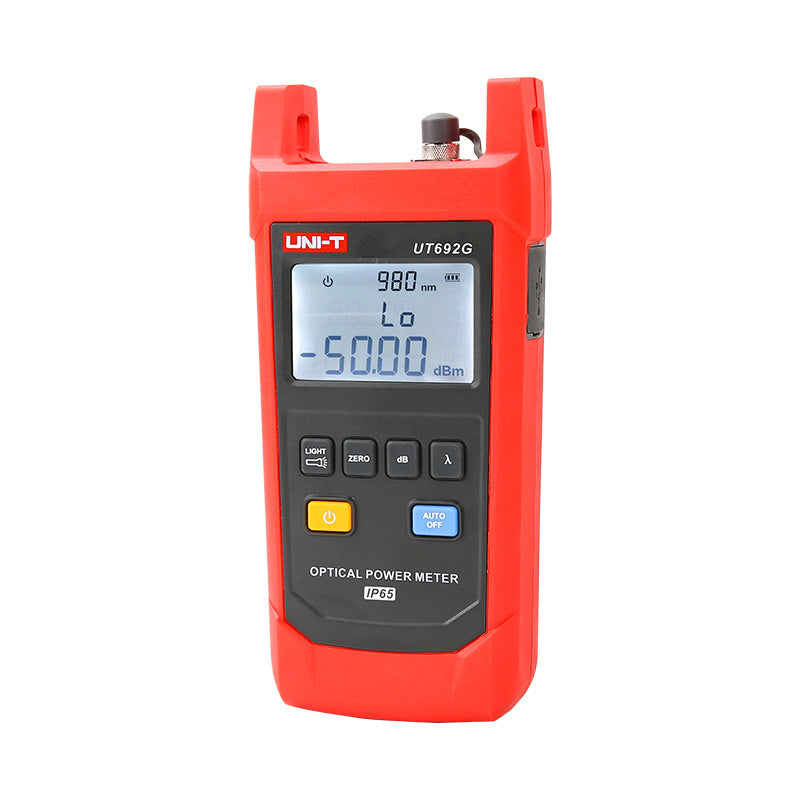

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a red handheld device with a digital display showing 980 nm and -50.00 dBm, featuring control buttons and a top port.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a digital display reading 980 nm and -50.00 dBm, with control buttons and a top connector port.

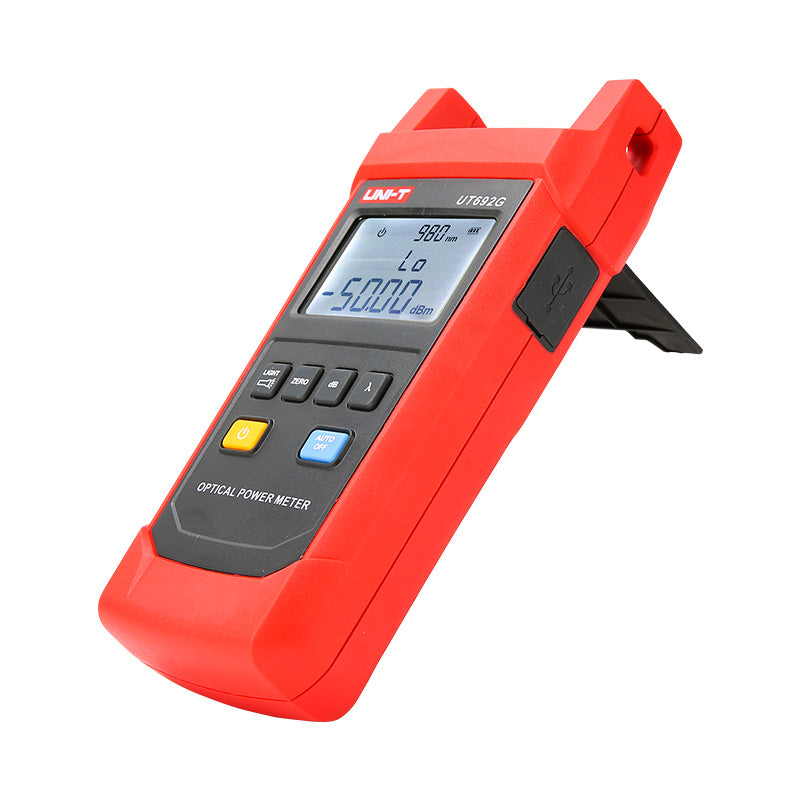

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a digital display with 980nm and -50.00 dBm, control buttons, and a side USB port with a kickstand.

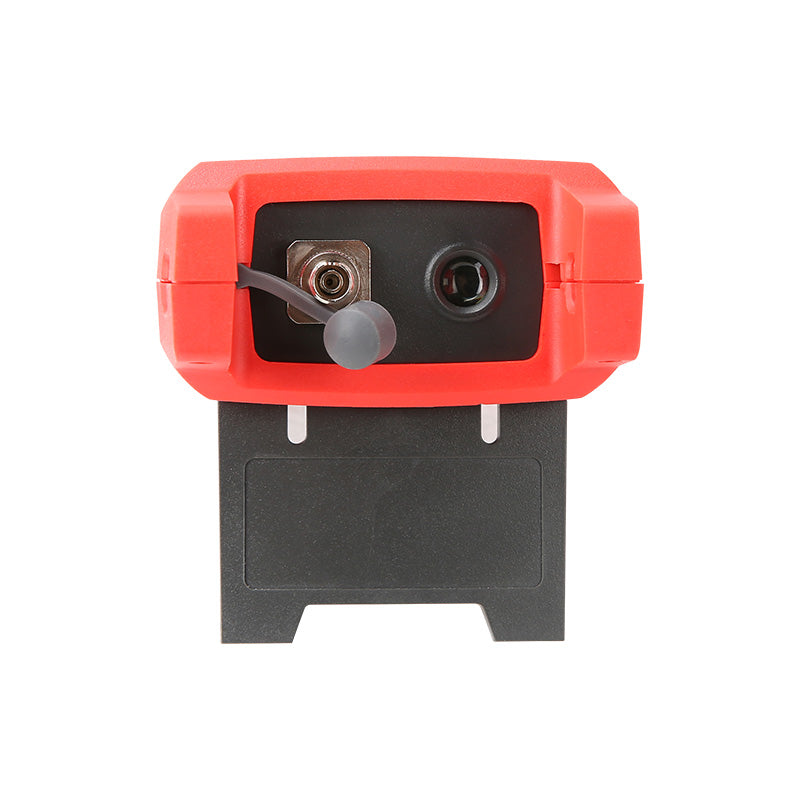

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - close-up of the red top panel featuring one metal connector with a grey cap and one circular black port.

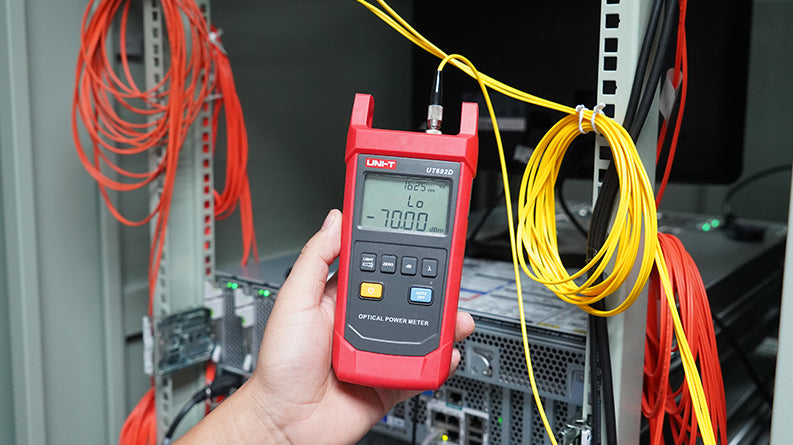

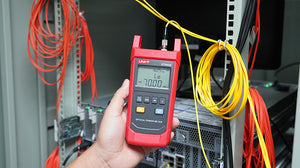

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - UNI-T UT692D optical power meter held in a hand, showing a red handheld device with a digital screen reading -70.00 dBm and connected to yellow fiber.

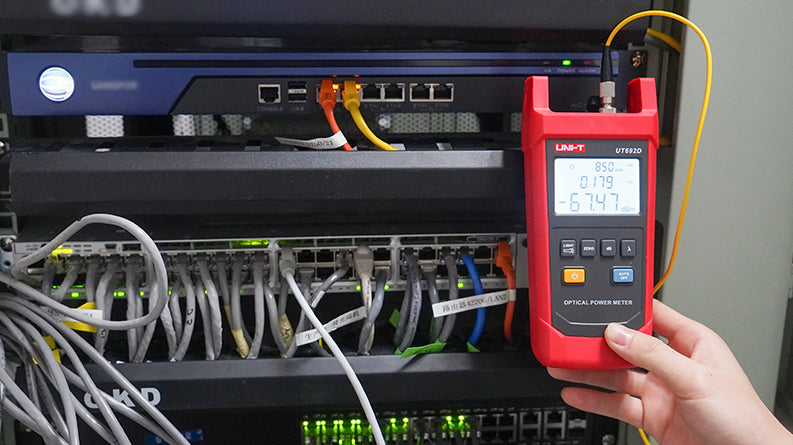

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a red handheld device with a screen showing 850nm and -67.47 dBm, connected by a yellow fiber cable in a server rack.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - red protective casing, featuring a backlit display showing 980nm and -50.00 dBm, with front control buttons.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a red handheld device with a digital display showing 980 nm and -50.00 dBm, featuring control buttons and a top port.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a digital display reading 980 nm and -50.00 dBm, with control buttons and a top connector port.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a digital display with 980nm and -50.00 dBm, control buttons, and a side USB port with a kickstand.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - close-up of the red top panel featuring one metal connector with a grey cap and one circular black port.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - UNI-T UT692D optical power meter held in a hand, showing a red handheld device with a digital screen reading -70.00 dBm and connected to yellow fiber.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - a red handheld device with a screen showing 850nm and -67.47 dBm, connected by a yellow fiber cable in a server rack.

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter

Sale price Rs 8,500
SKU: UT692G
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - red protective casing, featuring a backlit display showing 980nm and -50.00 dBm, with front control buttons.

UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter - red protective casing, featuring a backlit display showing 980nm and -50.00 dBm, with front control buttons.
UNI-T UT692G High-Power Optical Power Meter – -50~+26DBM, 800–1700nm, FC/SC/ST, InGaAs, ±5%, IP65, Fiber Optic Power Meter
Sale priceRs 8,500

UNI-T UT692G is a high-power fibre optical power meter measuring -50 to +26 dBm across 800–1700 nm with an InGaAs detector — for high-power PON, CATV and long-haul links. IP65 rated with FC/SC/ST connectors. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • High measurement range -50 to +26 dBm, 800–1700 nm
  • InGaAs detector, ±5% uncertainty; 0.01 dBm resolution
  • Calibrated at 850/980/1300/1310/1490/1550/1625/1650 nm
  • FC/SC/ST universal connector (FC standard; SC/ST adapters optional)
  • IP65 rated; 2 m drop-proof; 10-min auto power-off
  • 3 × AA batteries, ≥60h operation

Technical Specifications

Measurement Range -50 ~ +26 dBm
Wavelength 800–1700 nm
Detector InGaAs
Uncertainty ±5%
Resolution 0.01 dBm (log)
Connector FC / SC / ST
IP Rating IP65
Power 3 × AA (LR6), ≥60h
Weight 286 g

What's in the Box

  • UT692G optical power meter
  • FC connector (SC/ST optional)
  • Batteries
  • Dedicated pouch
  • English user manual
  • Gift box

Downloads

Certifications: CE, IP65, RoHS | HS Code: 9030.89
