Home ALL Products UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen
2ft Braid Solder Remover Wick 0.75M 2.0 mm Desoldering Copper Spool Wire Back to ALL Products MB102 Breadboard 830 Points Solderless Prototyping Breadboard High Quality

Sidebar

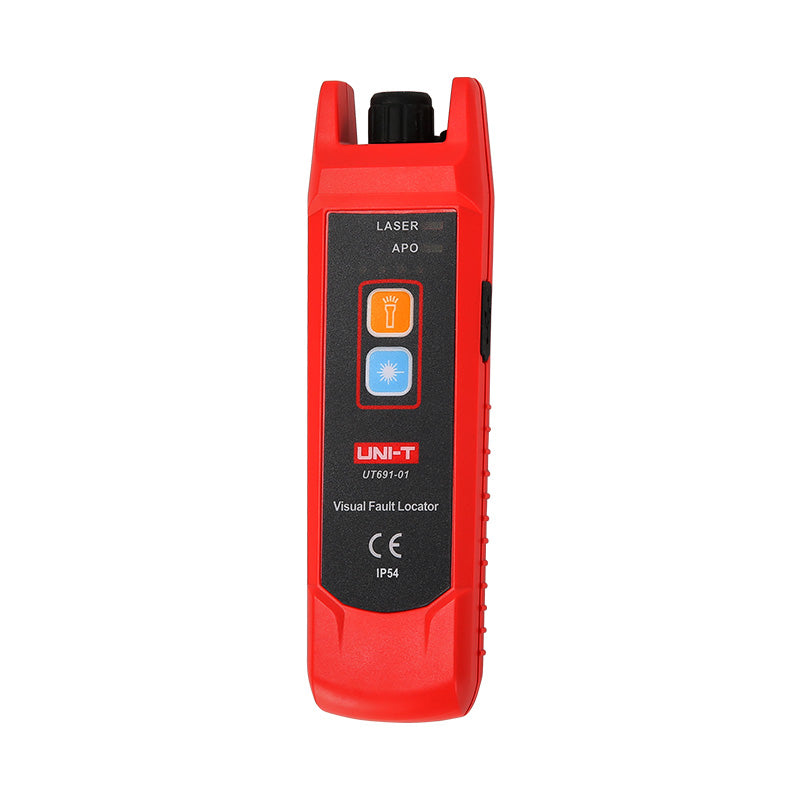

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons, a top connector, and labels for LASER and APO indicators.

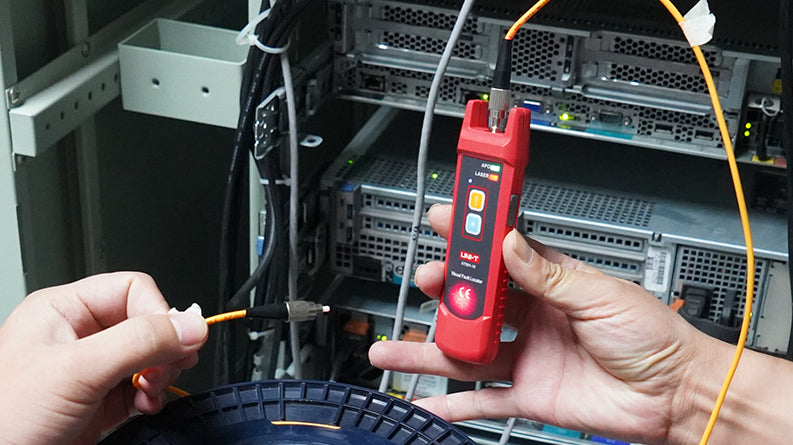

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld fiber optic tester with two buttons, held by a person connecting an orange fiber optic cable.

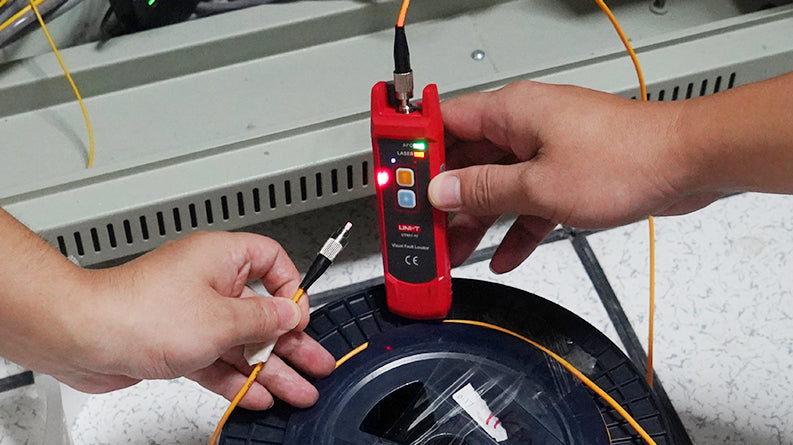

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons and a glowing red indicator light, held while testing an optical fiber cable.

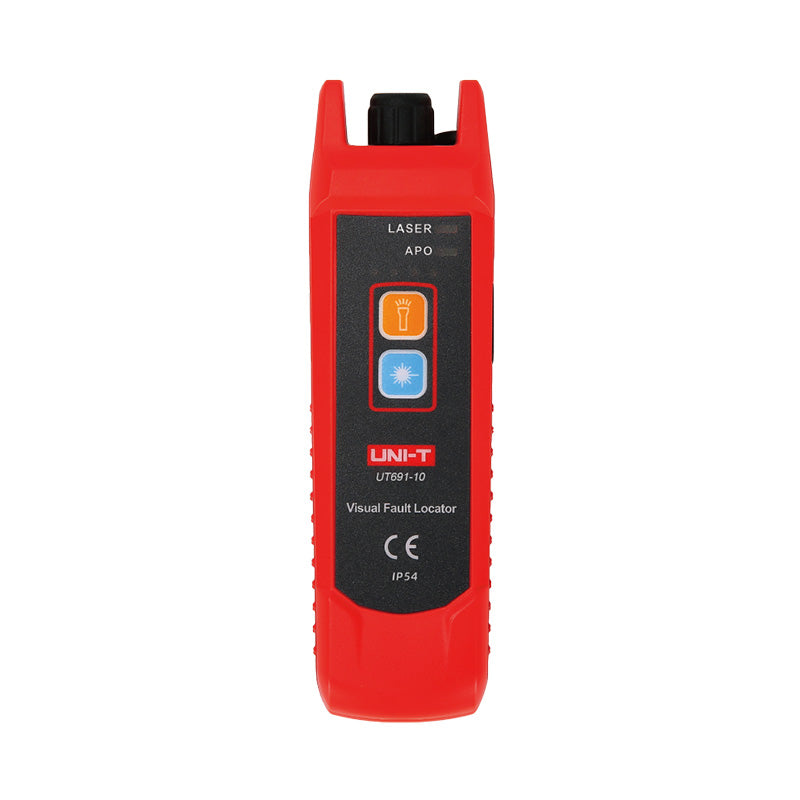

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two front buttons, a top connector, and labels for LASER, APO, CE, and IP54.

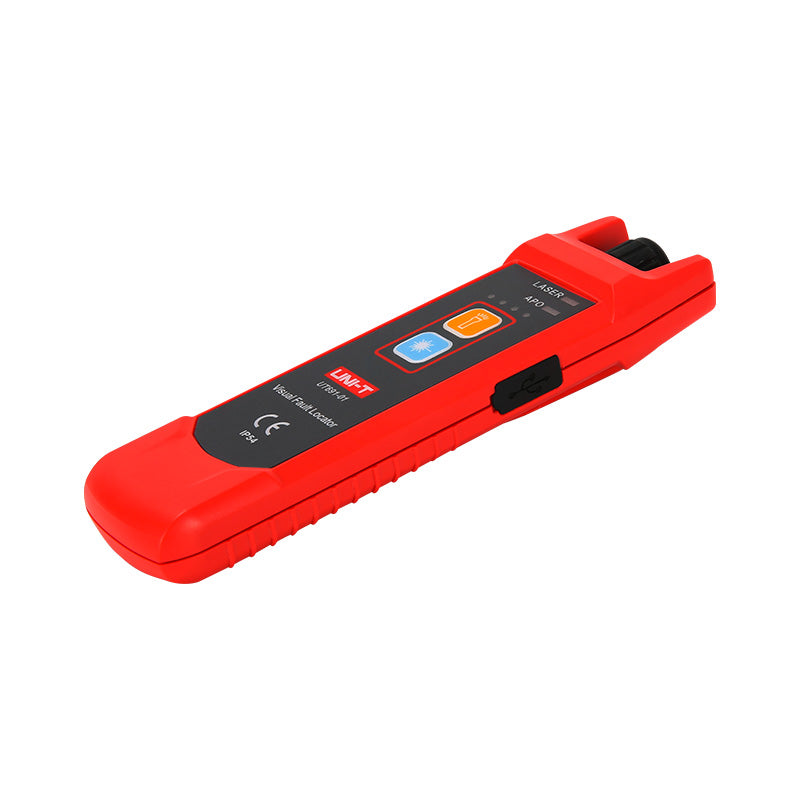

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld, pen-shaped device featuring two buttons, a USB port, and a connector port at the top.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons, a top connector, and labels for LASER and APO indicators.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld fiber optic tester with two buttons, held by a person connecting an orange fiber optic cable.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons and a glowing red indicator light, held while testing an optical fiber cable.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two front buttons, a top connector, and labels for LASER, APO, CE, and IP54.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld, pen-shaped device featuring two buttons, a USB port, and a connector port at the top.

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen

Sale price Rs 7,000
SKU: UT691-10
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons, a top connector, and labels for LASER and APO indicators.

UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen - handheld device with two buttons, a top connector, and labels for LASER and APO indicators.
UNI-T UT691-10 Visual Fault Locator – 10mW Red Laser, 8–10km Range, 650nm, 2.5mm FC Connector, Continuous/Pulse, Rechargeable Fiber Optic VFL Pen
Sale priceRs 7,000

UNI-T UT691-10 is a visual fault locator (VFL) with a 10 mW 650 nm red laser that traces breaks, bends and poor connections in optical fibre over an 8–10 km range. Rechargeable, with a 2.5 mm FC universal connector. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • 10 mW red laser (650±10 nm); locates faults over 8–10 km
  • 2.5 mm FC universal connector
  • Continuous and pulse laser modes
  • 3.7V 1050 mAh rechargeable battery, >7h; 4-LED battery status
  • 15-min auto power-off; 1 m drop-proof; >5000-press key life

Technical Specifications

Laser Power ≥10 mW
Fibre Range 8–10 km
Wavelength 650±10 nm
Connector 2.5 mm FC universal
Modes Continuous / pulse
Battery 3.7V 1050mAh (rechargeable), >7h
Auto Off 15 min
Weight 62 g

What's in the Box

  • UT691-10 visual fault locator
  • USB charging cable
  • English user manual
  • Gift box

Downloads

Certifications: CE, RoHS | HS Code: 9030.89
