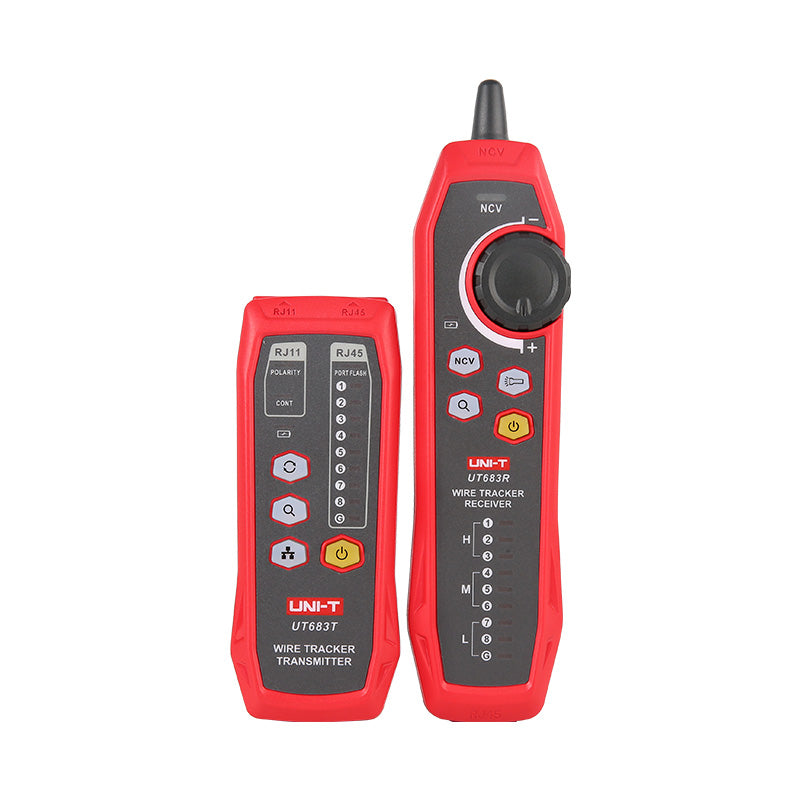

UNI-T UT683KIT Wire Tracker Kit – RJ11/RJ45 Wire Tracing, Port Flashing, NCV, Open/Short & Polarity Test, Rechargeable Cable Toner and Probe
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT683KIT Wire Tracker Kit – RJ11/RJ45 Wire Tracing, Port Flashing, NCV, Open/Short & Polarity Test, Rechargeable Cable Toner and Probe
UNI-T UT683KIT is a rechargeable wire tracker kit (tone generator & probe) for network and telephone cabling, with port flashing, line alignment, NCV, open/short and polarity testing. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features

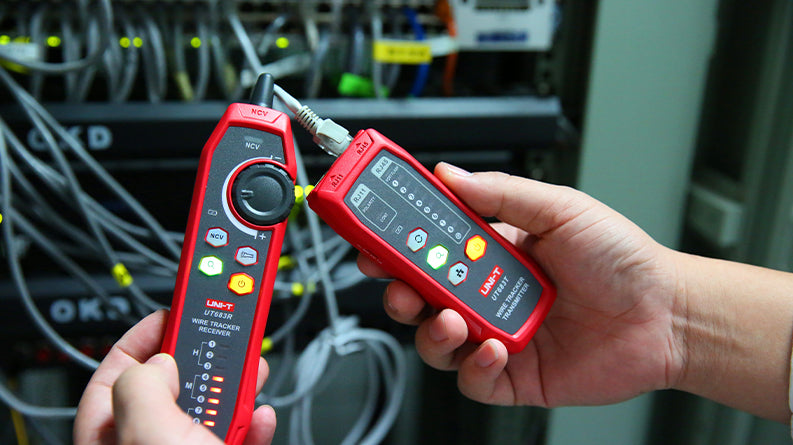

- Wire tracing: RJ11 >3000 m, RJ45 >100 m; port flashing & line alignment

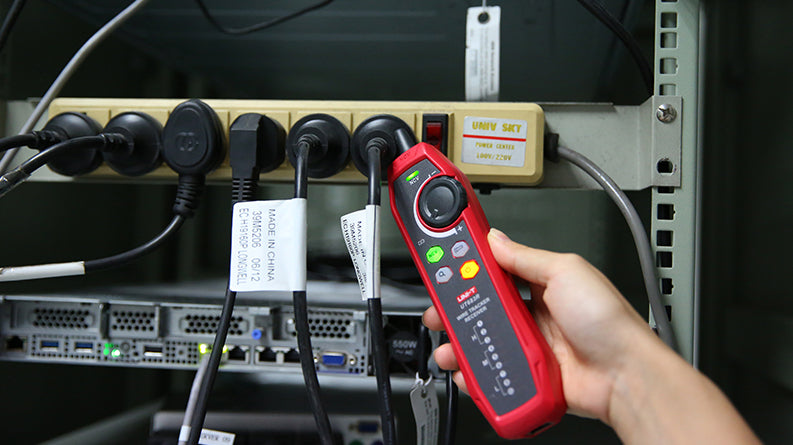

- Open/short (10kΩ) and polarity test; NCV function
- 3.5 mm headset jack; low-battery indication
- 1050 mAh rechargeable lithium battery (USB); >5–8h operation
- Includes RJ11/RJ45 test leads and alligator-clip lead
Technical Specifications
| Wire Tracing | RJ11 >3000 m, RJ45 >100 m |
|---|---|
| Functions | Port flash, line align, NCV |
| Tests | Open/short (10kΩ), polarity |
| Headset Jack | 3.5 mm |
| Battery | 1050mAh Li-ion (USB) |
| Operating Time | >5–8 h |
What's in the Box

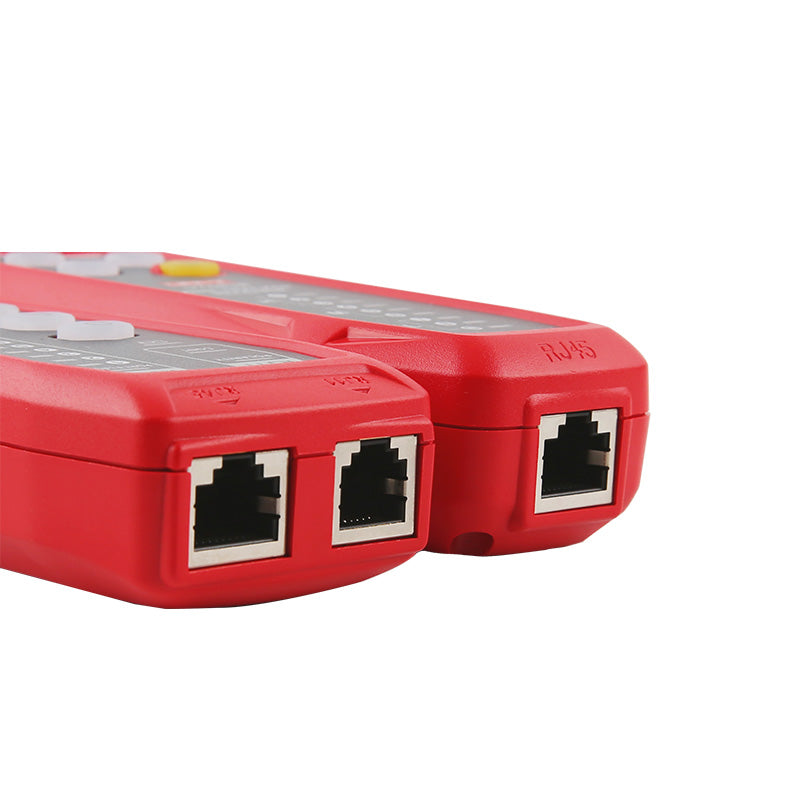

- UT683KIT transmitter
- UT683KIT receiver
- USB cable
- RJ11 alligator-clip lead
- RJ45 test lead
- RJ11 test lead
- Carrying bag
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
