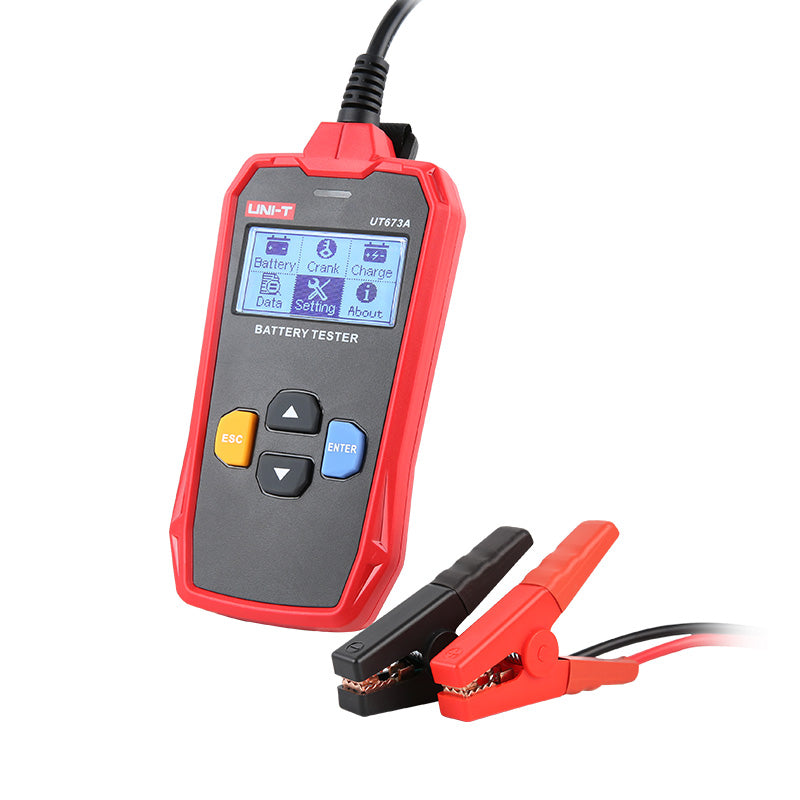

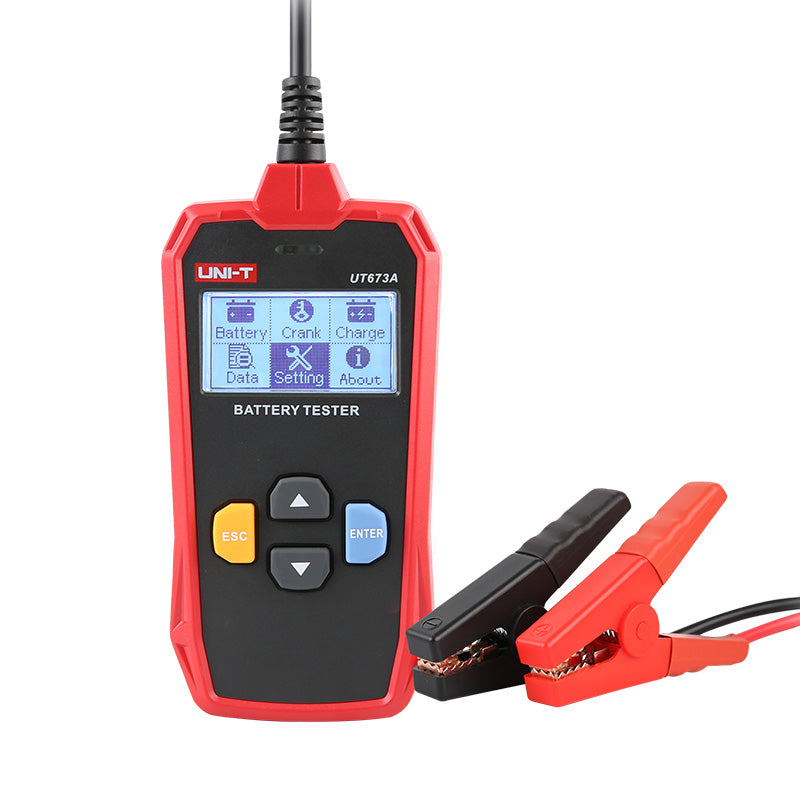

UNI-T UT673A Automotive Battery Tester – 12V/24V, CCA 40–2000, Cranking & Charging System Test, Internal Resistance, Battery Health Analyzer
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT673A Automotive Battery Tester – 12V/24V, CCA 40–2000, Cranking & Charging System Test, Internal Resistance, Battery Health Analyzer
UNI-T UT673A is an automotive battery tester / analyzer for 12V batteries and 12V/24V cranking and charging systems. It reports battery status, life, capacity and internal resistance across CCA, BCI, CA, MCA, JIS, DIN, IEC, EN and SAE standards (40–2000). Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- 12V battery test (7–16V) and 12V/24V cranking & charging system test (7–30V)
- Supports lead-acid, AGM (flat/spiral), GEL and EFB batteries, 3–250 Ah
- Standards: CCA/BCI/CA/MCA/JIS/DIN/IEC/EN/SAE 40–2000
- Shows battery status, life, capacity and internal resistance
- Overvoltage & reverse-connection protection; poor-contact prompt
- Compact 264 g handheld; powered by the battery under test
Technical Specifications
| Battery Test | 12V (7–16V DC) |
|---|---|
| System Test | 12V/24V cranking & charging (7–30V) |
| Battery Types | Lead-acid / AGM / GEL / EFB |
| Capacity | 3–250 Ah |
| Standards | CCA/BCI/CA/MCA/JIS/DIN/IEC/EN/SAE 40–2000 |
| Display | 128×64 LCD |
| Power | From battery under test (no internal battery) |
What's in the Box
- UT673A battery tester
- English user manual
- Gift box
Downloads
Certifications: CE, FCC, RoHS | HS Code: 9030.39
