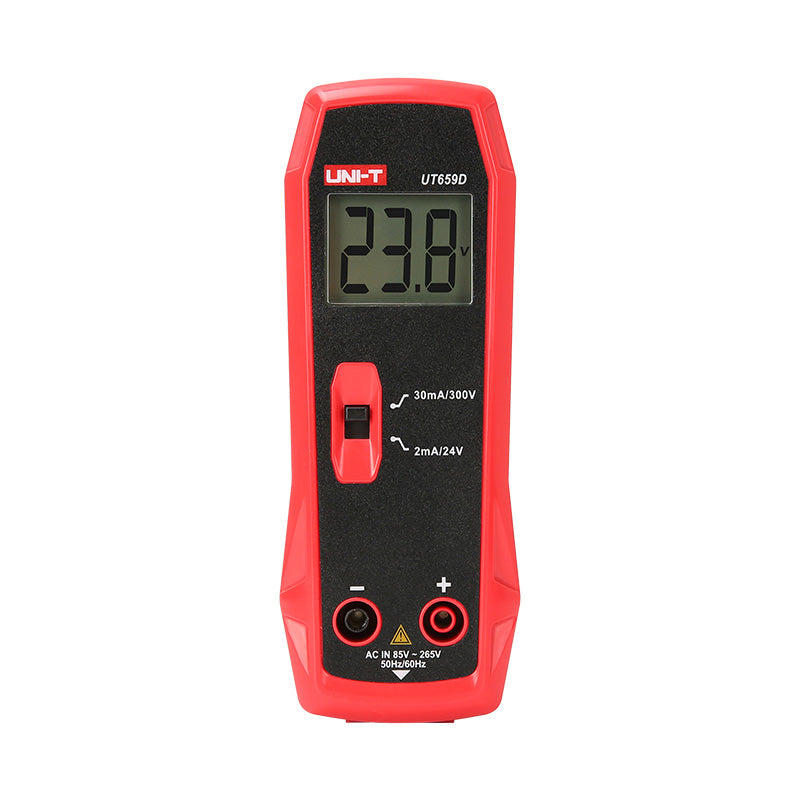

UNI-T UT659D LED Tester – 300V Output, 30mA, LED & LED-Driver Test, Continuity, AC 85–265V Input, CAT II 300V, Backlit LED Test Meter
UNI-T UT659D is an LED tester that powers and checks LEDs, LED strings and LED drivers with a 300 V / 30 mA output plus a continuity function — a fast tool for lighting repair and manufacturing. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- 300 V (30 mA) output for LEDs and LED drivers
- Continuity test (5 V DC output)
- AC 85–265 V, 50/60 Hz mains input
- Constant-on backlight; high-impedance open-circuit protection
- CAT II 300V; 1 m drop protection
Technical Specifications
| Output Voltage | 300 V |
|---|---|
| Output Current | 30 mA |
| Continuity | 5 V DC output |
| Input | AC 85–265 V, 50/60 Hz |
| Category | CAT II 300V |
| Display | 60 × 35 mm, backlit |
| Weight | 175 g |
| Size | 150 × 56 × 42 mm |
What's in the Box
- UT659D LED tester
- Power cable
- Test leads
- English user manual
- Gift box
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
