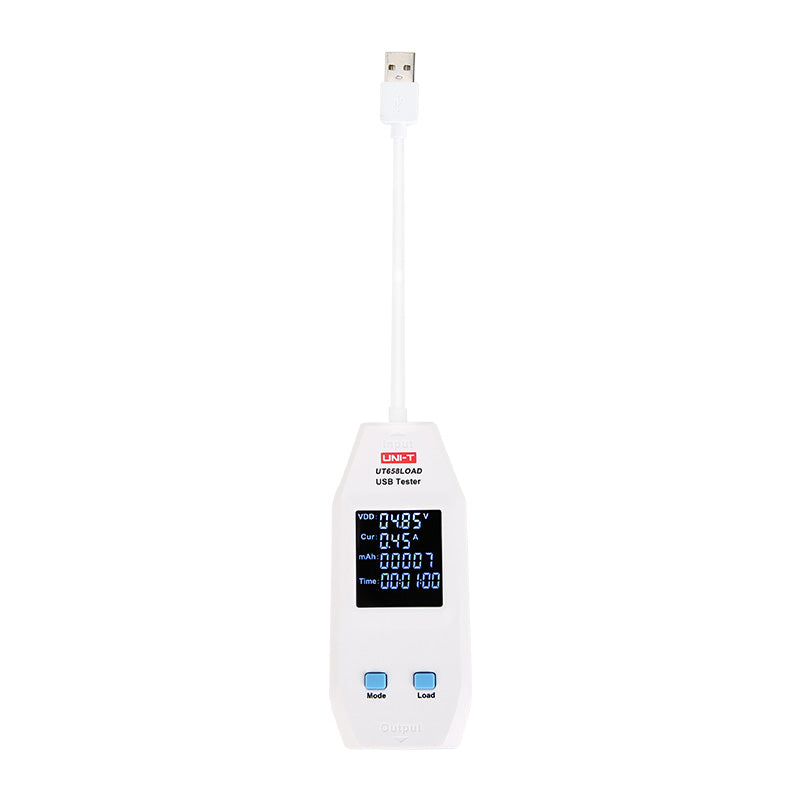

UNI-T UT658LOAD USB Tester with Electronic Load – Type-A, 4~24 V / 0.05~3 A, Selectable Load 0.5/1/2/3 A (60 W)
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT658LOAD USB Tester with Electronic Load – Type-A, 4~24 V / 0.05~3 A, Selectable Load 0.5/1/2/3 A (60 W)
The UNI-T UT658LOAD is a USB tester with a built-in electronic load — it not only reads voltage, current, capacity and energy, but can also draw a selectable load (0.5 / 1 / 2 / 3 A, up to 60 W) to properly test the real output of chargers and power banks.
It measures 4–24 V and 0.05–3 A on Type-A, logs mAh/Wh, tests cable resistance and data-line voltage, and records up to 99 hours. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- ⚡ Built-in electronic load: 0.5 / 1 / 2 / 3 A (max 60 W)
- 🔌 USB Type-A inline tester, QC 2.0/3.0
- 📏 4~24 V / 0.05~3 A; capacity & energy logging
- 🧵 Cable resistance (1~480 Ω) & D+/D- voltage
- 💾 10 record sets; up to 99 h timing
Technical Specifications
| Ports | USB Type-A (in & out) |
|---|---|
| Electronic load | 0.5 / 1 / 2 / 3 A (max 60 W) |
| Protocol | QC 2.0 / 3.0 |
| Voltage | 4 ~ 24 VDC (0.01 V) |
| Current | 0.05 ~ 3 ADC |
| Capacity | 0 ~ 99999 mAh |
| Energy | 0 ~ 1000 Wh |
| Cable resistance | 1 ~ 480 Ω |
| Data storage | 10 sets |
| Max recording time | 99 h 59 min 59 s |
What's in the Box
- UT658LOAD USB tester with load
- English user manual
Downloads
Certifications: CE | HS Code: 9030.39
