UNI-T UT658DUAL USB Tester – Type-A & Type-C, 4–24V, up to 5A, QC3.0/QC4.0, Capacity / Energy / Resistance Meter

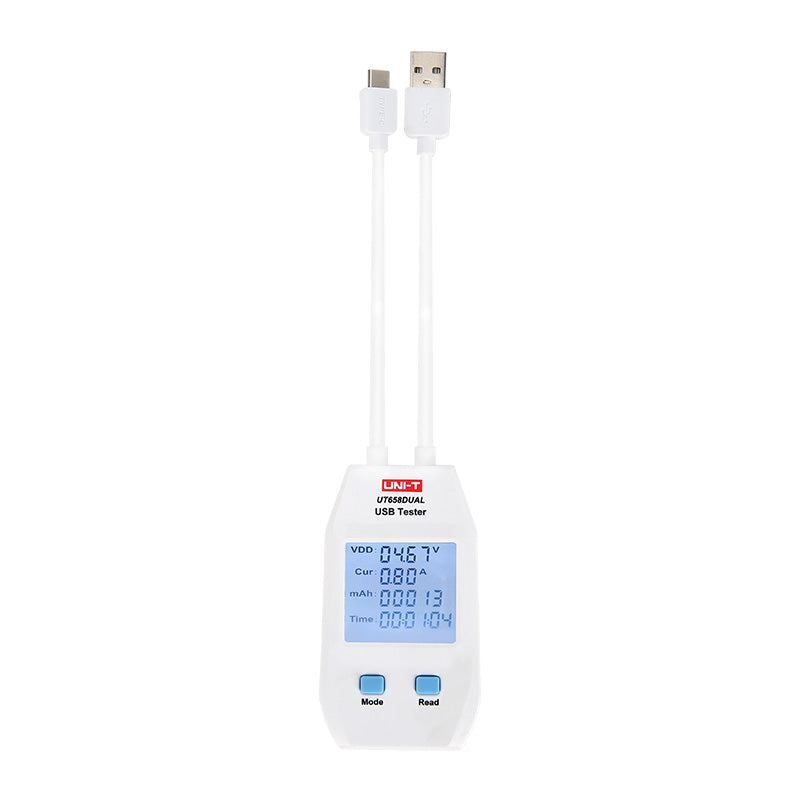

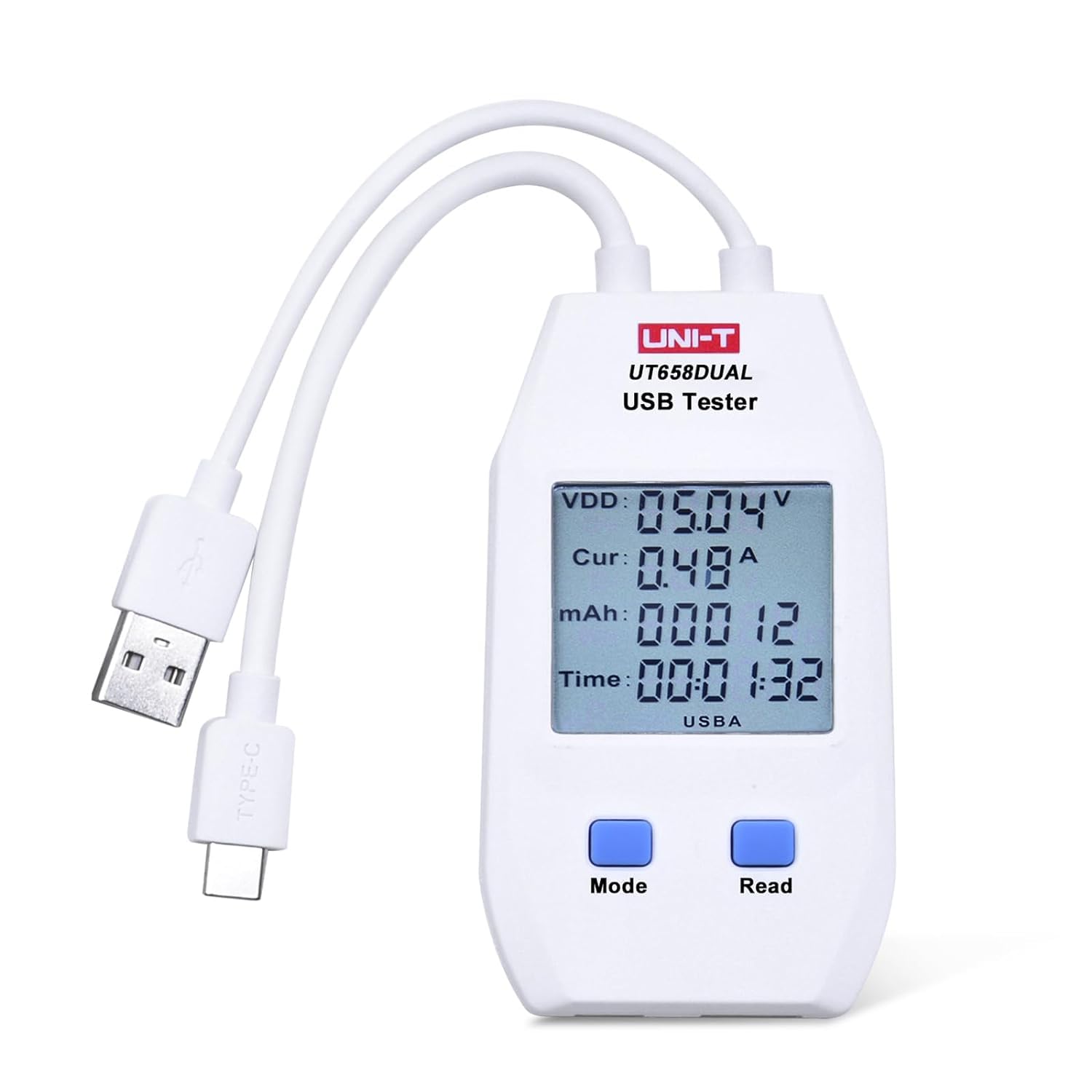

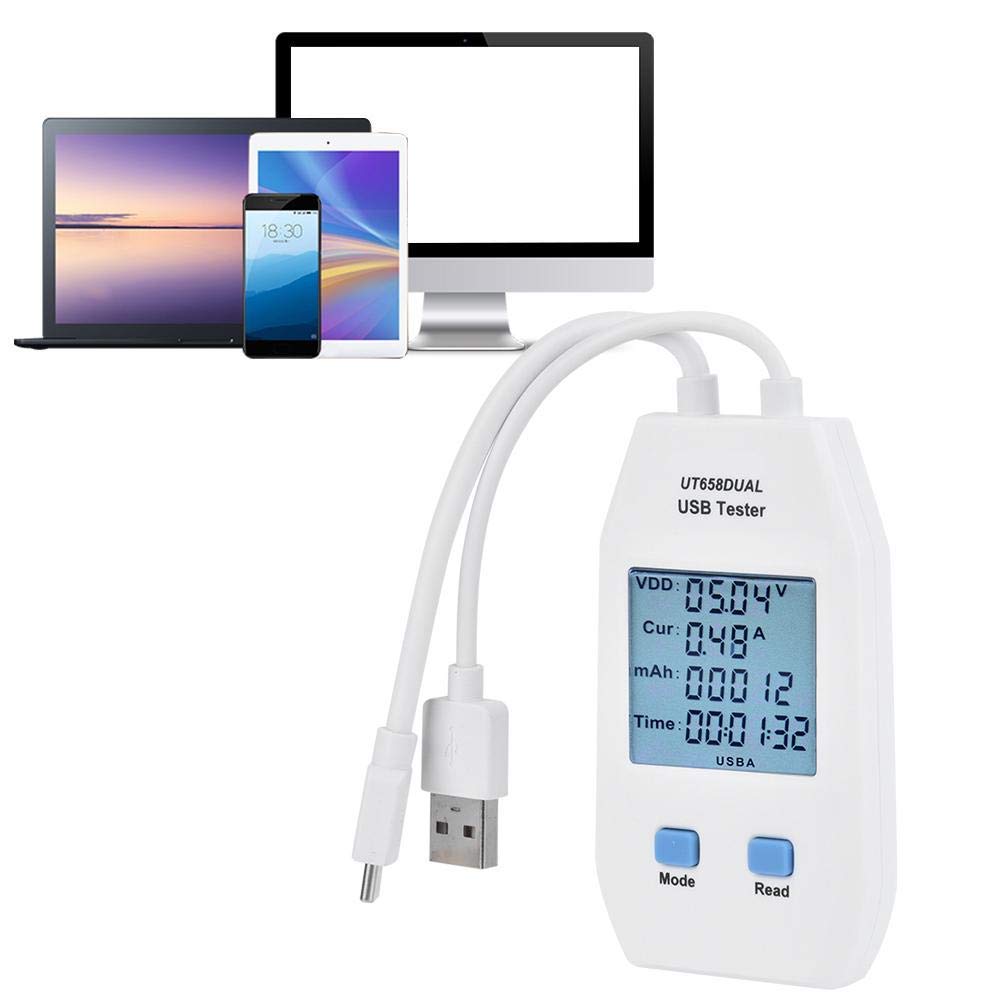

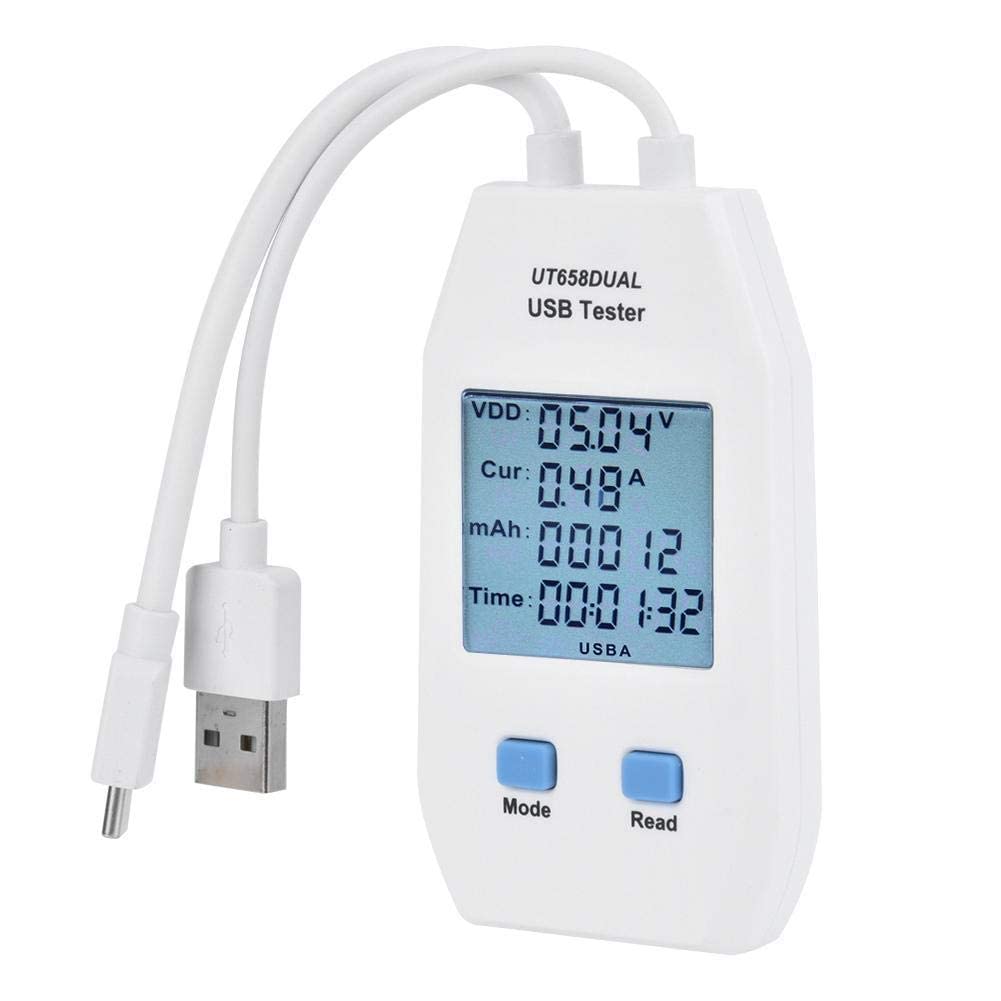

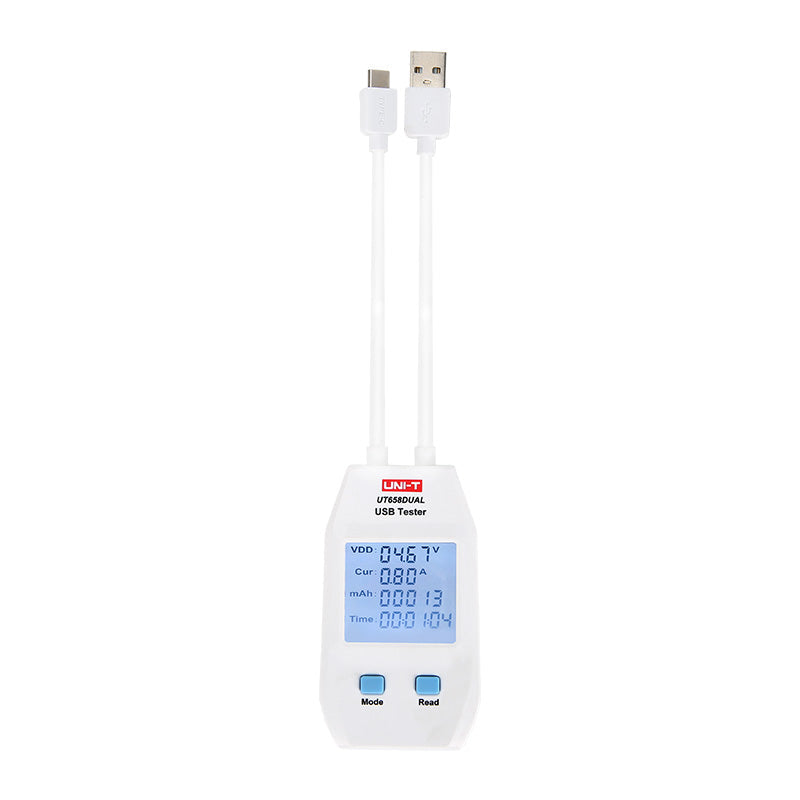

The UNI-T UT658DUAL is a second-generation USB tester with both Type-A and Type-C input/output ports, so you can measure standard and USB-C fast charging on one instrument. It reads voltage, current, power, accumulated capacity, energy, circuit equivalent resistance and even the D+/D- data-line voltage on a clear backlit LCD.
With QC3.0 (Type-A) and QC4.0 (Type-C) fast-charge protocol support, it is built for checking modern chargers, PD power banks and cables. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Dual Type-A + Type-C input and output ports on one tester
- Wide 4–24 VDC range; current up to 3 A (Type-A) / 5 A (Type-C)
- Measures capacity 0–99999 mAh, energy 0–1000 Wh and circuit resistance 1–480 Ω
- Reads USB data-line voltage (D+, D-) and stores 10 data sets
- Supports QC3.0 (Type-A) and QC4.0 (Type-C) fast-charge protocols
- Backlit LCD; recording up to 99 h 59 min 59 s
Technical Specifications
| Input / output ports | USB Type-A & Type-C |
|---|---|
| Voltage range | 4–24 VDC (resolution 0.01 V) |
| Current range | Type-A 0.05–3 A; Type-C 0.05–5 A (0.01 A) |
| Capacity | 0–99999 mAh (1 mAh) |
| Energy | 0–1000 Wh |
| Circuit equivalent resistance | 1–480 Ω |
| USB data cable voltage (D+, D-) | 0–3.3 V |
| Fast-charge protocol | QC3.0 (Type-A) / QC4.0 (Type-C) |
| Data storage | 10 sets |
| Max recording time | 99 h 59 min 59 s (1 s) |
| Net weight | 65.8 g |
| Dimensions | 93 × 55 × 13 mm |
| Body colour | White |
What's in the Box
- UT658DUAL USB tester
- Gift box
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
