UNI-T UT658A USB Tester – Type-A, 4~24 V / 0.05~3 A, Capacity, Energy & Cable Resistance, QC 2.0/3.0

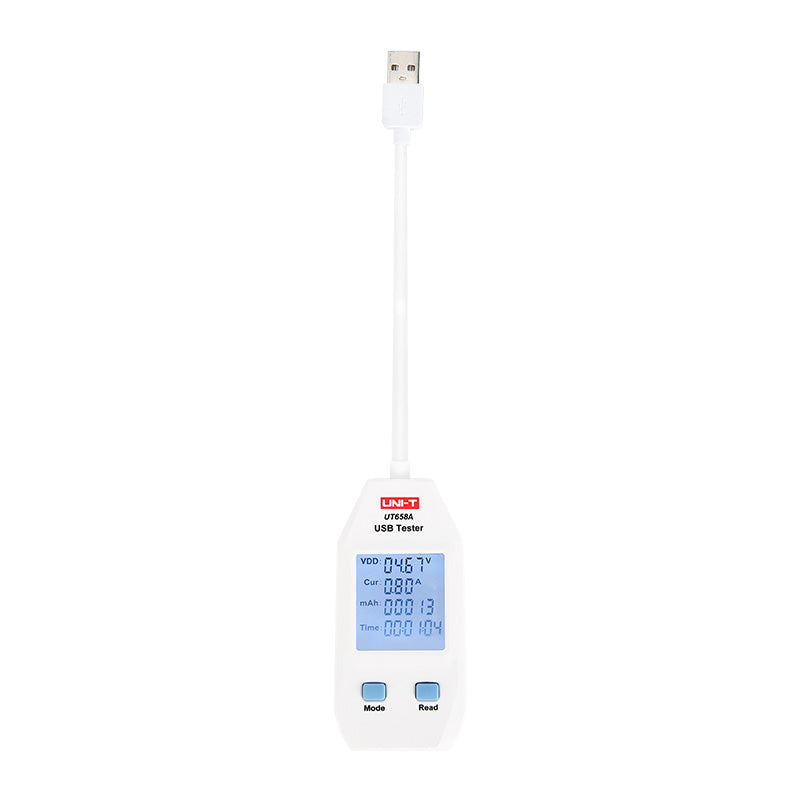

The UNI-T UT658A is a USB tester that plugs inline on a Type-A port to read voltage, current, capacity and energy — perfect for checking chargers, power banks, cables and fast-charging (QC 2.0/3.0).
It measures 4–24 V and 0.05–3 A, logs mAh capacity and Wh energy, tests cable equivalent resistance (1–480 Ω) and D+/D- data-line voltage, stores 10 record sets and times sessions up to 99 hours. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- 🔌 Inline USB Type-A voltage & current tester
- 📏 4~24 V (0.01 V) / 0.05~3 A (0.01 A)
- 🔋 Capacity (mAh) & energy (Wh) logging; QC 2.0/3.0 detection
- 🧵 Cable equivalent-resistance (1~480 Ω) & D+/D- voltage
- 💾 10 record sets; up to 99 h timing
Technical Specifications
| Ports | USB Type-A (in & out) |
|---|---|
| Protocol | QC 2.0 / 3.0 |
| Voltage | 4 ~ 24 VDC (0.01 V) |
| Current | 0.05 ~ 3 ADC (0.01 A) |
| Capacity | 0 ~ 99999 mAh |
| Energy | 0 ~ 1000 Wh |
| Cable resistance | 1 ~ 480 Ω |
| Data-line voltage | D+/D- 0 ~ 3.3 V |
| Data storage | 10 sets |
| Max recording time | 99 h 59 min 59 s |
What's in the Box
- UT658A USB tester
- English user manual
Downloads
Certifications: CE | HS Code: 9030.39
