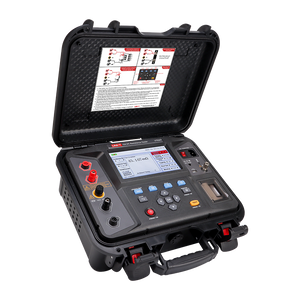

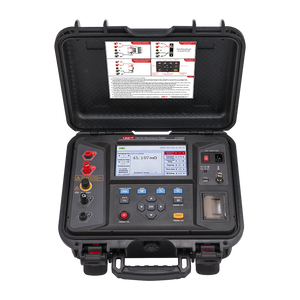

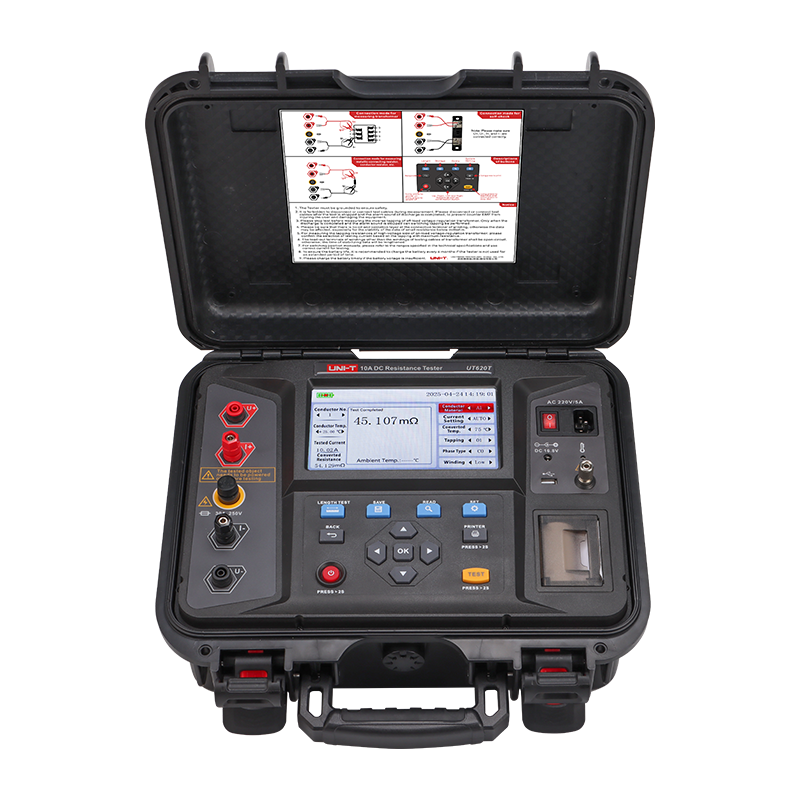

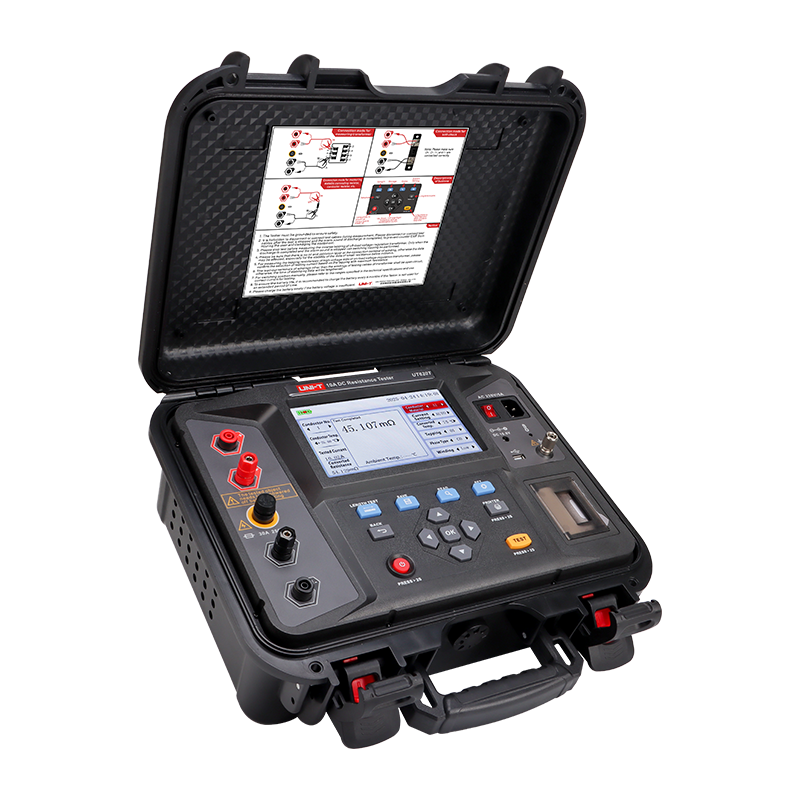

UNI-T UT620T 10A DC Resistance Tester – 100µΩ–1MΩ, 0.1µΩ Resolution, Constant-Current 40mA–10A, 4-Wire, 7" Colour LCD, Built-in Printer, Winding Ohmmeter

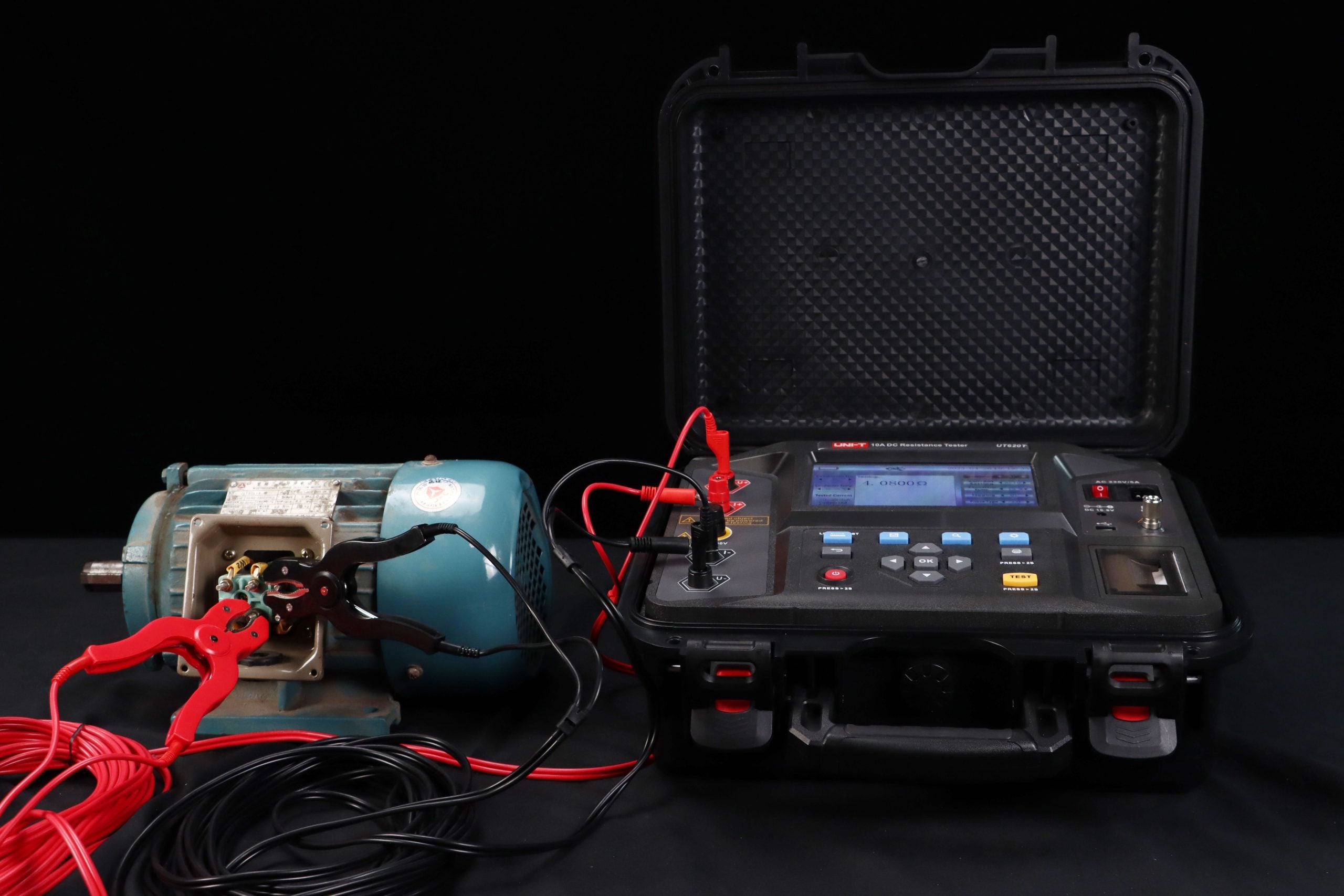

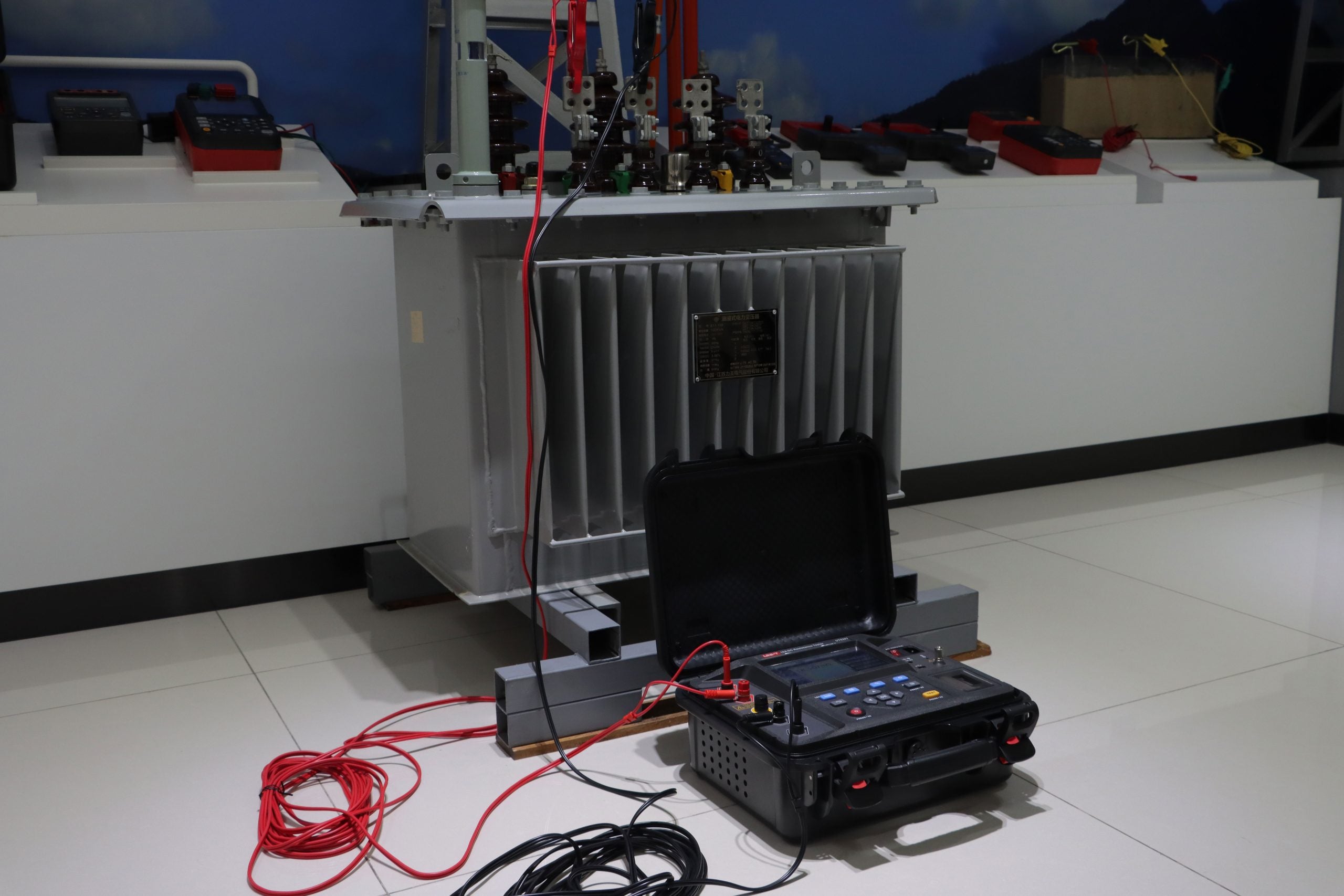

UNI-T UT620T is a 10A DC (winding) resistance tester measuring 100 µΩ–1 MΩ with 0.1 µΩ resolution using selectable constant test currents from 40 mA to 10 A — for transformer, motor and inductor winding resistance and low-resistance connections. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Constant-current test 40 mA–10 A; range 100 µΩ–1 MΩ, resolution 0.1 µΩ
- 4-wire (Kelvin) test method; auto and step current selection
- Wire-length measurement (0.1 m–999.99 km); ambient-temperature display
- Up to 9999-set data storage; discharge alert buzzer

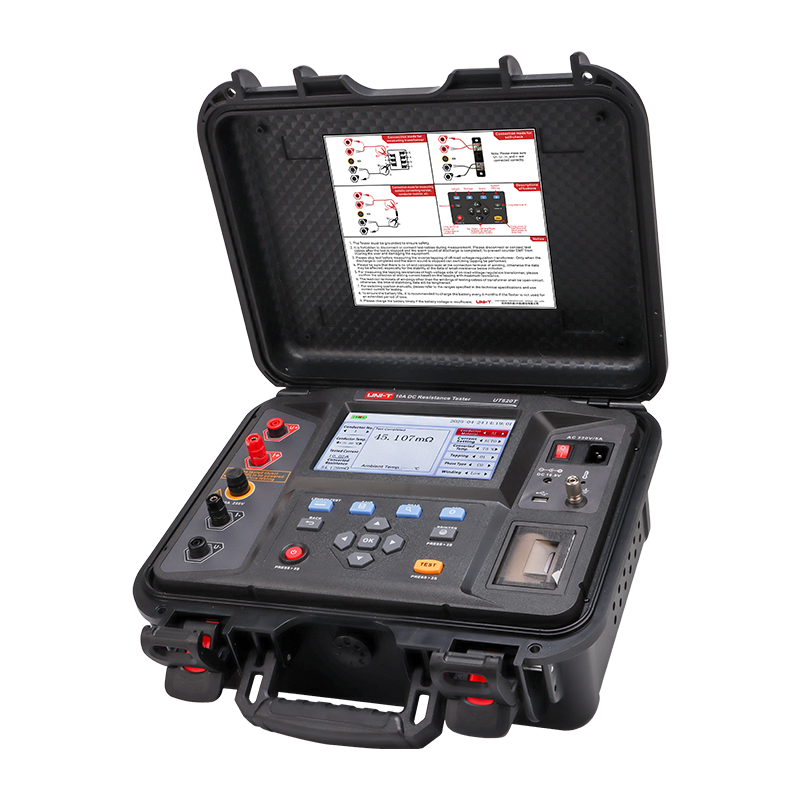

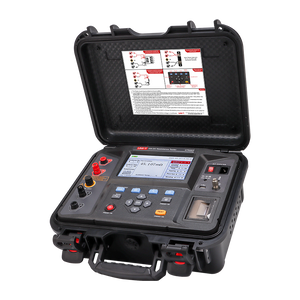

- 7" colour LCD; built-in thermal printer for test results
- Rechargeable 14.8V 5000 mAh battery or AC 180–240V mains
Technical Specifications
| Range | 100 µΩ – 1 MΩ |
|---|---|
| Resolution | 0.1 µΩ |
| Test Current | 40 mA – 10 A (constant) |
| Accuracy | ±0.1% rdg ± 0.1% fs |
| Method | 4-wire Kelvin |
| Length Range | 0.1 m – 999.99 km |
| Storage | 9999 sets |
| Display | 7" colour LCD |
| Printer | Built-in thermal |
| Power | 14.8V 5000mAh Li-ion / AC 180–240V |

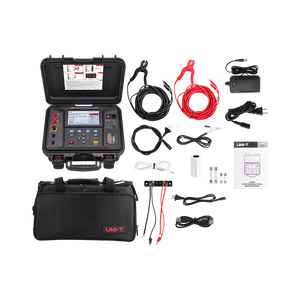

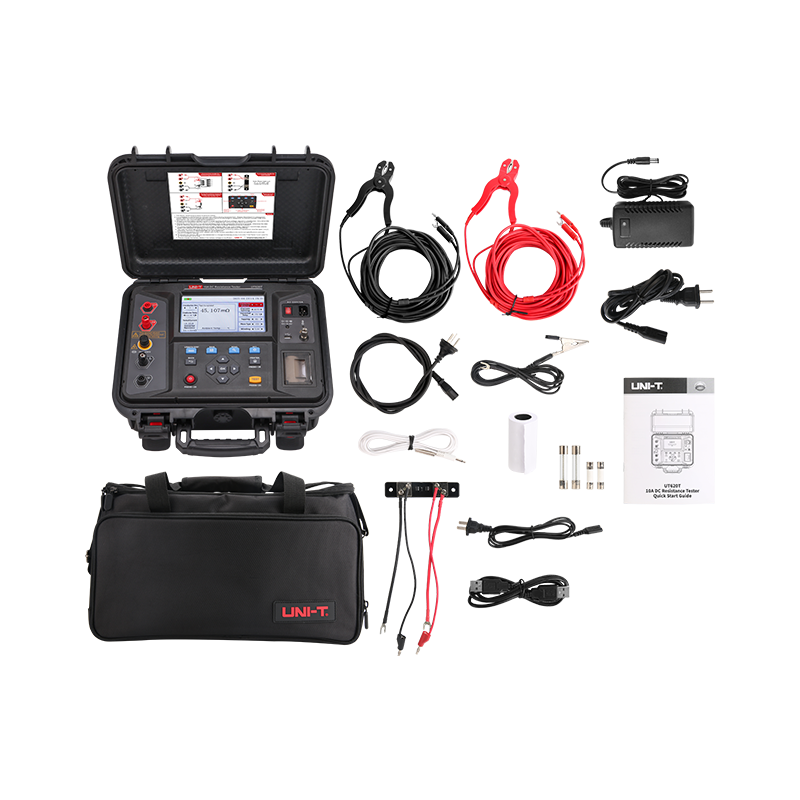

What's in the Box
- UT620T DC resistance tester
- 4-wire test leads with clamps
- Power cord
- Temperature probe
- Printer paper
- Carrying bag
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
