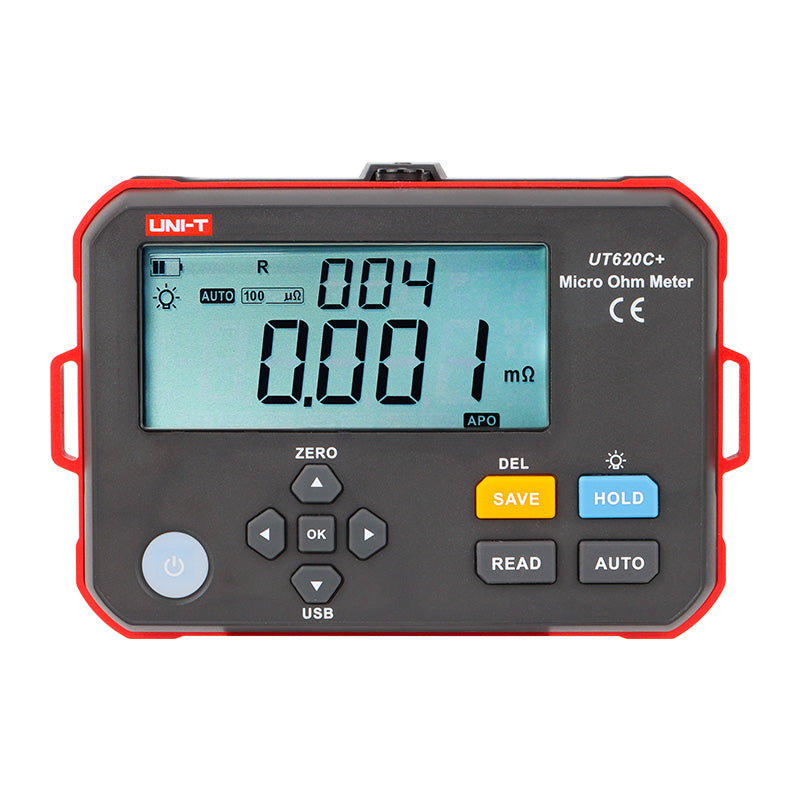

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a grey and red rectangular device with a digital display reading 0.001 mΩ, buttons, and power icon.

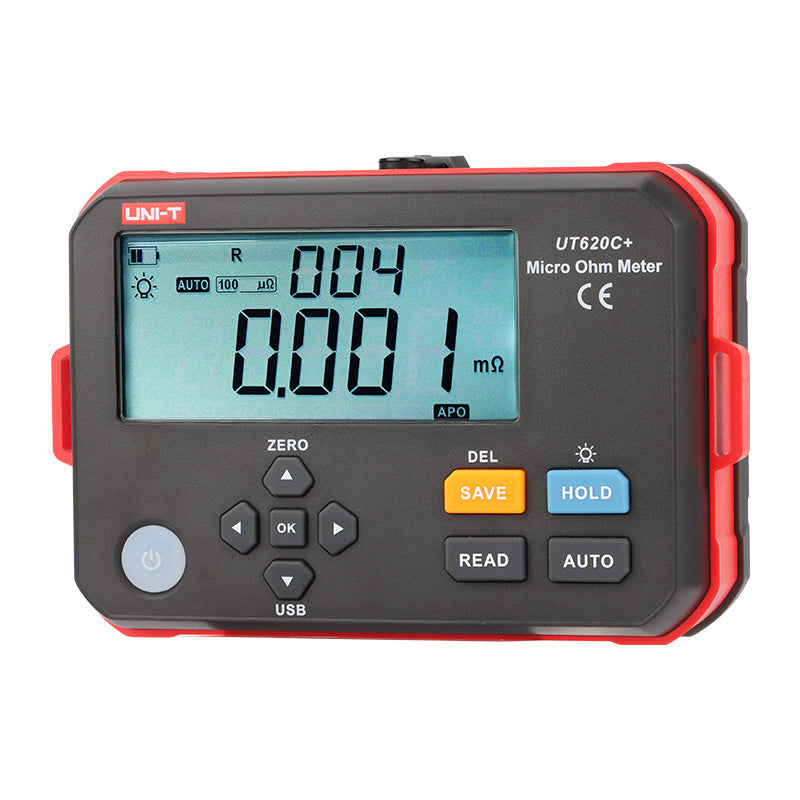

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a black and red handheld device showing a digital screen reading 0.001 mΩ with various control buttons on the front panel.

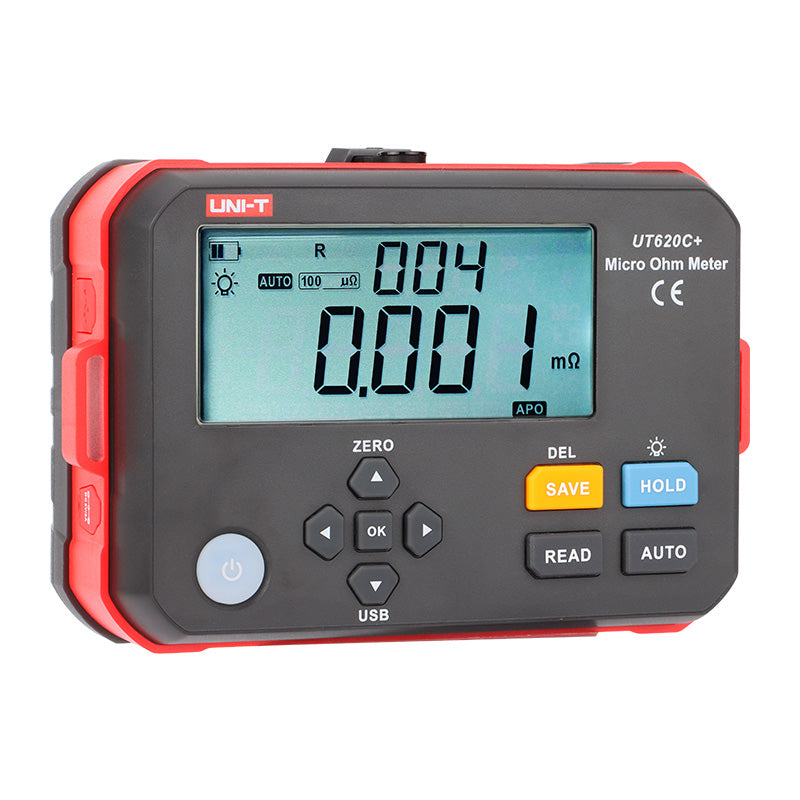

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - black and red casing, showing a digital display with "004" and "0.001 mΩ" readings, navigation buttons, and labels.

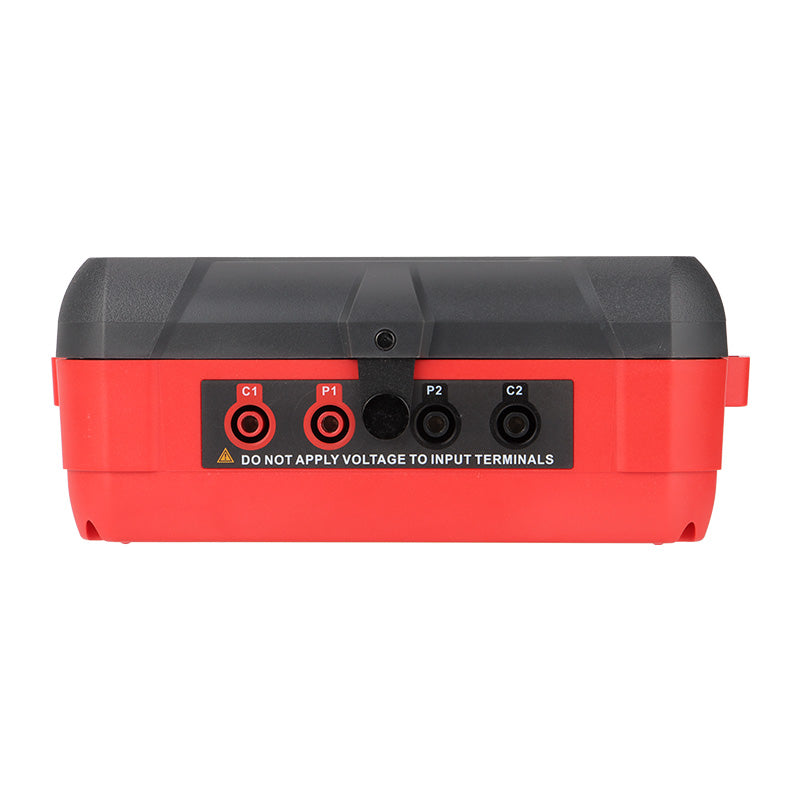

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - the red and black front panel with four input terminals labeled C1, P1, P2, and C2.

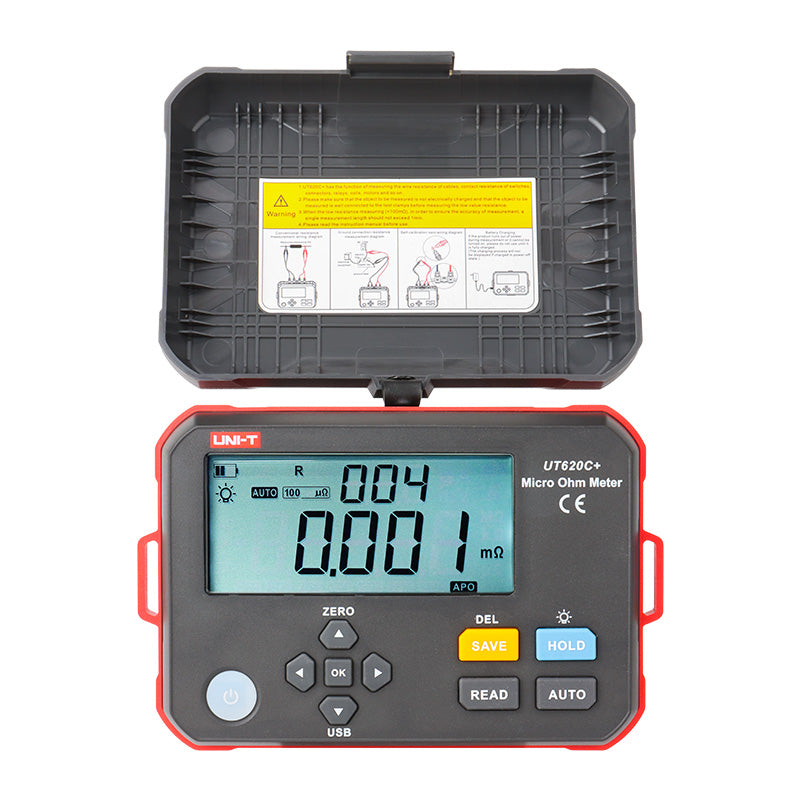

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - with an open grey protective case, showing the digital display reading 0.001 mΩ and various control buttons.

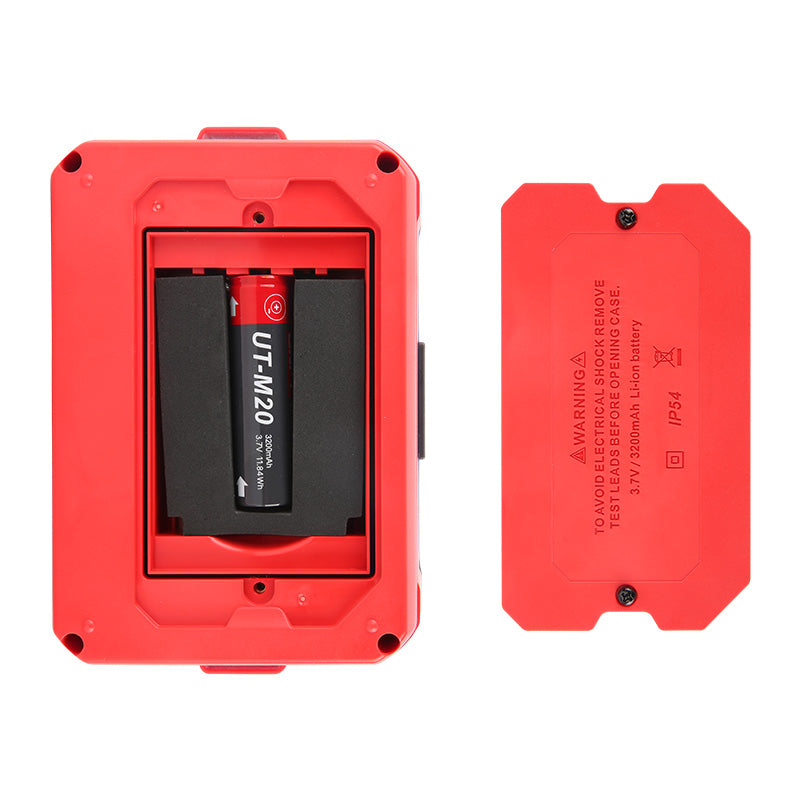

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - shown with its red battery compartment cover removed, revealing a single UT-M20 3.7V 3200mAh battery inside.

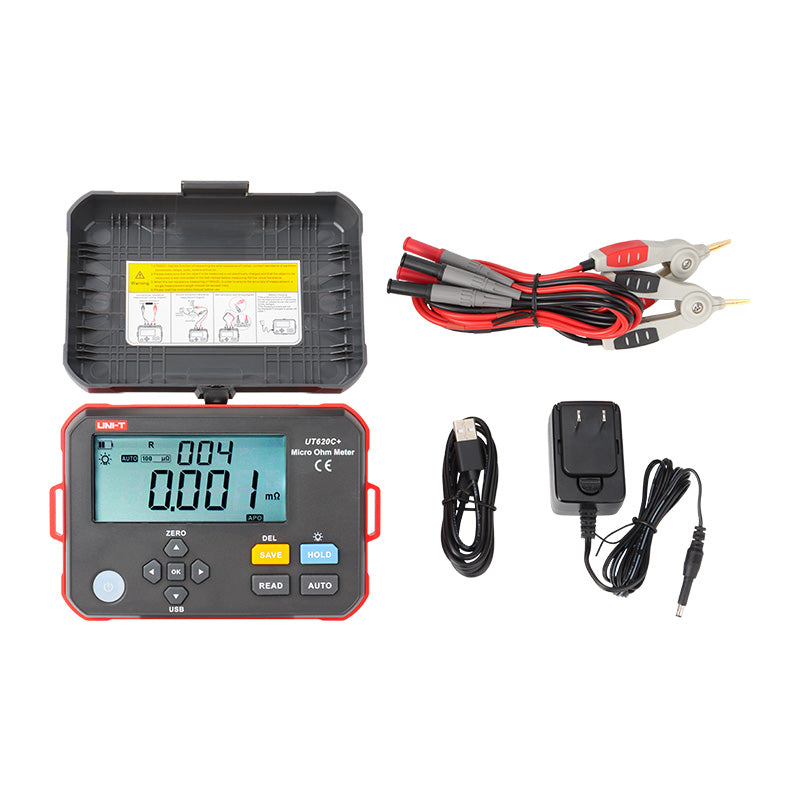

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - the red and black device with a digital display reading 0.001 mΩ, Kelvin test leads, power adapter, and USB cable.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a grey and red rectangular device with a digital display reading 0.001 mΩ, buttons, and power icon.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a black and red handheld device showing a digital screen reading 0.001 mΩ with various control buttons on the front panel.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - black and red casing, showing a digital display with "004" and "0.001 mΩ" readings, navigation buttons, and labels.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - the red and black front panel with four input terminals labeled C1, P1, P2, and C2.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - with an open grey protective case, showing the digital display reading 0.001 mΩ and various control buttons.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - shown with its red battery compartment cover removed, revealing a single UT-M20 3.7V 3200mAh battery inside.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - the red and black device with a digital display reading 0.001 mΩ, Kelvin test leads, power adapter, and USB cable.

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter

Sale price Rs 46,900
SKU: UT620C+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a grey and red rectangular device with a digital display reading 0.001 mΩ, buttons, and power icon.

UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter - a grey and red rectangular device with a digital display reading 0.001 mΩ, buttons, and power icon.
UNI-T UT620C+ Digital Micro Ohm Meter – 0.001MΩ–300kΩ, 1µΩ Resolution, ±0.1%FS, 4-Wire Kelvin, 500 Memory, IP54, Type-C, Rechargeable Low-Resistance Ohmmeter
Sale priceRs 46,900

UNI-T UT620C+ — portable micro-ohmmeter that measures resistance from the micro-ohm level up to mega-ohms with high precision. Built for testing and maintenance of large equipment such as winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution, new-energy vehicles, petrochemicals and industrial plant grounding systems. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • Micro-ohm level measurement, resistance range 0.001mΩ – 300.0kΩ
  • Resolution up to 1μΩ; accuracy up to ±0.1%FS
  • Four-wire (Kelvin) method; measurement current ≤1A
  • 500 groups of data storage; large LCD with backlight; Type-C interface
  • IP54 rated; rechargeable 3.7V 3200mAh lithium battery; auto power-off

Technical Specifications

Resistance range (overall) 0.001mΩ – 300.0kΩ
Range: 100.1kΩ~300.0kΩ / 3uA Resolution 100Ω
Range: 10.01kΩ~100.00kΩ / 3uA Resolution 10Ω
Range: 1.001kΩ~10.000kΩ / 10uA Resolution 1Ω
Range: 100.1Ω~1000.0Ω / 100uA Resolution 0.1Ω
Range: 10.01Ω~100.00Ω / 1mA Resolution 0.01Ω
Range: 1.001Ω~10.000Ω / 10mA Resolution 0.001Ω
Range: 100.1mΩ~1000.00mΩ / 100mA Resolution 0.1mΩ
Range: 0.001mΩ~100.00mΩ / 1A Resolution 0.01 / 0.001mΩ
Accuracy ±0.1%FS
Measurement method Four-wire method (Kelvin)
Test current ≤1A
Open circuit voltage ≤4.2V
Input protection ≤36V AC/DC
Power consumption Measurement power ≤8W
Measuring speed About 2 times/s
Automatic power off 15 minutes if no operation
Storage 500 sets
Display type Segment LCD
USB interface Type-C
Backlight Yes
Low battery indication Yes
IP rating IP54
Power supply DC 3.7V 3200mAh lithium battery
Product colour Black + Red
Product weight 480 g (battery included)
Product dimension 161 mm × 117 mm × 68 mm

What's in the Box

  • UT620C+ micro-ohmmeter
  • Four-wire Kelvin test leads
  • Rechargeable lithium battery
  • Type-C cable
  • English user manual

Downloads

Certifications: CE, RoHS | HS Code: 9030.39
