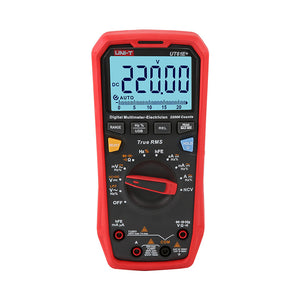

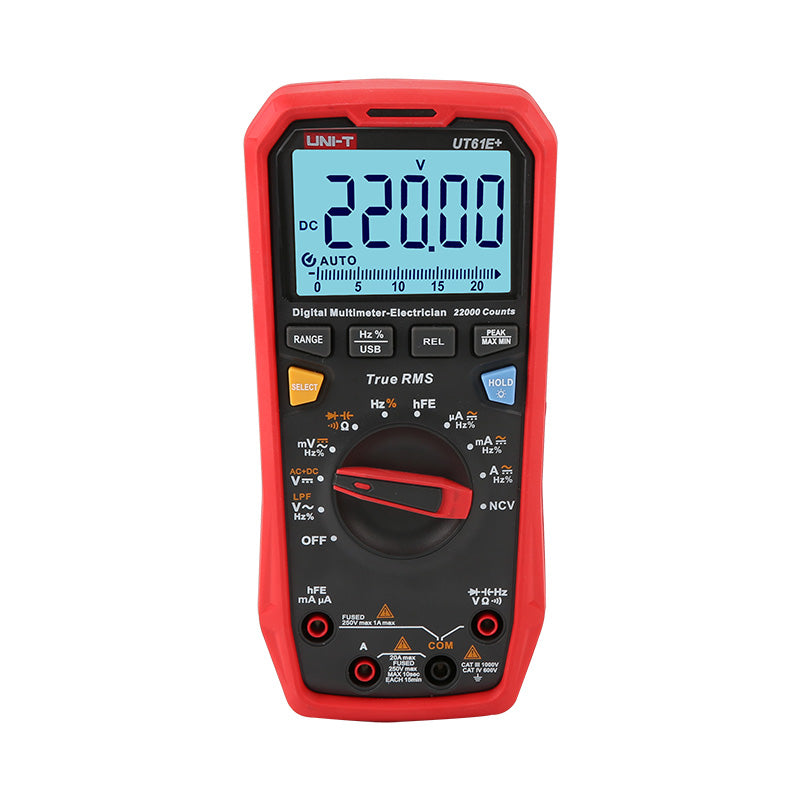

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a digital display reading 220.00 V, a central rotary dial, and bottom input ports.

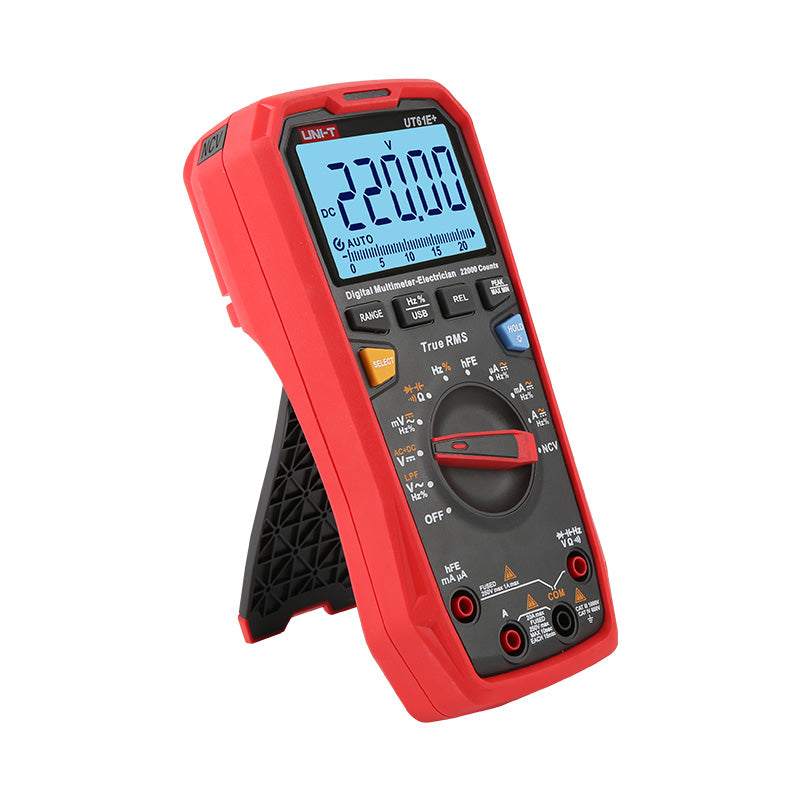

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - with a kickstand, showing a digital display reading 220.00 DC, a rotary dial, and input ports.

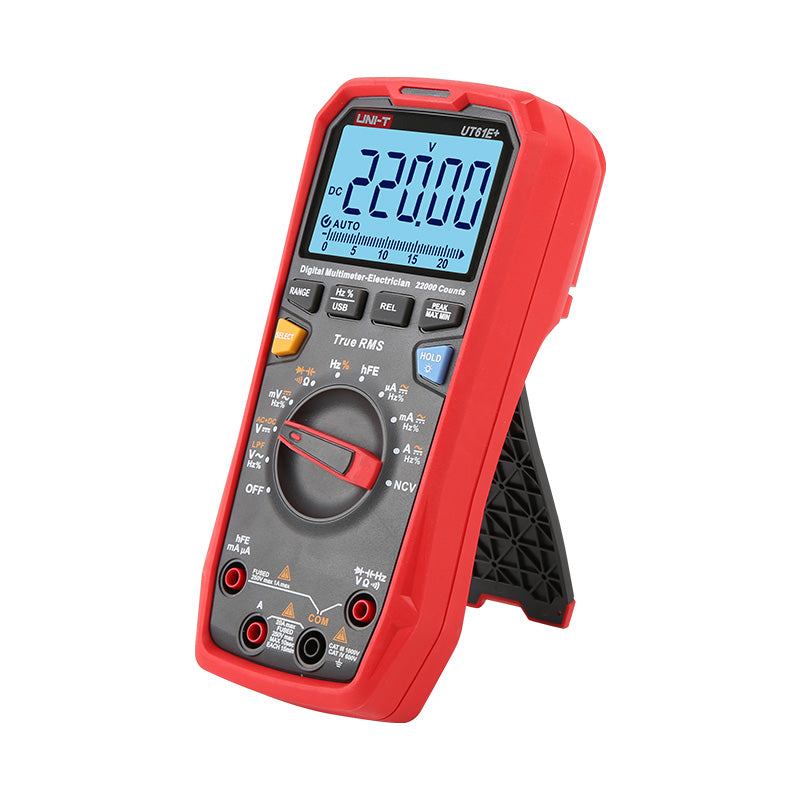

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case with a central rotary dial, various input ports, and a blue screen displaying 220.00 V DC.

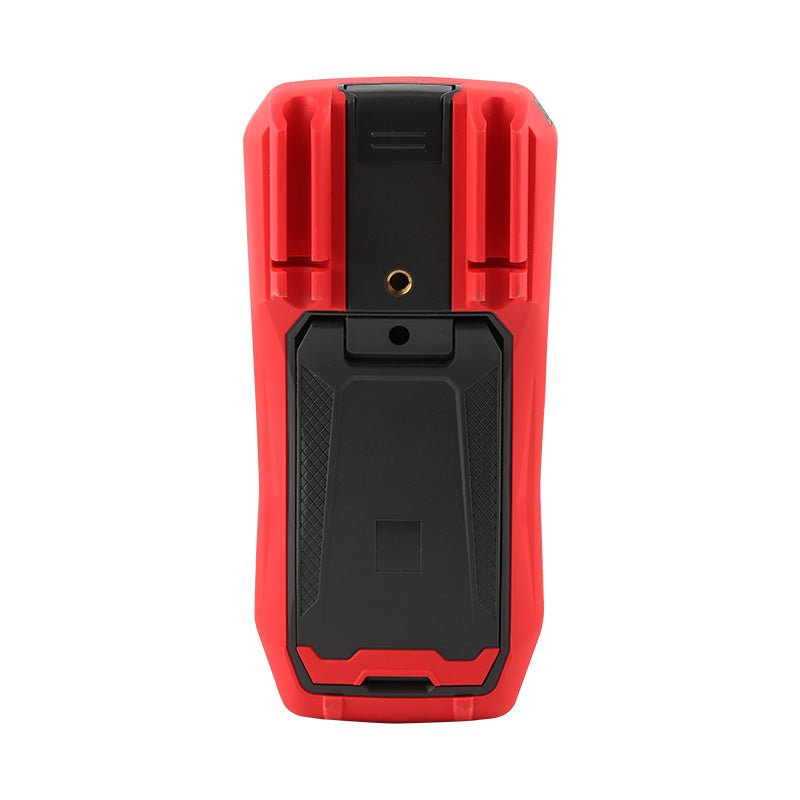

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - rear view showing the red and black plastic casing, a kickstand, and a central threaded mounting hole.

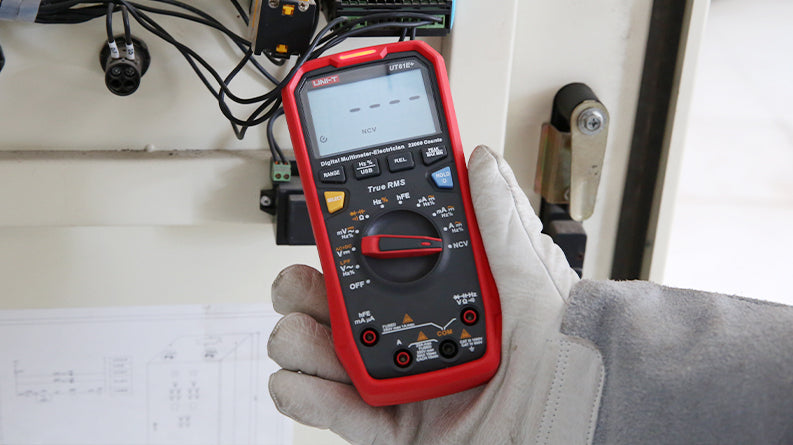

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - held in a gloved hand, showing a red casing, central rotary dial, input ports, and an NCV indicator on the display.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a digital display reading 220.00 V, a central rotary dial, and bottom input ports.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - with a kickstand, showing a digital display reading 220.00 DC, a rotary dial, and input ports.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case with a central rotary dial, various input ports, and a blue screen displaying 220.00 V DC.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - rear view showing the red and black plastic casing, a kickstand, and a central threaded mounting hole.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - held in a gloved hand, showing a red casing, central rotary dial, input ports, and an NCV indicator on the display.

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V

Sale price Rs 24,000
SKU: UT61E+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a digital display reading 220.00 V, a central rotary dial, and bottom input ports.

UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a digital display reading 220.00 V, a central rotary dial, and bottom input ports.
UNI-T UT61E+ True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V
Sale priceRs 24,000

UNI-T UT61E+ — Flagship 22000-count True RMS digital multimeter with 0.05% DC accuracy, USB logging and a multi-purpose socket — a hobbyist and pro favourite. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 22000-count high-resolution True RMS with analog bar graph
  • High accuracy — 0.05% DC voltage
  • AC/DC voltage to 1000V, AC/DC current to 20A
  • Resistance 220MΩ, capacitance 220mF, frequency to 220MHz
  • Temperature, NCV alarm, Max/Min/Relative, USB PC logging
  • Multi-purpose socket, gold-plated leads, CAT III 1000V / CAT IV 600V

Technical Specifications

Type True RMS digital multimeter (22000 count)
DC Voltage 1000 V ±(0.05%+5)
AC Voltage 1000 V ±(0.8%+10)
DC Current 20 A ±(0.5%+10)
AC Current 20 A ±(0.8%+10)
Resistance 220 MΩ ±(0.5%+10)
Capacitance 220 mF ±(3%+5)
Frequency 220 MHz ±(0.01%+5)
Temperature −40°C ~ 1000°C
Bandwidth 40 Hz ~ 10 kHz
Safety CAT III 1000V / CAT IV 600V

Video Review

What's in the Box

  • UT61E+ multimeter
  • Gold-plated test leads
  • Multi-purpose socket
  • USB cable
  • Battery
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE  |  HS Code: 9030.3100
