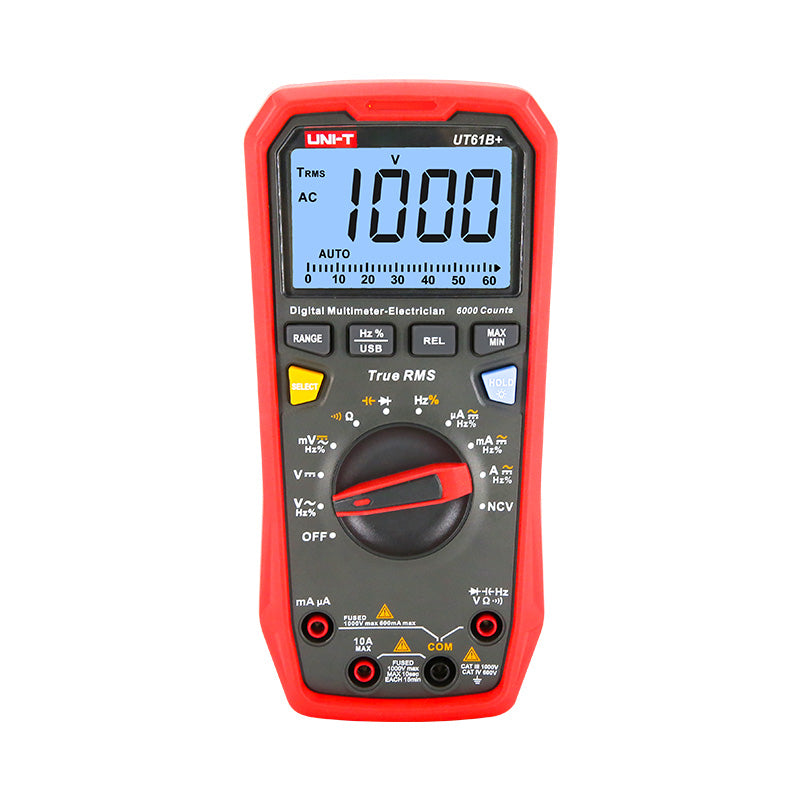

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - in a red protective case, showing a screen reading 1000V, a central rotary dial, function buttons, and input ports.

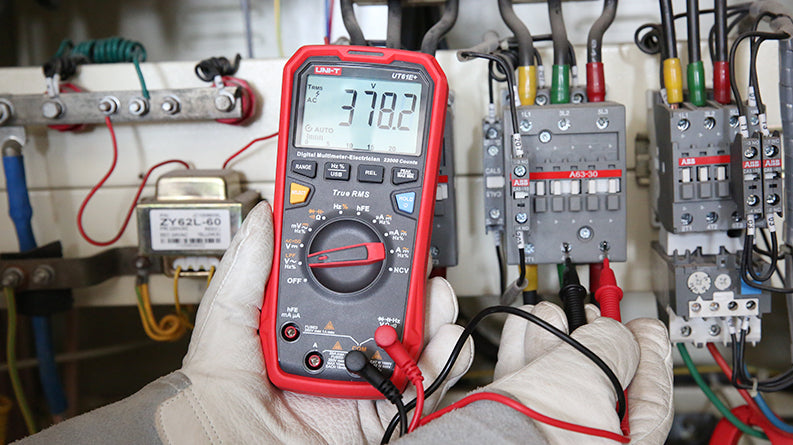

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - UNI-T UT61E+ digital multimeter held in gloved hands, showing a red casing, rotary dial, and a screen displaying a reading of 378.2 volts AC.

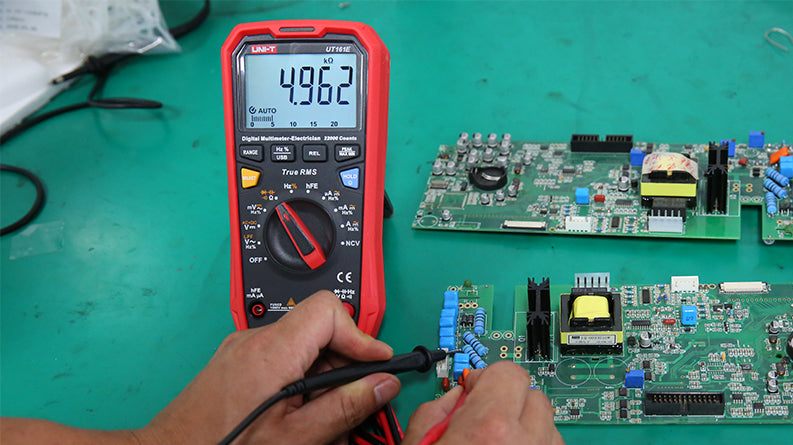

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - with a red casing, showing a 4.962 kΩ reading on its display while being used to test a green circuit board.
UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - in a red protective case, showing a screen reading 1000V, a central rotary dial, function buttons, and input ports.
UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - UNI-T UT61E+ digital multimeter held in gloved hands, showing a red casing, rotary dial, and a screen displaying a reading of 378.2 volts AC.
UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - with a red casing, showing a 4.962 kΩ reading on its display while being used to test a green circuit board.

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V

Sale price Rs 13,100
SKU: UT61B+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - in a red protective case, showing a screen reading 1000V, a central rotary dial, function buttons, and input ports.

UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V - in a red protective case, showing a screen reading 1000V, a central rotary dial, function buttons, and input ports.
UNI-T UT61B+ True RMS Digital Multimeter – 6000 Count, AC/DC 1000V, 10A, Capacitance, Frequency, Temperature, NCV, USB, CAT III 1000V / CAT IV 600V
Sale priceRs 13,100

UNI-T UT61B+ — 6000-count True RMS digital multimeter with USB data communication, temperature and NCV. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS with analog bar graph
  • AC/DC voltage to 1000V, AC/DC current to 10A
  • Resistance 60MΩ, capacitance 60mF, frequency, temperature
  • NCV (audible & visual alarm), Max/Min/Relative
  • USB communication for PC data logging, gold-plated leads
  • CAT III 1000V / CAT IV 600V safety

Technical Specifications

Type True RMS digital multimeter (6000 count)
DC Voltage 1000 V ±(0.5%+3)
AC Voltage 1000 V ±(1%+3)
DC Current 10 A ±(1%+2)
AC Current 10 A ±(1.2%+5)
Resistance 60 MΩ ±(1%+2)
Capacitance 60 mF ±(3%+5)
Frequency 10 MHz ±(0.1%+4)
Temperature −40°C ~ 1000°C
Bandwidth 40 Hz ~ 500 Hz
Safety CAT III 1000V / CAT IV 600V

Video Review

What's in the Box

  • UT61B+ multimeter
  • Gold-plated test leads
  • USB cable
  • Battery
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE  |  HS Code: 9030.3100
