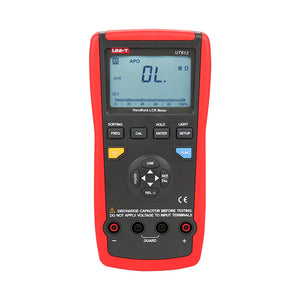

UNI-T UT612 Digital LCR Meter – 20000 Count, 100Hz–100kHz, L/C/R/DCR/Q/D/θ/ESR, Series/Parallel, Auto Range, USB, SMD Test Clamp, Handheld Bridge
UNI-T UT612 is a 20000-count handheld LCR meter that measures inductance, capacitance and resistance plus DCR, Q, D, θ and ESR at test frequencies from 100 Hz to 100 kHz — for component testing, matching and QC. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Measures L / C / R / DCR / Q / D / θ / ESR; 20000-count display
- Test frequencies 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz

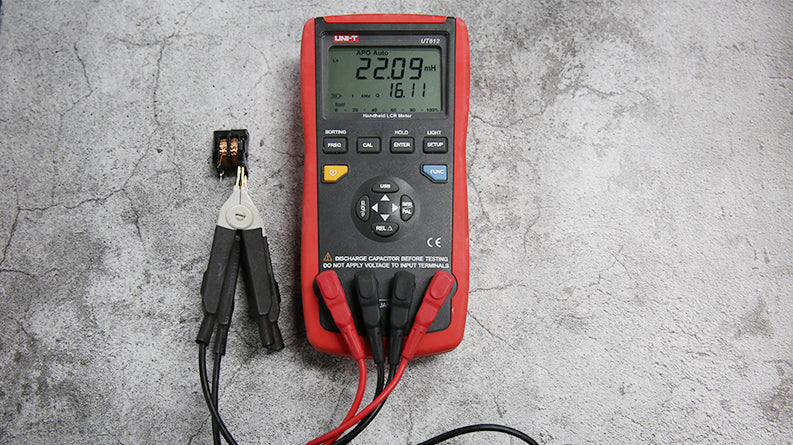

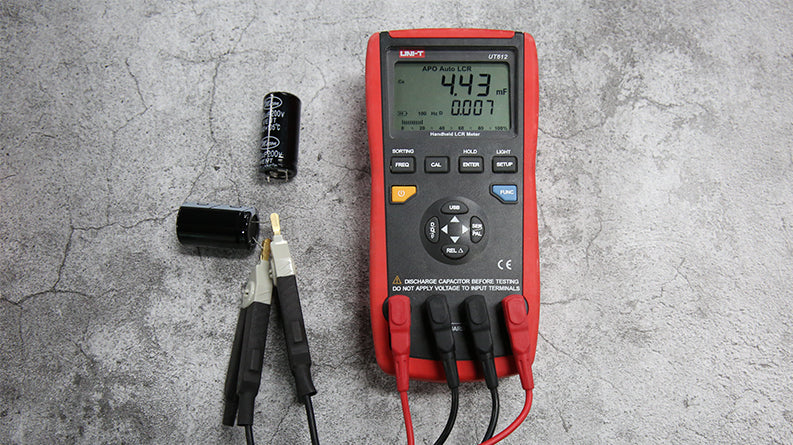

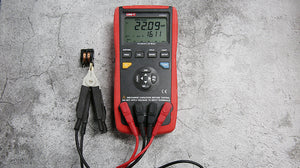

- Inductance 20µH–2000H, capacitance 200pF–20mF, resistance 20Ω–200MΩ
- Series/parallel modes, auto range, relative & comparison, calibration
- USB interface (60000-record PC logging); analog bar graph; backlight
- Powered by 9V battery (6F22) or USB; includes SMD test clamp
Technical Specifications
| Parameters | L/C/R/DCR/Q/D/θ/ESR |
|---|---|
| Display Count | 20000 |
| Test Frequencies | 100/120 Hz, 1/10/100 kHz |
| Inductance | 20µH–2000H ±(0.5%+5) |
| Capacitance | 200pF–20mF ±(0.5%+5) |
| Resistance | 20Ω–200MΩ ±(0.3%+5) |
| Test Level | 0.6 Vrms |
| Modes | Series / parallel, auto range |
| Interface | USB |
| Power | 9V (6F22) or USB |
What's in the Box
- UT612 LCR meter
- 9V battery
- SMD test clamp
- USB cable
- Multi-purpose socket
- PC software CD
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
