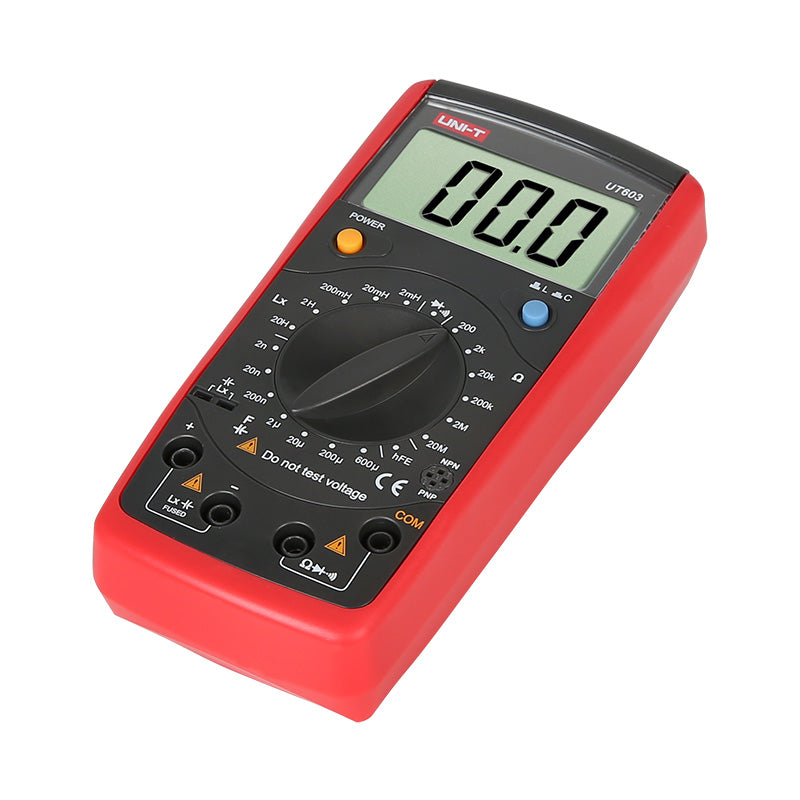

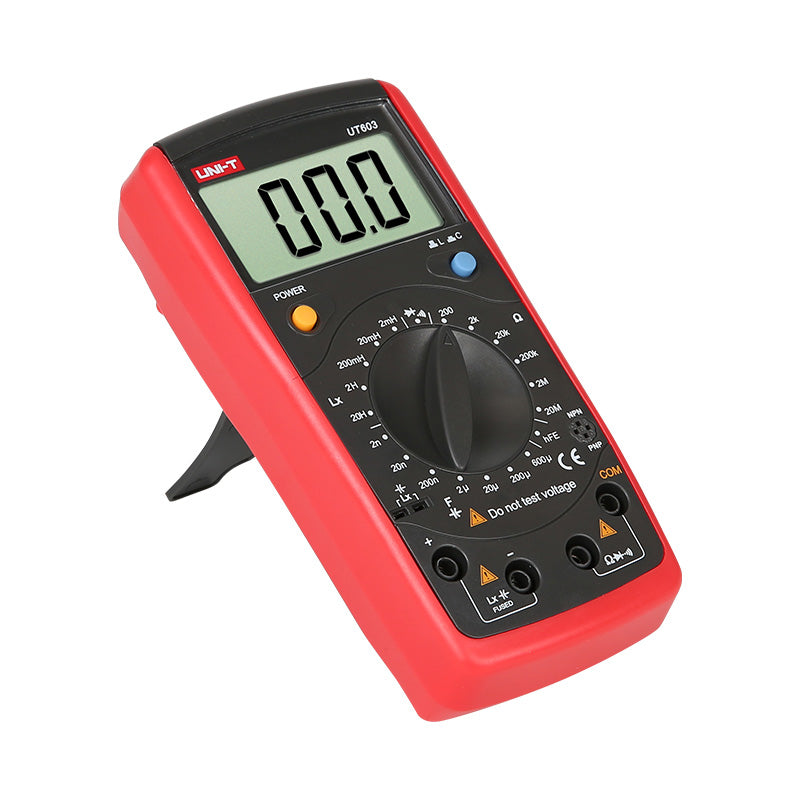

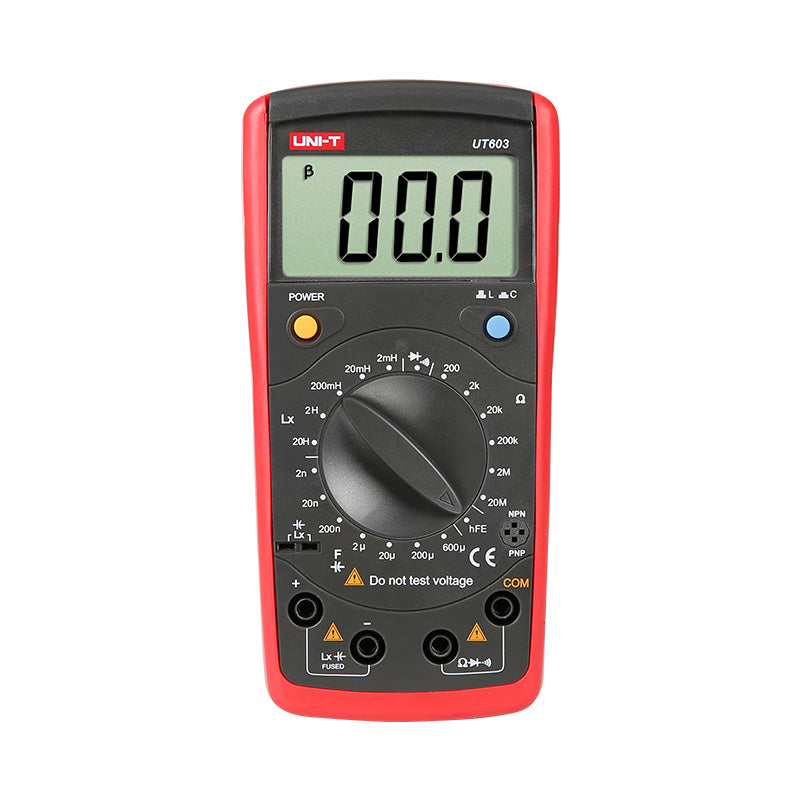

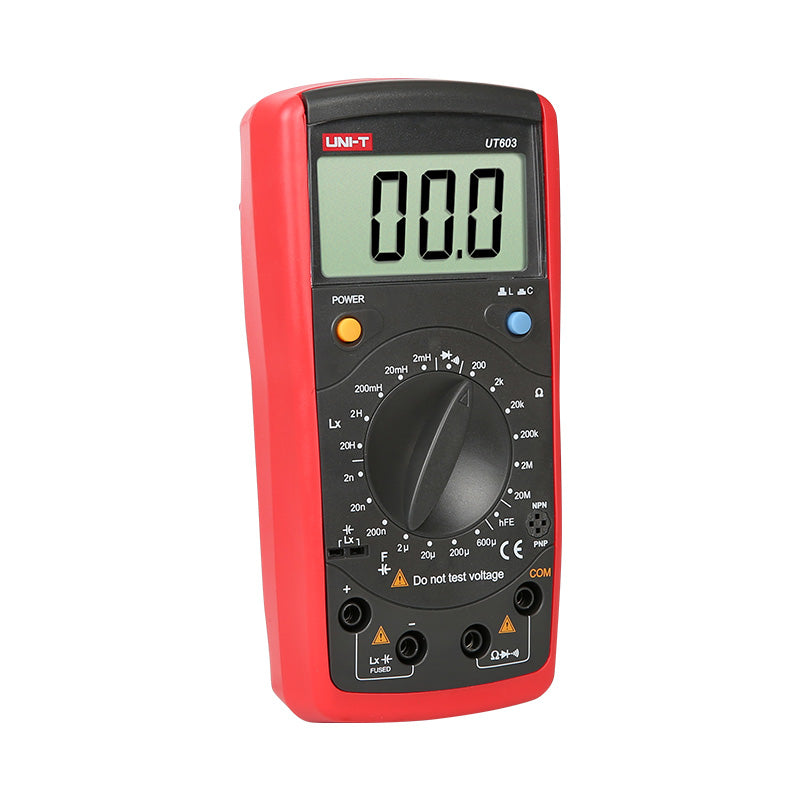

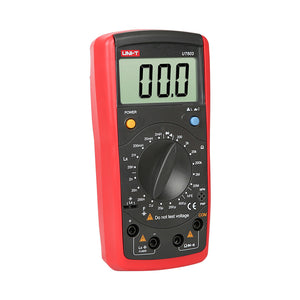

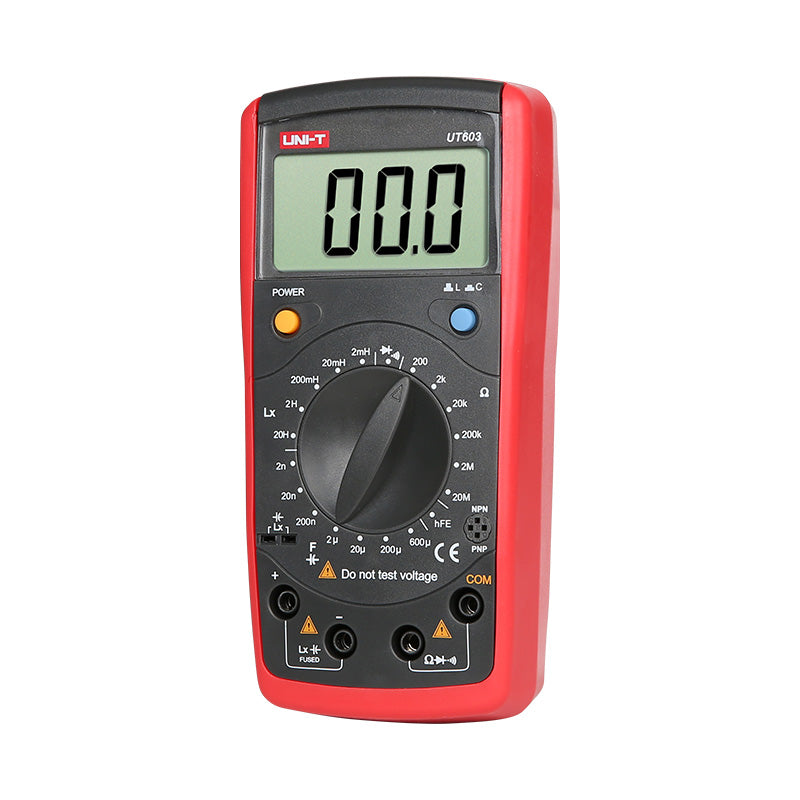

UNI-T UT603 Digital Inductance Capacitance Meter – 2000 Count, 2mH–20H, 2nF–600µF, 200Ω–20MΩ, hFE Transistor Test, Diode & Continuity, LC Component Tester
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT603 Digital Inductance Capacitance Meter – 2000 Count, 2mH–20H, 2nF–600µF, 200Ω–20MΩ, hFE Transistor Test, Diode & Continuity, LC Component Tester
UNI-T UT603 — handheld inductance and capacitance (LC) meter that tests resistors, capacitors and inductors and also measures transistor parameters (hFE). Ideal for electronics repair, coil and transformer work, education, R&D and QC labs. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Inductance 2mH – 20H, accuracy ±(2%+8)
- Capacitance 2nF – 600µF, accuracy ±(1%+5)
- Resistance 200Ω – 20MΩ, accuracy ±(0.8%+1)
- hFE transistor test (NPN/PNP), diode test, continuity buzzer
- 2000-count display, manual range, low-battery indication
Technical Specifications
| Display count | 2000 |
|---|---|
| Inductance range | 2mH / 20mH / 200mH / 2H / 20H |
| Inductance accuracy | ±(2%+8) |
| Capacitance range | 2nF / 20nF / 200nF / 2uF / 20uF / 200uF / 600uF |
| Capacitance accuracy | ±(1%+5) |
| Resistance range | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ |
| Resistance accuracy | ±(0.8%+1) |
| Transistor (hFE) | Yes (NPN / PNP) |
| Diode | Yes |
| Continuity buzzer | Yes |
| Range selection | Manual |
| Low battery indication | Yes |
| Power | 9V battery (6F22) |
| Display size | 61 mm × 32 mm |
| Product colour | Red and grey |
| Product size | 172 mm × 83 mm × 38 mm |
| Product net weight | 312 g |
What's in the Box
- UT603 inductance capacitance meter
- Test leads with alligator clips
- Holster
- 9V battery
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9030.39
