UNI-T UT601 Digital Capacitance & Resistance Meter – 2000 Count, 200pF–20mF, 20Ω–2000MΩ, hFE Transistor Test, Diode & Continuity Buzzer, Component Tester

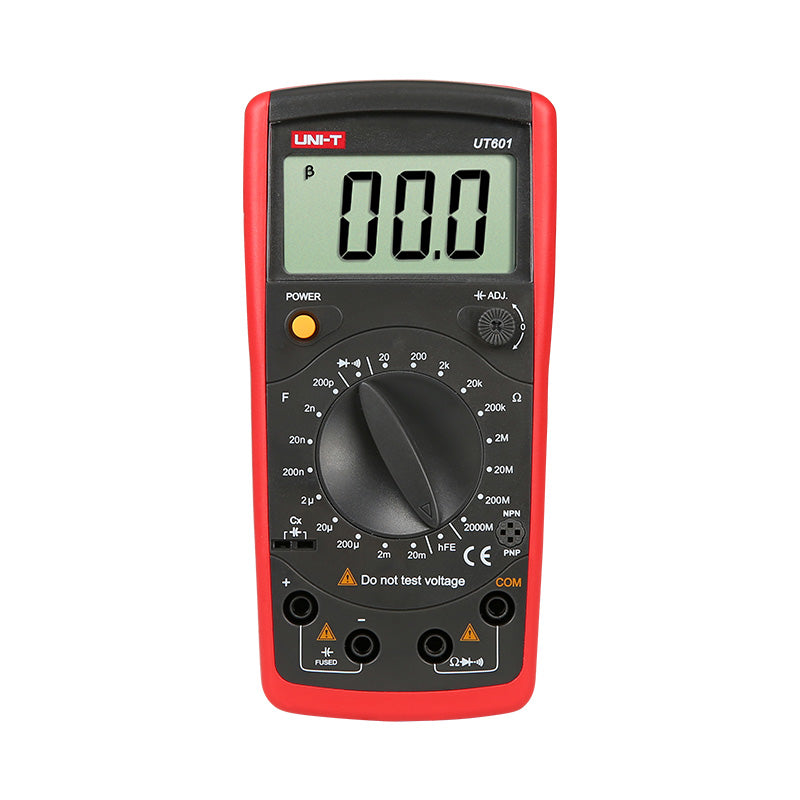

UNI-T UT601 — handheld capacitance and resistance meter from the UNI-T UT600 series, used to test resistors and capacitors and to measure transistor parameters (hFE). A practical component tester for electronics repair, education, R&D and QC labs. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Capacitance 200pF – 20mF, accuracy ±(0.5%+10)
- Resistance 20Ω – 2000MΩ (9 ranges), accuracy ±(0.8%+1)
- hFE transistor test (NPN/PNP) and diode test
- 2000-count display, manual range, continuity buzzer, low-battery indication
Technical Specifications
| Display count | 2000 |
|---|---|
| Capacitance range | 200pF / 2nF / 20nF / 200nF / 2uF / 20uF / 200uF / 2mF / 20mF |
| Capacitance accuracy | ±(0.5%+10) |
| Resistance range | 20Ω / 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ / 2000MΩ |
| Resistance accuracy | ±(0.8%+1) |
| Transistor (hFE) | Yes (NPN / PNP) |
| Diode | Yes |
| Continuity buzzer | Yes |
| Range selection | Manual |
| Low battery indication | Yes |
| Power | 9V battery (6F22) |
| Display size | 61 mm × 32 mm |
| Product colour | Red and grey |
| Product size | 172 mm × 83 mm × 38 mm |
| Product net weight | 310 g |
What's in the Box
- UT601 capacitance & resistance meter
- Test leads with alligator clips
- Holster
- 9V battery
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9030.39
