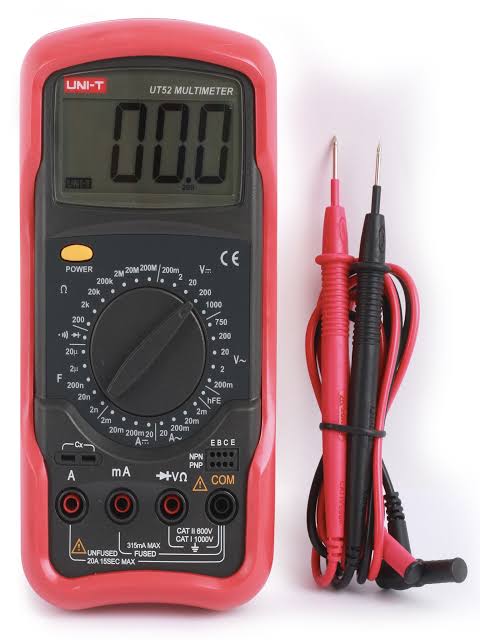

UNI-T UT52 Digital Multimeter – 2000 Count, AC/DC 1000V, 20A, Capacitance to 20µF, Resistance to 200MΩ, Diode & Continuity, CAT III 300V

Sale price Rs 6,000
SKU: UT52
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT52 Digital Multimeter – 2000 Count, AC/DC 1000V, 20A, Capacitance to 20µF, Resistance to 200MΩ, Diode & Continuity, CAT III 300V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Liquid error (blocks/_product-ask-question line 11): invalid url input
UNI-T UT52 Digital Multimeter – 2000 Count, AC/DC 1000V, 20A, Capacitance to 20µF, Resistance to 200MΩ, Diode & Continuity, CAT III 300V
Sale priceRs 6,000

UNI-T UT52 — a 2000-count hand-held digital multimeter from the UT50 series, adding capacitance measurement and a high 20 A current range over the entry UT51. Built around a dual-integral A/D converter with full-range overload protection, it suits electrical, automotive and appliance work where higher current and capacitor testing are needed. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

  • 2000-count LCD (max. reading 1999, 3½ digits) with 27 mm digit height
  • DC voltage 200 mV – 1000 V, AC voltage 200 mV – 750 V (40–400 Hz)
  • DC and AC current to 20 A
  • Capacitance 2 nF – 20 µF ±(4%+3) via a dedicated capacitance jack
  • Resistance 200 Ω – 200 MΩ, plus diode test and continuity buzzer
  • IEC 61010 CAT I 1000V / CAT II 600V / CAT III 300V, double insulation
  • Tilt stand with three viewing angles and carry strap

Technical Specifications

Display 2000 count (max. reading 1999, 3½ digits), 27 mm digits
DC Voltage 200 mV / 2 V / 20 V / 200 V ±(0.5%+1); 1000 V ±(0.8%+2)
AC Voltage 200 mV ±(1.2%+3); 2 V / 20 V / 200 V ±(0.8%+3); 750 V ±(1.2%+3)
AC Voltage Bandwidth 40 Hz – 400 Hz (average responding, RMS of sine wave)
Input Impedance 10 MΩ (all voltage ranges)
DC Current 2 mA / 20 mA ±(0.8%+1); 200 mA ±(1.5%+1); 20 A ±(2%+5)
AC Current 2 mA ±(1%+3); 20 mA ±(1%+3); 200 mA ±(1.8%+3); 20 A ±(3%+7)
Max. Current Input 20 A (≤15 s per measurement, ≥15 min between measurements)
Resistance 200 Ω – 200 MΩ (7 ranges), best accuracy ±(0.8%+1)
Capacitance 2 nF / 20 nF / 200 nF / 2 µF / 20 µF ±(4%+3)
Capacitance Test Signal Approx. 400 Hz, 40 mVrms
Diode Test Forward DC current approx. 1 mA; open-circuit voltage approx. 2.8 V
Continuity Buzzer sounds at ≤70 Ω
Current Input Fuse 315 mA / 250 V, φ5×20 mm (no fuse on the 20 A range)
Safety IEC 61010; CAT I 1000V, CAT II 600V, CAT III 300V; double insulation
Power 1 × 9 V battery (NEDA 1604 / 6F22 / 006P)
Operating Conditions 0°C – 40°C, ≤80% RH up to 31°C
Dimensions 190 × 88 × 34 mm
Weight Approx. 270 g (meter only); approx. 550 g with holster and tilt stand

What's in the Box

  • UT52 digital multimeter
  • Test leads (1 pair)
  • English operating manual

Certifications: IEC 61010; CAT I 1000V, CAT II 600V, CAT III 300V; double insulation | HS Code: 9030.31
