UNI-T UT516B Insulation Resistance Tester – Digital Megohmmeter
Pickup available at Digilog Electronics
Usually ready in 2 hours

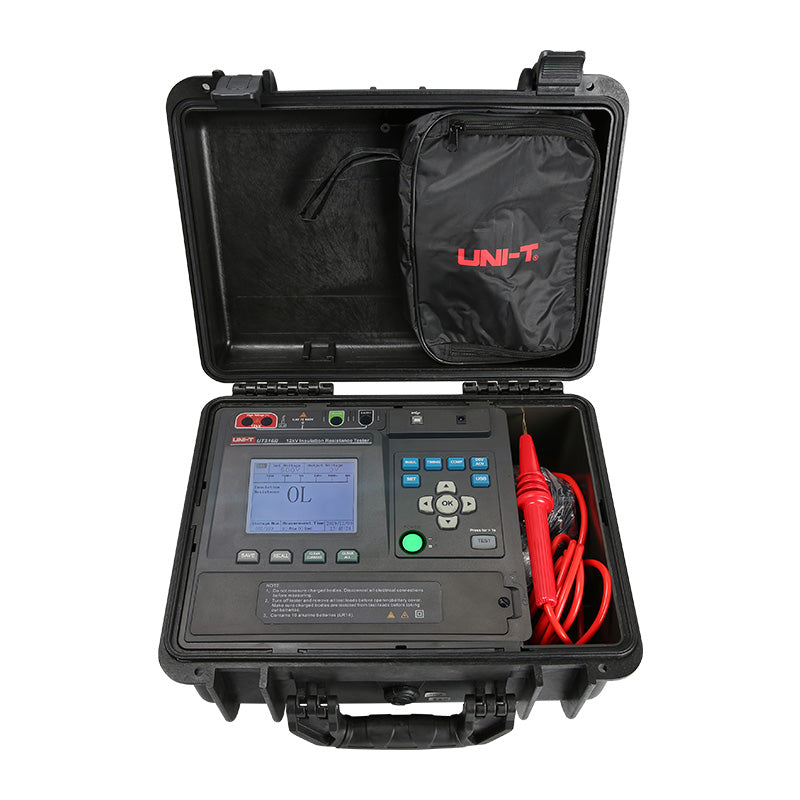

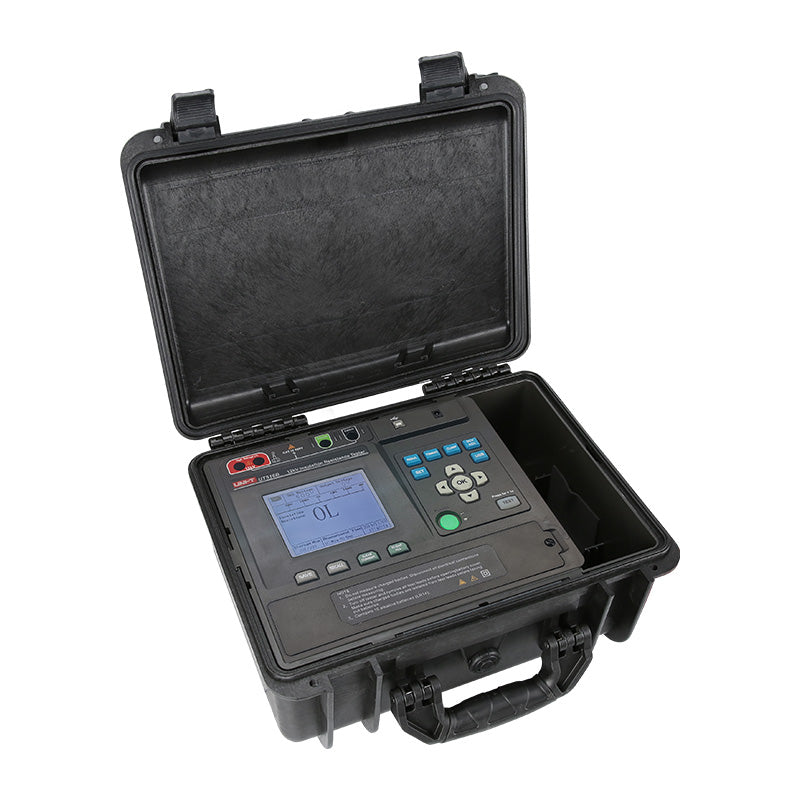

UNI-T UT516B Insulation Resistance Tester – Digital Megohmmeter
UNI-T UT516B is a 10kV high-voltage insulation resistance tester for electricians and maintenance engineers. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Test Voltages: 1000V/2500V/5000V/10000V
- Max Resistance Range: 1000GΩ
- PC software for data analysis
- Backlight Function
- Date storage
- Dielectric Absorption Ratio (DAR)

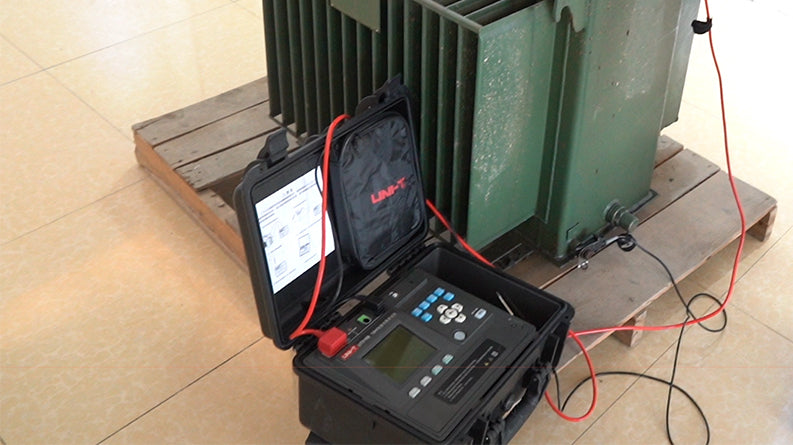

- Applications: electrical maintenance, wiring, panels and safety testing
Technical Specifications
| Test Voltages | 1000V/2500V/5000V/10000V |
|---|---|
| Max Resistance Range | 1000GΩ |
| PC software for data analysis | Yes |
| Backlight Function | Yes |
| Date storage | Yes |
| Dielectric Absorption Ratio (DAR) | Yes |
| Polarization Index (PI) | Yes |
| Power | 1.5V alkaline batteries (LR14) X 10, power adapter |
| Product color | Red and grey |
| Product net weight | 6.6kg |
| Product size | 410*342*204mm |

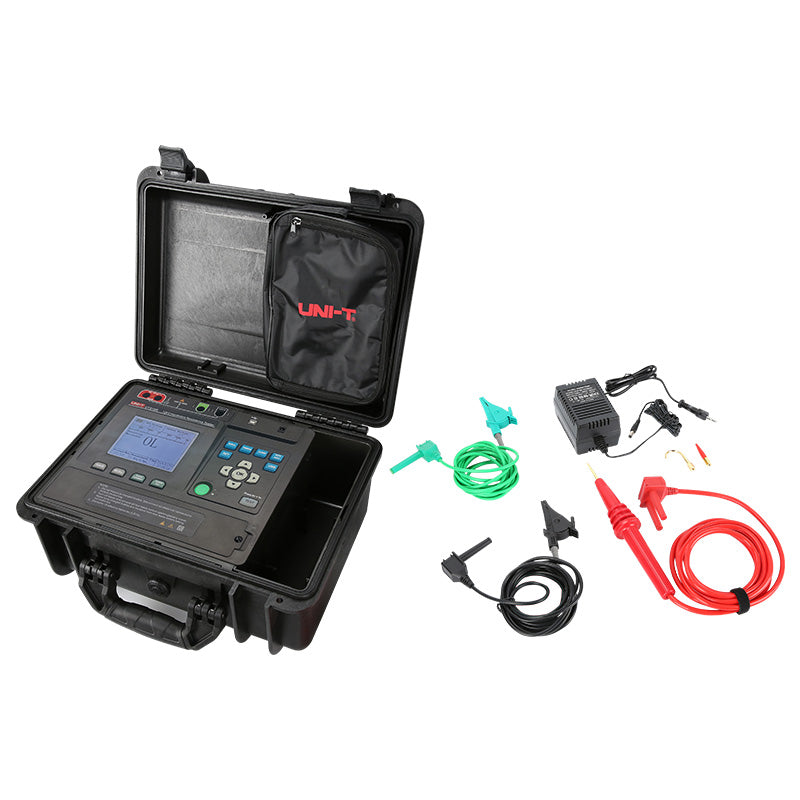

| Standard accessories | User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, |
What's in the Box
- UT516B insulation resistance tester
- Test leads
- English user manual

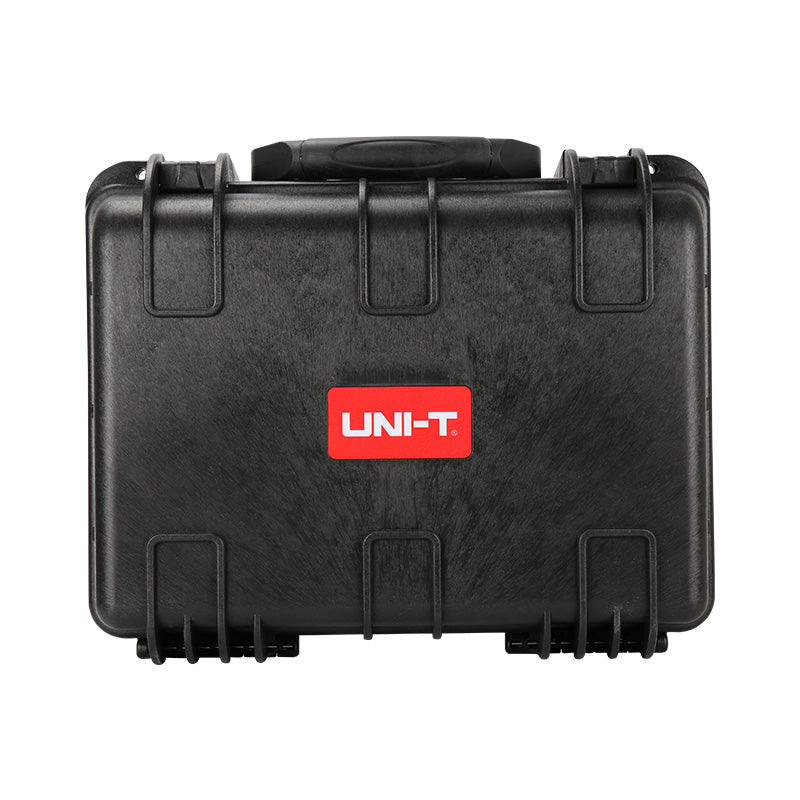

- Carrying case
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
