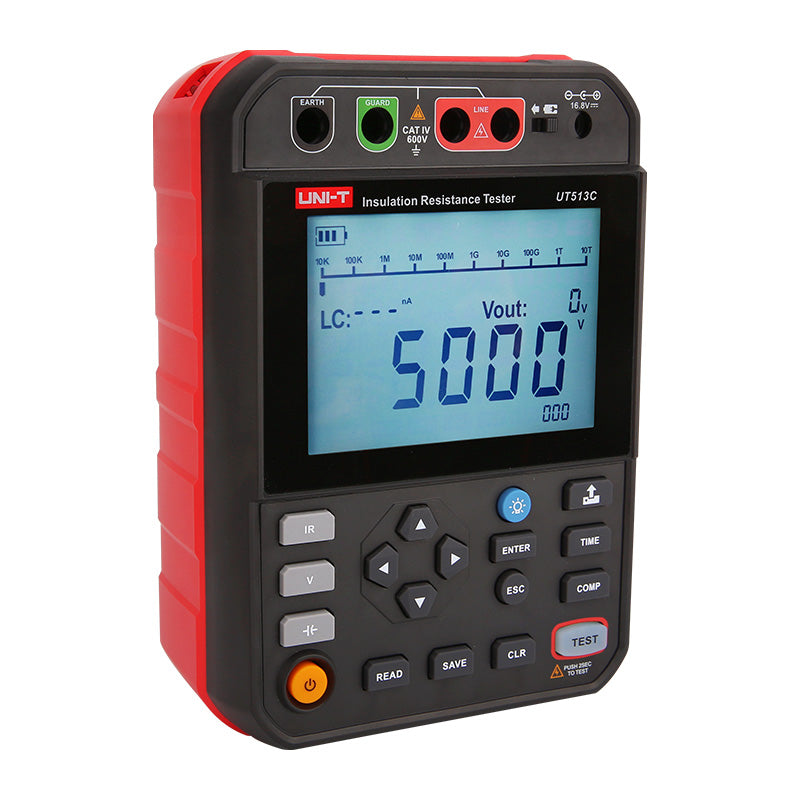

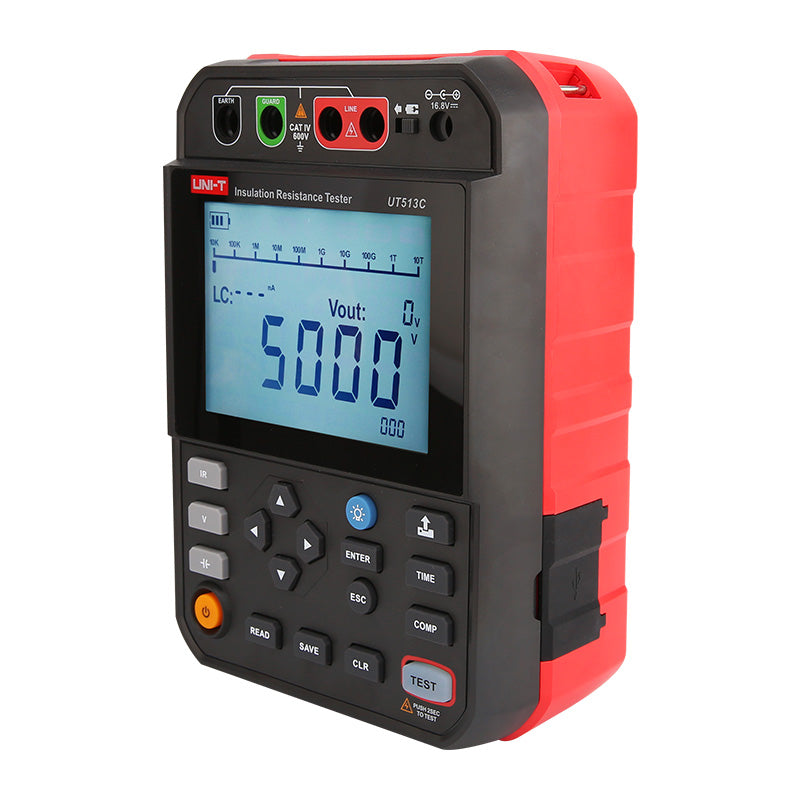

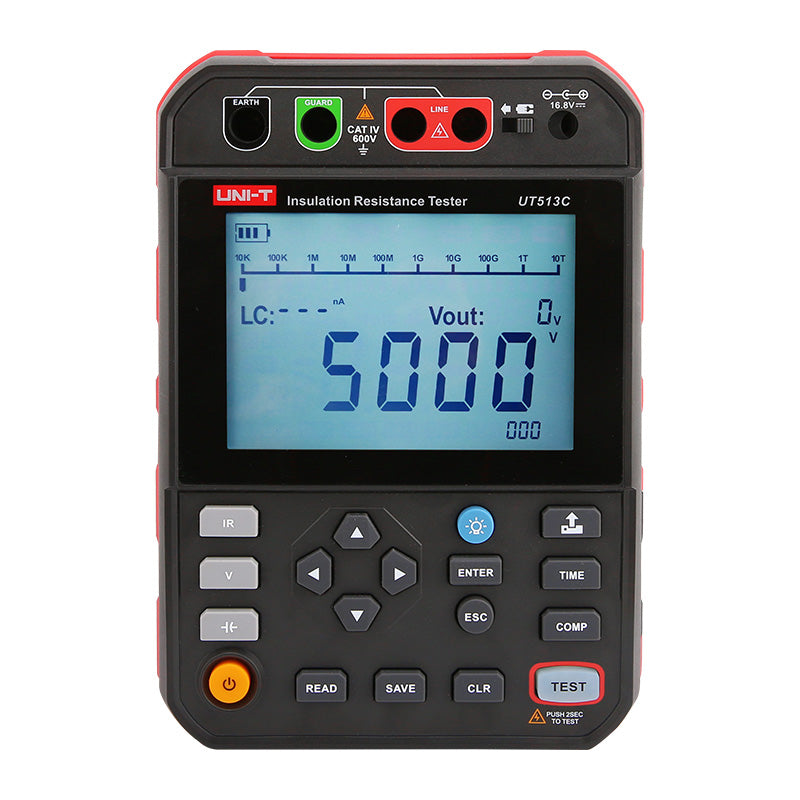

UNI-T UT513C 5kV Insulation Resistance Tester – 5kV Digital Megohmmeter, 250V/500V/1000V/2500V/5000V
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT513C 5kV Insulation Resistance Tester – 5kV Digital Megohmmeter, 250V/500V/1000V/2500V/5000V
UNI-T UT513C is a 5kV insulation resistance tester for electricians and maintenance engineers. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Test Voltages: 250V/500V/1000V/2500V/5000V
- Max Resistance Range: 999GΩ
- Rated voltage: UT513C
- 25.0GΩ～100GΩ: reference only: 50.0GΩ～250GΩ: reference only
- 50.0GΩ～200GΩ: reference only: 100GΩ～500GΩ: reference only
- Applications: electrical maintenance, wiring, panels and safety testing
Technical Specifications
| Test Voltages | 250V/500V/1000V/2500V/5000V |
|---|---|
| Max Resistance Range | 999GΩ |
| Rated voltage | UT513C |
| 25.0GΩ～100GΩ: reference only | 50.0GΩ～250GΩ: reference only |
| 50.0GΩ～200GΩ: reference only | 100GΩ～500GΩ: reference only |
| 100GΩ～400GΩ: reference only | 200GΩ～1.00TΩ: reference only |
| 250GΩ～1.00TΩ: reference only | 500GΩ～2.50TΩ: reference only |
| 500GΩ～2.00TΩ: reference only | 1.00TΩ～5.00TΩ: reference only |
| Capacitance test | 0.01uF～15.0uF |
| Output voltage | Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range UT513B + UT513C: Display accuracy：±(10% read+10V) Output accuracy：+（0%～20%） |
| DC voltage | 30～1000VDC: ±(3%+5) |
| AC voltage | 30～750VAC(50Hz/60Hz): ±(3%+5) |
| Current | 0.01nA～5.0mA |
| Short-circuit current | about 5.0mA |
What's in the Box
- UT513C 5kv insulation resistance tester
- Test leads
- English user manual
- Carrying case
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
