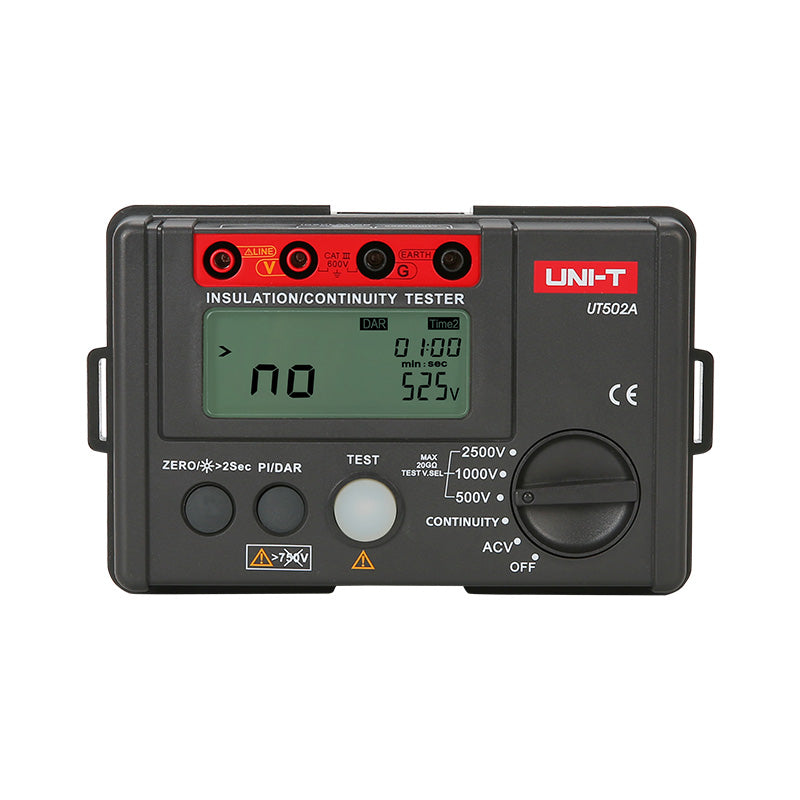

UNI-T UT502A Insulation Resistance Tester – Digital Megohmmeter, 500V/1000V/2500V
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT502A Insulation Resistance Tester – Digital Megohmmeter, 500V/1000V/2500V
UNI-T UT502A is a 2500V insulation resistance tester (megohmmeter) for electricians and maintenance engineers. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- Test Voltages: 500V/1000V/2500V
- Max Resistance Range: 20GΩ
- Display count: 2000
- DAR
- PI
- Auto range/Low battery indication
- LCD backlight/Light alarm
- Applications: electrical maintenance, wiring, panels and safety testing
Technical Specifications
| Test Voltages | 500V/1000V/2500V |
|---|---|
| Max Resistance Range | 20GΩ |
| Display count | 2000 |
| DAR | Yes |
| PI | Yes |
| Auto range/Low battery indication | Yes |
| LCD backlight/Light alarm | Yes |
| Buzzer alarm/High voltage indication | Yes |
| Over load indication/Auto discharge | Yes |
| Test voltage secondary display | Yes |
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) |
| Power | 1.5V battery (LR6) x 6 |
| Display | 70.6mm x 34mm |
| Product color | Red and grey |
What's in the Box
- UT502A insulation resistance tester
- Test leads
- English user manual
- Carrying case
Downloads
Certifications: CE, RoHS | HS Code: 9030.39
