UNI-T UT387S Wall Scanner – Metal to 100 mm, Live AC Wire to 40 mm, 40 m Laser Distance, Wood Moisture 6~40%, 2.4in Colour Screen, Voice Broadcast
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT387S Wall Scanner – Metal to 100 mm, Live AC Wire to 40 mm, 40 m Laser Distance, Wood Moisture 6~40%, 2.4in Colour Screen, Voice Broadcast

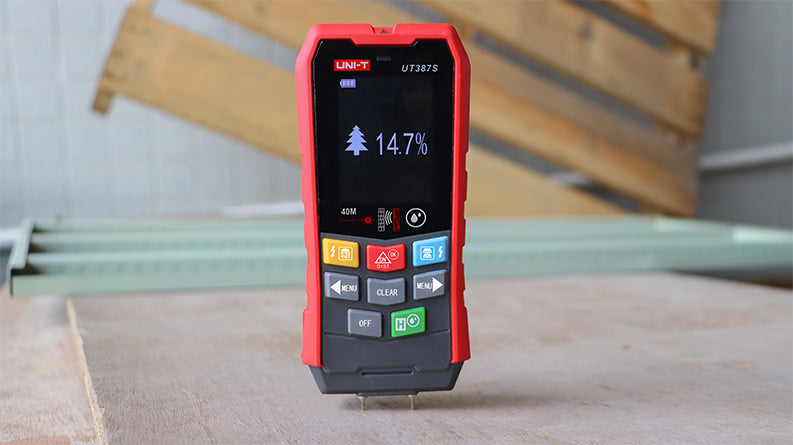

The UNI-T UT387S wall scanner is the top of the UT387 line: a behind-wall detector that finds ferrous metal to 100 mm, non-ferrous metal to 80 mm, wood to 38 mm and live AC wiring to 40 mm — then adds a 40 m laser distance meter and a wood-moisture reading from 6% to 40% in the same tool.
Results appear on a 2.4-inch colour screen with voice broadcast, so you get a spoken confirmation while your eyes stay on the wall. For renovation work, carpentry and site surveys, it replaces a stud finder, a laser measure and a moisture meter in one rechargeable 161 g unit.
Key Features
- Detects metal to 100 mm 🔧 — ferrous to 100 mm and non-ferrous to 80 mm behind the surface.
- Live AC wire detection to 40 mm ⚡ — find cables before you drill.
- Wood detection to 38 mm 📏 — locate studs and joists behind plasterboard.
- 40 m laser distance meter 📏 — built-in laser measurement, no second tool needed.
- Wood moisture 6%~40% ✅ — check timber moisture on the same device.

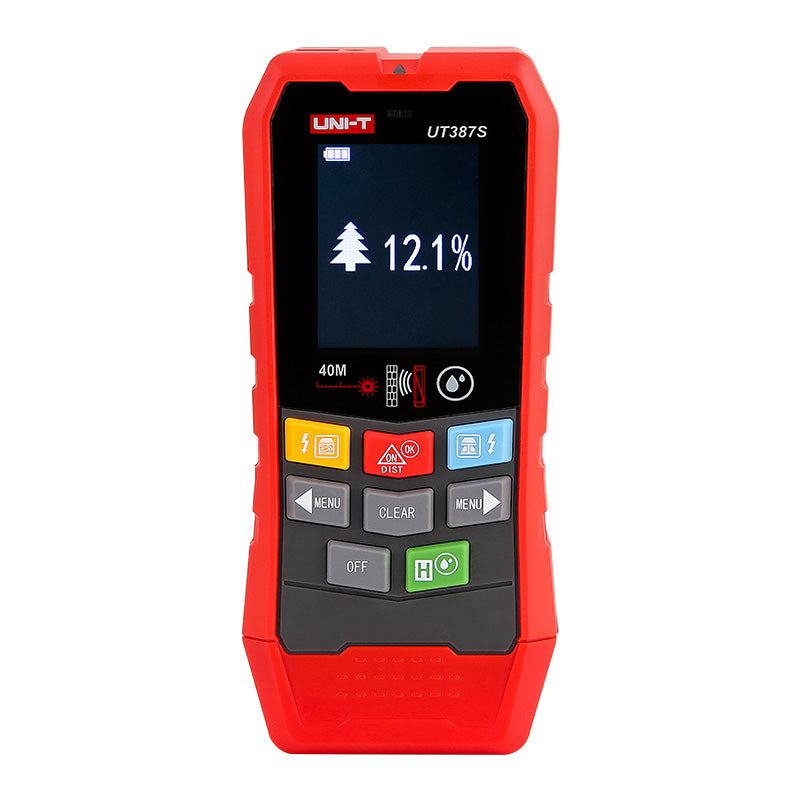

- 2.4-inch colour screen ⚡ — clear graphical readout of what is behind the wall.
- Voice broadcast ✅ — spoken results so you can keep your eyes on the scan.
- Li-ion rechargeable 🔋 — with auto power-off and multiple measurement modes.
Technical Specifications
| Ferrous metals | 100mm |
|---|---|
| Non-ferrous metals | 80mm |
| Wood | 38mm |
| AC electric wire depth | 40mm |
| Laser distance | 40m |
| Wood moisture | 6%~40% |
| Screen | 2.4 inch colour |
| Voice broadcast | Yes |
| Battery | Li-ion rechargeable |
| Auto power off | Yes |
| Product size | 160mm × 68mm × 31mm |
| Net weight | 161.2g |
| Colour | Red and grey |
What's in the Box
- UT387S wall scanner
- USB interface cable
- Cloth bag
- English manual and gift box
Downloads
Certifications: CE, UKCA | HS Code: 9031.80
