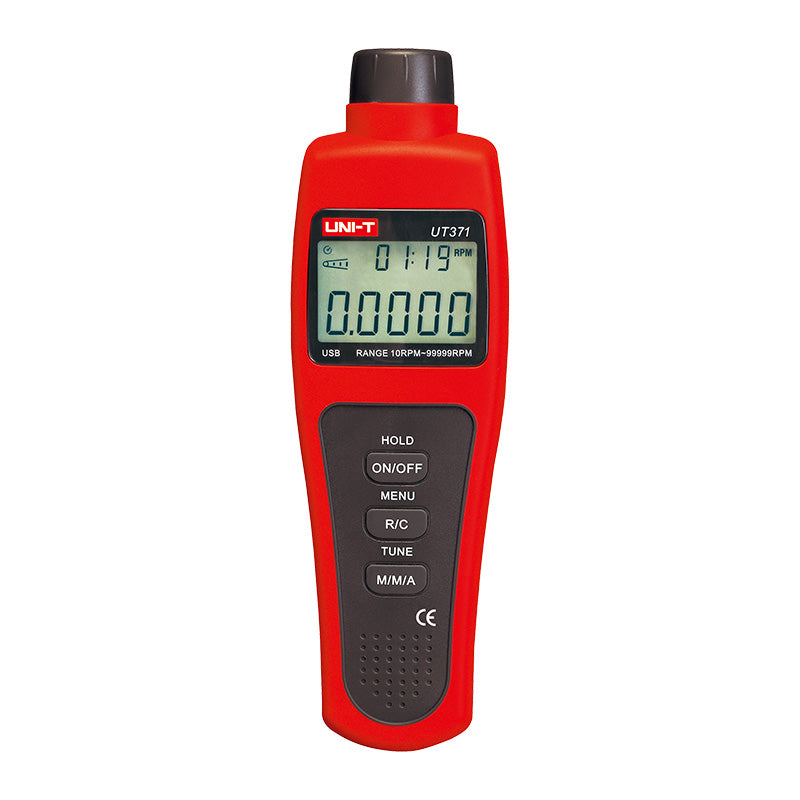

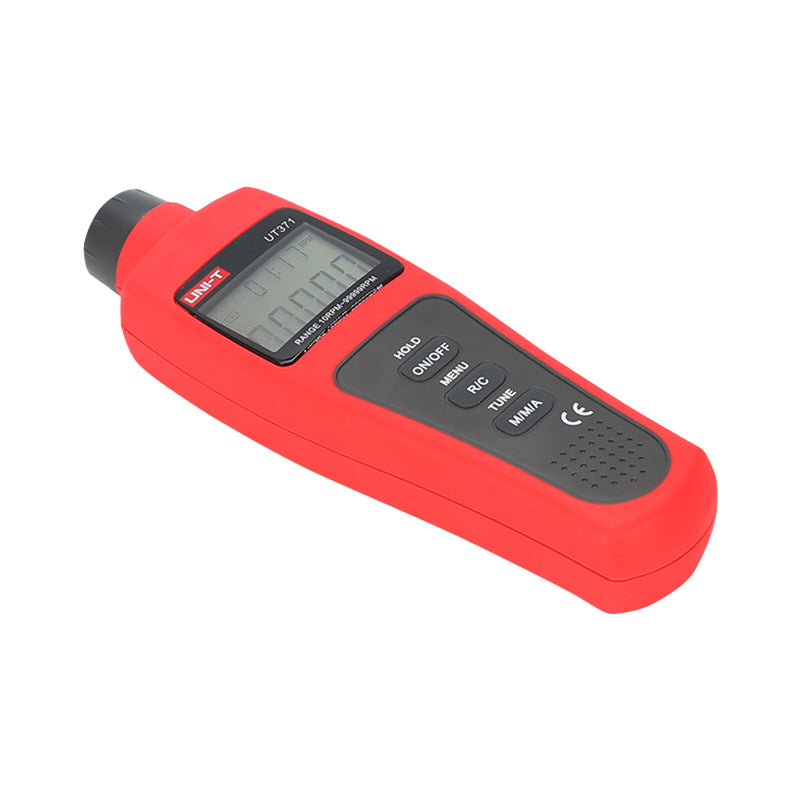

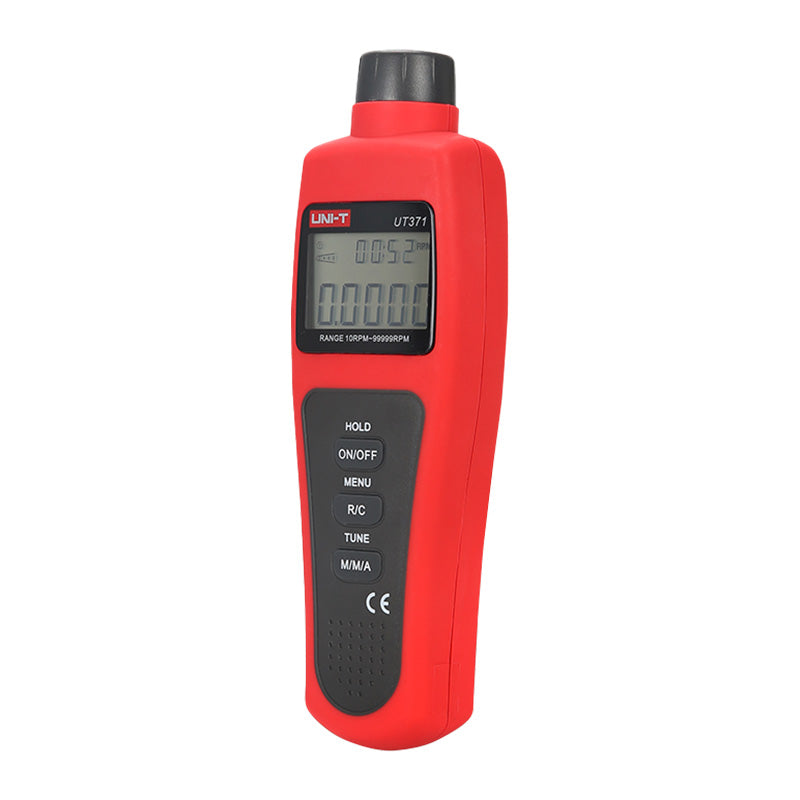

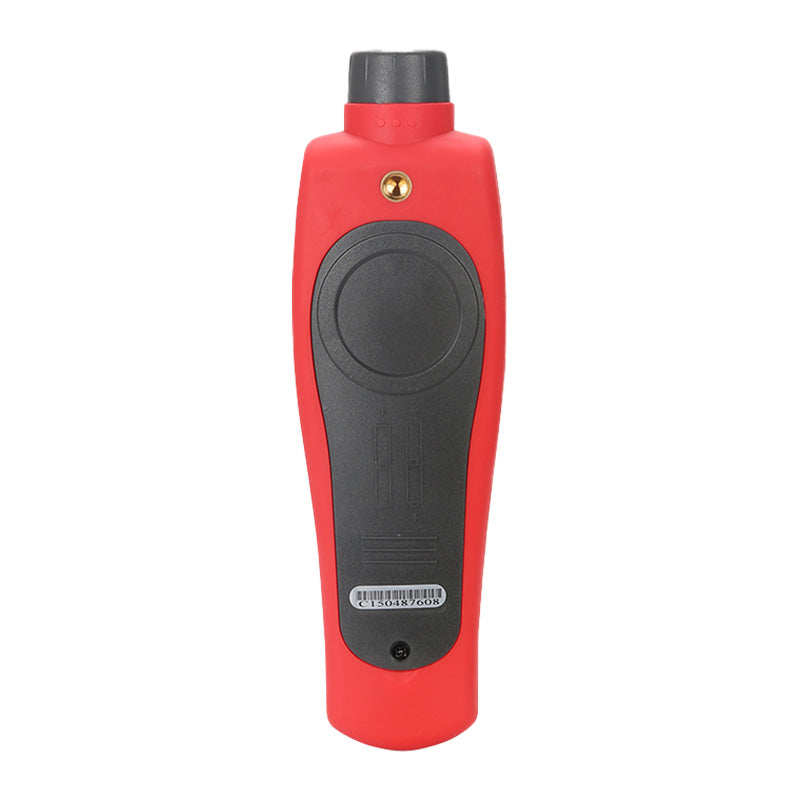

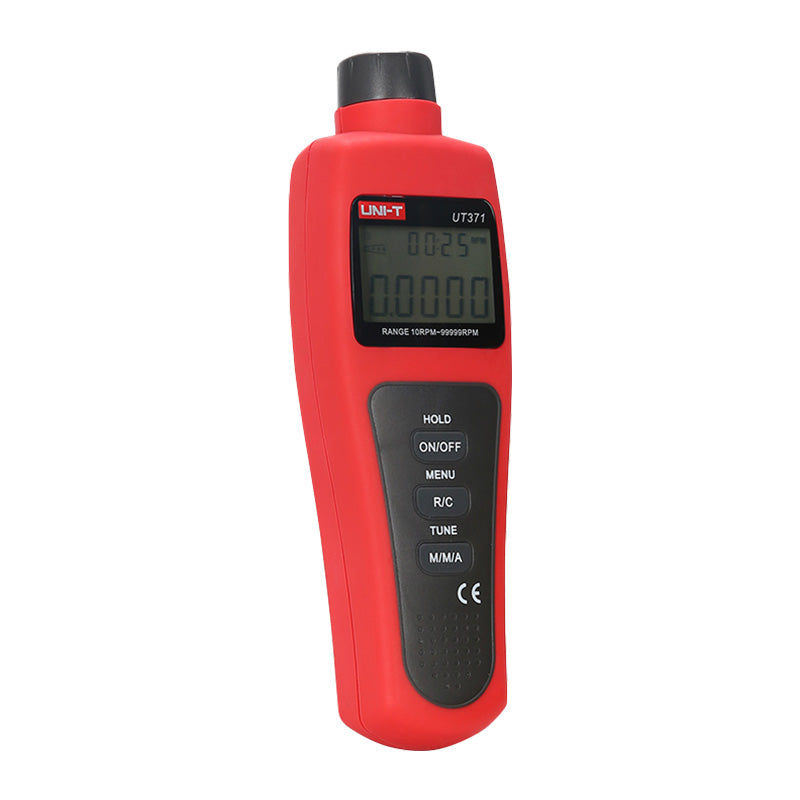

UNI-T UT371 Non-Contact Laser Tachometer – Photo RPM 10~99,999, ±(0.04%+2), Counting Mode, 50–200 mm Range, MAX/MIN/AVG, Backlit LCD
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT371 Non-Contact Laser Tachometer – Photo RPM 10~99,999, ±(0.04%+2), Counting Mode, 50–200 mm Range, MAX/MIN/AVG, Backlit LCD
The UNI-T UT371 non-contact tachometer measures rotation speed optically — stick the supplied reflective tape on the shaft, aim from 50 to 200 mm away and read RPM from 10 up to 99,999 with ±(0.04%+2) accuracy. Nothing touches the moving part, so you can measure loaded machinery safely.
A counting mode totals up to 99,999 events with a 10kHz maximum input frequency, and MAX/MIN/AVG modes capture how speed varies over a run. At 100 g it lives in a toolbag — well suited to motor maintenance, fan and pump commissioning, and workshop QA.
Key Features
- Non-contact photo RPM 10~99,999 ⚡ — optical measurement with no load on the shaft.
- ±(0.04%+2) accuracy ✅ — and ±0.03% on the 10~99 RPM range for slow rotation.
- 50–200 mm target distance 📏 — measure from a safe standoff using reflective tape.
- Counting mode 🔧 — totals 0~99,999 events, 10kHz maximum input frequency, 5% bandwidth.
- MAX/MIN/AVG modes ✅ — track speed variation across a test run.
- 100,000-count display 🔋 — with data hold and low-battery indication.
- Pocketable 100 g body 📏 — 184 × 56 × 34 mm, runs on 4 × AA batteries.
- Auto power-off 🔋 — around 15 minutes to preserve battery life.
Technical Specifications
| RPM range (10~99) | ±(0.03%) |
|---|---|
| RPM range (100~999) | ±(0.04%+2) |
| RPM range (1000~9999) | ±(0.04%+2) |
| RPM range (10000~99999) | ±(0.04%+2) |
| Counting | Range 0~99999; max input frequency 10kHz; bandwidth 5% |
| Target distance | 50mm~200mm |
| Display count | 100000 |
| Modes | MAX / MIN / AVG |
| Data hold | Yes |
| Auto power off | Around 15 minutes |
| Low battery indication | ≤4.8V |
| Power | 1.5V battery (LR6 / AA) × 4 |
| Display size | 53mm × 41mm |
| Product size | 184mm × 56mm × 34mm |
| Net weight | 100g |
| Colour | Red and grey |
What's in the Box
- UT371 non-contact tachometer
- Reflective tape
- Batteries
- English manual
Downloads
Certifications: CE, UKCA | HS Code: 9029.20
