UNI-T UT361 Vane Anemometer – Wind Speed 2~30 m/s, Air Flow CFM/CMM, Temperature 0~40°C, 2044-Set Data Logging, 7 Units, Backlit LCD
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT361 Vane Anemometer – Wind Speed 2~30 m/s, Air Flow CFM/CMM, Temperature 0~40°C, 2044-Set Data Logging, 7 Units, Backlit LCD

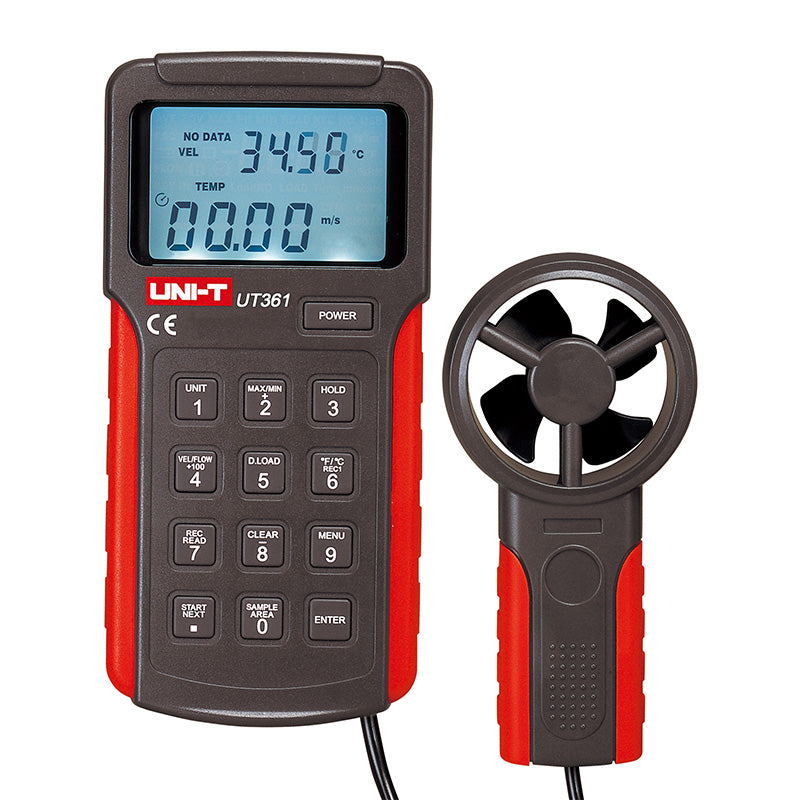

The UNI-T UT361 vane anemometer measures wind speed, air volume and temperature with a separate wearproof vane head on a lead, so you can hold the meter comfortably while placing the vane squarely in the airflow. Wind speed reads from 2 to 30 m/s and air volume in CFM or CMM once you enter the duct area.
It stores 2044 readings with a settable auto-record interval, switches between seven units, and shows MAX/MIN and real-time modes — a practical instrument for HVAC commissioning, duct balancing, ventilation surveys and environmental testing.
Key Features
- Wind speed 2~30 m/s 🔧 — ±(3%+0.5) from 2–10 m/s and ±(3%+0.8) from 10–30 m/s.
- Air volume in CFM and CMM ⚡ — 0.001~9999 ×100 with sample-area entry for duct flow.
- Separate vane probe 📏 — wearproof fan shaft on a lead for accuracy and easy positioning.
- Temperature 0~40°C 🔧 — ±3°C, with °C/°F selectable.
- 2044-set data storage ✅ — auto-record with a 0.5~255 s interval for unattended logging.
- Seven selectable units ⚡ — m/s, km/h, ft/min, MPH, KNOTS, CFM and CMM.
- MAX/MIN and averaging modes ✅ — wind speed MAX/MIN/real-time; air volume MAX, 2/3 MAX, MIN, AVG.
- Backlit LCD with data hold 🔋 — 10000-count display and cancelable auto power-off.
Technical Specifications
| Wind speed range | 2m/s~10m/s — ±(3%+0.5); 10m/s~30m/s — ±(3%+0.8) |
|---|---|
| Air volume (CMM) | 0.001~9999 × 100 |
| Air volume (CFM) | 0.001~9999 × 100 |
| Temperature | 0°C~40°C (32°F~104°F) — ±3°C (±4°F) |
| Display count | 10000 |
| Units | m/s, km/h, ft/min, MPH, KNOTS, CFM, CMM |
| Data storage | 2044 sets |
| Auto record interval | 0.5~255 s |
| Modes | Wind speed: MAX/MIN/real-time; Air volume: MAX, 2/3 MAX, MIN, AVG, real-time |
| Data hold | Yes |
| LCD backlight | Yes |
| Auto power off | Around 10 minutes (cancelable) |
| Low battery indication | ≤7.2V |
| Power | 9V battery (6F22) |
| Display size | 57mm × 37mm |
| Product size | 162mm × 78mm × 30mm |
| Net weight | 375g |
| Colour | Red and grey |
What's in the Box
- UT361 vane anemometer with vane probe
- 9V battery
- Carrying bag
- English manual and gift box
Downloads
Certifications: CE, UKCA | HS Code: 9026.80
