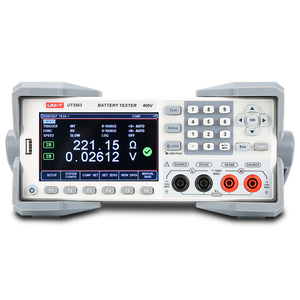

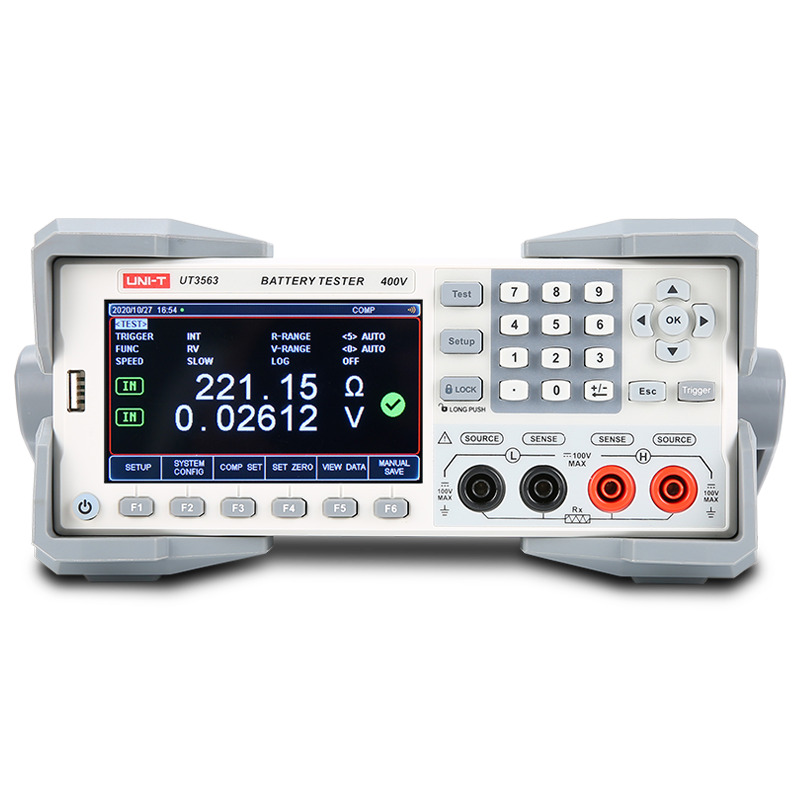

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - a grey benchtop unit with a 4.3-inch display, numeric keypad, function buttons, and four input terminals on the front.

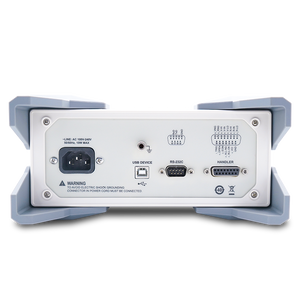

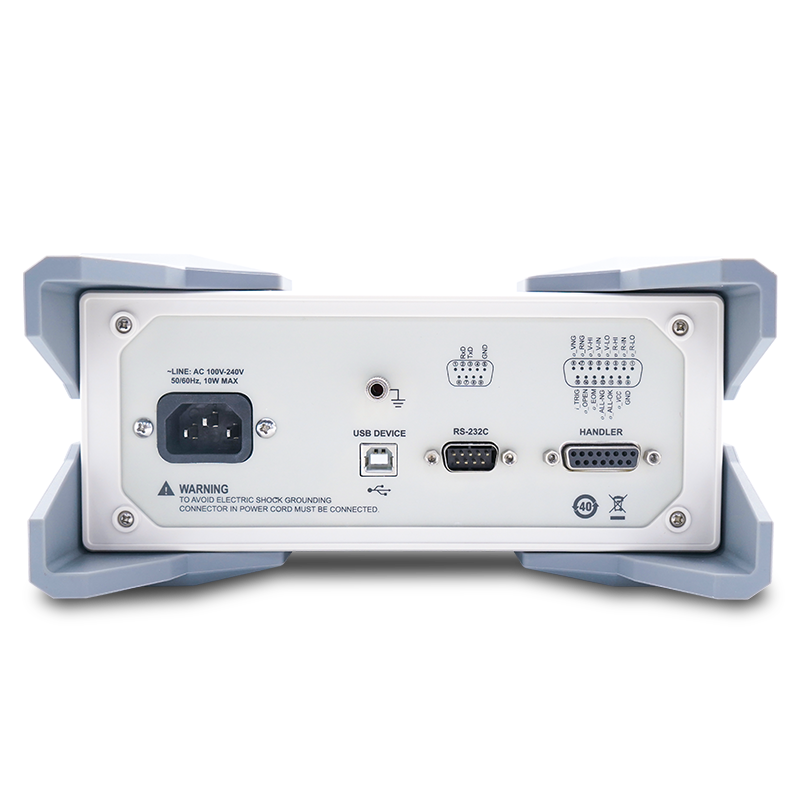

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - rear view showing the power input, USB device port, RS-232 port, and Handler interface connector on a light grey housing.

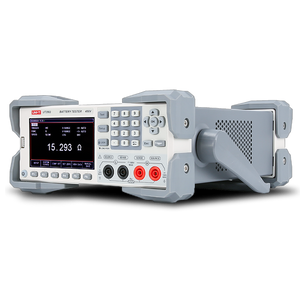

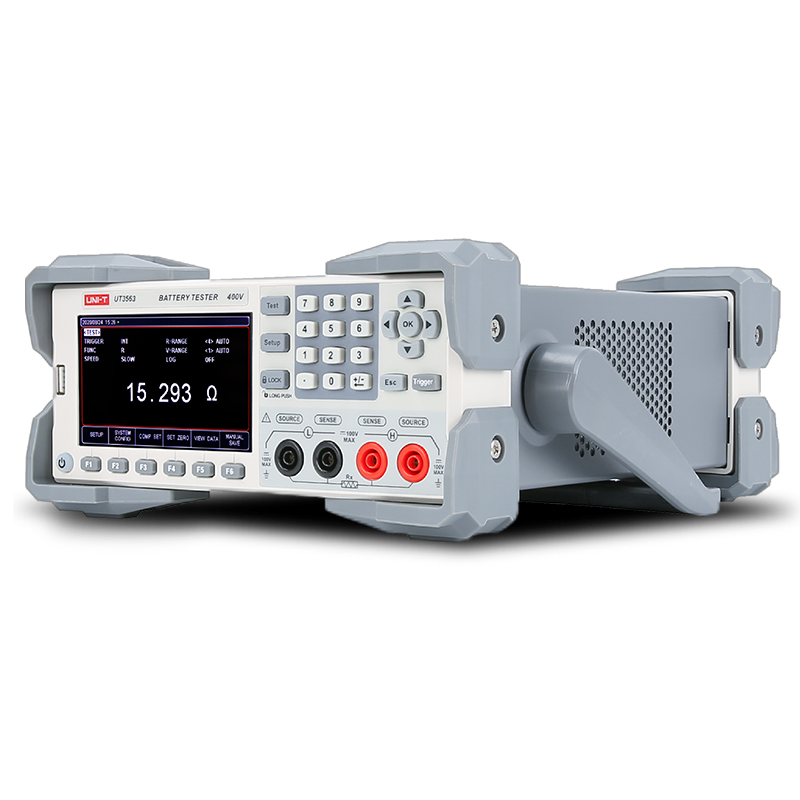

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - grey protective frame, featuring a front display showing 15.293 Ω, a keypad, function buttons, and four input terminals.
UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - a grey benchtop unit with a 4.3-inch display, numeric keypad, function buttons, and four input terminals on the front.
UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - rear view showing the power input, USB device port, RS-232 port, and Handler interface connector on a light grey housing.
UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - grey protective frame, featuring a front display showing 15.293 Ω, a keypad, function buttons, and four input terminals.

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler

Sale price Rs 443,750
SKU: UT3562
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - a grey benchtop unit with a 4.3-inch display, numeric keypad, function buttons, and four input terminals on the front.

UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler - a grey benchtop unit with a 4.3-inch display, numeric keypad, function buttons, and four input terminals on the front.
UNI-T UT3562 Battery Tester – Internal Resistance & Voltage Analyzer up to 100V, µΩ–kΩ, 4.3" TFT, Comparator, RS-232 / USB / Handler
Sale priceRs 443,750

The UNI-T UT3562 is a high-precision battery tester (battery internal-resistance & voltage analyzer) from the UT3560 series, for battery analysis, quality control and production testing of lithium, lead-acid and button-cell batteries. It measures internal resistance from micro-ohms to kilo-ohms and DC voltage up to 100 V, with a 4.3-inch TFT display, comparator sorting and RS-232/USB/Handler interfaces. Genuine UNI-T product supplied by Digilog.pk.

Key Features

  • High-precision measurement of battery internal resistance and DC voltage simultaneously
  • Internal resistance from micro-ohms to kilo-ohms; automatic & manual range selection
  • 4.3-inch TFT LCD showing voltage and resistance together
  • Built-in comparator (PASS / FAIL / IN) with upper & lower limits for sorting
  • Interfaces: RS-232, USB, Handler (PLC) for remote control and automated production lines
  • Suitable for lithium, lead-acid and button-cell batteries

Technical Specifications

Measurement Battery internal resistance & DC voltage
Voltage Range Up to 100 V
Resistance Range Micro-ohms to kilo-ohms (µΩ–kΩ)
Range Selection Automatic / manual
Display 4.3-inch TFT LCD (simultaneous V & R)
Comparator PASS / FAIL / IN, upper & lower limits
Terminals 4-terminal Kelvin (SOURCE/SENSE ×2)
Interfaces RS-232, USB, Handler (PLC)
Power AC 100–240 V, 50/60 Hz, 10 W max

What's in the Box

  • UT3562 battery tester
  • Kelvin test leads / clips
  • Power cord
  • English user manual

Downloads

Certifications: CE, RoHS | HS Code: 9030.39
