Name: UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable
Brand: UNI-T
SKU: UT345A
Price: 42500.0 PKR
Availability: InStock

Home ALL Products

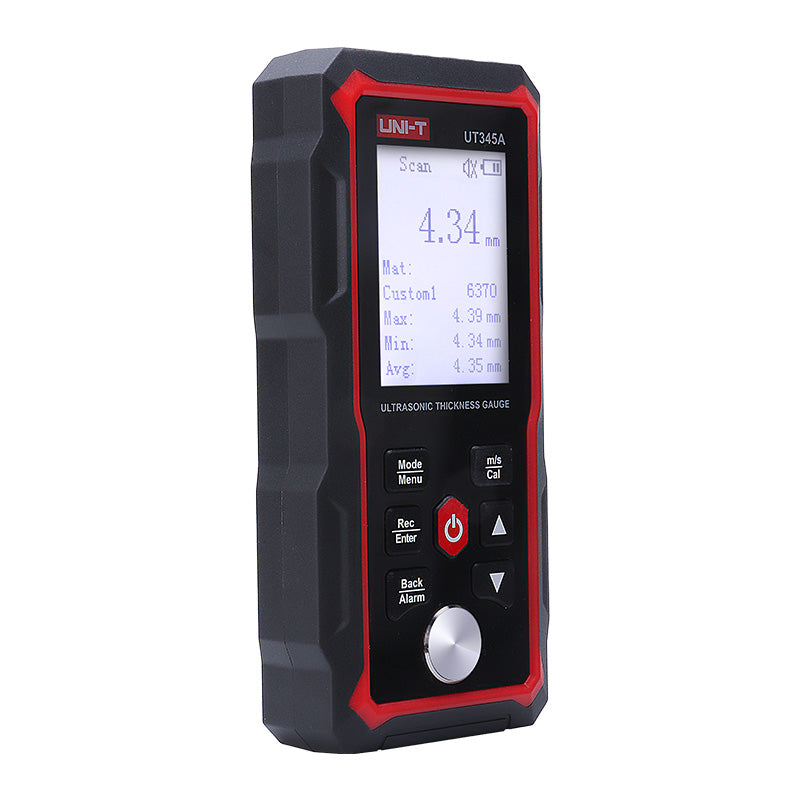

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable - a digital screen reading 4.34 mm with control buttons and a metallic circular sensor.

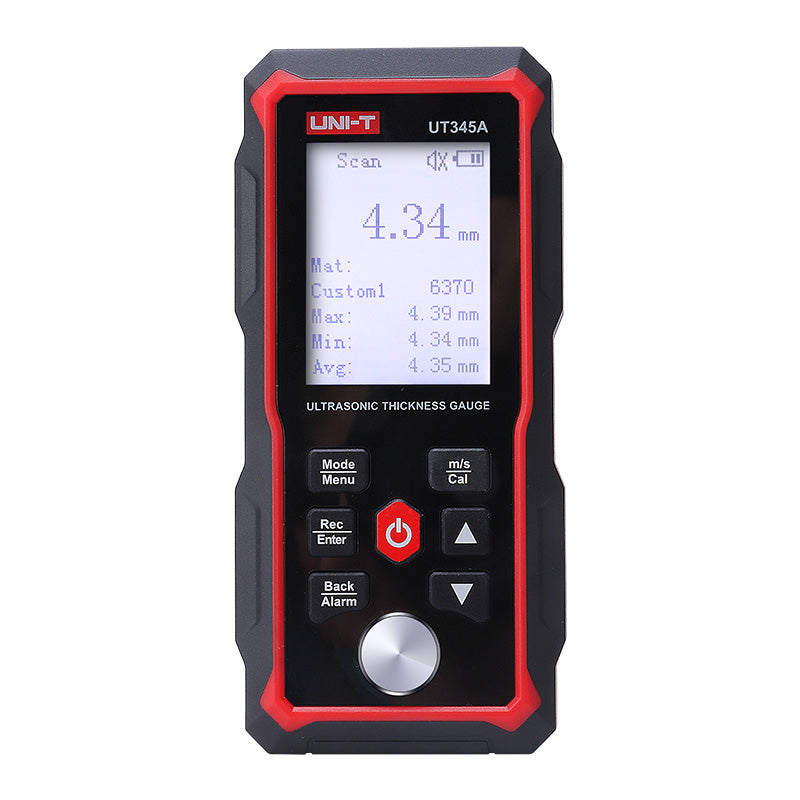

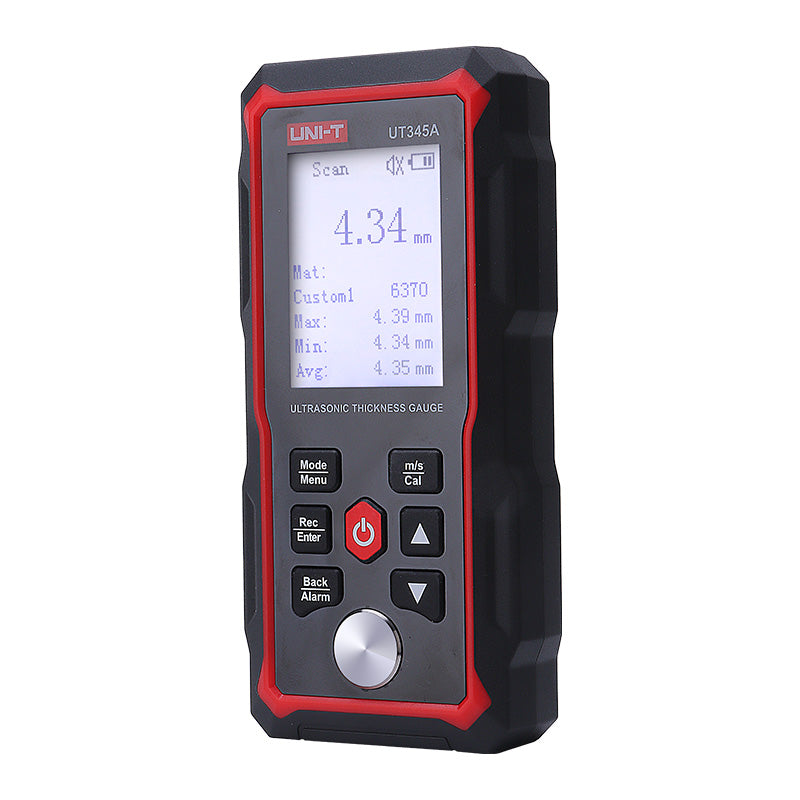

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable - a black and red handheld device with a 2.4" LCD displaying 4.34 mm, control buttons, and a round sensor.

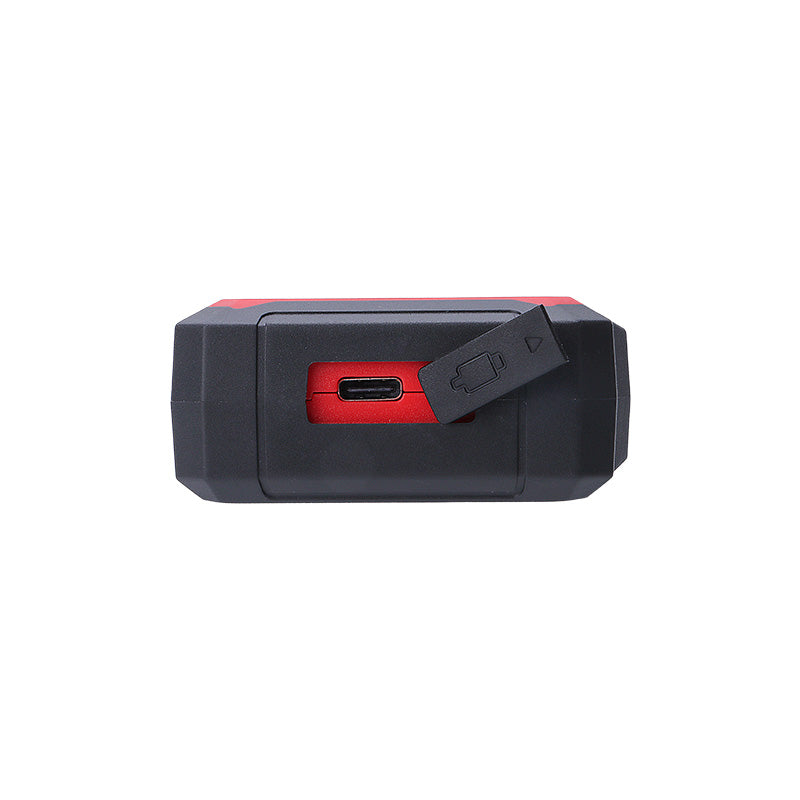

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable - the red and black housing with an open USB-C charging port protected by a rubber cover.

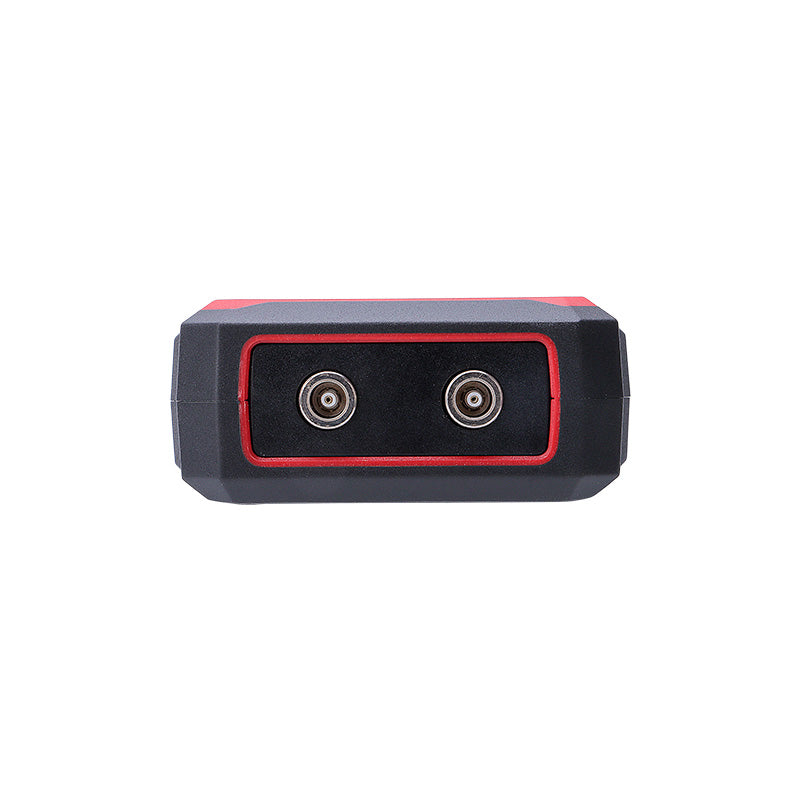

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable - close-up view of the black and red top panel featuring two circular metal probe connectors.

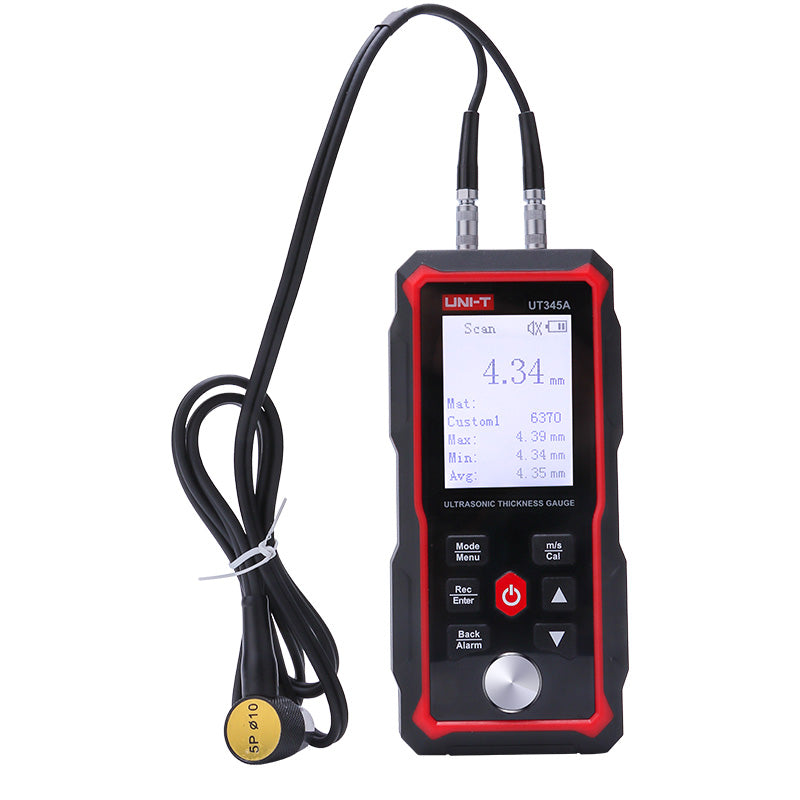

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable - with a black and red handheld body, LCD screen displaying 4.34 mm, control buttons, and a connected probe.

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable

Rs 42,500

SKU: UT345A

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT345A Ultrasonic Thickness Gauge – Metal & Material, 1.00–300.00 mm, ±0.1 mm, Sound Velocity 1000–9999 m/s, 2.4" LCD, 300 Memory, USB-C Rechargeable

Rs 42,500

UNI-T UT345A — digital ultrasonic thickness gauge that measures the thickness and sound velocity of metals and other materials without cutting, ideal for pipes, tanks, plates and hulls. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

Measures metal & material thickness 1.00 ~ 300.00 mm
Accuracy ±0.1 mm (<10 mm); ±(1%H+0.1) mm (≥10 mm)
Sound-velocity mode 1000 ~ 9999 m/s
Measures pipes down to Φ20 × 3 mm (steel)
300-group memory with MAX / MIN / AVG
2.4" LCD; rechargeable 2000 mAh Li-ion (~16 h), USB-C

Technical Specifications

Principle	Ultrasonic (pulse-echo)
Range	1.00 ~ 300.00 mm
Accuracy	±0.1 mm (<10 mm); ±(1%H+0.1) mm (≥10 mm)
Sound Velocity	1000 ~ 9999 m/s
Min Pipe	Φ20 × 3 mm (steel)
Memory	300 groups
Display	2.4" LCD
Battery	3.7V 2000 mAh Li-ion, USB-C (~16 h)
Dimensions / Weight	140 × 66 × 28.5 mm / 175 g
