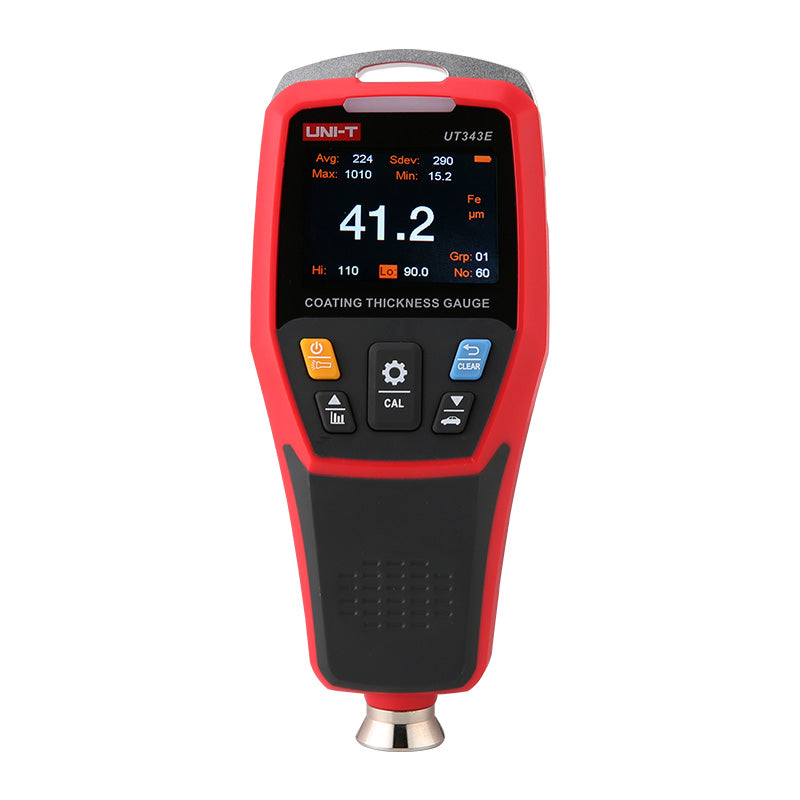

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen with 41.2 µm reading, control buttons, and a bottom metal sensor probe.

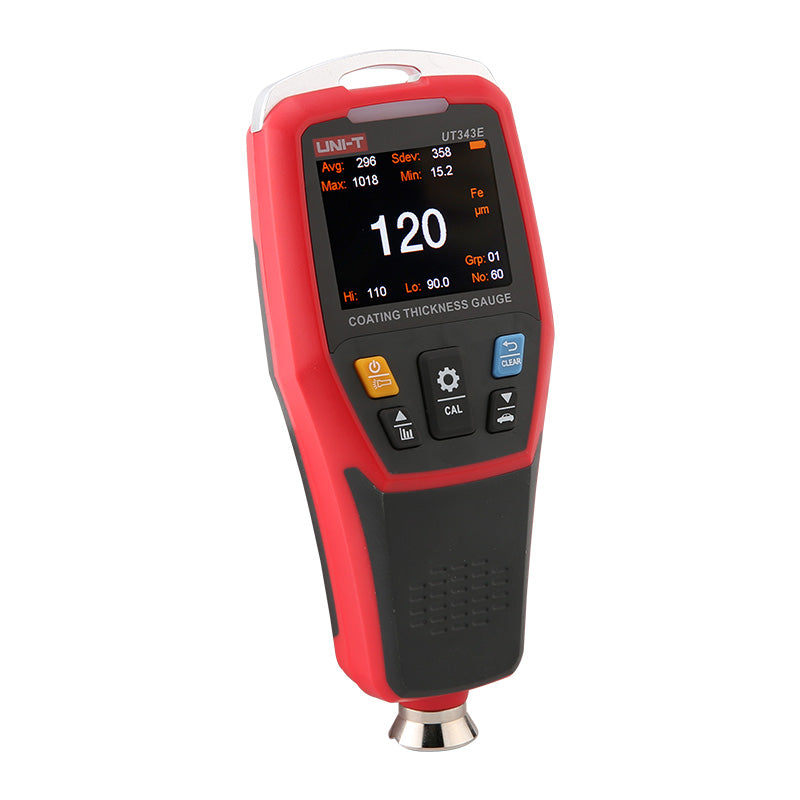

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a red and black handheld device with a color display showing a reading of 120, control buttons, and a metal sensor.

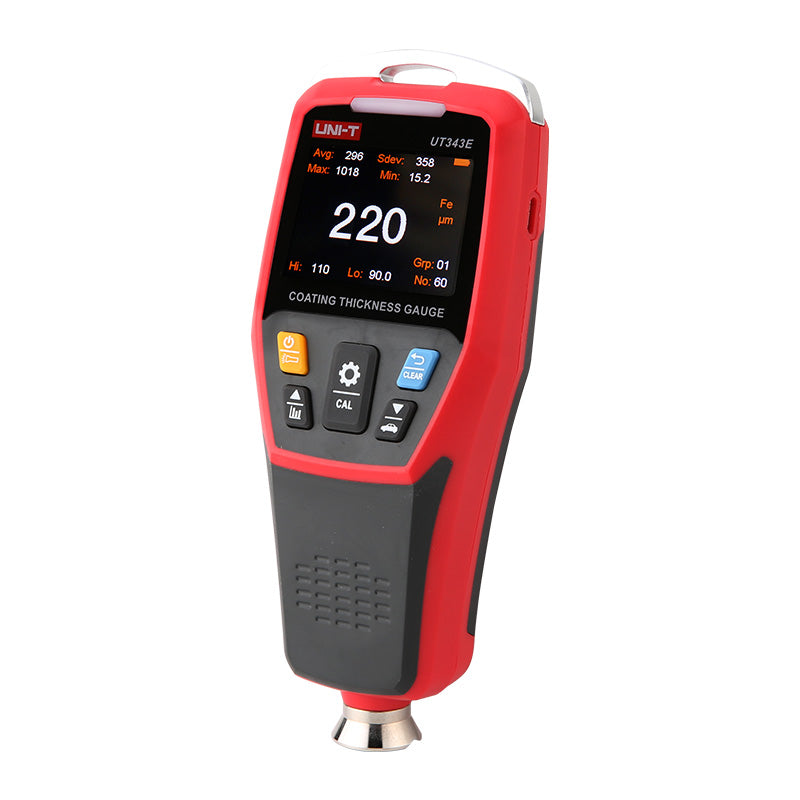

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen reading 220 µm, control buttons, and a bottom metallic sensor probe.

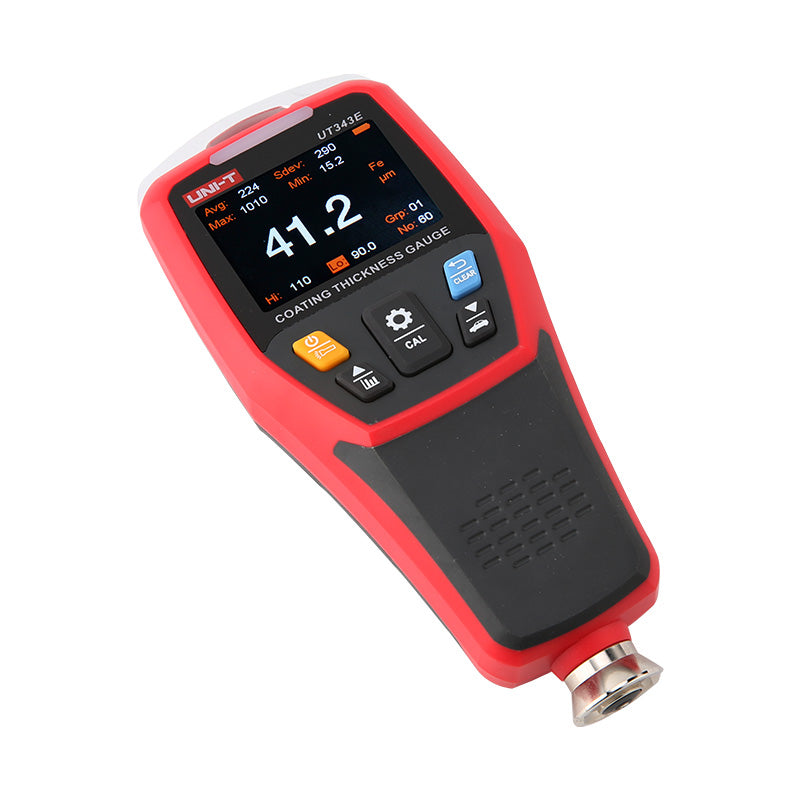

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a color screen with a 41.2 µm reading, control buttons, and a bottom probe sensor.

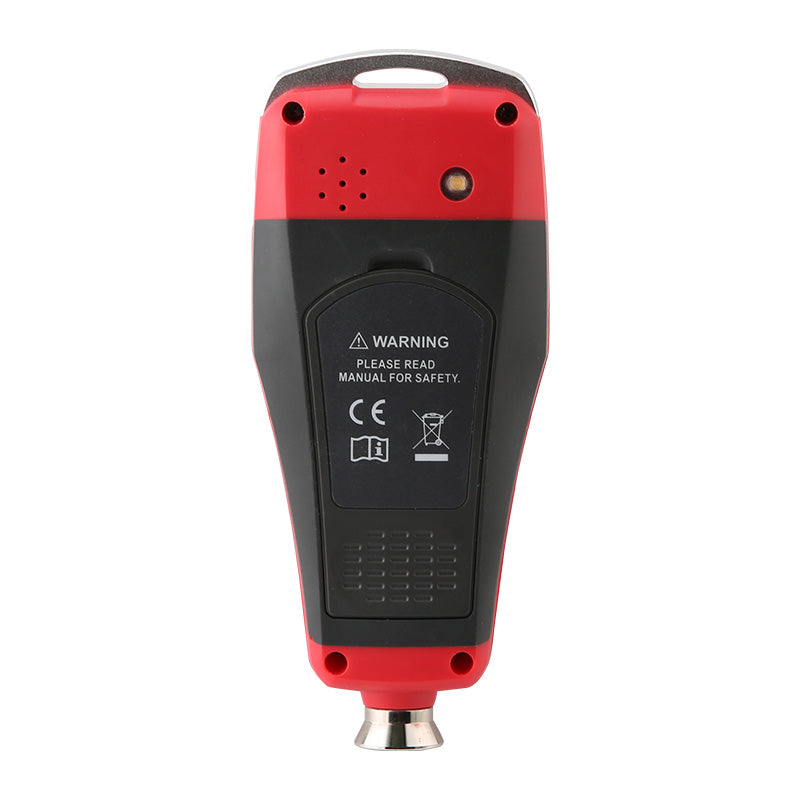

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - rear view showing the red and black plastic casing, a warning label, speaker holes, and a metallic sensor tip.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen with 41.2 µm reading, control buttons, and a bottom metal sensor probe.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a red and black handheld device with a color display showing a reading of 120, control buttons, and a metal sensor.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen reading 220 µm, control buttons, and a bottom metallic sensor probe.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a color screen with a 41.2 µm reading, control buttons, and a bottom probe sensor.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - rear view showing the red and black plastic casing, a warning label, speaker holes, and a metallic sensor tip.

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings

Sale price Rs 46,250
SKU: UT343E
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen with 41.2 µm reading, control buttons, and a bottom metal sensor probe.

UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings - a digital screen with 41.2 µm reading, control buttons, and a bottom metal sensor probe.
UNI-T UT343E Bluetooth Coating Thickness Gauge – Fe & NFe, 0–2000 µm, ±(2%+2), Colour TFT, App + PC Software, Voice Broadcast, 3300 Readings
Sale priceRs 46,250

UNI-T UT343E — premium Bluetooth coating (paint) thickness gauge with colour TFT, voice broadcast and both mobile-app and PC software analysis. Measures coatings on ferrous and non-ferrous metals via magnetic induction and eddy current. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • Measures on Fe (magnetic) & NFe (eddy-current) substrates
  • Wide range 0 ~ 2000 µm; resolution 0.1 µm; accuracy ±(2%H+2) µm
  • Bluetooth app + PC software analysis & reporting
  • Voice broadcast of readings; single & continuous, MAX / MIN / AVG
  • 3300-reading storage; colour TFT with auto-rotation
  • Rechargeable 3.7V 1300 mAh Li-ion

Technical Specifications

Principle Magnetic induction (Fe) + eddy current (NFe)
Range 0 ~ 2000 µm
Resolution 0.1 µm (0–99.9 µm); 1 µm (100–2000 µm)
Accuracy ±(2%H+2) µm
Connectivity Bluetooth app + PC software
Storage 3300 readings
Battery 3.7V 1300 mAh Li-ion
Dimensions / Weight 152 × 65 × 35 mm / 150 g

What's in the Box

  • UT343E coating thickness gauge
  • USB cable, hand strap, sensor cover
  • Fe & NFe calibration substrates + 6 reference coating sheets
  • English user manual

Downloads

Certifications: CE, UKCA, RoHS | HS Code: 9031.8000
