UNI-T UT343D Coating Thickness Gauge – Fe & NFe, 0–1250 µm, 0.1 µm Resolution, 2.0" TFT, USB + PC Software, 500-Group Memory, Paint & Galvanising Tester
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT343D Coating Thickness Gauge – Fe & NFe, 0–1250 µm, 0.1 µm Resolution, 2.0" TFT, USB + PC Software, 500-Group Memory, Paint & Galvanising Tester

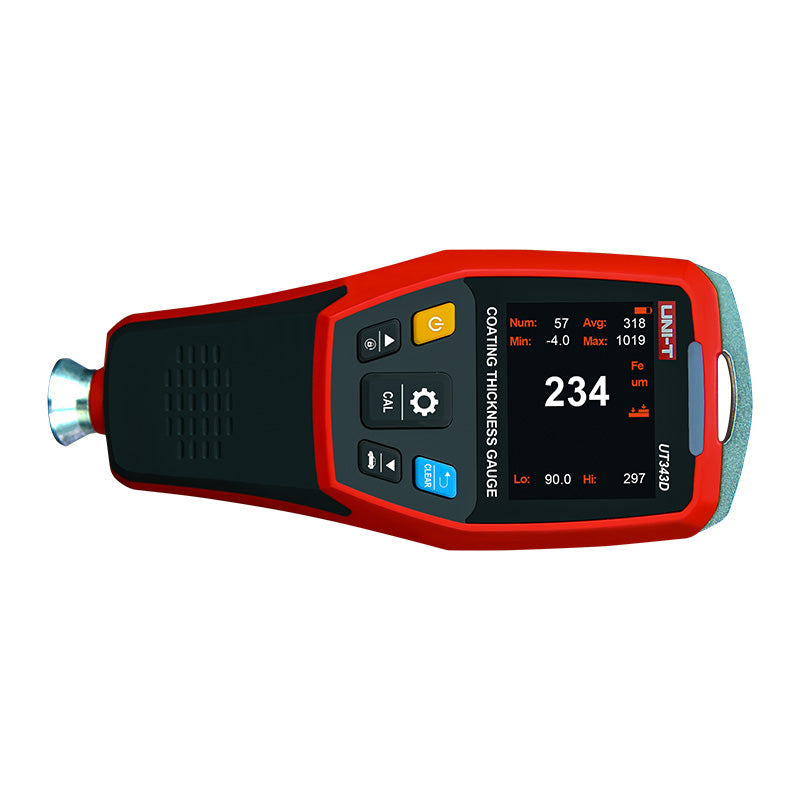

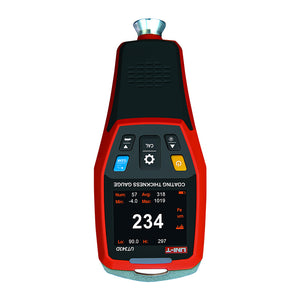

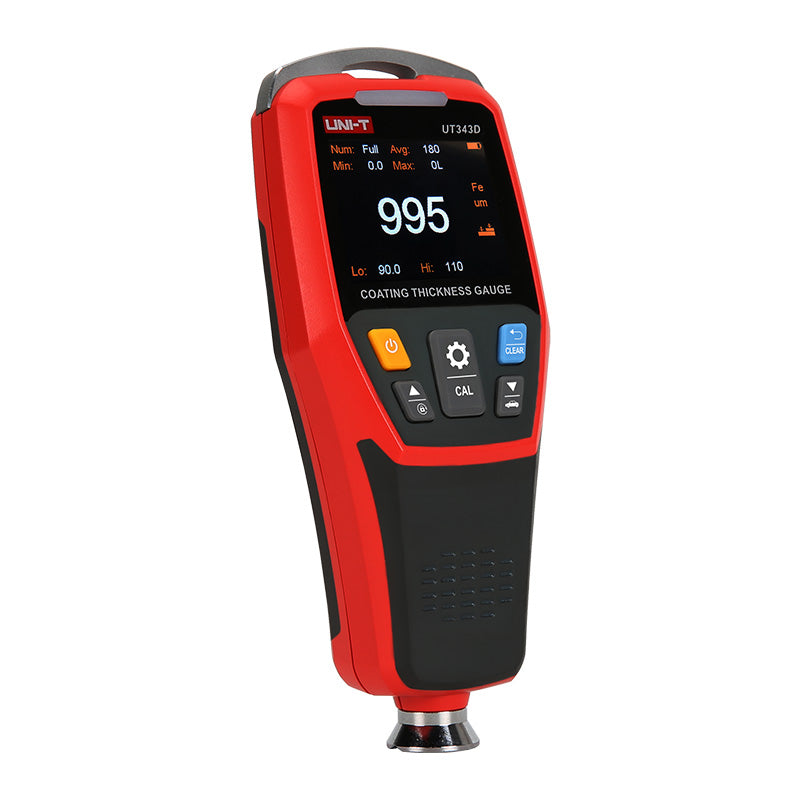

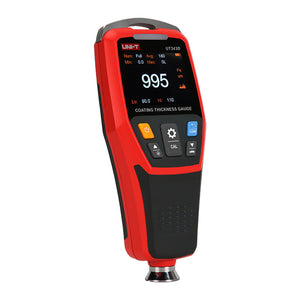

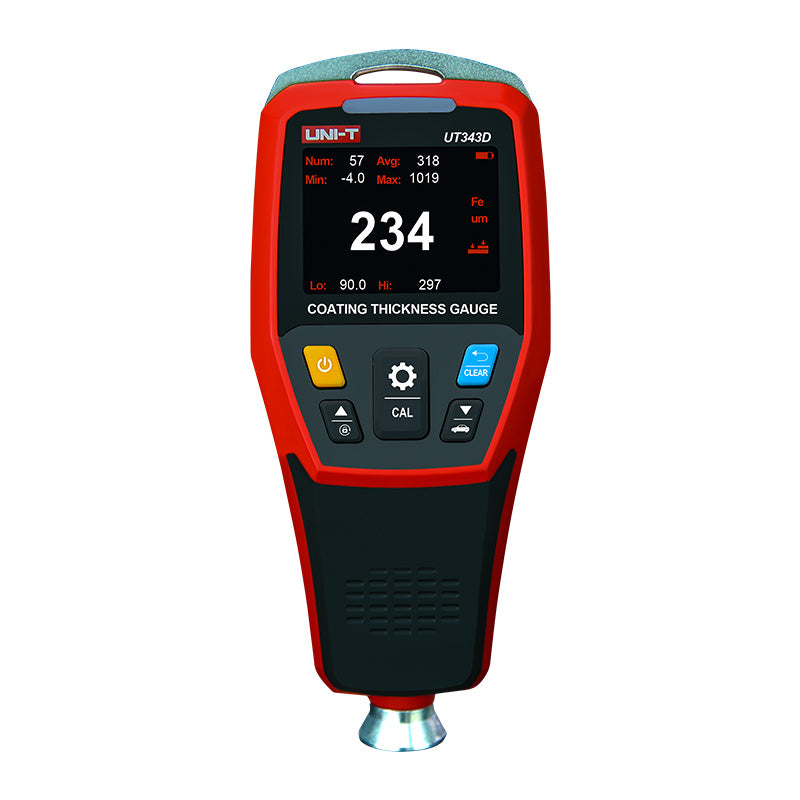

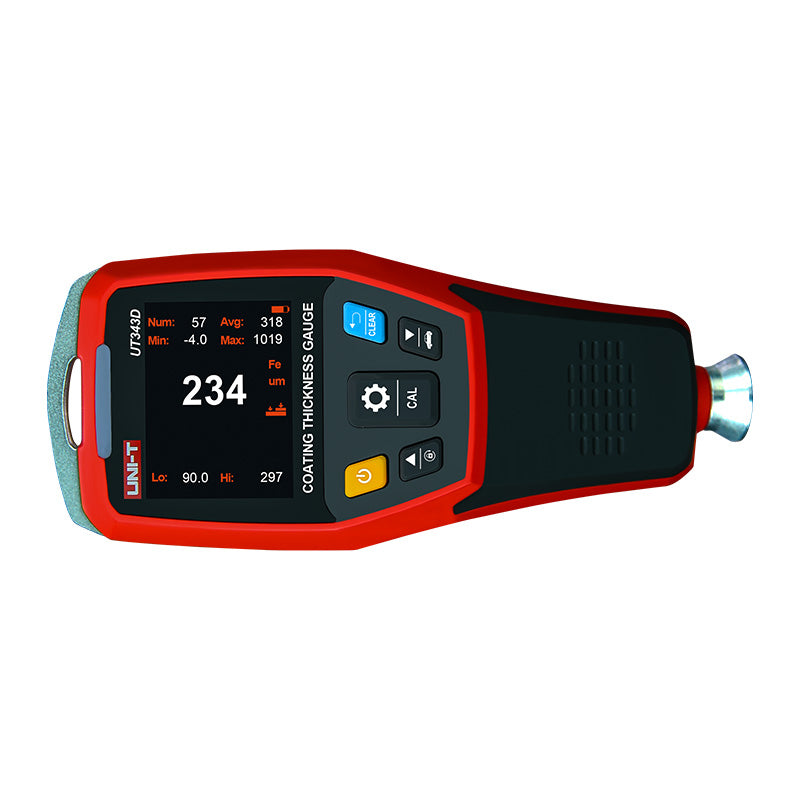

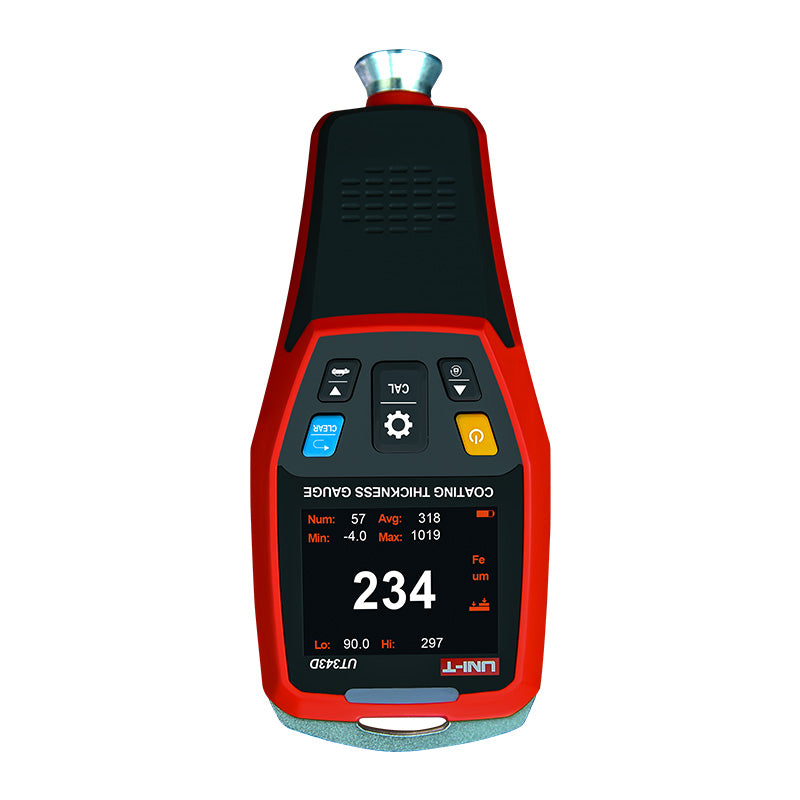

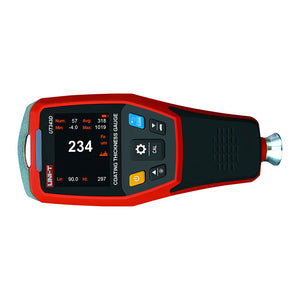

UNI-T UT343D — digital coating (paint) thickness gauge with a 2.0" colour TFT, USB connectivity and PC analysis software, measuring coatings on ferrous and non-ferrous metals via magnetic induction and eddy current. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- Measures on Fe (magnetic) & NFe (eddy-current) substrates
- Range 0 ~ 1250 µm; resolution 0.1 µm (0–99.9), 1 µm (≥100)
- Accuracy ±(3%H+1) µm; single & continuous, MAX / MIN / AVG
- 500-group memory with USB + PC analysis software
- 2.0" TFT LCD (320×240), brightness control, auto-rotate
- LED & audio alarm, auto power-off
Technical Specifications
| Principle | Magnetic induction (Fe) + eddy current (NFe) |
|---|---|
| Range | 0 ~ 1250 µm |
| Resolution | 0.1 µm (0–99.9 µm); 1 µm (100–1250 µm) |
| Accuracy | ±(3%H+1) µm |
| Memory / PC | 500 groups; USB + PC software |
| Display | 2.0" TFT LCD, 320×240, auto-rotate |
| Power | 2 × 1.5V AA batteries |
| Dimensions / Weight | 153.5 × 64.5 × 41 mm / 175 g |
What's in the Box
- UT343D coating thickness gauge
- Micro-USB cable
- Calibration standard piece
- Batteries & cloth bag
- English user manual
Downloads
Certifications: CE, UKCA, RoHS | HS Code: 9031.8000
