Home ALL Products UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54
2ft Braid Solder Remover Wick 0.75M 2.0 mm Desoldering Copper Spool Wire Back to ALL Products MB102 Breadboard 830 Points Solderless Prototyping Breadboard High Quality

Sidebar

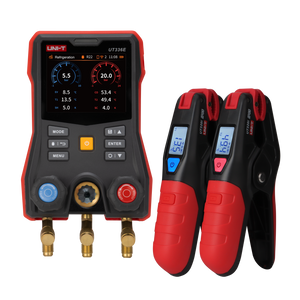

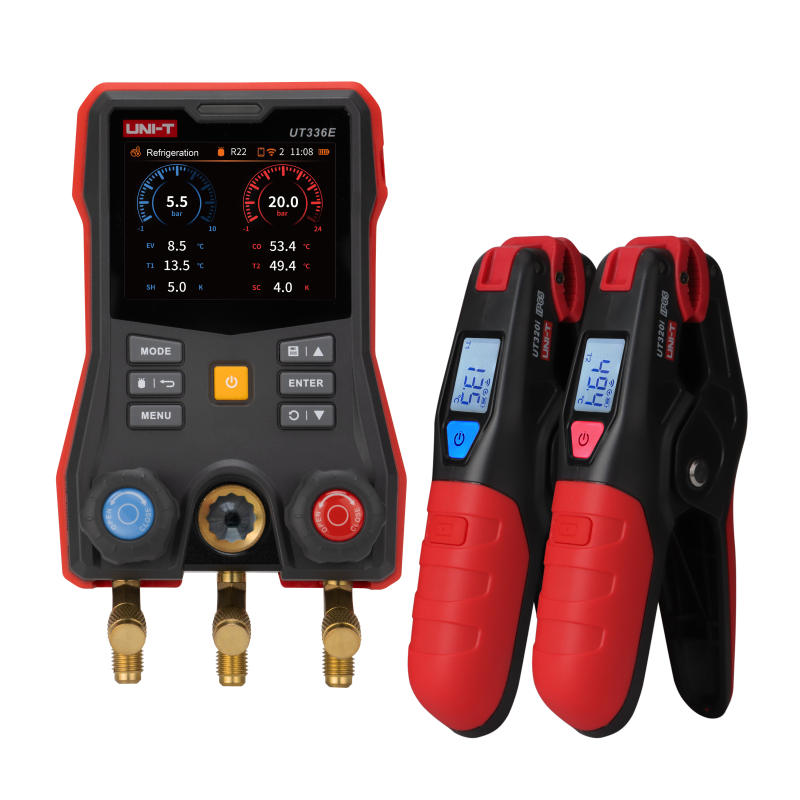

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a black and red main unit with a touchscreen display and two matching wireless temperature clamp sensors.

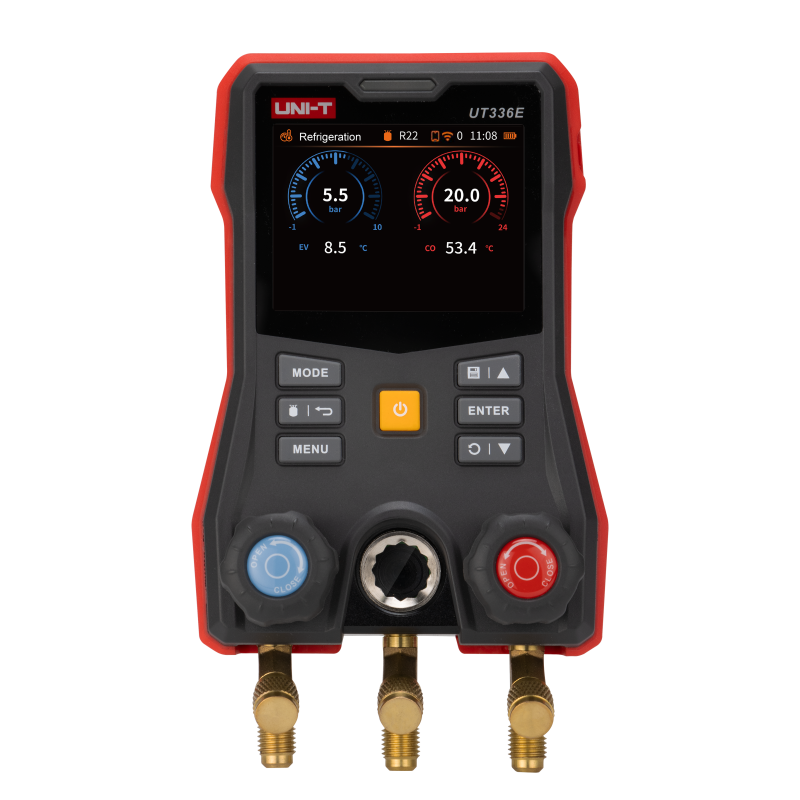

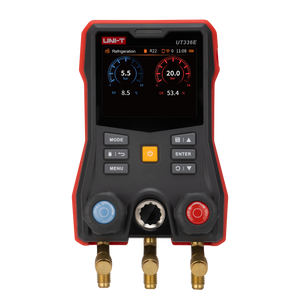

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - with a black and red housing, 3.5-inch screen showing 5.5 bar and 20.0 bar, control buttons, and brass hose connectors.

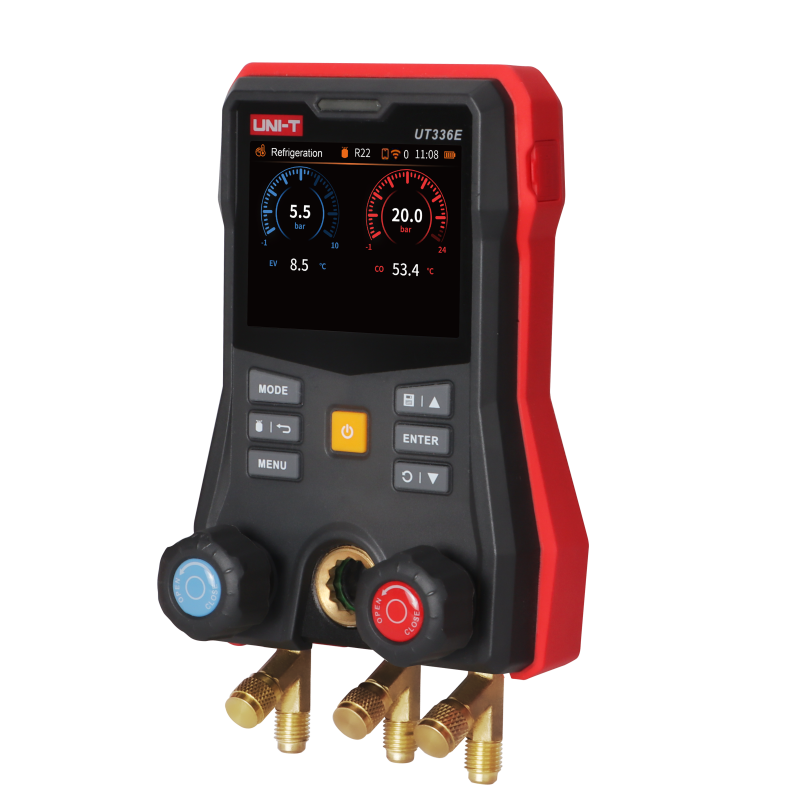

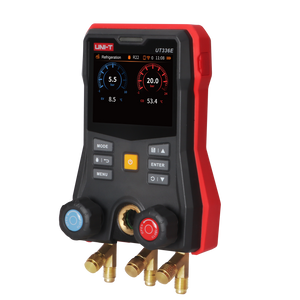

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - with a red and black body, 3.5-inch screen showing pressure and temperature data, control buttons, and three ports.

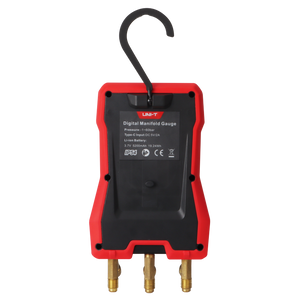

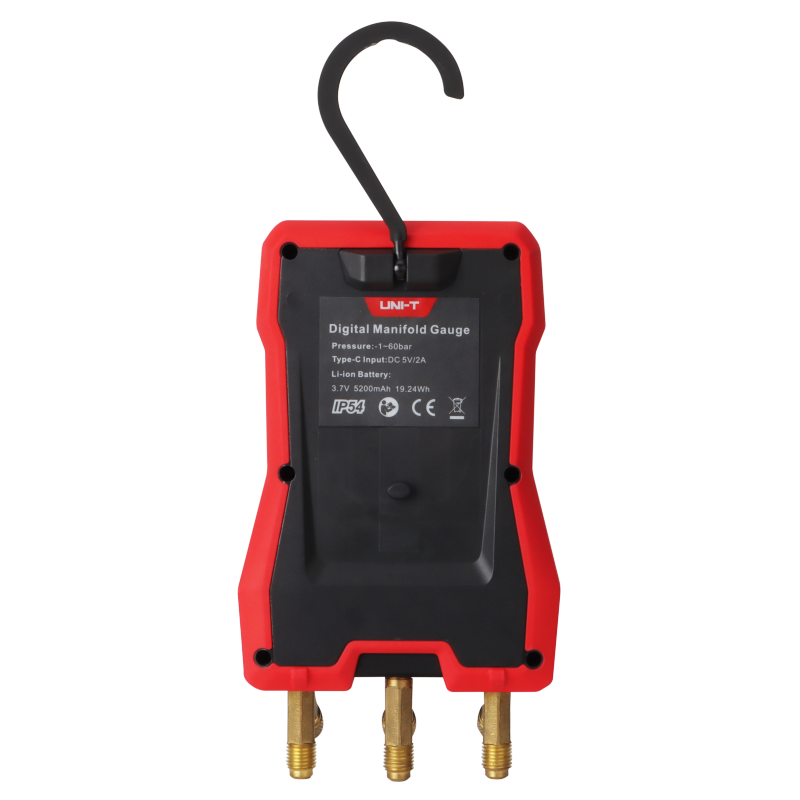

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a red and black casing, a hanging hook, and three brass connectors at the bottom.
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a black and red main unit with a touchscreen display and two matching wireless temperature clamp sensors.
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - with a black and red housing, 3.5-inch screen showing 5.5 bar and 20.0 bar, control buttons, and brass hose connectors.
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - with a red and black body, 3.5-inch screen showing pressure and temperature data, control buttons, and three ports.
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a red and black casing, a hanging hook, and three brass connectors at the bottom.

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54

Sale price Rs 62,500
SKU: UT336EKIT
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a black and red main unit with a touchscreen display and two matching wireless temperature clamp sensors.

UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54 - a black and red main unit with a touchscreen display and two matching wireless temperature clamp sensors.
UNI-T UT336E Digital Manifold Gauge (Complete Kit) – HVAC, -1 to 60 bar, 162+ Refrigerants, Superheat/Subcooling, 3.5" Touchscreen, iENV App, IP54
Sale priceRs 62,500

UNI-T UT336E — professional digital HVAC manifold gauge for installing, commissioning and servicing refrigeration and heat-pump systems. Reads high- and low-side pressures, auto-calculates superheat/subcooling with wireless temperature clamps, and connects to the free iENV app. Supplied as a complete kit by Digilog.pk with user manual and warranty.

Key Features

  • Pressure -1.00 ~ +60.00 bar (±0.5% FS), 3 × 1/4" SAE ports
  • Built-in database of 162+ refrigerants with auto evaporation/condensation temps
  • Auto superheat / subcooling with wireless temperature clamps
  • Evacuation & pressure-hold modes
  • 3.5" HD colour touchscreen, tap-to-wake, IP54
  • iENV app (iOS/Android), up to 100 m wireless, OTA updates
  • Rechargeable 5200 mAh Li-ion (30+ h), USB-C

Technical Specifications

Pressure Range -1.00 ~ +60.00 bar (-14.5 ~ +870.2 psi)
Resolution 0.01 bar (1 kPa; 0.1 psi)
Accuracy ±0.5% FS
Refrigerants 162+ built-in database
Ports 3 × 1/4" SAE
Display 3.5" HD colour touchscreen, IP54
Connectivity iENV app, wireless ≤100 m, OTA
Battery 3.7V 5200 mAh Li-ion (30+ h), USB-C

What's in the Kit

  • UT336E digital manifold gauge
  • USB-C charging cable
  • Tool box
  • User manual & safety guide

Downloads

Certifications: CE, UKCA | HS Code: 9026.2000
